1-643821-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-643821-2

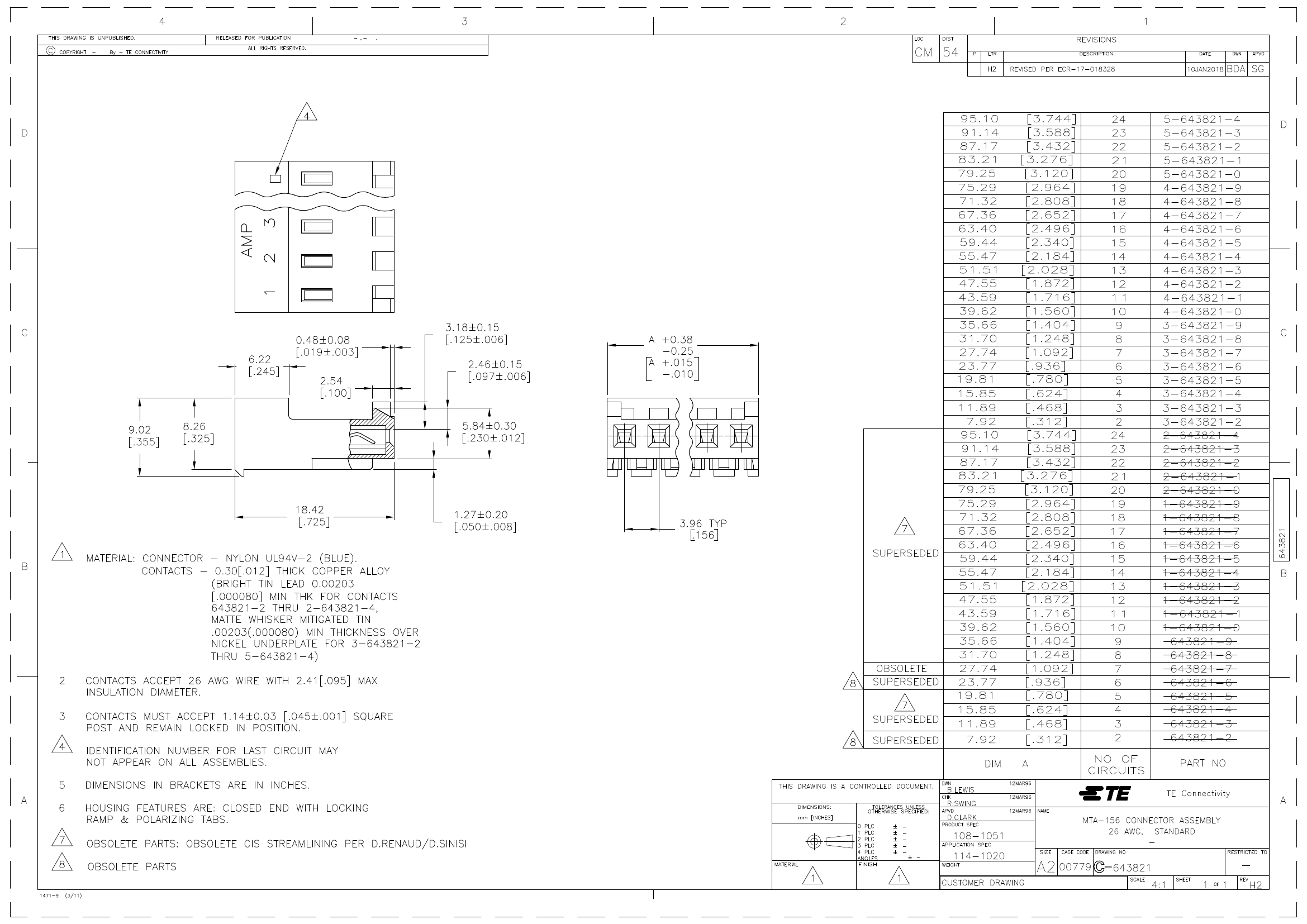

1-643821-2: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,12 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1-643821-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-643821-2	-	-	View	Buy Now

1-643821-2 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,12 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE

1-643821-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	compliant
Is Samacsys	N
Other features	CLOSED END & POLARIZING TABS
body width	0.355 inch
subject depth	0.725 inch
body length	1.872 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	3 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V
Durability	25 Cycles
maximum insertion force	8.0064 N
Insulation resistance	5000000000 Ω
Insulator color	BLUE
insulator material	NYLON
Manufacturer's serial number	643821
Plug contact pitch	0.156 inch
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	80u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	12
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	.8896 N
Base Number Matches	1

Preview

Download Datasheet

View All

1-643821-2 Related Products

	1-643821-2	1-643821-0	9664-F1-02-90-1TR	1-643821-7	643821-8	643821-9	643821-3
Description	HEADER CONNECTOR,CABLE MNT,PLUG,12 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE	HEADER CONNECTOR,CABLE MNT,PLUG,10 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE	Board Connector	HEADER CONNECTOR,CABLE MNT,PLUG,17 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE	HEADER CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE	HEADER CONNECTOR,CABLE MNT,PLUG,9 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE	HEADER CONNECTOR,CABLE MNT,PLUG,3 CONTACTS,SKT,0.156 PITCH,IDC TERMINAL,POLARIZED LCK,BLUE
Reach Compliance Code	compliant	compliant	unknown	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible
Maker	TE Connectivity	-	-	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Other features	CLOSED END & POLARIZING TABS	CLOSED END & POLARIZING TABS	-	CLOSED END & POLARIZING TABS	CLOSED END & POLARIZING TABS	CLOSED END & POLARIZING TABS	CLOSED END & POLARIZING TABS
body width	0.355 inch	0.355 inch	-	0.355 inch	0.355 inch	0.355 inch	0.355 inch
subject depth	0.725 inch	0.725 inch	-	0.725 inch	0.725 inch	0.725 inch	0.725 inch
body length	1.872 inch	1.56 inch	-	2.652 inch	1.248 inch	1.404 inch	0.468 inch
Body/casing type	PLUG	PLUG	-	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	SN	SN	-	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	-	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	3 mΩ	3 mΩ	-	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1250VAC V	1250VAC V	-	1250VAC V	1250VAC V	1250VAC V	1250VAC V
Durability	25 Cycles	25 Cycles	-	25 Cycles	25 Cycles	25 Cycles	25 Cycles
maximum insertion force	8.0064 N	8.0064 N	-	8.0064 N	8.0064 N	8.0064 N	8.0064 N
Insulation resistance	5000000000 Ω	5000000000 Ω	-	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLUE	BLUE	-	BLUE	BLUE	BLUE	BLUE
insulator material	NYLON	POLYAMIDE	-	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	643821	-	9600	643821	643821	643821	643821
Plug contact pitch	0.156 inch	0.156 inch	-	0.156 inch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	POLARIZED LCK	POLARIZED LCK	-	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK	POLARIZED LCK
Installation option 2	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	-	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	1	1	-	1	1	1	1
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	80u inch	80u inch	-	80u inch	80u inch	80u inch	80u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	7 A	7 A	-	7 A	7 A	7 A	7 A
Guideline	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	-	IDC	IDC	IDC	IDC
Total number of contacts	12	10	-	17	8	9	3
Maximum wire diameter	26 AWG	26 AWG	-	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	26 AWG	26 AWG	-	26 AWG	26 AWG	26 AWG	26 AWG
Evacuation force-minimum value	.8896 N	.8896 N	-	.8896 N	.8896 N	.8896 N	.8896 N
