3-1734282-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1734282-3

3-1734282-3: Description37 CONTACT(S), MALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG-RECEPTACLE, ROHS COMPLIANT; CategoryThe connector The connector; File Size1016KB，37 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1734282-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1734282-3	-	-	View	Buy Now

3-1734282-3 Overview

37 CONTACT(S), MALE-FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, PLUG-RECEPTACLE, ROHS COMPLIANT

3-1734282-3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	AMPLIMITE, OTHER STACKING CONNECTOR: 37 CONTACTS; 4/C SHELL SIZE
Body/casing type	PLUG-RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE-FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
MIL compliance	NO
Manufacturer's serial number	1734282
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

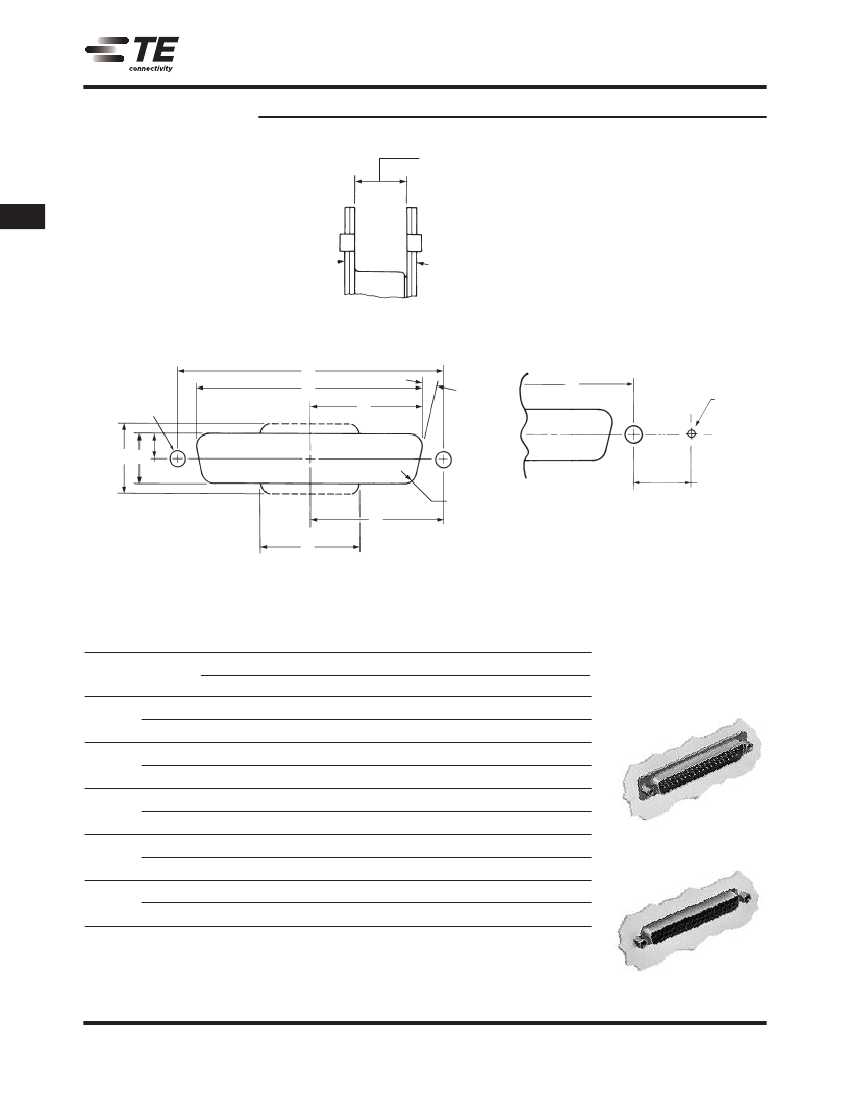

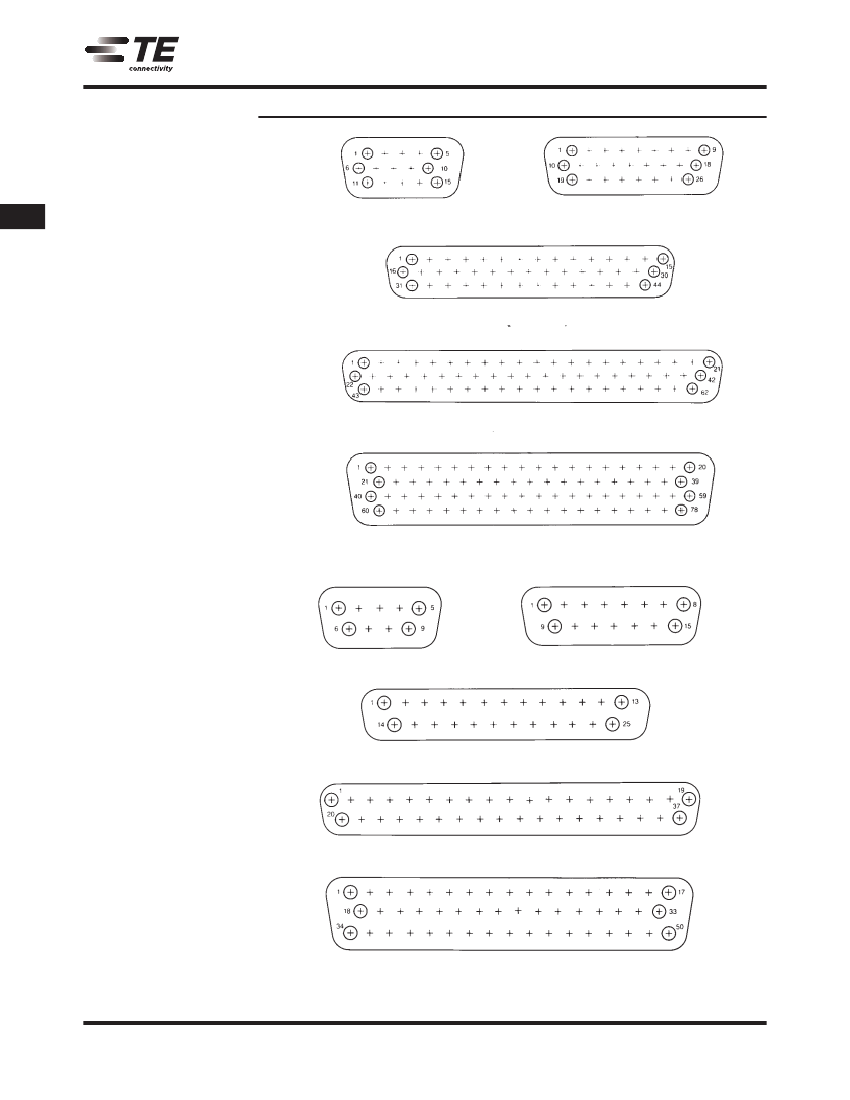

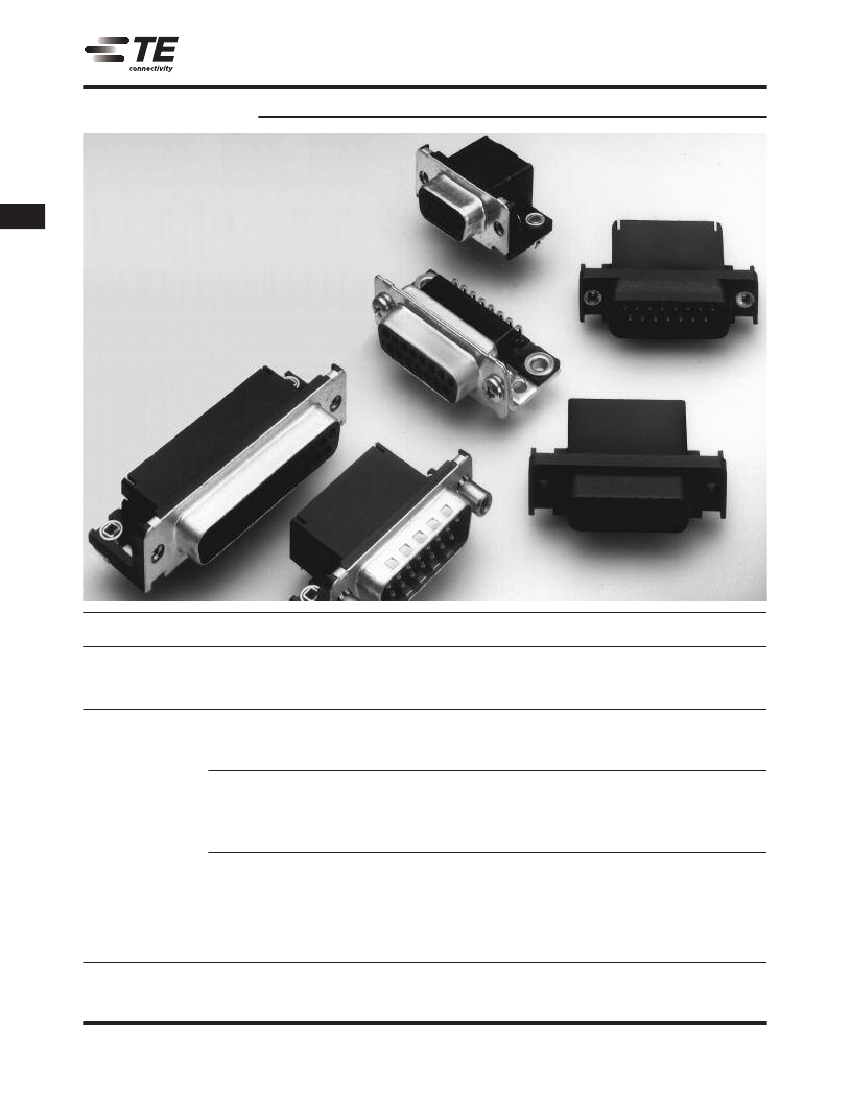

AMPLIMITE Subminiature D Connectors

Right-Angle Posted Connectors

Connector

Density

Type

Style and

Shell Finish

Front

Metal-Shell,

Tin Plated

(Pg. 52)

Full

Metal-Shell

With and Without

Grounding Indents,

Tin Plated

(Pgs. 71, 139, 155)

Front

Metal-Shell

With Grounding

Indents,

Tin Plated

(Pgs. 55-58,

60-63, 65-67, 131,

134, 138, 143, 150)

No. of

Contact

Positions

Footprint

Mating

Hardware

Threaded

Inserts

Board

Mounting

HD-22

Plug

and

Receptacle

.350

[8.89]

Boardlocks

Female

Screwlocks

Standard

Screws

Female

Screwlocks

.120

[3.05]

Dia. Holes

Threaded

Inserts

Female

Screwlocks

.125

[3.18]

Dia. Holes

.120

[3.05]

Dia. Holes

Threaded

Inserts

Female

Screwlocks

.125

[3.18]

Dia. Holes

.120

[3.05]

Dia. Elliptical

Holes

Boardlocks

.125

[3.18]

Dia. Holes

Boardlocks

.120

[3.05]

Dia. Holes

Contact Plating

(Mating Area/

Solder Tails)

Duplex

(0.000030 [0.00076]

Gold/Tin)

Duplex

(Gold Flash/Tin)

Duplex

(.000030 [0.00076]

Gold/Tin)

Duplex

(Gold Flash/Tin)

Duplex

(.000030 [0.00076]

Gold/Tin)

Duplex

(Gold Flash/Tin)

Post

Length

.125

[3.18]

.454

[11.53]

.545

[13.84]

.318

[8.08]

.478

[12.14]

.590

[14.99]

.125

[3.18]

.220

[5.59]

HD-20

Plugs

and

Receptacles

.125

[3.18]

All-Plastic

(Pgs. 68-70, 132,

133, 135, 136)

.318

[8.08]

.590

[14.99]

Duplex

(.000030 [0.00076]

Gold/Tin)

Duplex

(Gold Flash/Tin)

.125

[3.18]

Catalog 82068

Revised 4-12

www.te.com

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

Dimensions are in inches and

millimeters unless otherwise

specified.

USA: +1 (800) 522-6752

Canada: +1 (905) 475-6222

Mexico/C. Am.: +52 (0) 55-1106-0800

Latin/S. Am.: +54 (0) 11-4733-2200

Germany: +49 (0) 6251-133-1999

UK: +44 (0) 800-267666

France: +33 (0) 1-3420-8686

Netherlands: +31 (0) 73-6246-999

China: +86 (0) 400-820-6015
