DETAIL
H
SCALE 2:1
(PN 4-1546108-3, 4-1546108-4, 4-1546108-6, 4-1546108-7,
5-1546108-2, 5-1546108-3, 5-1546108-4, 5-1546108-6, 5-1546108-9)
DETAIL K
SCALE 2:1
(PN 4-1546108-5)
DETAIL N
SCALE 2:1
(PN 6-1546108-3, 6-1546108-4, 6-1546108-5, 6-1546108-9)

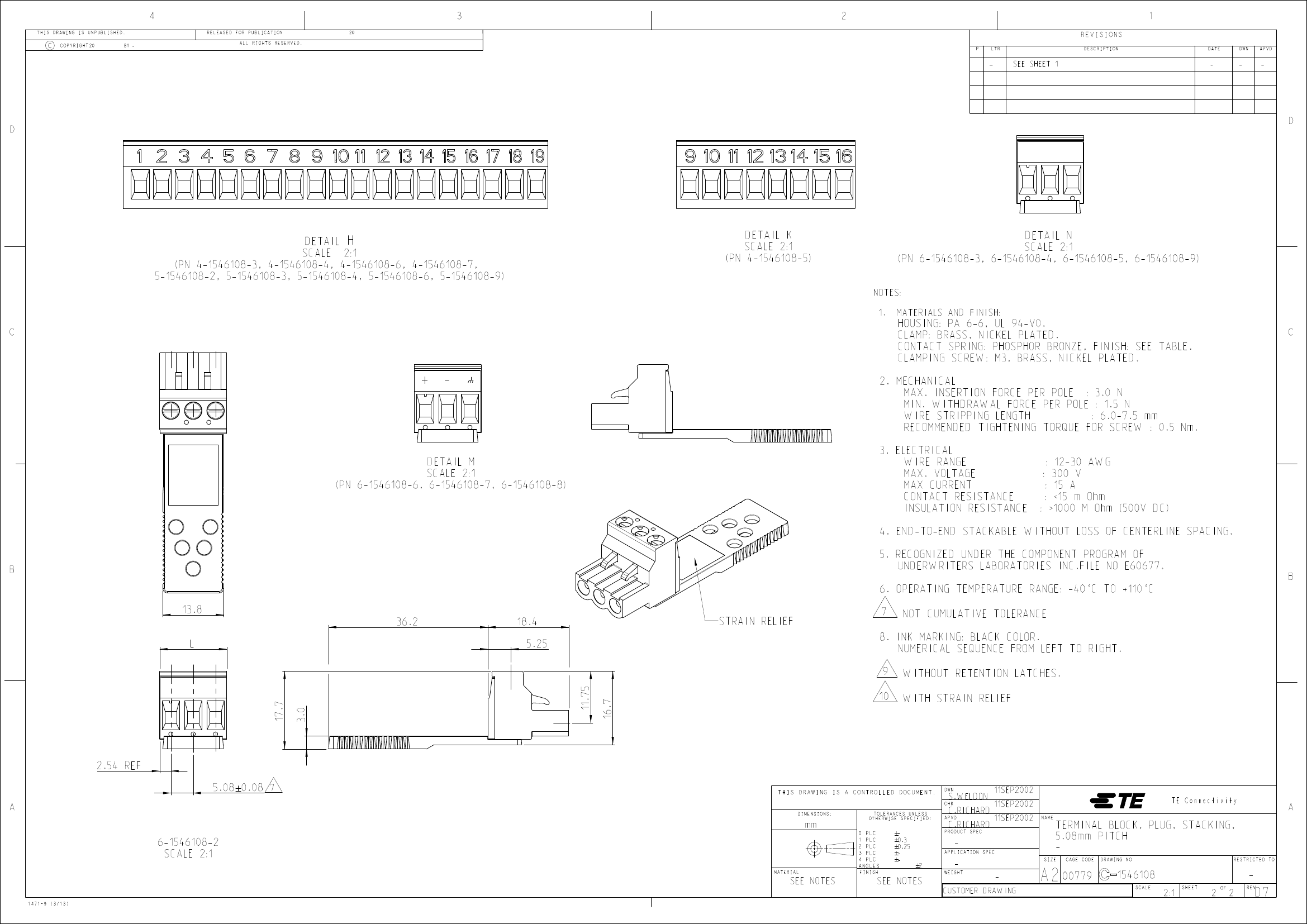

NOTES:
1.
C
HOUSING: PA 6-6, UL 94-V0.
CLAMP: BRASS, NICKEL PLATED.
CONTACT SPRING: PHOSPHOR BRONZE, FINISH: SEE TABLE.
CLAMPING SCREW: M3, BRASS, NICKEL PLATED.
MATERIALS AND FINISH:
C
2. MECHANICAL
MAX. INSERTION FORCE PER POLE : 3.0 N
MIN. WITHDRAWAL FORCE PER POLE : 1.5 N
WIRE STRIPPING LENGTH
: 6.0-7.5 mm
RECOMMENDED TIGHTENING TORQUE FOR SCREW : 0.5 Nm.
DETAIL M
SCALE 2:1
(PN 6-1546108-6, 6-1546108-7, 6-1546108-8)
3. ELECTRICAL
WIRE RANGE
MAX. VOLTAGE
MAX CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
:
:
:
:
:
12-30 AWG
300 V
15 A
<15 m Ohm
>1000 M Ohm (500V DC)
4. END-TO-END STACKABLE WITHOUT LOSS OF CENTERLINE SPACING.
B
5. RECOGNIZED UNDER THE COMPONENT PROGRAM OF
UNDERWRITERS LABORATORIES INC.FILE NO E60677.
6. OPERATING TEMPERATURE RANGE: -40°C TO +110°C
13.8
L
36.2
18.4
5.25
STRAIN RELIEF
7
NOT CUMULATIVE TOLERANCE
B
8. INK MARKING: BLACK COLOR.
NUMERICAL SEQUENCE FROM LEFT TO RIGHT.
9
WITHOUT RETENTION LATCHES.
WITH STRAIN RELIEF
11.75
17.7
2.54 REF
5.08 0.08
7
A
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
3.0
16.7
10
S.WELDON
C.RICHARD
11SEP2002
11SEP2002
11SEP2002
NAME
TE Connectivity
mm
APVD
A
6-1546108-2
SCALE 2:1
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.3
0.25
-
-
PRODUCT SPEC
C.RICHARD
APPLICATION SPEC
-
2
SEE NOTES
SEE NOTES
WEIGHT
-
-
CUSTOMER DRAWING
A2
00779
SIZE
TERMINAL BLOCK, PLUG, STACKING,
5.08mm PITCH
-
CAGE CODE DRAWING NO
RESTRICTED TO
1546108
SCALE
1471-9 (3/13)
2:1
SHEET
2
OF
2
REV
-
D7
