Part Number

Search

7-1546700-3

Description
20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
CategoryThe connector    terminals

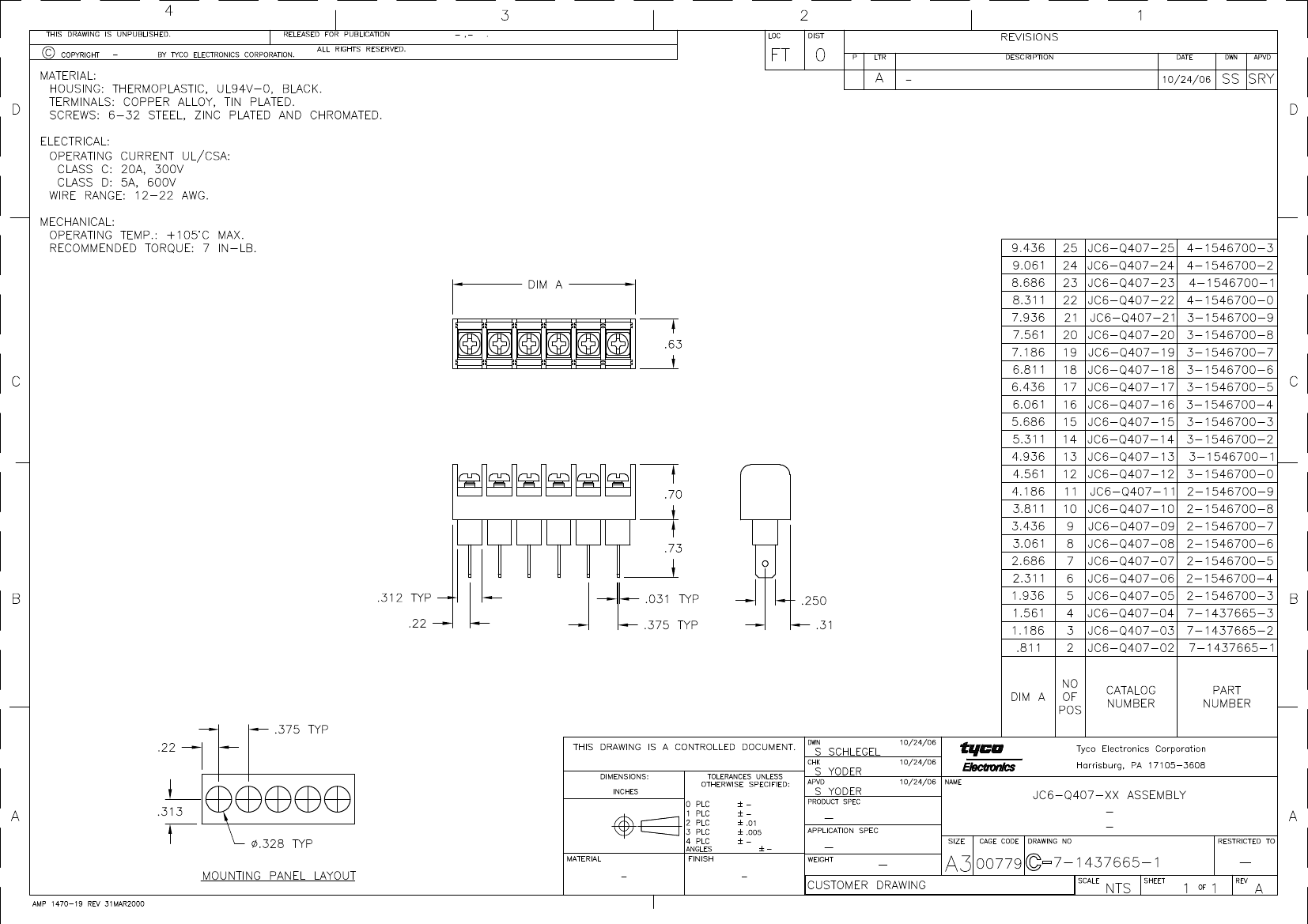

File Size91KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

7-1546700-3 Overview

20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

7-1546700-3 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresPOLYETHYLENE, 94V-0
Fastening methodSCREW
Manufacturer's serial number1546700
Installation typeCABLE AND PANEL
Number of layers1
Rows1
Number of channels4
Rated current20 A
Rated voltage300 V
safety certificateUL; CSA
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Wire gauge12 AWG
Base Number Matches1
