1601835-1

Description
BRASS, TIN FINISH, WIRE TERMINAL
CategoryThe connector    terminals
File Size109KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

1601835-1 Overview

BRASS, TIN FINISH, WIRE TERMINAL

1601835-1 Parametric

Parameter NameAttribute value
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Manufacturer's serial number1601835
Terminal and terminal strip typesWIRE TERMINAL
Wire gauge12 AWG
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Terminals & Splices
>
Product Feature Selector
> Product Details

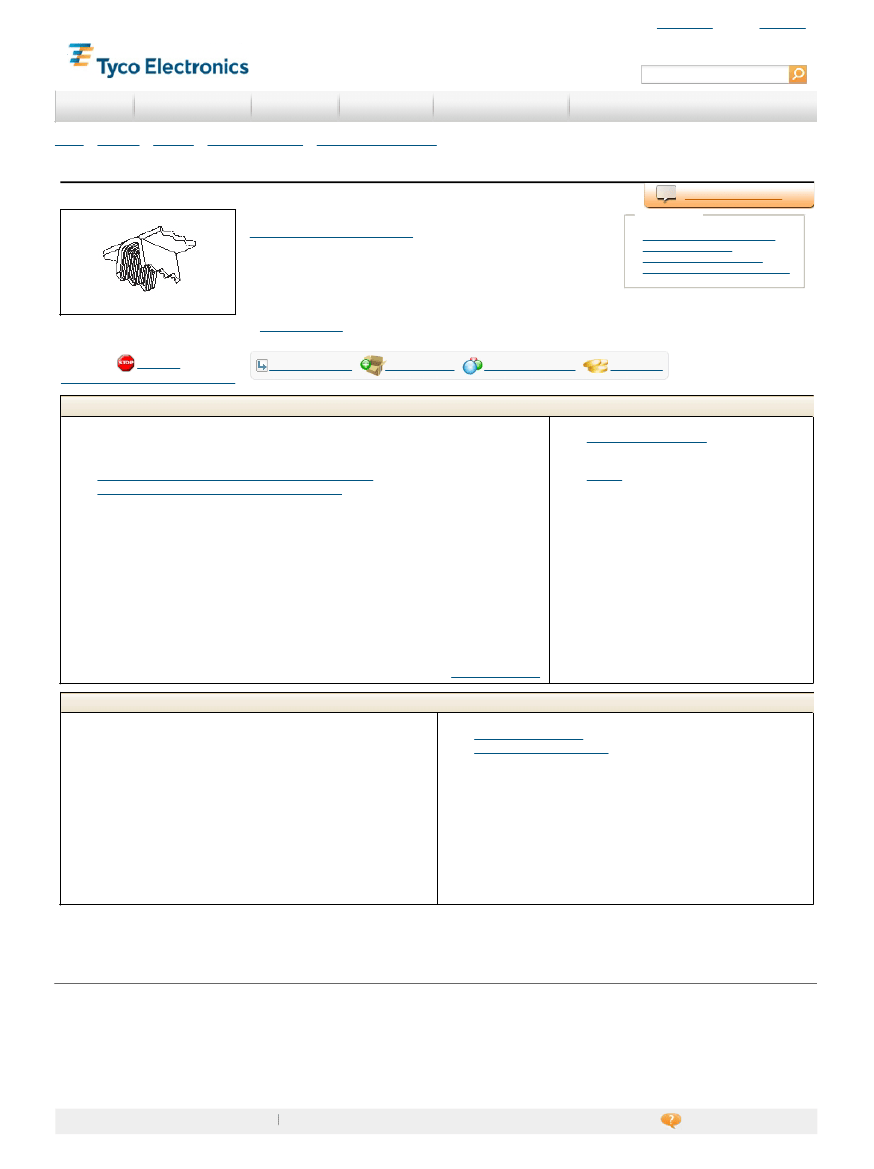

1601835-1 Product Details
Live Product Chat
Crimpband Splices
Not re vie we d for R oHS C om plia nce
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
1601835-1
T E I nternal N umber: 1 6 0 1 8 3 5 - 1
Product Highlights:
l
C rimpband Type = MTM (Magnetic Wire)
l
9 Serrations
l
Wire Range = 1.30 - 3.46 [16 - 12] mm? [AWG]
l
Wire Range Diameter (Solid) = 1.29 - 1.98 mm
l
C MA Range = 2600 - 6100 C MA
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
MAGNET WIRE TERMINALS AND TERMINATION SYSTEMS
(PDF, English)
l
MAC HINE APPLIED TERMINATIONS, OPEN BARREL
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
C rimpband Type = MTM (Magnetic Wire)
l
Number of Serrations = 9
l
Material = Brass
Body Related Features:
l
Wire Range (mm? [AWG]) = 1.30 - 3.46 [16 - 12]
l
Wire Range Diameter (Solid) (mm [in]) = 1.29 – 1.98 [0.051 –
0.078]
l
C MA Range (C MA) = 2600 – 6100
l
Stock Thickness (mm [in]) = 0.64 [0.025]
l
Plating = Tin
l
Material Width (mm [in]) = 4.93 [0.194]
Industry Standards:
l
RoHS/ELV C ompliance
= Not reviewed for ELV/RoHS compliance
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
Other:
l
Brand = Tyco Electronics
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
