103971-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 103971-4

103971-4: Description5 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE; CategoryThe connector The connector; File Size193KB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

103971-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	103971-4	-	-	View	Buy Now

103971-4 Overview

5 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE

103971-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	AMPMODU
body width	0.098 inch
subject depth	0.6 inch
body length	0.498 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	600VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	103971
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	100u inch
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	5
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG
Base Number Matches	1

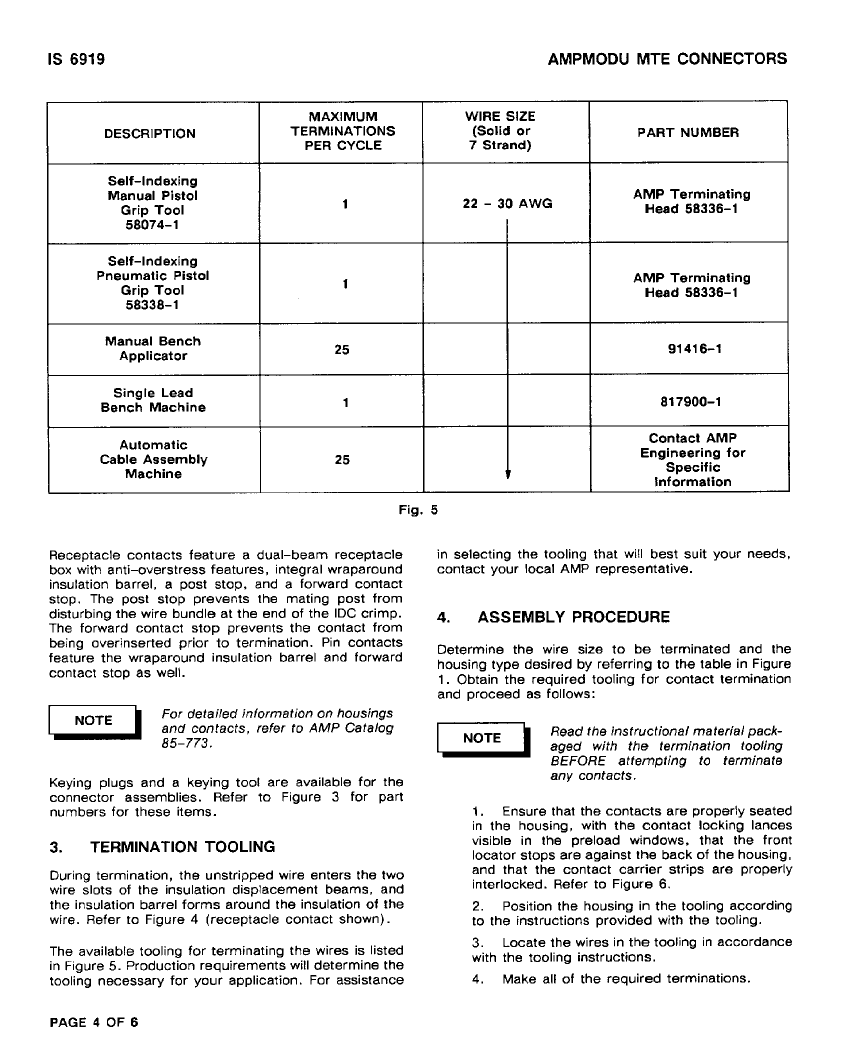

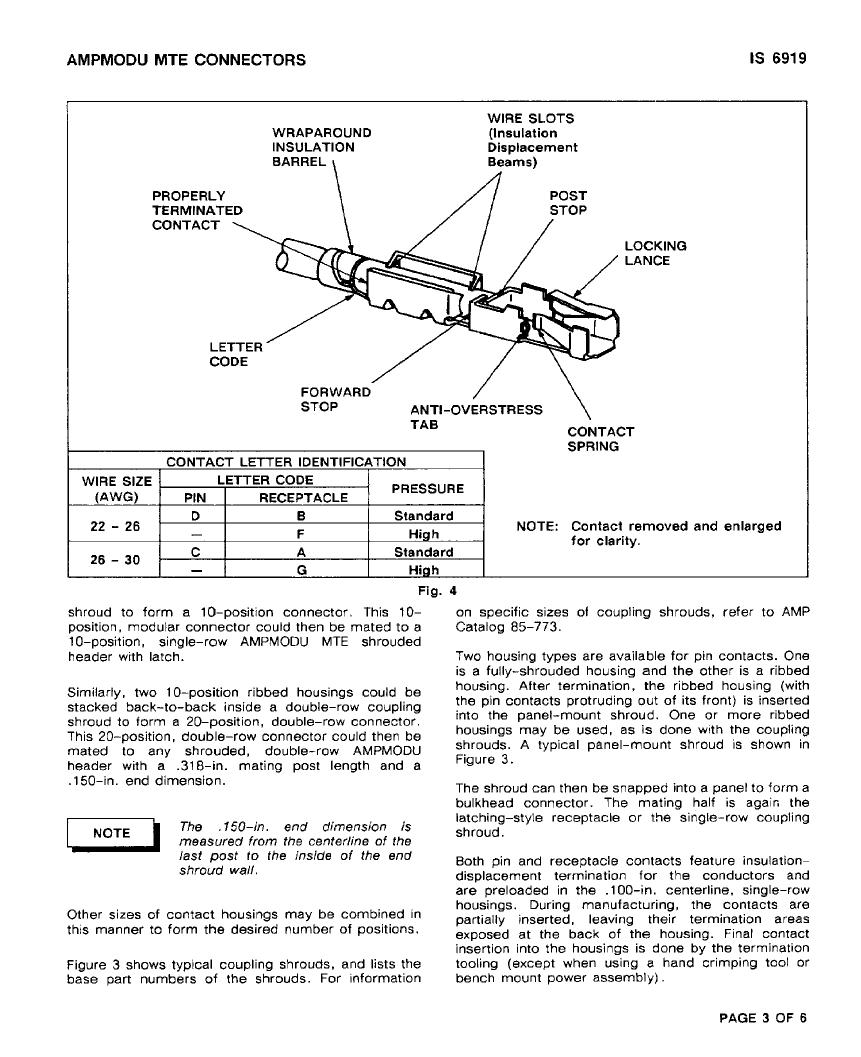

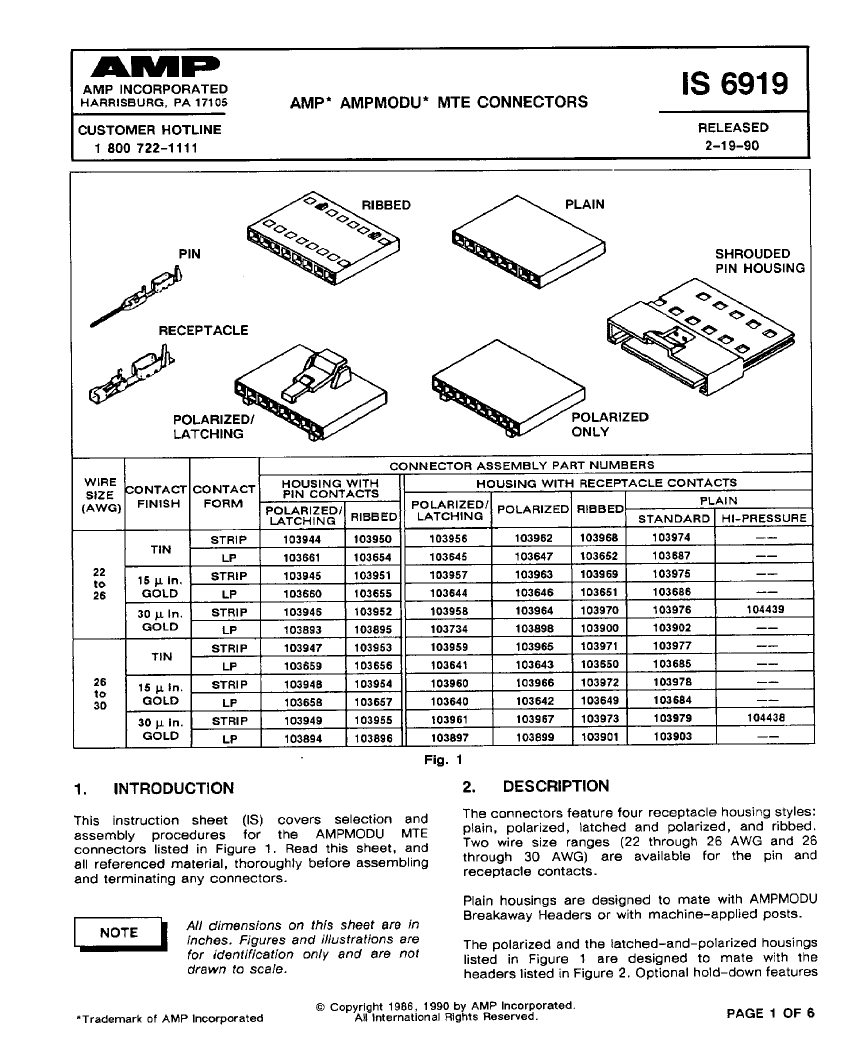

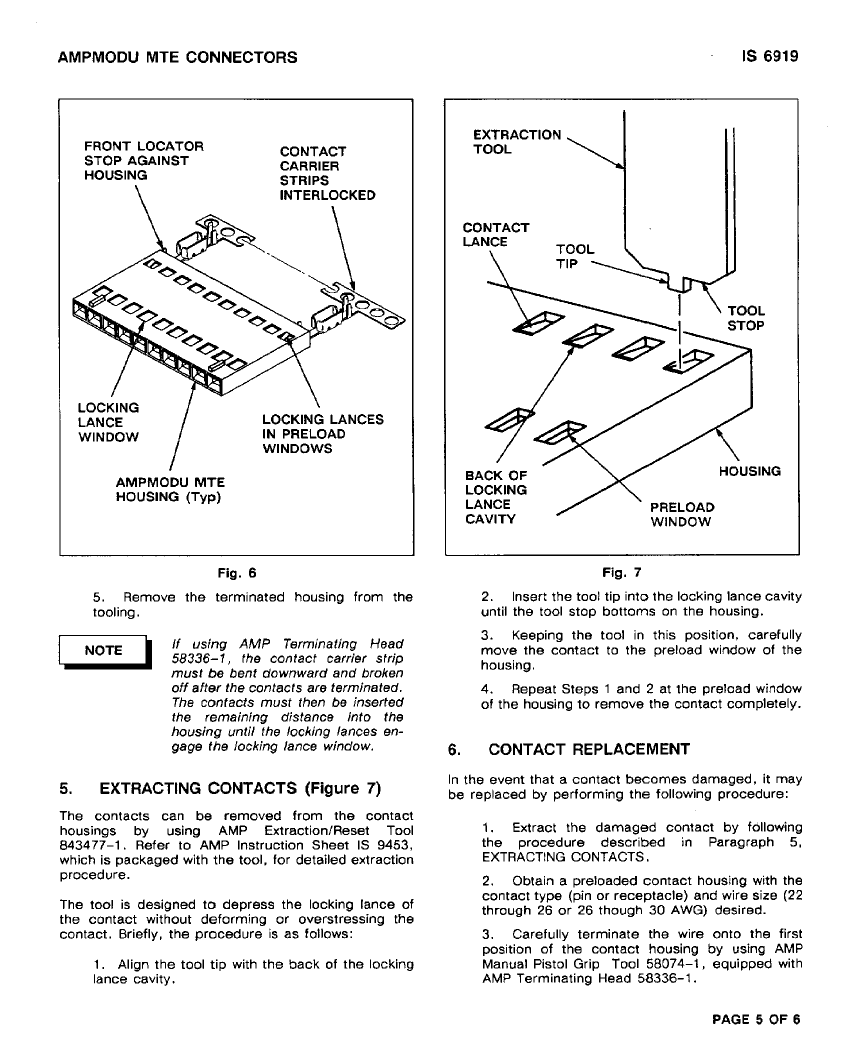

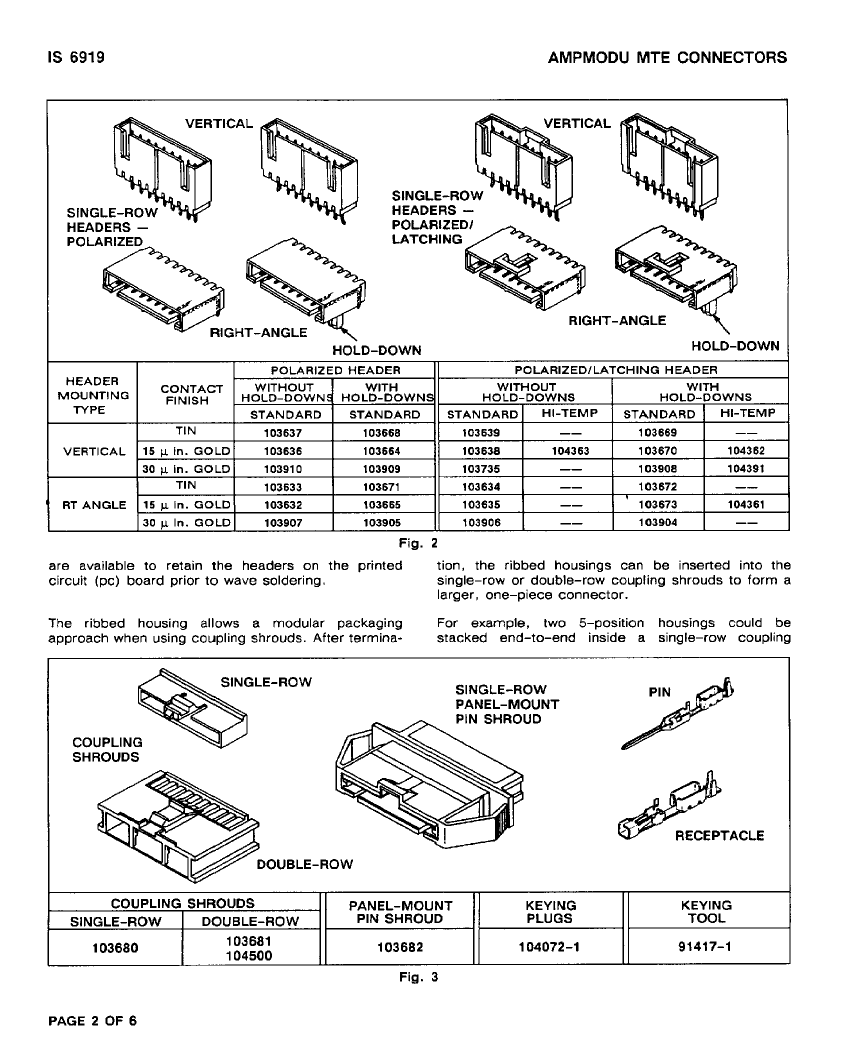

Preview

Download Datasheet

View All

103971-4 Related Products

	103971-4	HG532196F27NHT	103977-1	103973-4
Description	5 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE	Parallel - Fundamental Quartz Crystal, 19.68MHz Nom, ROHS COMPLIANT PACKAGE-2	2 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE	5 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, IDC, RECEPTACLE
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	unknown	compliant	unknown	unknown
Other features	AMPMODU	AT-CUT; TAPE AND REEL	AMPMODU	AMPMODU
JESD-609 code	e0	e4	e0	e0
Maximum operating temperature	105 °C	150 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-40 °C	-65 °C	-65 °C
ECCN code	EAR99	-	EAR99	EAR99
body width	0.098 inch	-	0.098 inch	0.098 inch
subject depth	0.6 inch	-	0.6 inch	0.6 inch
body length	0.498 inch	-	0.198 inch	0.498 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN LEAD	-	TIN LEAD	TIN LEAD
Contact point gender	FEMALE	-	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	-	15 mΩ	15 mΩ
Contact style	BELLOWED TYPE	-	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	-	NO	NO
Dielectric withstand voltage	600VAC V	-	600VAC V	600VAC V
Filter function	NO	-	NO	NO
IEC compliance	NO	-	NO	NO
Insulation resistance	5000000000 Ω	-	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	-	BLACK	BLACK
insulator material	THERMOPLASTIC	-	POLYETHYLENE	THERMOPLASTIC
MIL compliance	NO	-	NO	NO
Manufacturer's serial number	103971	HG532	-	103973
Plug contact pitch	0.1 inch	-	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO	NO
Installation type	CABLE	-	CABLE	CABLE
Number of rows loaded	1	-	1	1
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	100u inch	-	100u inch	30u inch
Rated current (signal)	3 A	-	3 A	3 A
Guideline	UL, CSA	-	UL, CSA	UL, CSA
Termination type	IDC	-	IDC	IDC
Total number of contacts	5	-	2	5
UL Flammability Code	94V-0	-	94V-0	94V-0
Maximum wire diameter	26 AWG	-	26 AWG	26 AWG
Minimum wire diameter	30 AWG	-	30 AWG	30 AWG
