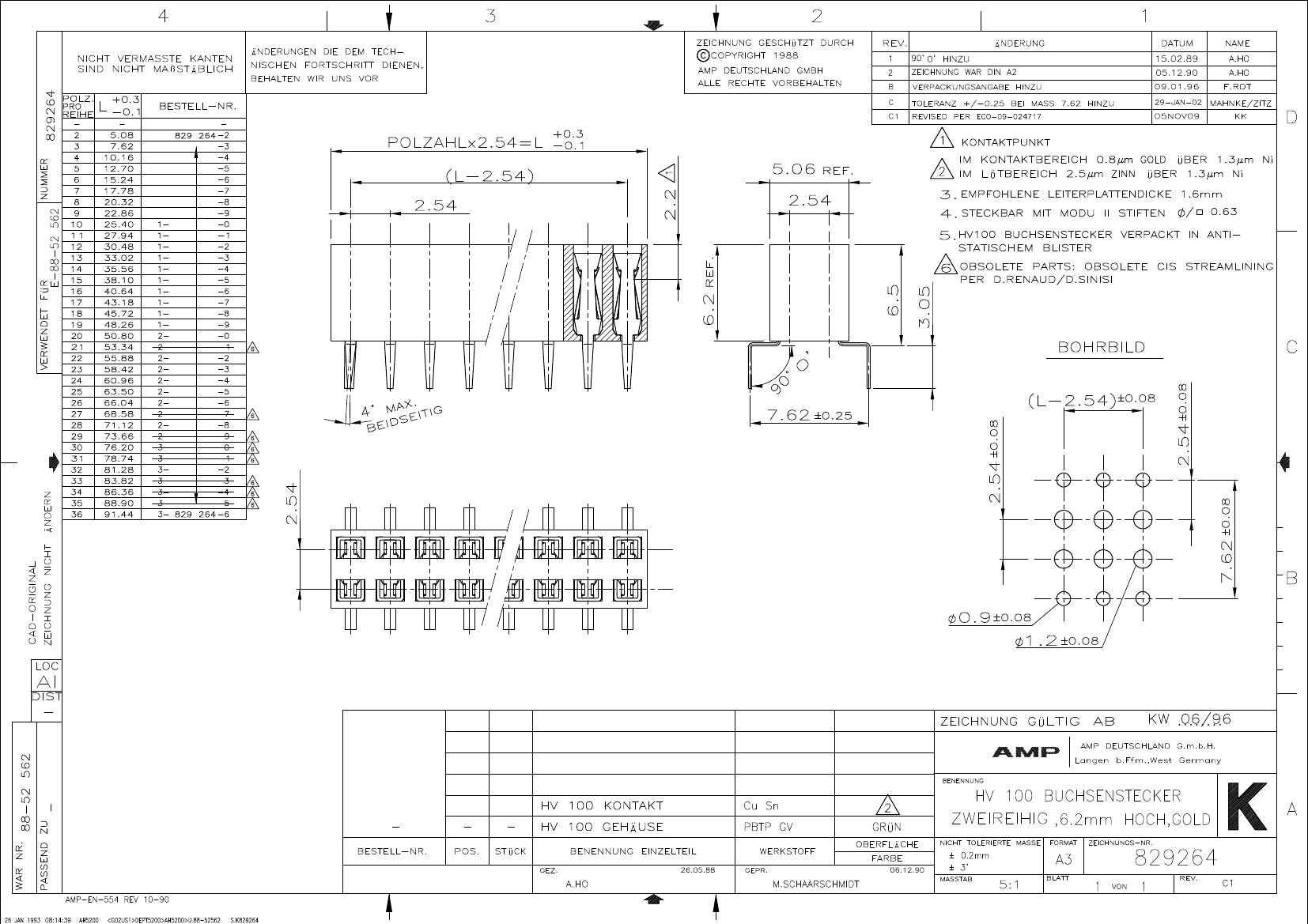

1-829264-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-829264-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN

1-829264-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303016216
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BOTTOM OR TOP ENTRY
body width	0.199 inch
subject depth	0.244 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	829264
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.62 mm
Plating thickness	31u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28

Preview

Download Datasheet

View All

1-829264-4 Related Products

	1-829264-4	2-829264-4	3-829264-6	2-829264-8
Description	HEADER CONNECTOR,PCB MNT,PLUG,28 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,48 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,72 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN	HEADER CONNECTOR,PCB MNT,PLUG,56 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,GREEN
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant
Other features	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY	BOTTOM OR TOP ENTRY
body width	0.199 inch	0.199 inch	0.199 inch	0.199 inch
subject depth	0.244 inch	0.244 inch	0.244 inch	0.244 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	GREEN	GREEN	GREEN
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	829264	829264	829264	829264
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Plating thickness	31u inch	31u inch	31u inch	31u inch
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	28	48	72	56
