2-Piece Power Connectors
THINGS TO CONSIDER WHEN CHOOSING POWER CONNECTORS
Application.
Does the application require a board-to-board, wire-to-board, wire-to-wire, bus bar, card edge
or a combination of these types of connectors?
Current and Voltage.
Does the connector require power only, or a combination of power and signal?
How much current is required in the application? Keep in mind that power connector performance is
typically measured in amperes (or amps). The voltage is also very important as it defines the spacing
between the contacts.
Hot-Pluggability.
Will the application be mated while under electrical load? If so, a hot-pluggable connector
is required. Many of the products in this guide have been approved for use in hot-plug applications.
TYPICAL POWER CONNECTOR APPLICATIONS
•
•
•
•
•
•
AC to DC and DC to DC
Power Supplies
High End Computers
Servers
Data Storage Equipment
Telecommunications Switches
•
•
•
•
•
High Density Power Distribution
Uninterruptible Power Supplies (UPS)
Removable Battery Packs
Board Stacking
Power Distribution
te.com/powerconnectors
te.com/powerconnectors
TE Connectivity
2-Piece Power Connectors

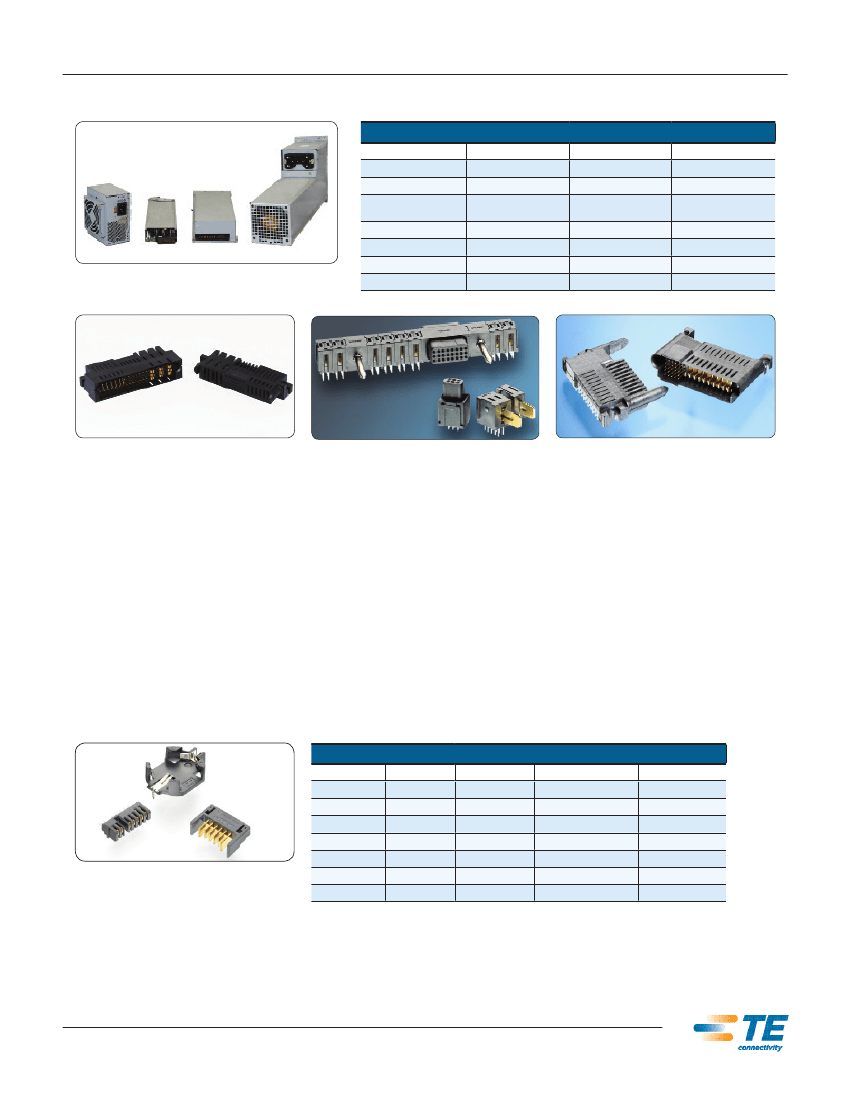

Application: Hot Swappable Power Supplies (500w–5KW)
CHARACTERISTICS
Connector
Current Rating
Vented Housings
Licensed —
Second source
Height (mm)
Modular
Active Guides
Customizable
* Single contact current rating
l
MULTI-BEAM XLE
Up to 75 A*
l
l
12 mm
14 mm
l
l
l
l
FLATPAQ
32 Amps*
MINIPAK HDL
Up to 40 Amps*
l
l
8 mm - 9 mm
te.com/products/multibeamxle
te.com/products/minipakhdl
MULTI-BEAM XLE Connector
•
New 6 beam power contact offers up to
75 A current rating and delivers more
than 200 Amps/linear inch
•
New 25A low power contact occupies
50% less pcb space than MULTI-BEAM XL
power contacts
•
New slim guide sockets reduce the
overall PCB footprint
•
Vented housing allows for better heat
dissipation
•
Hot-plug capable
Reference Part Numbers*
6450830-2
6450850-2
FLATPAQ Connectors
•
32 Amp high-performance
CROWN BAND power contacts
•
True hot-plug power contacts available
•
Versatile modular design allows low
volume customized configurations to
meet your specific application
requirements
•
Solder and compliant press-fit
termination options available
•
Rugged design features active guide pins
Reference Part Numbers*
6646597-1
6646722-1
MINIPAK HDL Connector
•
High-density, low profile, power/signal,
blind-mate connector
•
Developed to meet next generation
1U application by reducing airflow
impedance
•
Hot-pluggable power supplies
•
Contacts rated up to 40 amps and
deliver more than 150 amps per
linear inch
Reference Part Numbers*
2-1926732-5
2-1926733-5
1926845-6
Rechargeable Batteries (for portable/hand-held electronic devices)
RECHARGEABLE BATTERIES
Part Number
1827684-1
1827654-1
1-1123688-7
6123978-1
120591-1
Pitch (mm)
2
2
2.5
2.5
/
5
5
No. of Positions
7
7
10
4
1
/
/
Mount
Vertical Surface Mount
Right Angle Thru-Hole
Vertical Surface Mount
Right Angle Thru-Hole
Horizontal Thru-Hole
Vertical Solder
Right Angle Solder
Style
Receptacle
Plug
Receptacle
Plug
Coin Cell
Right Hand Plug
Keyless Plug
Battery Interconnects
•
Current capacity — 7 Amps/single
contact at 30° T-Rise
•
Choice of right angle or vertical mount
headers with left, right or keyless
polarization
•
5 mm pitch headers available for 7.2, 10.8
and 12.0 volts rechargeable batteries
5787430-1
5787441-1
*Part numbers listed are examples of some available samples, please visit website for additional and mating part numbers.
te.com/powerconnectors
TE Connectivity
2-Piece Power Connectors
Application: Backplanes

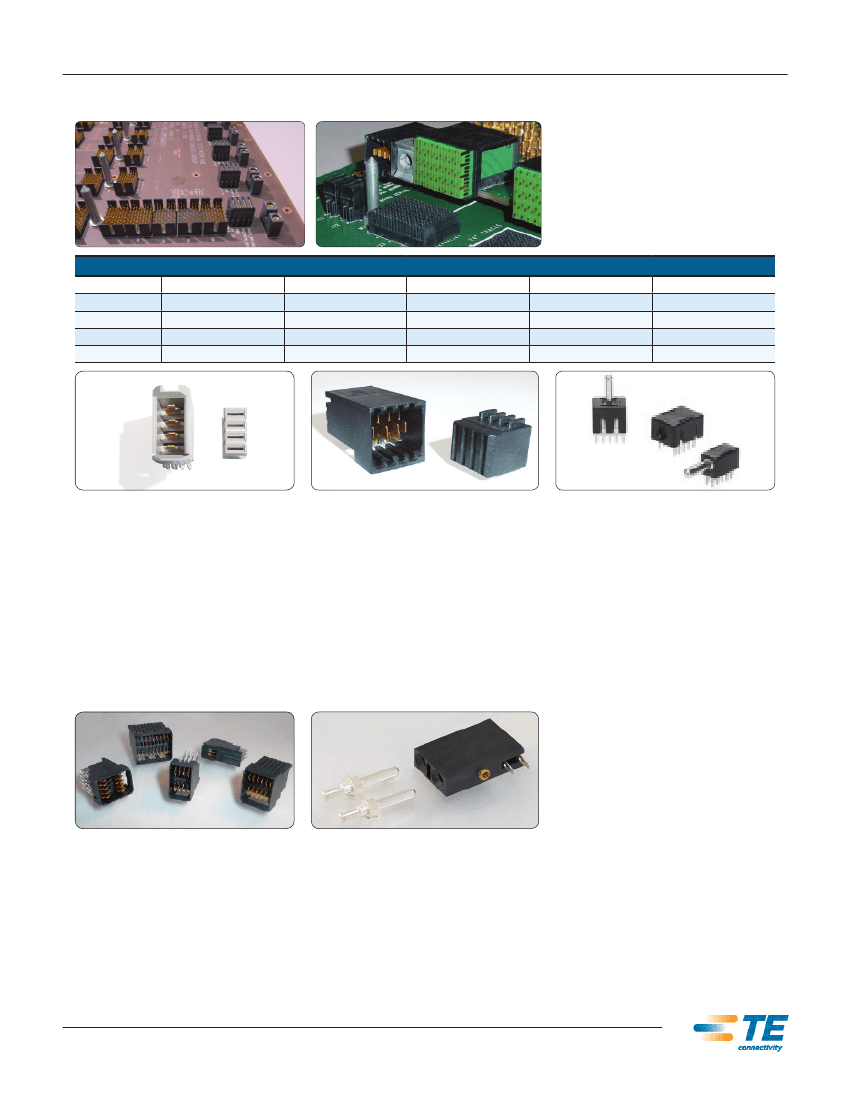

PRODUCTS
Amps/Linear Inch
< 125
125 – 175
175 – 225
> 225
l
Universal Power Module
l
l
l
l
MULTIGIG RT
ICCON
MINIPAK HDE
Stacked ICCON
te.com/products/upm
te.com/products/iccon
Universal Power Module (UPM)
Connectors (Slim UPM shown)
•
Varieties of UPM include: standard,
high current, slim, low profile
•
2 performance levels
•
Standard 10 amp contact
•
High current 16 Amp contacts
•
True hot-plug contacts
•
High reliability — up to 250 cycles
•
Different configurations include right
angle, vertical, coplanar and mezzanine
Reference Part Numbers*
1903977-1 (Slim UPM), 1645498-2
(Vertical Plug), 5646954-2 (R/A Plug)
MULTIGIG RT Connectors
•
2 mm backplane connectors
•
20 Amp contacts
•
Three contact mating lengths are
available in 1.5 mm sequence levels
•
1 and 2 row versions to provide maximum
trace routing flexibility
•
True hot-plug contacts
Reference Part Numbers*
1-1410271-1 (Plug)
1410270-2 (Receptacle)
ICCON Connectors
•
With and without locking feature
•
35A current rating
•
Slimline version available, 30% smaller
footprint
•
Board-to-board, board–to-busbar, and
wire-to-board application options
•
Durable, quick connect/disconnect
function for high current space
constrained applications
Reference Part Numbers*
6643274-1 (Vertical Pin),
6643228-1 (R/A Pin),
6643220-1 (SLIMLINE Socket)
te.com/products/minipakhde
te.com/products/iccon
MINIPAK HDE Connectors
•
Designed to compliment other backplane
connectors offered by TE including
Z-PACK HM-Zd, Z-PACK TinMan and
other connectors
•
Very high current density — 18 Amps
per contact, over 250 Amps/linear inch
•
Two levels of contact sequencing for
mate-first-break-last operation
Reference Part Numbers*
1926226-1 (2x6), 1926229-1 (2x9)
Stacked ICCON Connector
•
Very High Current Density — Up to
200 Amps per inch
•
Occupies less PCB edge space than
separate ICCON power and guide
modules
•
Designed to compliment Z-PACK and
other backplane connectors
•
Right angle connector to mate
motherboard-to-daughterboard
power distribution systems
•
Ground pin, power pin and
mate-first-break-last pin options
Reference Part Numbers*
2085181-1 (R/A Socket)
1766663-1 (Vertical Pin)
*Part numbers listed are examples of some available samples, please visit website for additional and mating part numbers.
te.com/powerconnectors
TE Connectivity
2-Piece Power Connectors
Application: Cable Power
CABLE POWER
Products
MULTI-BEAM XLE
ET POWER
RAPID LOCK
High Current Universal
MATE-N-LOK
AMP Power Series
Wave Crimp
Wire Size
26-8 AWG
14-10 AWG
12-0 AWG
30-10 AWG
300MCM-0 AWG
Flat Cable
Current Rating
up to 50 Amps
up to 35 Amps
50-250 Amps
up to 35 Amps
15-275 Amps
40-110 Amps
Specialty
Low, high power options in
same connector
Low profile
BusBar Quick Connect/
Disconnect
Panel mount or
free hanging versions
Single & 2 pole
Quick Connect/Disconnect
Flat
te.com/products/multibeamxle
te.com/products/wavecrimp
te.com/products/amppowerseries
MULTI-BEAM XLE Cable Receptacles
•
X, Y, Z float mount, blind-mate
connectors for drawer type applications
•
Allows more angular misalignment than
the original MULTI-BEAM XL connector
•
Modular design to meet any
application
•
Hot-Pluggable
•
Panel Mount, Slide-to-Lock and
Squeeze-to-Release configurations are
available
AMPOWER Wave Crimp System
•
Flat cable, dissipates heat better than
round wire
•
Termination of flat cable requires
no stripping. Provides a reliable low
resistance, gas tight interface
•
Lower operating temperature than
standard round/discrete wires
•
Easily formed into shape, without
cable ties
•
Lower cost than laminated bus bars
AMP Power Series Connectors
•
Single pole and 2-pole connector
housings, crimp snap-in contacts, and
accessories
•
Rugged contact design
•
Open barrel contacts 6-20AWG on
reels for automatic and semiautomatic
machine termination
•
Compatible with industry alternate
standard versions
te.com/products/universalmatenlok
te.com/products/rapidlock
te.com/products/etpower
High Current Universal MATE-N-LOK II
Connectors
•
Available in 2-15 circuit sizes for free
hanging, panel mount, or wire-to-board
connection
•
Louvertac band and screw machined
contacts provide very high current with
low contact resistance
•
No extraction tools required/economical
•
Pin and sockets can be intermixed in
the same housing
RAPID LOCK Bus Bar Connectors
•
Locking feature retains each contact to
mating pin
•
No installation tools required
•
Fast, reliable replacement for power
lugs
•
Up to 250 Amps per contact; very low
contact resistance
ET Power Connector
•
Up to 35Amps per contact
•
End-to-end stackability
•
Low profile, less than 8 mm above PCB
•
Cable-to-PCB applications
•
Positive latch retention
•
Right angle and vertical mounts
te.com/powerconnectors
TE Connectivity
2-Piece Power Connectors

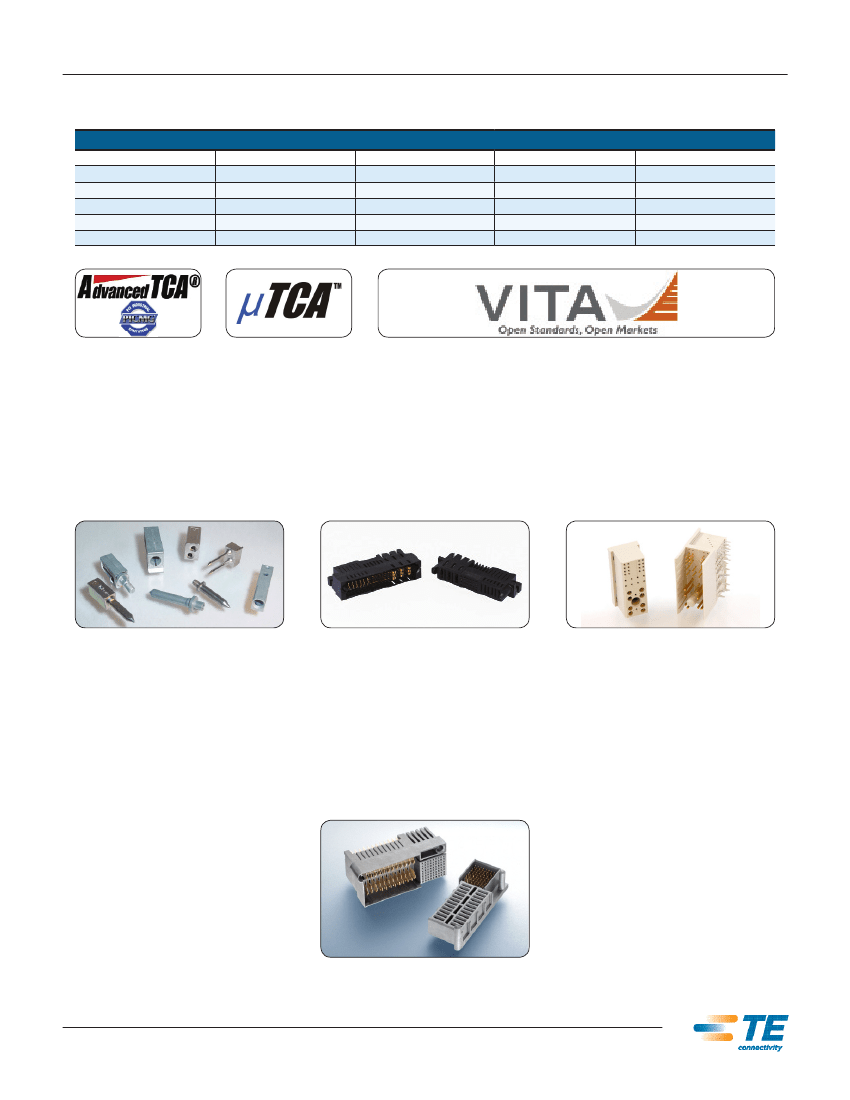

Industry Standards
PRODUCTS
Standards
Advanced TCA
PICMG MicroTCA.0
VITA 41
VITA 46
VITA 62
Z1 Power Connector
1766500-1
1469920-1
1410465-1
1410956-1
6450843-6
MINIPAK HD
Guide Hardware
1-1469373-1
MULTI-BEAM XLE
Note:
Part numbers listed in the above table are some available samples for each standard. There are other part numbers and configurations to choose from.
AdvancedTCA
The PICMG 3.0
AdvancedTCA standard
defines architecture
for modular computing
components within
communications network
infrastructure. The
standardization focuses
on providing superior
power and cooling
capabilities in solutions
that are cost effective,
highly available and
highly scalable.
MicroTCA
The PICMG
MicroTCA.0 standard is
complimentary to the
AdvancedTCA standard,
but is optimized for
smaller scale and
more price sensitive
applications.
VITA 41
Referred to as VXS-
VME Switched Serial in
the next generation of
VME backplanes and
introduces features like
improved bandwidth,
backward compatibility
and increased power
delivery into the existing
VMEbus technology.
VITA 46
Based on VMEbus
technology, the standard
is defined for 3U and 6U
formats and merges the
latest in connector and
packaging technology
with the latest in bus and
serial fabric technology.
VITA 62
The latest in VITA
Standards, VITA 62 is
currently being defined
and will use the standard
VPX 3V16U form factor and
comply to requirements
defined in VITA. 48.0. VITA
62 will define the power
generation requirements
for a module that can be
used to power systems
that support a VITA 62 slot
on the VPX backplane.
te.com/products/guidehardware
te.com/products/multibeamxle
te.com/products/atcapower
Guide Hardware
•
Guide modules are available for the
AdvancedTCA, VITA 41.0 VXS and the
VITA 46.0 VPX standards
•
Most guide modules are keyed to
prevent misalignment during board-
to-board mating
•
ATCA guide modules are available
for a variety of applications including
front board, mid plane, backplane and
rear transition modules as specified in
the AdvancedTCA specification
•
MULTIGIG RT guide modules meet
the VITA 46.0 VPX and VITA 41 VXS
standards
MULTI-BEAM XLE Connector
•
VITA 62 standard developed around
MULTI-BEAM XLE connector
•
New 6 beam power contacts offer
a 50A current rating and lower
mating force
•
New 20A low power contact
occupies 50% less PCB space than
MULTI-BEAM XL power contacts
•
Vented housing allows for better heat
dissipation
Z1 Power Connector
•
Designed to PICMG 3.0 AdvancedTCA
standard
•
Combines 8 high conductivity size 16
pin & socket contacts with 22 size 22
pin & socket contacts
•
Capable of carrying 20 Amps per
contact and the signals are capable
of carrying 2 Amps per contact
MINIPAK HD Connectors
•
Designed to the MicroTCA.0 standard
•
30 microinches gold plating over
nickel
•
Hot-plug contact design controls arc
during hot-mate/un-mate cycles
•
Available to carry up to 14.5 Amps
per contact fully loaded
For more information on TE Industry
Standard Products visit:
te.com/products/atca
te.com/products/minipakhd
AdvancedTCA, MicroTCA and PICMG are trademarks of
PICMG-PCI Industrial Computer Manufacturers Group, Inc.
VITA, VMEbus, VPX, and VXS are trademarks of VITA.
te.com/powerconnectors
京公网安备 11010802033920号
EEWORLD
