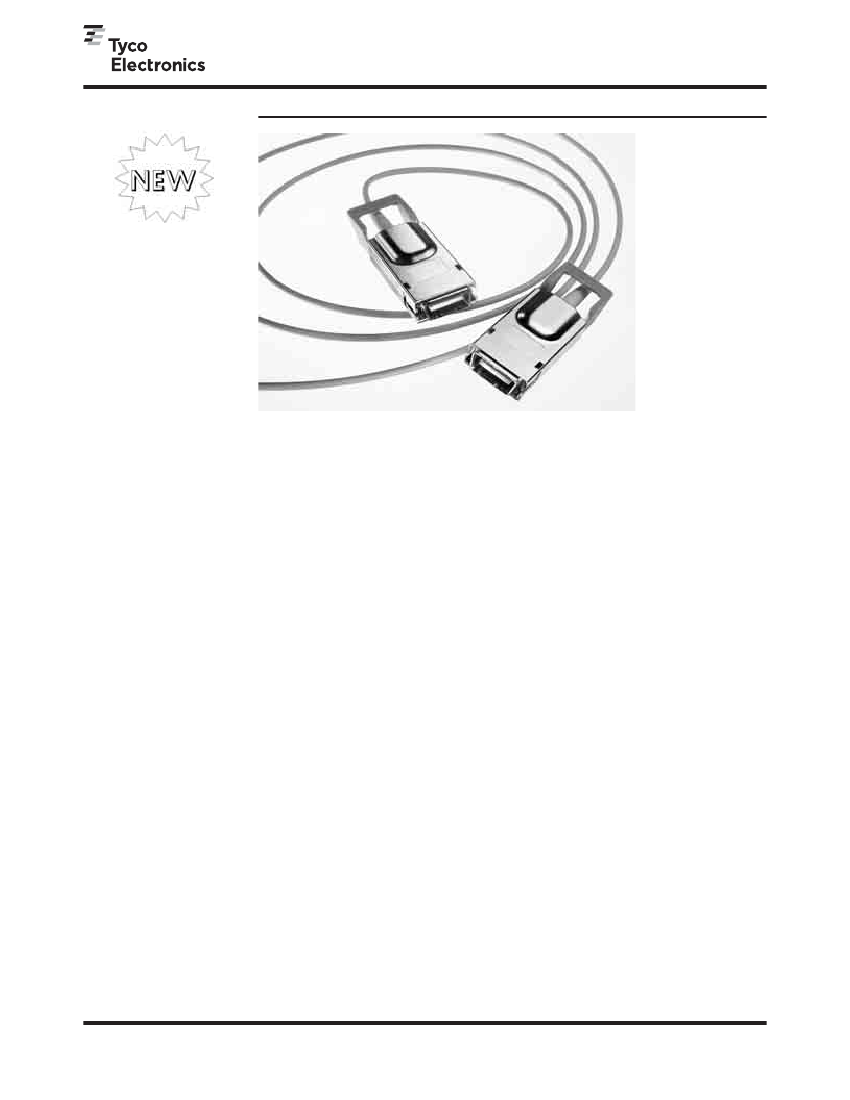

Active Optical Cable Assemblies
InfiniBand 4x DDR Active
Optical Cable Assemblies
Product Facts
■
4 transmit and 4 receive
channels at up to 5 Gb/s
per channel)
Industry standard (SFF-
8470) electrical connector
(aka InfiniBand 4x, CX-4)
Internally terminated
optics — no optical
connector to clean
Differential data I/O per
InfiniBand version 1.2.1
Asynchronous, internally AC
coupled inputs and outputs
Passively cooled design —
low thermal resistance heat
path from chip to connector
shell
<1 Watt power consumption
Small diameter cable (2 mm)
Light weight
Tight bend radius
■
■
■
■
■
Tyco Electronics’ active
optical cables use state-of-
the-art technology to provide
cost effective high data
throughput interconnects.
The cables incorporate E/O
and O/E conversion built into
the connector shell to yield
a dramatic improvement in
PCB real estate utilization.
■
■
■
■
Using 850nm VCSELS, it
can be operated from 2.5
Gb/s to 5 Gb/s per channel.
At 5 Gb/s this provides
aggregate full duplex
throughput of 20 Gb/s.
They are available in lengths
up to 100 meters using 50
micron MM fiber
1
. The OEO
circuitry is designed for
use with 8B/10B encoded
data streams, such as
InfiniBand, Fibre Channel,
and XAUI.
3.3 Volt power is supplied
through a pin (G8) dedi-
cated for this purpose as
described in InfiniBand
Specification Version 1.2.1.
Pin G7 is the voltage sense
pin and is tied internally to
ground through a 5K ohm
resistor
1
Short lengths use standard multi-mode
fiber, longer lengths use laser optimized
(OM3) fiber
Applications
■
■
■
■
■
■
■
■
Electrical/Optical
■
■
■
Materials
■
■
High Performance
Computing Clusters
Supercomputers
High end servers
Mass storage
Metro network switch/cross
connect
High end carrier class
routers
DDR InfiniBand
Other 2.5–5.0 Gb/s
Applications (e.g. 10 Gb
Fibre Channel or 10 Gig
Ethernet XAUI on ports
providing InfiniBand pinout
3.3 V power
20 Gb/s bidirectional —
40 Gb/s offered in future
Compatible with InfiniBand
SDR and DDR
Power consumption per end
1 watt
OFNR/CSA-FT-6 (plenum)
cable
OFN-LS (LSZH rated) cable
InfiniBand SDR and DDR
Standards
■
Mechanical/Environmental
■
■
■
■
■
■
Up to 200 meters
25 mm bend radius
Operating temperature
0°C to 60°C
Storage Temperature
-25°C to 70°C
4 channels each direction
FCC Class B
INFINIBAND is a trademark of the
InfiniBand Trade Association.
100
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
Active Optical Cable Assemblies
(Continued)

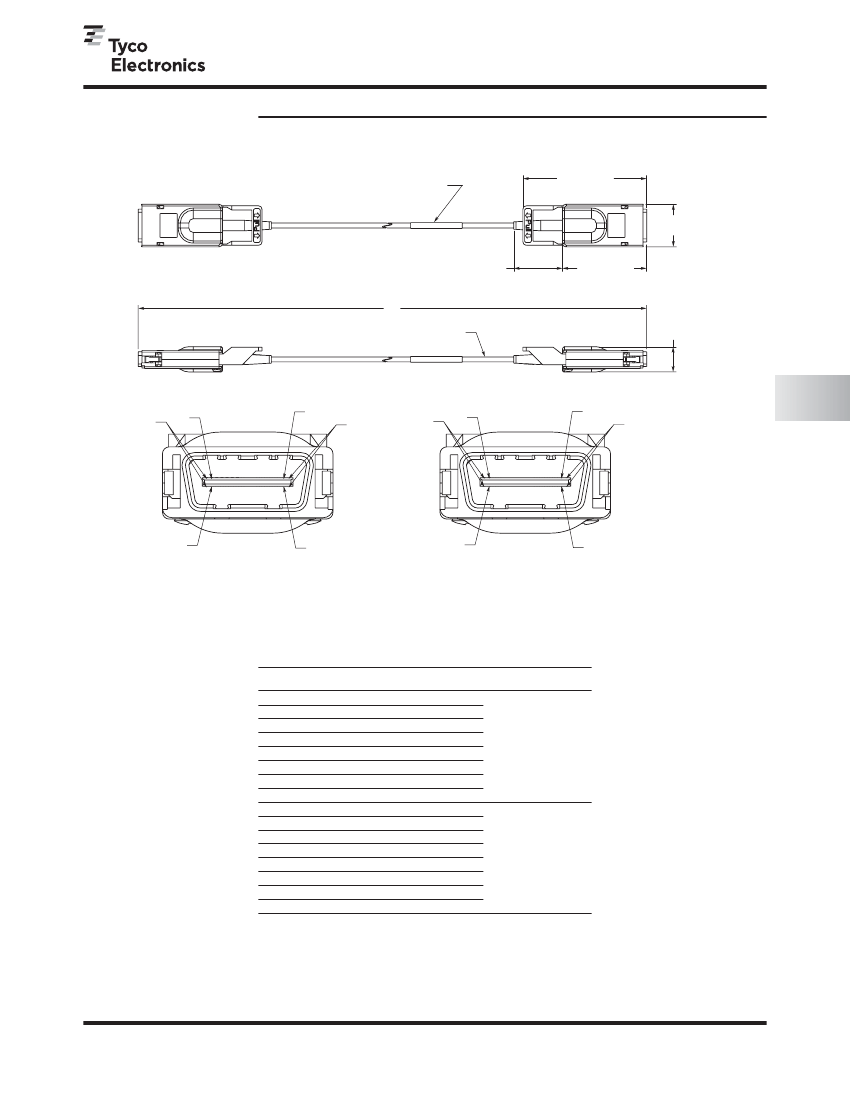

Identification Label
72.00
2 Plcs.
[2.835]
Cable Assemblies &
Backplane Interconnects
24.80
2 Plcs.
[.976]
28.30
2 Plcs.
[1.114]
49.00
2 Plcs.
[1.929]
A
Ø 2.90
± 0.15
OFNP 8 Fiber Cable
[.114
± .006
]
14.60
2 Plcs.
[.575]
G1
S2
S16
G9
G1
S2
S16
G9
2
S1
S15
S1
S15
Plug 1
Plug 2
Part Number
1985427-1
1985427-2
1985427-3
1985427-4
1985427-5
1985427-6
1985427-7
1985427-8
1984462-1
1984462-2
1984462-3
1984462-4
1984462-5
1984462-6
1984462-7
1984462-8
Length
(meters)
3
5
10
20
30
40
50
100
3
5
10
20
30
40
50
100
Style
Standard
Low
Smoke
Zero Halogen
(LSZH)
Note:
Longer lengths
available
upon request.
101
Catalog 1307895
Revised 11-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 31-73-624-6639
Fiber Optic Products Catalog
LC Cable Assemblies
Product Facts
■
■
■
■
■
■
For high performance
applications/high density
125 µm Ceramic Ferrule
Technology
Small size — 1/2 size of
standard SC and FC products
Singlemode and multimode
Tuned singlemode
assemblies
High performance small
size cable
■
900 µm buffered fiber
assemblies
■
2.0 mm cable assemblies
Hybrid assemblies available
with all standard connectors
Hybrid SC’s and FC’s
terminated to 2.0 mm cable
and 900 µm buffered fiber
Factory terminated/factory
tested
■
■

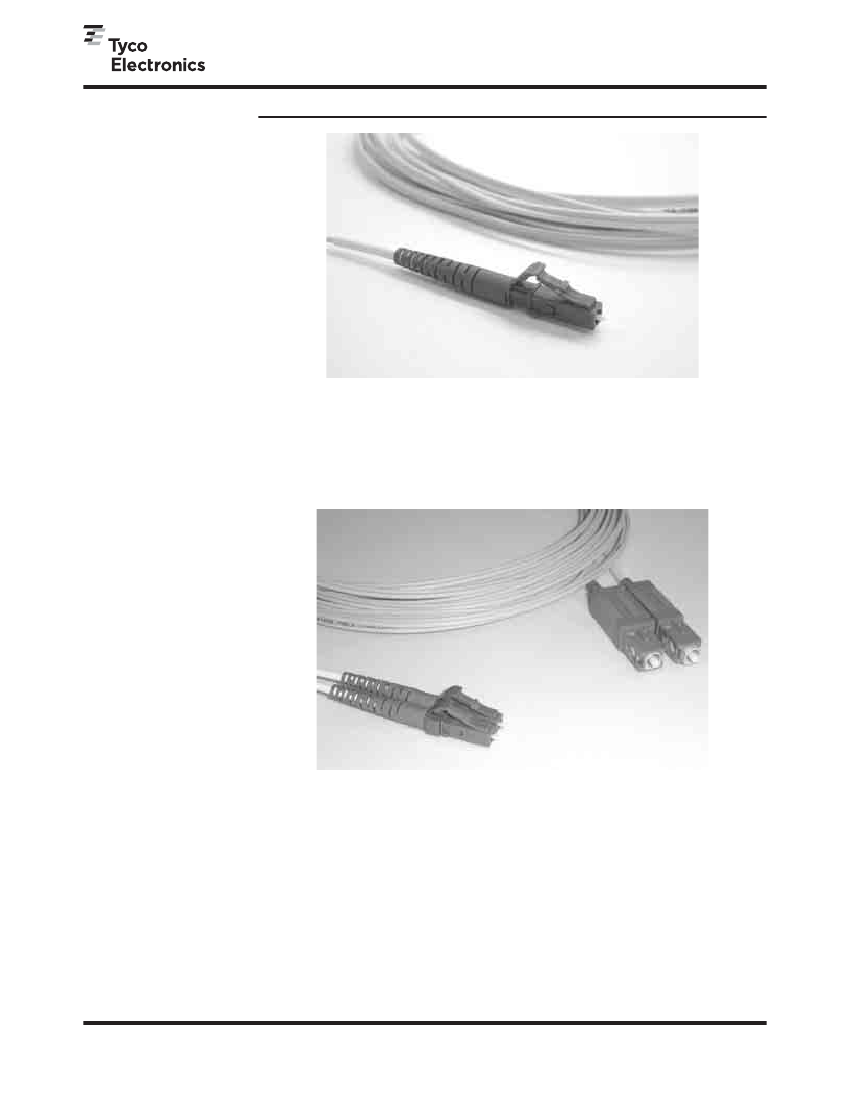

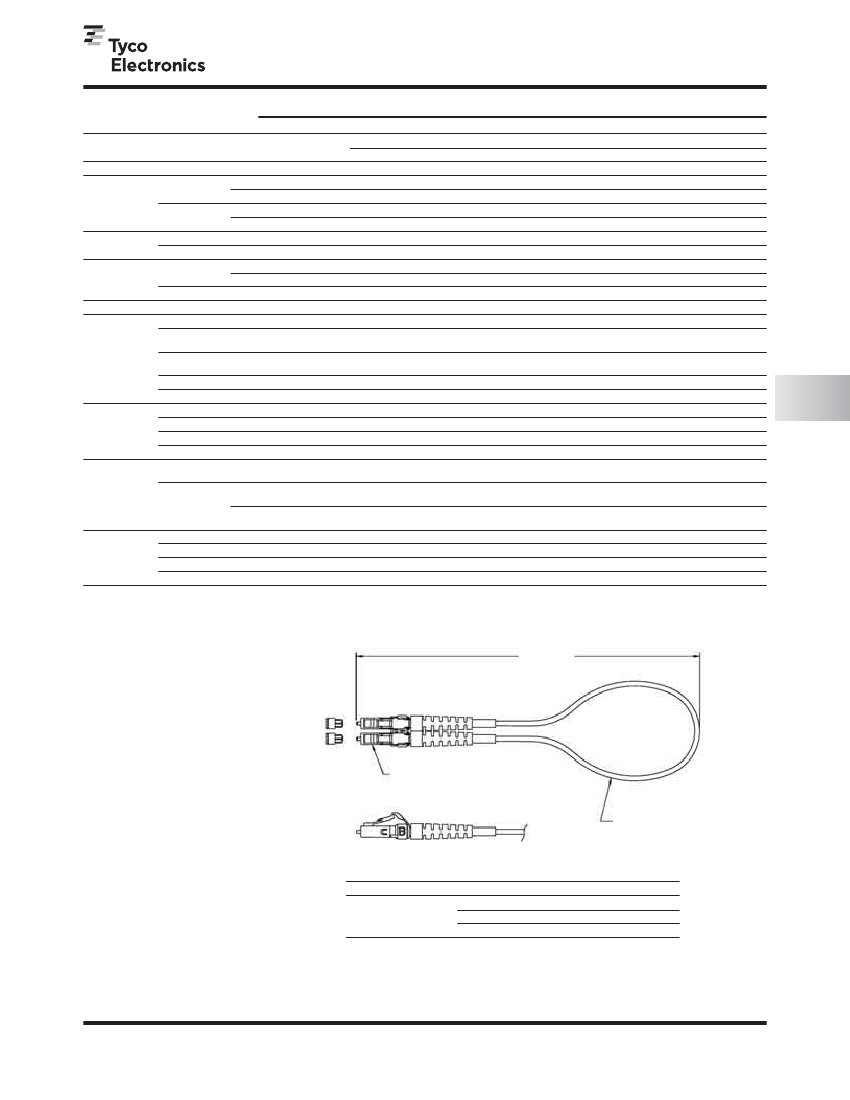

LC Cable Assembly
■
