1218855-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1218855-4

1218855-4: Description37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size379KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1218855-4 Overview

37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE

1218855-4 Parametric

Parameter Name	Attribute value
Objectid	1807199422
Reach Compliance Code	unknown
Other features	AMPLIMITE
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (50)/GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (50) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER/POLYPHENYLENE SULFIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	1218855
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	ZINC
Shell material	STEEL
Housing size	4/C
Termination type	SOLDER
Total number of contacts	37

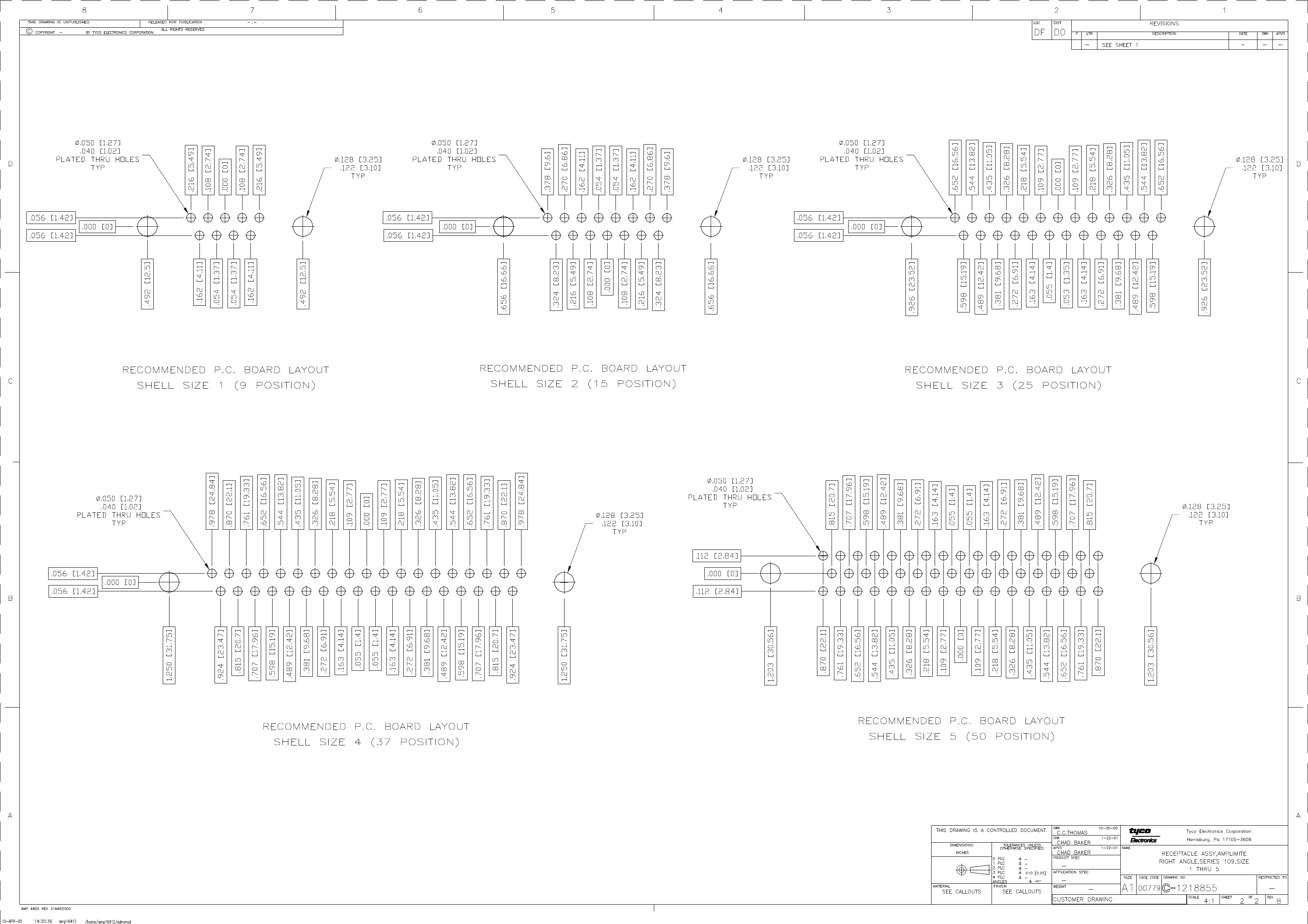

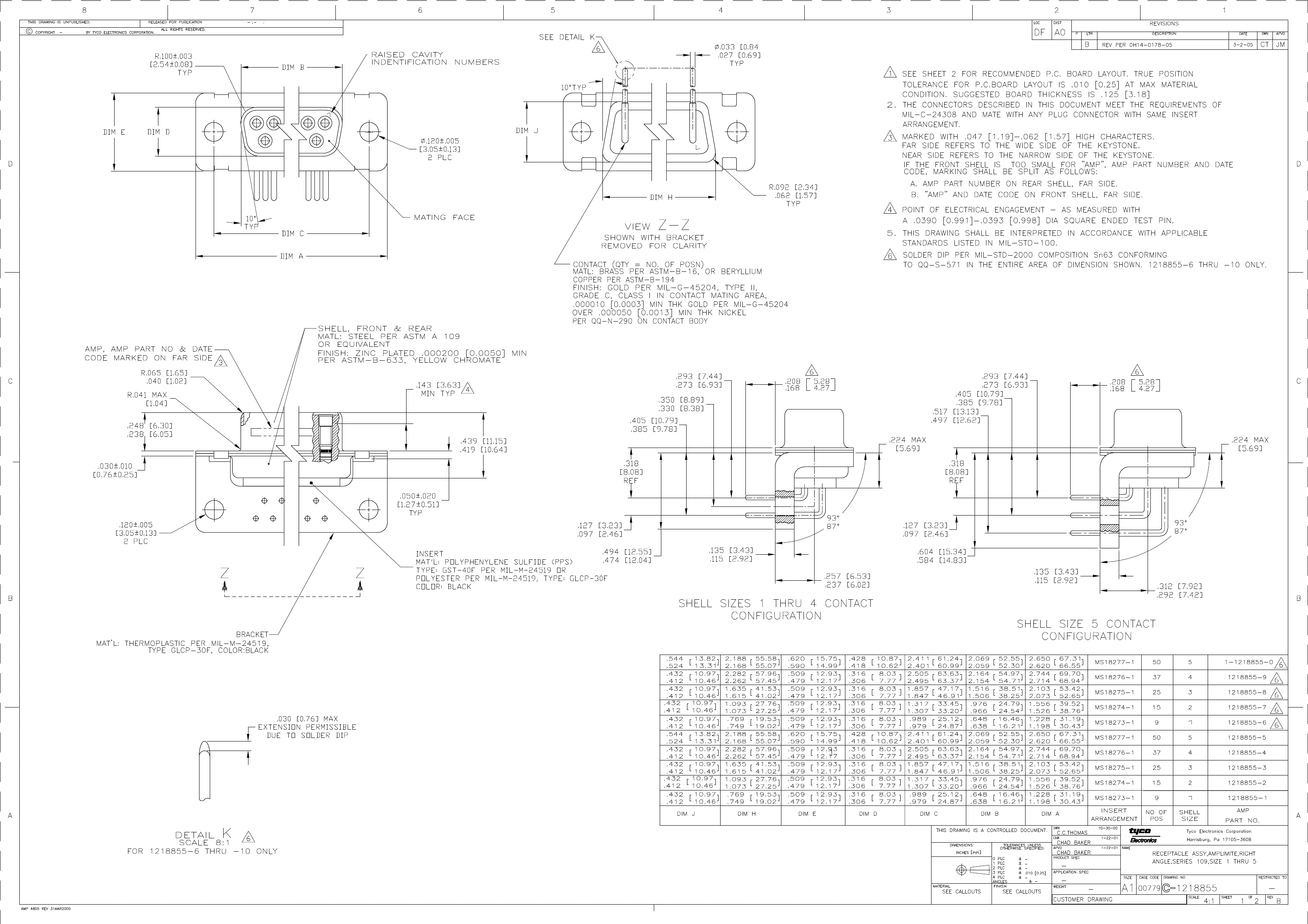

Preview

Download Datasheet

View All

1218855-4 Related Products

	1218855-4	1218855-1	M80-4T12242F2-05-302-12-301	M80-4T12242F2-07-301-10-301	M80-4T12242F2-09-301-08-302	M80-4T12242F3-06-301-11-302
Description	37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug
Objectid	1807199422	1807303648	308831143	308831499	308831908	308833984
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50)/GOLD (30) OVER NICKEL	GOLD (50)/GOLD (30) OVER NICKEL	AU	AU	AU	AU
Contact completed and terminated	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	TIN	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
insulator material	POLYESTER/POLYPHENYLENE SULFIDE	POLYESTER/POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE
Manufacturer's serial number	1218855	1218855	M80	M80	M80	M80
Mixed contacts	NO	NO	YES	YES	YES	YES
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
body width	-	-	0.219 inch	0.219 inch	0.219 inch	0.219 inch
subject depth	-	-	0.205 inch	0.205 inch	0.205 inch	0.205 inch
body length	-	-	3.937 inch	3.937 inch	3.937 inch	3.937 inch
Contact material	-	-	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Contact resistance	-	-	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	-	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Durability	-	-	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	-	-	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	-	-	BLACK	BLACK	BLACK	BLACK
Installation option 1	-	-	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	-	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	-	-	ONE	ONE	ONE	ONE
Maximum operating temperature	-	-	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-	-	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	-	-	12u inch	12u inch	12u inch	12u inch
Rated current (signal)	-	-	3 A	3 A	3 A	3 A
Guideline	-	-	UL	UL	UL	UL
reliability	-	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	-	-	0.118 inch	0.118 inch	0.118 inch	0.118 inch
