25C320
32K 5.0V SPI
™
Bus Serial EEPROM
FEATURES
•
•
•
•
SPI modes 0,0 and 1,1
3.0 MHz Clock Rate
Single 5V Supply
Low Power CMOS Technology
- Max Write Current: 5 mA
- Read Current: 1.0 mA at 5.5V, 3MHz
- Standby Current: 1
µ
A typical
4096 x 8 Organization
32 Byte Page
Sequential Read
Self-timed ERASE and WRITE Cycles
Block Write Protection
- Protect none, 1/4, 1/2, or all of Array
Built-in Write Protection
- Power On/Off Data Protection Circuitry
- Write Enable Latch
- Write Protect Pin
High Reliability
- Endurance: 1M cycles (guaranteed)
- Data Retention: >200 years
- ESD protection: >4000V
8-pin PDIP/SOIC, 14-pin TSSOP
Temperature ranges supported
- Commercial (C):
0
°
C to +70
°
C
- Industrial (I):
-40
°
C to +85
°
C
- Automotive (E):
-40
°
C to +125
°
C
PACKAGE TYPES
DIP/SOIC
CS
SO
WP
V
SS
1
25C320
2
3
4
8
7
6
5
V
CC
HOLD
SCK
SI
•
•
•
•
•
•
TSSOP
CS 1
SO 2
NC 3
NC 4
NC 5
WP 6
V
SS
7
14 V
CC
13 HOLD
12 NC
11 NC
10 NC
9 SCK
8 SI
25C320
•
BLOCK DIAGRAM
Status
Register
HV Generator
•
•
EEPROM
I/O Control
Logic
Memory
Control
Logic
X
Dec
Page Latches
WP
SI
SO
CS
SCK
HOLD
Sense Amp.
R/W Control
Y Decoder
Array
DESCRIPTION
The Microchip Technology Inc. 25C320 is a 32K-bit
serial Electrically Erasable PROM (EEPROM). The
memory is accessed via a simple Serial Peripheral
Interface (SPI) compatible serial bus. The bus signals
required are a clock input (SCK) plus separate data in
(SI) and data out (SO) lines. Access to the device is
controlled through a chip select (CS) input, allowing any
number of devices to share the same bus.
There are two other inputs that provide the end user
with additional flexibility. Communication to the device
can be paused via the hold pin (HOLD). While the
device is paused, transitions on its inputs will be
ignored, with the exception of chip select, allowing the
host to service higher priority interrupts. Also write
operations to the Status Register can be disabled via
the write protect pin (WP).
Vcc
Vss
SPI is a trademark of Motorola.
©
1996 Microchip Technology Inc.
Preliminary
This document was created with FrameMaker 4 0 4
DS21159B-page 1
25C320
1.0
1.1
ELECTRICAL
CHARACTERISTICS
Maximum Ratings*
FIGURE 1-1: AC TEST CIRCUIT
Vcc
2.25 K
V
CC
........................................................................ 7.0V
All inputs and outputs w.r.t. V
SS
....... -0.6V to V
CC
+1.0V
Storage temperature ............................ -65
°
C to 150
°
C
Ambient temperature under bias.......... -65
°
C to 125
°
C
Soldering temperature of leads
(10 seconds) .................................................... +300
°
C
ESD protection on all pins..................................... 4 kV
*Notice:
Stresses above those listed under ‘Maximum ratings’
may cause permanent damage to the device. This is a stress rat-
ing only and functional operation of the device at those or any
other conditions above those indicated in the operational listings
of this specification is not implied. Exposure to maximum rating
conditions for extended period of time may affect device reliability
SO
1.8 K
100 pF
1.2
AC Test Conditions
TABLE 1-1:
Name
CS
SO
SI
SCK
WP
V
SS
V
CC
HOLD
NC
PIN FUNCTION TABLE
Function
Chip Select Input
Serial Data Output
Serial Data Input
Serial Clock Input
Write Protect Pin
Ground
Supply Voltage
Hold Input
No Connect
AC Waveform:
V
LO
= 0.2V
V
HI
= Vcc - 0.2V
V
HI
= 4.0V
(Note 1)
(Note 2)
Timing Measurement Reference Level
Input
0.5 V
CC
Output
0.5 V
CC
Note 1: For V
CC
≤
4.0V
2: For V
CC
> 4.0V
TABLE 1-2:
DC CHARACTERISTICS
Applicable over recommended operating ranges shown below unless otherwise noted:
V
CC
= 4.5V to 5.5V
Commercial (C):
Tamb = 0
°
C to +70˚C
Industrial (I):
Tamb =-40˚C to +85˚C
Automotive (E):
Tamb = -40
°
C to +125
°
C
Parameter
High level input voltage
Low level input voltage
Low level output voltage
High level output voltage
Input leakage current
Output leakage current
Internal Capacitance
(all inputs and outputs)
Operating Current
Symbol
V
IH
V
IL
V
OL
V
OH
I
LI
I
LO
C
INT
I
CC write
I
CC read
Standby Current
Note:
Min
2.0
-0.3
—
V
CC
-0.5
-10
-10
—
——
—
—
Max
V
CC
+1
0.8
0.4
—
10
10
7
5
1
5
Units
V
V
V
V
µ
A
µ
A
pF
mA
mA
µ
A
Test Conditions
I
OL
=2.1 mA
I
OH
=-400
µ
A
CS=V
IH
, V
IN
=GND to V
CC
CS=V
IH
, V
OUT
=GND to V
CC
Tamb=25
°
C, F
CLK
=1.0 MHz,
V
CC
=5.5V (Note)
V
CC
=5.5V; SO=Open
V
CC
=5.5V; SO=Open, F
CLK
=3.0 MHz
CS=V
CC
=5.5V; V
IN
=Gnd or V
CC
I
CCS
This parameter is periodically sampled and not 100% tested.
DS21159B-page 2
Preliminary
©
1996 Microchip Technology Inc.

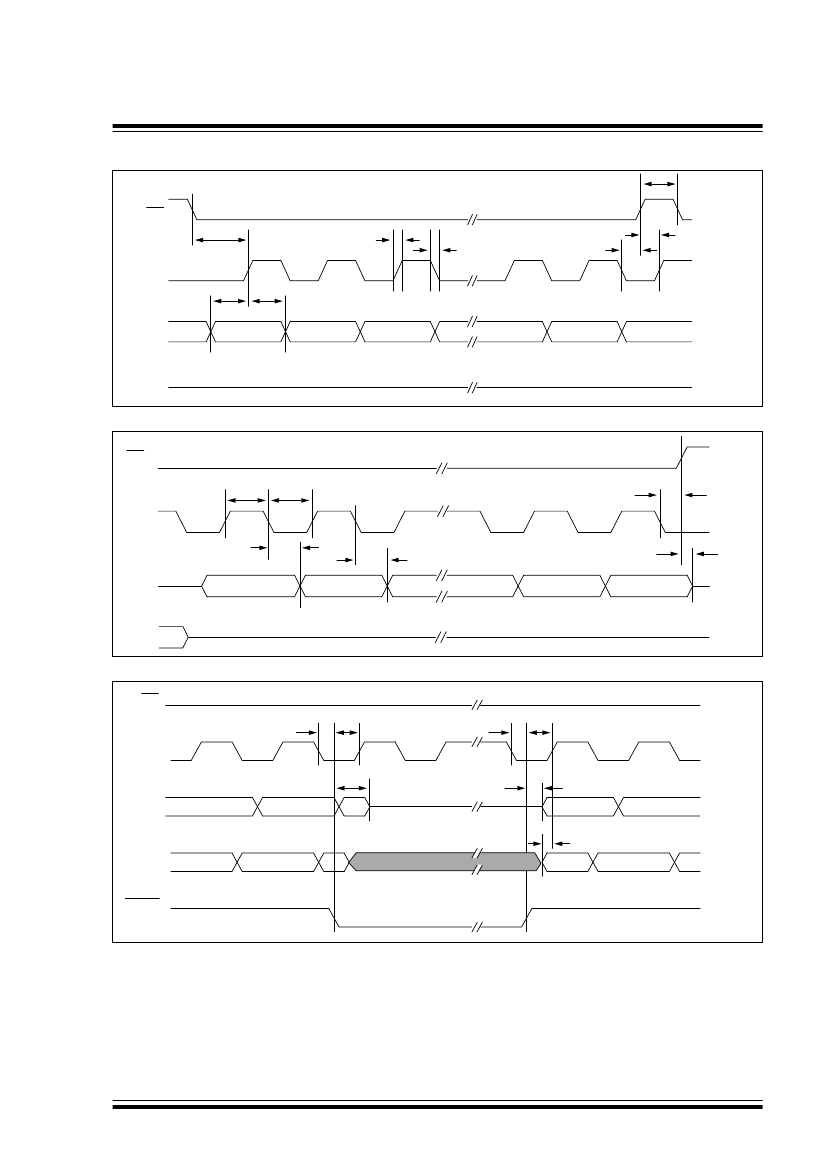

25C320
2.0
PRINCIPLES OF OPERATION
The 25C320 is a 4096-byte EEPROM designed to
interface directly with the serial peripheral interface (SPI)
port of many of today’s popular microcontroller families,
including Microchip’s midrange PIC16CXX microcontrol-
lers. It may also interface with microcontrollers that do
not have a built-in SPI port by using discrete I/O lines
programmed properly with software.
The 25C320 contains an 8-bit instruction register. The
part is accessed via the SI pin, with data being clocked
in on the rising edge of SCK. The CS pin must be low
and the HOLD pin must be high for the entire operation.
If the WPEN bit in the status register is set, the WP pin
must be held high to allow writing to the nonvolatile bits
in the status register.
Table 2-1 contains a list of the possible instruction bytes
and format for device operation. All instructions,
addresses and data are transferred MSB first, LSB last.
Data is sampled on the first rising edge of SCK after CS
goes low. If the clock line is shared with other peripheral
devices on the SPI bus, the user can assert the HOLD
input and place the 25C320 in ‘HOLD’ mode. After
releasing the HOLD pin, operation will resume from the
point when the HOLD was asserted.
The
Write Enable Latch (WEL)
bit indicates the status
of the write enable latch. When set to a ‘1’ the latch
allows writes to the array and status register, when set
to a ‘0’ the latch prohibits writes to the array and status
register. The state of this bit can always be updated via
the WREN or WRDI commands regardless of the state
of write protection on the status register. This bit is read
only.
The
Block Protection (BP0 and BP1)
bits indicate
which blocks are currently write protected. These bits
are set by the user issuing the WRSR instruction.
These bits are non-volatile.
The
Write Protect Enable (WPEN)
bit is a nonvolatile
bit that is available as an enable bit for the WP pin. The
Write Protect (WP) pin and the Write Protect Enable
(WPEN) bit in the status register control the
programmable hardware write protect feature.
Hardware write protection is enabled when the WP pin
is low and the WPEN bit is high. Hardware write
protection is disabled when either the WP pin is high or
the WPEN bit is low. When the chip is hardware write
protected, only writes to nonvolatile bits in the status
register are disabled. See Table 2-2 for matrix of
functionality on the WPEN bit and Figure 2-1 for a
flowchart of Table 2-2.
See Figure 3-5 for RDSR timing sequence.
2.1
Write Enable (WREN) and Write
Disable (WRDI)
TABLE 2-1:
INSTRUCTION SET
Description
The 25C320 contains a write enable latch. This latch
must be set before any write operation will be
completed internally. The WREN instruction will set the
latch, and the WRDI will reset the latch. The following is
a list of conditions under which the write enable latch
will be reset:
•
•
•
•
Power-up
WRDI instruction successfully executed
WRSR instruction successfully executed
WRITE instruction successfully executed
Instruction Instruction
Name
Format
WREN
WRDI
RDSR
WRSR
2.2
Read Status Register (RDSR)
READ
The RDSR instruction provides access to the status
register. The status register may be read at any time,
even during a write cycle. The status register is format-
ted as follows:
7
WPEN
6 5 4
X X X
3
BP1
2
BP0
1
WEL
0
WIP
WRITE
0000 0110 Set the write enable latch
(enable write operations)
0000 0100 Reset the write enable
latch (disable write opera-
tions)
0000 0101 Read status register
0000 0001 Write status register (write
protect enable and block
write protection bits)
0000 0011 Read data from memory
array beginning at
selected address
0000 0010 Write data to Memory
Array beginning at
Selected Address
The
Write-In-Process (WIP)
bit indicates whether the
25C320 is busy with a write operation. When set to a ‘1’
a write is in progress, when set to a ‘0’ no write is in
progress. This bit is read only.
©
1996 Microchip Technology Inc.
Preliminary
DS21159B-page 5
