1218859-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1218859-6

1218859-6: Description9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size382KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

1218859-6 Overview

9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE

1218859-6 Parametric

Parameter Name	Attribute value
Objectid	1808062646
Reach Compliance Code	unknown
Other features	AMPLIMITE
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYESTER/POLYPHENYLENE SULFIDE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	1218859
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9

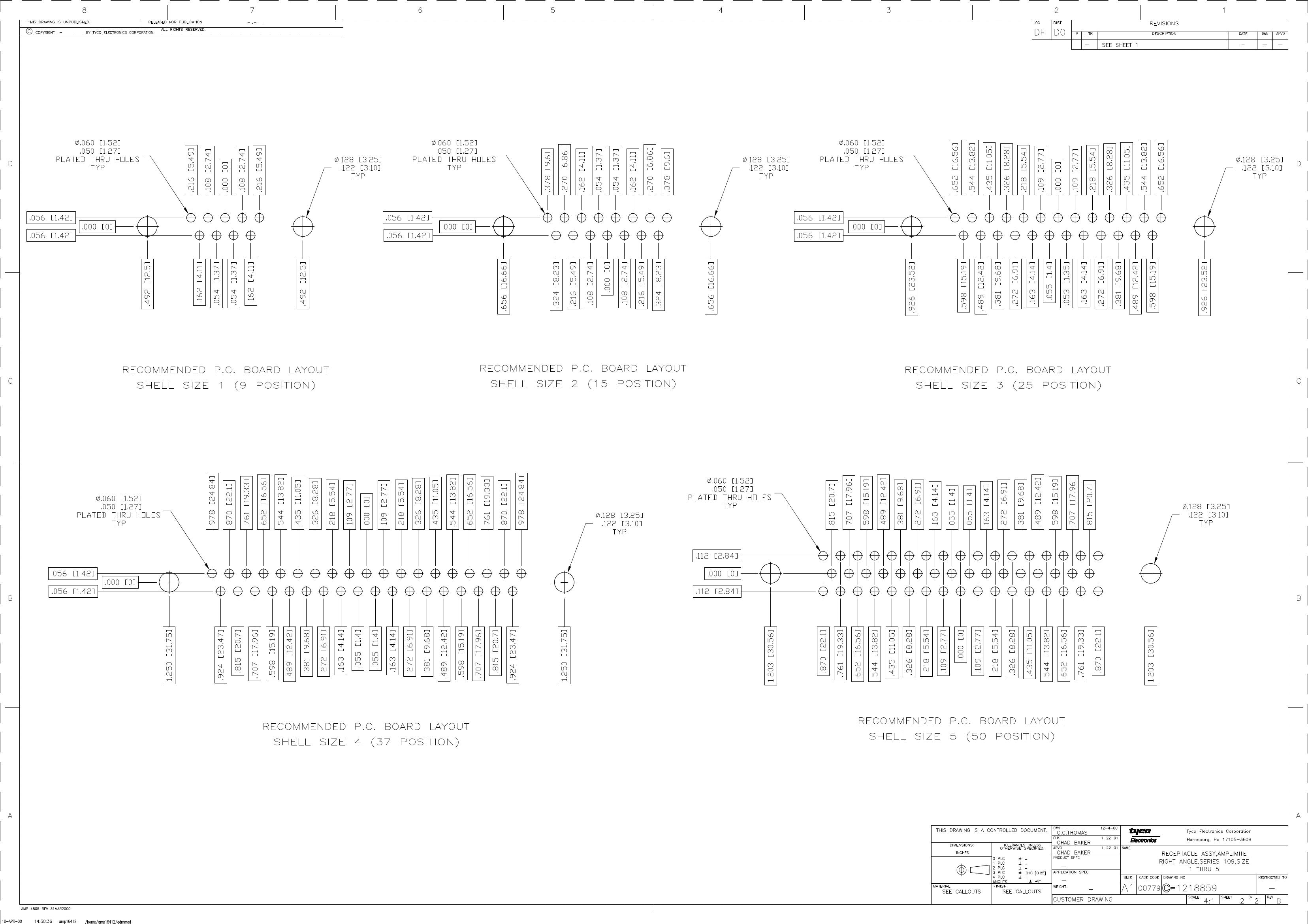

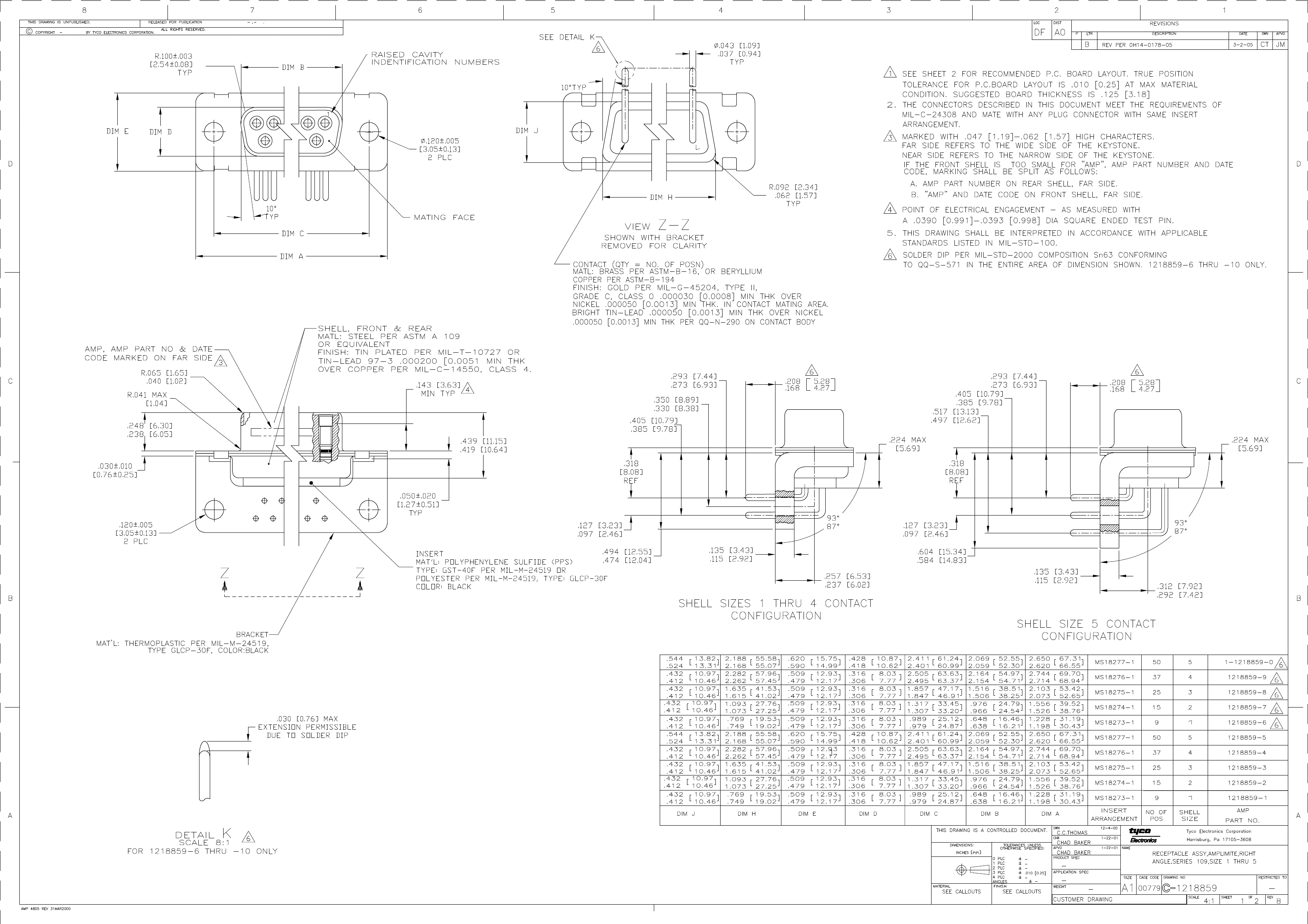

Preview

Download Datasheet

View All

1218859-6 Related Products

	1218859-6	1218859-2	1218859-5	M80-4T12405F3-01-322-08-322	M80-4T12405F3-03-322-06-321	M80-4T12442F2-04-321-05-322
Description	9 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	15 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	50 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug	Board Connector, Female, Straight, Solder Terminal, Locking, Black Insulator, Plug
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	GOLD (50)/GOLD (30) OVER NICKEL	GOLD (50)/GOLD (30) OVER NICKEL	AU	AU	AU
Contact completed and terminated	TIN LEAD OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD	GOLD	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
insulator material	POLYESTER/POLYPHENYLENE SULFIDE	POLYESTER/POLYPHENYLENE SULFIDE	POLYESTER/POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE
Mixed contacts	NO	NO	NO	YES	YES	YES
Installation type	BOARD AND PANEL	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Objectid	1808062646	1807387294	-	308854594	308855001	308863218
Manufacturer's serial number	1218859	-	1218859	M80	M80	M80
