1N3172RIL datasheet, PDF - EEWORLD Datasheet

1N3172RIL: DescriptionRectifier Diode, 1 Element, 300A, 800V V(RRM),; CategoryDiscrete semiconductor diode; File Size120KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

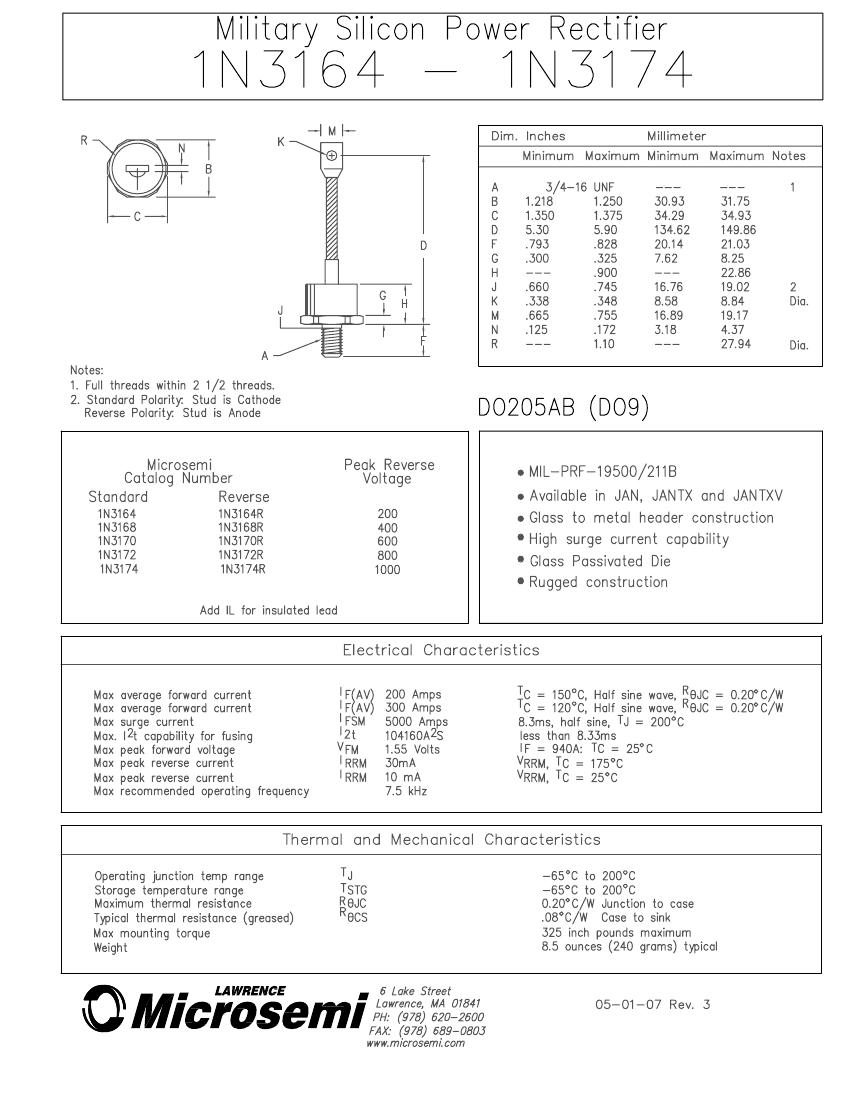

1N3172RIL Overview

Rectifier Diode, 1 Element, 300A, 800V V(RRM),

Parameter Name	Attribute value
Maker	Microsemi
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode type	RECTIFIER DIODE

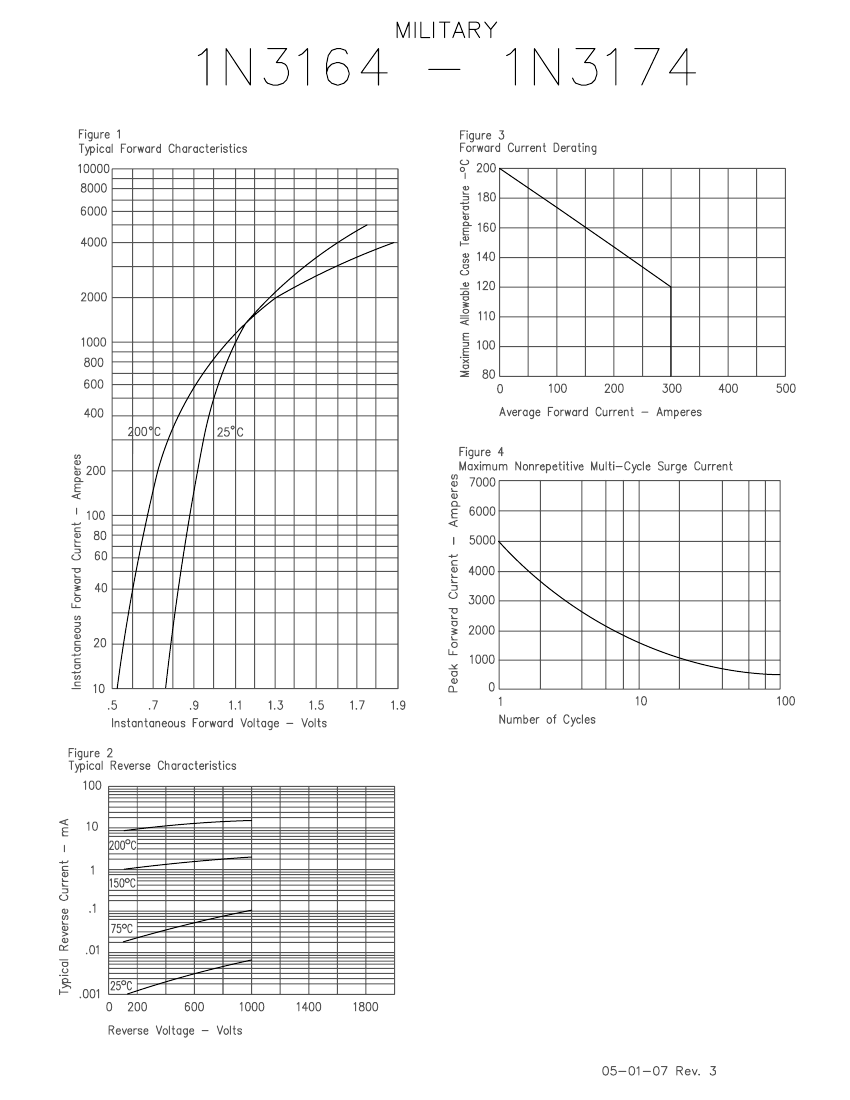

Maximum forward voltage (VF)	1.55 V
Maximum non-repetitive peak forward current	5000 A
Number of components	1
Maximum operating temperature	200 °C
Maximum output current	300 A
Maximum repetitive peak reverse voltage	800 V
Base Number Matches	1

	1N3172RIL	40HS34B122JC	1210F2000223KRT	1N3164IL	1N3170IL
Description	Rectifier Diode, 1 Element, 300A, 800V V(RRM),	Ceramic Capacitor, Multilayer, Ceramic, 4000V, 5% +Tol, 5% -Tol, X7R, 15% TC, 0.0012uF, Through Hole Mount, RADIAL LEADED	Ceramic Capacitor, Multilayer, Ceramic, 200V, 10% +Tol, 10% -Tol, BZ, 15% TC, 0.022uF, Surface Mount, 1210, CHIP, ROHS COMPLIANT	Rectifier Diode, 1 Element, 300A, 200V V(RRM)	Rectifier Diode, 1 Element, 300A, 600V V(RRM),
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Maximum operating temperature	200 °C	125 °C	125 °C	200 °C	200 °C
Maker	Microsemi	-	-	Microsemi	Microsemi
ECCN code	EAR99	EAR99	EAR99	-	EAR99
Configuration	SINGLE	-	-	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	-	-	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.55 V	-	-	1.55 V	1.55 V
Maximum non-repetitive peak forward current	5000 A	-	-	5000 A	5000 A
Number of components	1	-	-	1	1
Maximum output current	300 A	-	-	300 A	300 A
Maximum repetitive peak reverse voltage	800 V	-	-	200 V	600 V
