K86-EA-15P-KJ30 datasheet, PDF

Datasheet> All Categories > The connector> The connector> K86-EA-15P-KJ30

K86-EA-15P-KJ30: DescriptionD Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size252KB，4 Pages; ManufacturerKycon

Download Datasheet Parametric View All

K86-EA-15P-KJ30 Overview

D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Lug Terminal, #4-40, Receptacle,

K86-EA-15P-KJ30 Parametric

Parameter Name	Attribute value
Objectid	1177588375
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH RIVET AND HEX JACKSCREW
body width	0.494 inch
subject depth	0.236 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contactor design	STAMPED, PREASSEM
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	RIVET & JACKSCREW
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.118 inch
Termination type	SOLDER LUG
Total number of contacts	15
Evacuation force-minimum value	1.112 N

Preview

Download Datasheet

View All

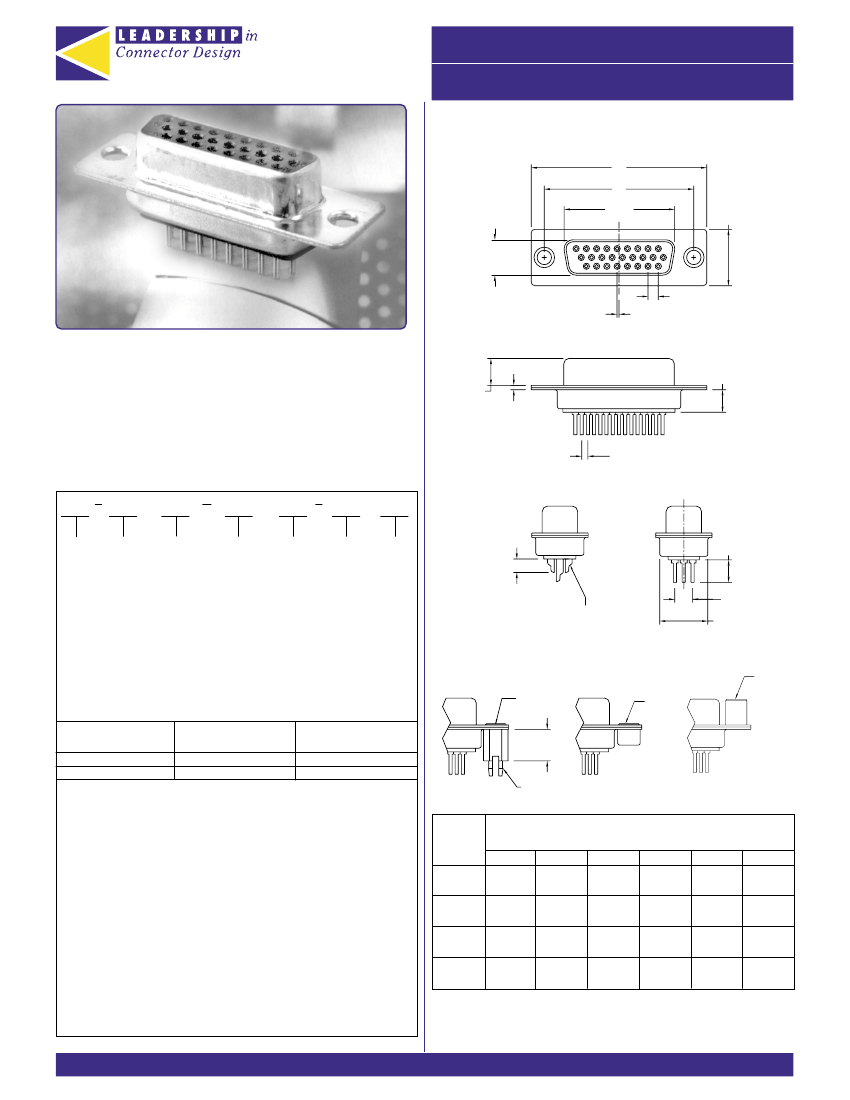

D-SUBMINIATURE CONNECTORS

KYCON

Dimensions in mm [In]

A, A1

12.55 [.494]

K86 Series

K86 Series Dimensions

8.36 Plug Interior,

7.90 Socket Exterior

K86 Series

High Density Vertical

PCB Mount and

Soldercup

Ordering Information

K86

Series

5.9 Plug,

6.0 Socket

0.99 [.039]

1.385 [.054]

4.30 [.169]

3.0 [.118]

Contact Number of Contact Mounting Plating

Shell

Size Construction Contacts

Type

Options Options

Series

K86-Kycon High Density D-Subminiature Connector, Solder

Cup or Vertical PCB Termination

Shell Size

E-15 Contacts

A-26 Contacts

B-44 Contacts

C-62 Contacts

Contact Construction

Designator

Contact

Construction

Precision Formed

Type of

Termination

Solder Cup

Vertical Pin (PCB Mount)

Solder Cups

10.72 [.422]

5.00 [.197]

3.96 [.156]

-BR Option

#4-40 UNC

-K Option

#4-40

UNC

Bushing

-R Option

#4-40

UNC

Internal

Thread

6.00 [.236]

Number of Contacts

15, 26, 44, 62

Contact Type

P-Pin Contact (Plug)

S-Socket Contact (Receptacle)

Mounting Options

K-with Riveted Threaded (4-40) Bushings

KJ-with Riveted Threaded (4-40) Bushings and (4-40) Hex

Jack Screws Installed

BR-with (4-40) Riveted Threaded Tin Plated Board Lock

BRJ-with (4-40) Riveted Threaded Tin Plated Board Lock

and (4-40) Hex Jack Screws Installed

R-with Round Riveted Jack Screws

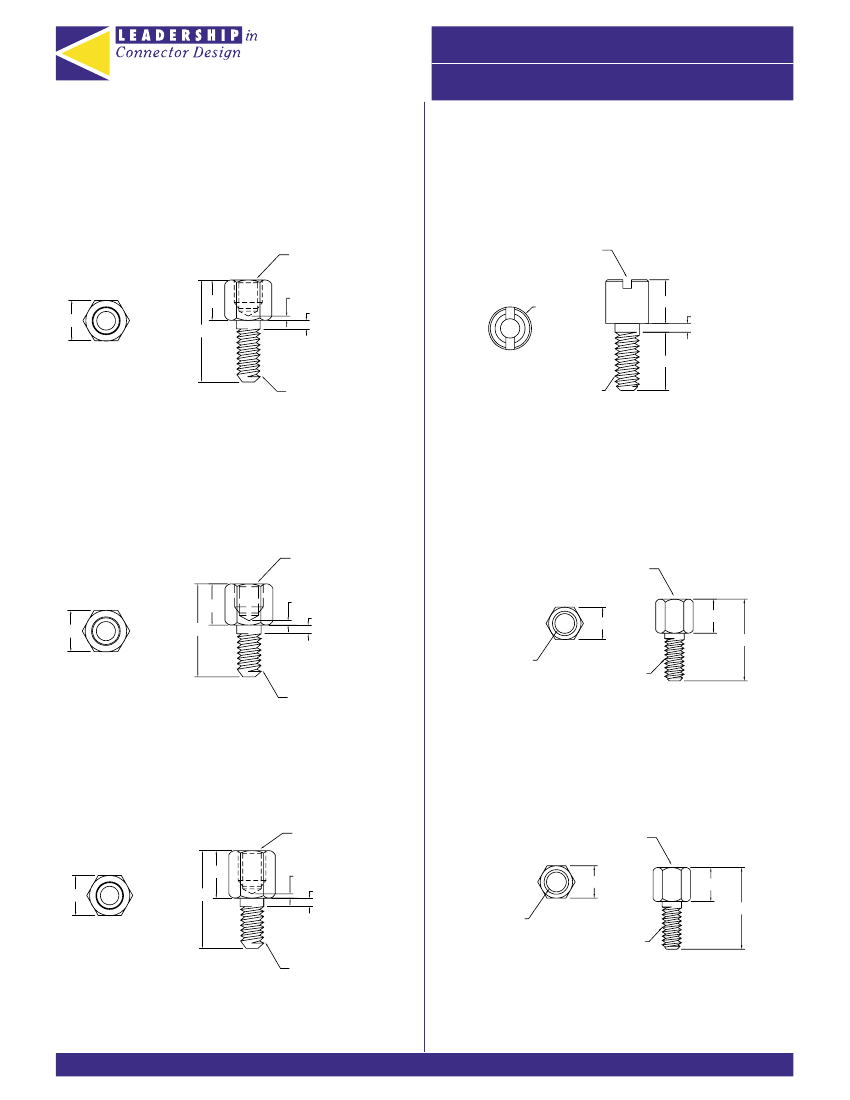

Hex Jack Screws JS-1055 Recommended for BR Option.

(See page 38 for Dimensions.)

Board Lock

Number of

Contacts

(Shell Size)

15 (E)

26 (A)

44 (B)

62 (C)

Dimensions (Inch/mm)

.643

16.33

.971

24.66

1.511

38.38

2.159

54.84

.666

16.92

.994

25.25

1.534

38.96

2.182

55.42

.984

24.99

1.312

33.32

1.852

47.04

2.500

63.50

1.213

30.81

1.541

39.14

2.088

53.04

2.729

69.32

.090

2.29

.090

2.29

.090

2.29

.094

2.41

.010

0.25

.020

0.51

.020

0.51

.023

0.58

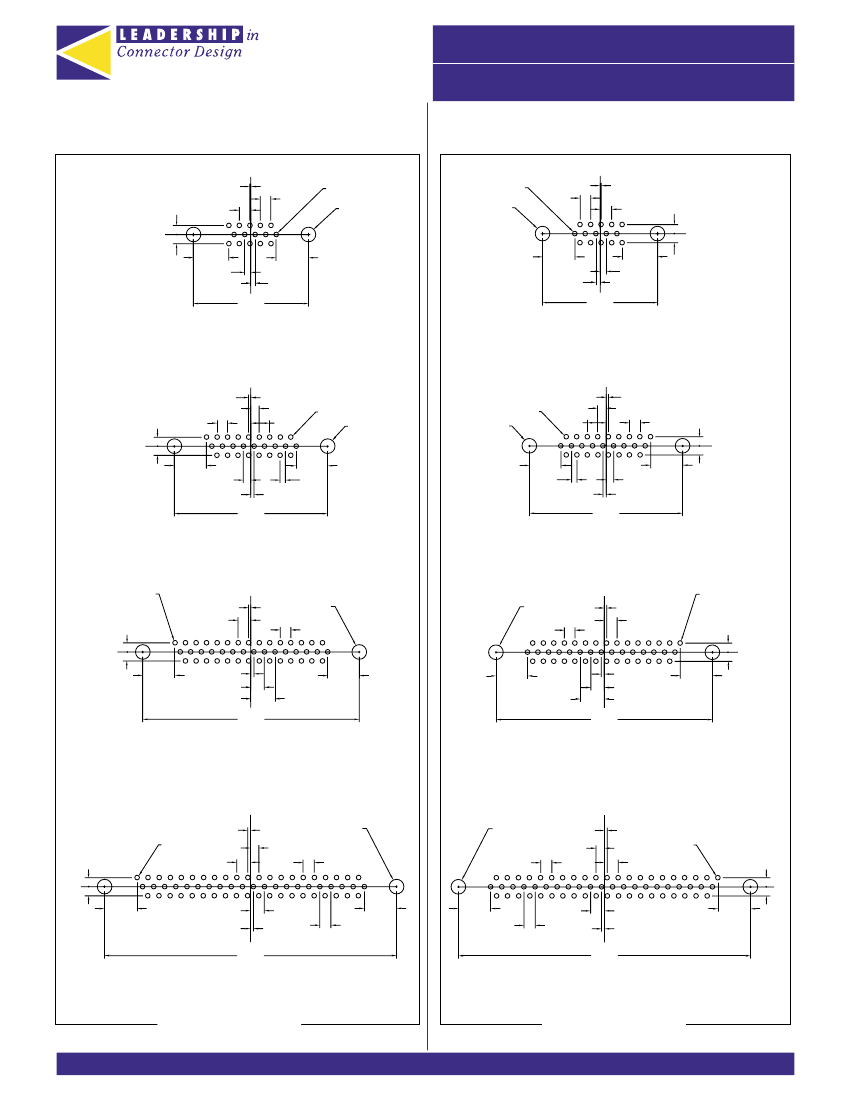

Plating Options and Performance Specifications

(see page 4)

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

2002

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
