Bulletin PD-20719 rev. A 03/01
129NQ...(R) SERIES
SCHOTTKY RECTIFIER
120 Amp
D-67
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
range
I
FSM
V
F
T
J
@ tp = 5 µs sine
@120Apk, T
J
=125°C
range
Description/Features
The 129NQ... (R) high current Schottky rectifier module series
has been optimized for low reverse leakage at high
temperature. The proprietary barrier technology allows for
reliable operation up to 175° C junction temperature. Typical
applications are in switching power supplies, converters, free-
wheeling diodes, and reverse battery protection.
175° C T
J
operation
Unique high power, Half-Pak module
Replaces two parallel DO-5's
Easier to mount and lower profile than DO-5's
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
129NQ...(R) Units
120
A
135 to 150
10000
0.74
- 55 to 175
V
A
V
°C
129NQ150
Lug Terminal Anode
Base Cathode
129NQ150R
Lug Terminal Cathode
Base Anode

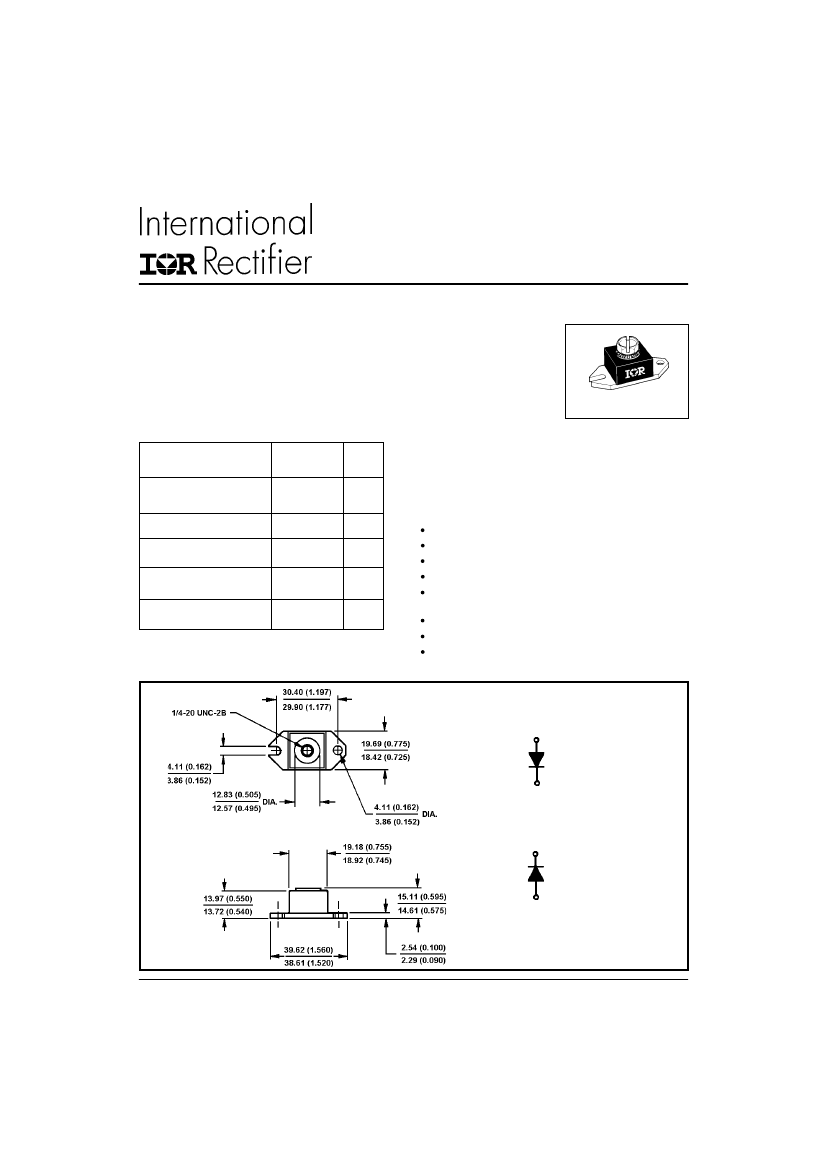

Outline D-67 HALF PAK Module
Dimensions in millimeters and (inches)
www.irf.com
1
129NQ...(R) Series
Bulletin PD-20719 rev. A 03/01
Voltage Ratings
Part number
V
R
Max. DC Reverse Voltage (V)
135
150
V
RWM
Max. Working Peak Reverse Voltage (V)
129NQ135
129NQ150
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward Current
* See Fig. 5
I
FSM
Max. Peak One Cycle Non-Repetitive
Surge Current * See Fig. 7
E
AS
I
AR
Non-Repetitive Avalanche Energy
Repetitive Avalanche Current
129NQ Units
120
10000
1200
15
1
A
Conditions
50% duty cycle @ T
C
= 117° C, rectangular wave form
5µs Sine or 3µs Rect. pulse
10ms Sine or 6ms Rect. pulse
Following any rated
load condition and
with rated V
RRM
applied
A
mJ
A
T
J
= 25 °C, I
AS
= 1 Amps, L = 30 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
* See Fig. 1
(1)
129NQ Units
1.07
1.27
0.74
0.86
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 120A
@ 240A
@ 120A
@ 240A
T
J
= 25 °C
T
J
= 125 °C
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Max. Reverse Leakage Current (1)
* See Fig. 2
Max. Junction Capacitance
Typical Series Inductance
3
45
3000
7.0
10,000
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25 °C
From top of terminal hole to mounting plane
dv/dt Max. Voltage Rate of Change
( Rated V
R
)
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
(1) Pulse Width < 300µs, Duty Cycle < 2%
129NQ Units
-55 to 175
-55 to 175
0.40
0.15
°C
°C
°C/W
°C/W
DC operation
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case
R
thCS
Typical Thermal Resistance, Case to
Heatsink
wt
T
Approximate Weight
Mounting Torque
Terminal Torque
Case Style
Min.
Max.
Min.
Max.
* See Fig. 4
Mounting surface , smooth and greased
25.6 (0.9) g (oz.)
40 (35)
58 (50)
58 (50)
86 (75)
HALF PAK Module
Kg-cm
(Ibf-in)
Non-lubricated threads
2
129NQ...(R) Series
Bulletin PD-20719 rev. A 03/01
1000
1000
100
Reverse Current - I
R
(mA)
TJ = 175˚C
150˚C
125˚C
10
1
0.1
0.01
25˚C
100˚C
75˚C
50˚C
100
Instantaneous Forward Current - I
F
(A)
T
J
= 175˚C
T
J
= 125˚C
T
J
= 25˚C
0.001
0
30
60
90
120
150
Reverse Voltage - V
R
(V)

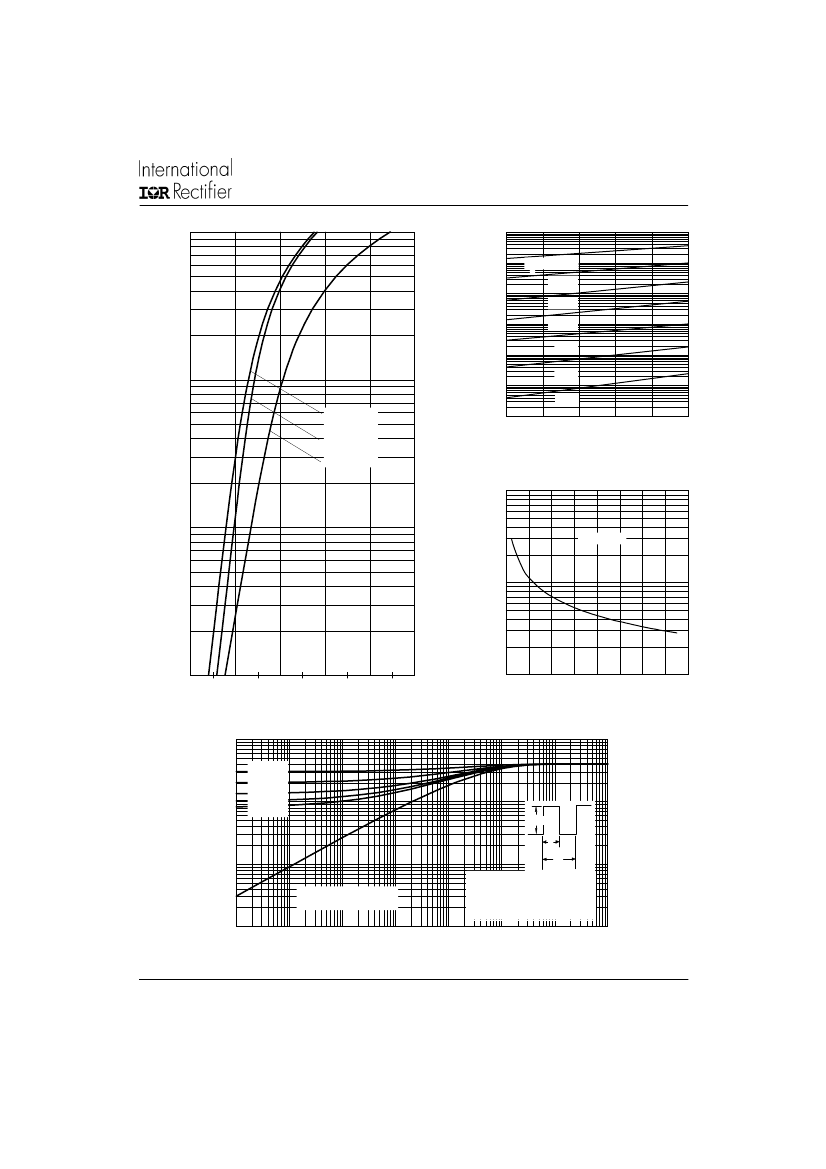

Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage
10000
Junction Capacitance - C
T
(pF)
10
T = 25˚C
J
1000
1
0
0.5
1
1.5
2
Forward Voltage Drop - V
FM
(V)
2.5
100
0
40
80
120
160
Reverse Voltage - V
R
(V)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage
Fig. 1 - Max. Forward Voltage Drop Characteristics
1
Thermal Impedance Z
thJC
(°C/W)
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
0.1
P
DM
t1
0.01
Notes:
t2
Single Pulse
(Thermal Resistance)
1. Duty factor D = t1 / t 2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
100
t
1
, Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics
3
129NQ...(R) Series
Bulletin PD-20719 rev. A 03/01
180
Allowable Case Temperature (°C)
Average Power Loss (Watts)
140
120
100
80
RMS Limit
DC
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
160
DC
140
120
Square wave (D = 0.50)
100
Rated VR applied
60
40
20
0
80
see note (2)
60
0
40
80
120
160
200
Average Forward Current - I
F(AV)
(A)
0
20 40 60 80 100 120 140 160 180
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current
Fig. 6 - Forward Power Loss Characteristics
10000
Non-Repetitive Surge Current - I
FSM (A)
1000
At Any Rated Load Condition
And With Rated VRRM Applied
Following Surge
100
10
100
1000
10000
Square Wave Pulse Duration - t
p
(microsec)
Fig. 7 - Max. Non-Repetitive Surge Current
L
H IG H -SPE ED
SW ITC H
FREE-W HE EL
D IO D E
40H FL40S02
V d = 25 V olt
D UT
IRFP460
Rg = 25 ohm
+
C UR RE N T
M O N ITO R
Fig. 8 - Unclamped Inductive Test Circuit
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= rated V
R
4
