MSM5117400-80TL datasheet, PDF

Datasheet> All Categories > storage> storage> MSM5117400-80TL

MSM5117400-80TL: DescriptionFast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24; Categorystorage storage; File Size567KB，21 Pages; ManufacturerOKI; Websitehttp://www.oki.com

Download Datasheet Parametric Compare View All

MSM5117400-80TL Overview

Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24

MSM5117400-80TL Parametric

Parameter Name	Attribute value
Parts packaging code	TSOP
package instruction	TSOP2-R,
Contacts	28/24
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE
JESD-30 code	R-PDSO-G24
length	18.41 mm
memory density	16777216 bit
Memory IC Type	FAST PAGE DRAM
memory width	4
Number of functions	1
Number of ports	1
Number of terminals	24
word count	4194304 words
character code	4000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX4
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2-R
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
refresh cycle	2048
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

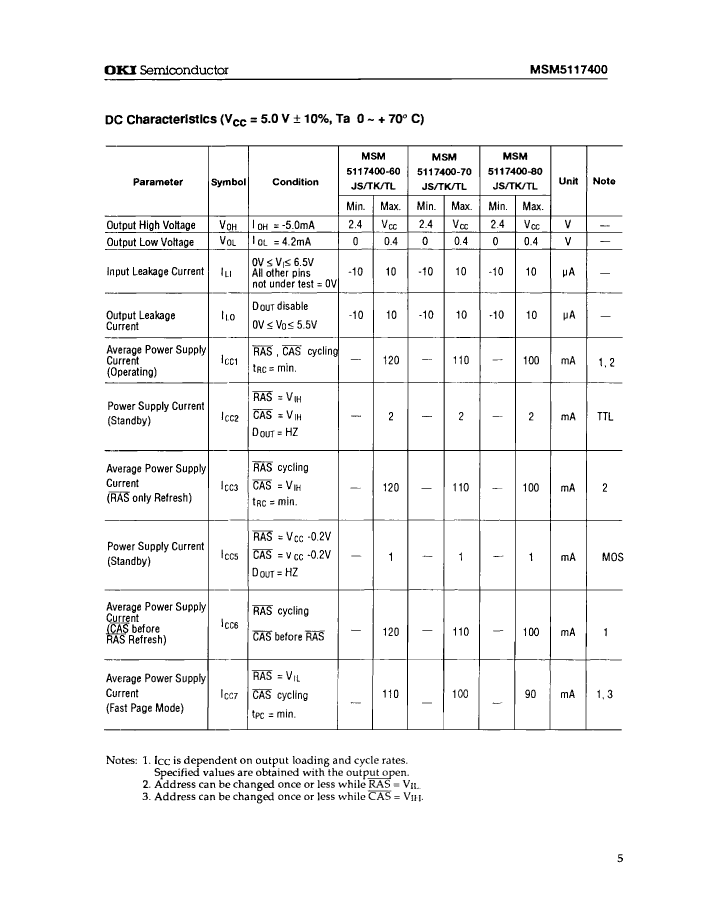

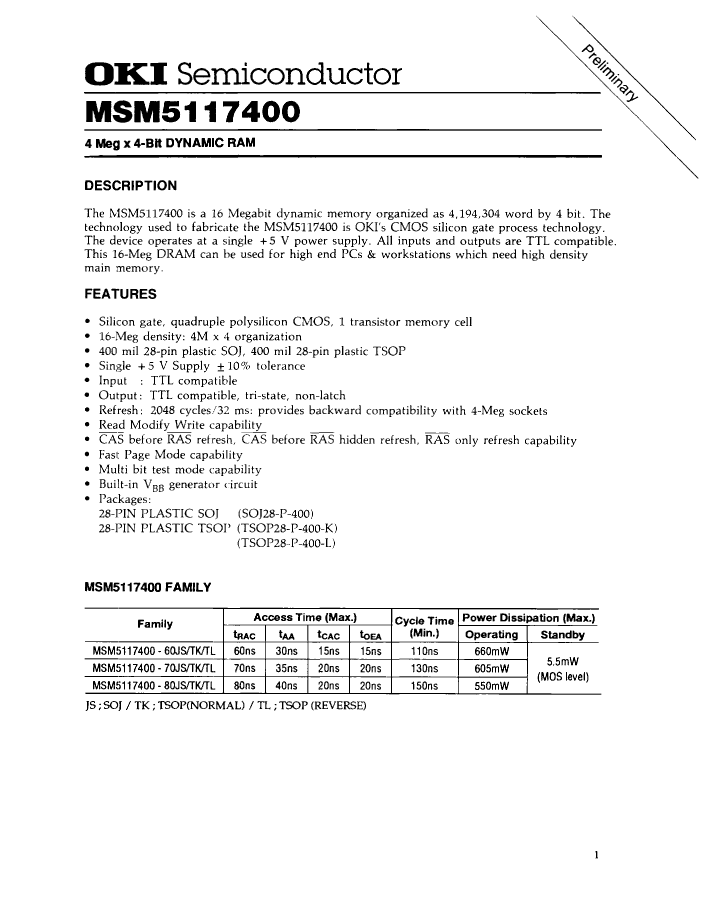

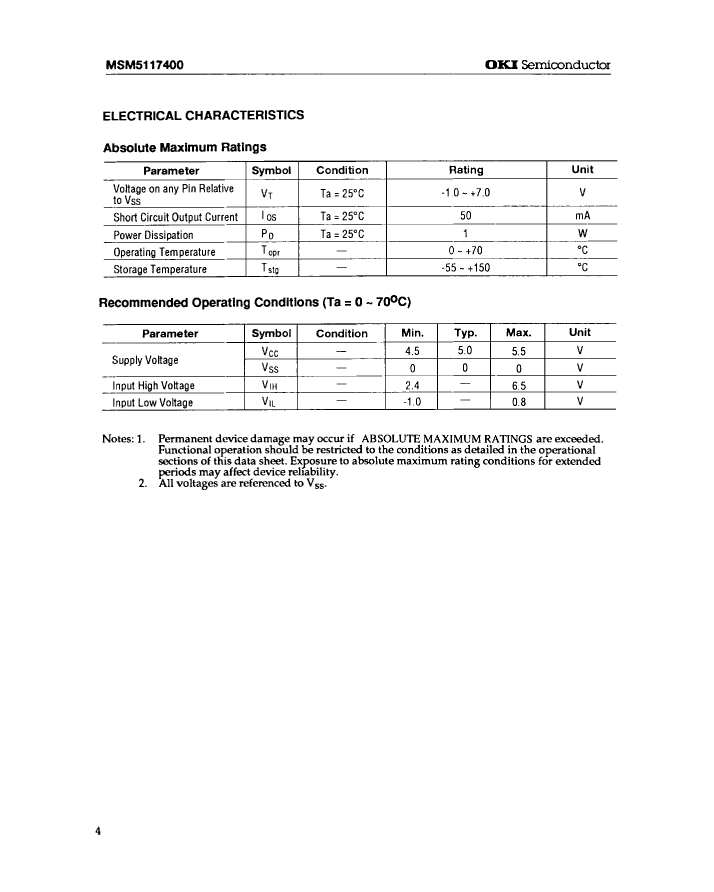

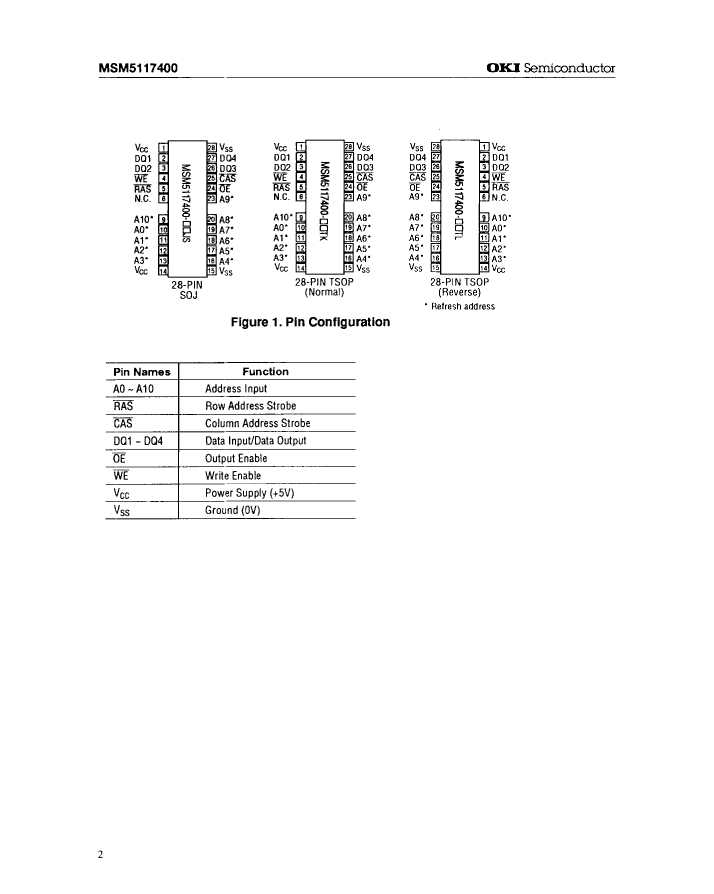

Preview

Download Datasheet

View All

MSM5117400-80TL Related Products

	MSM5117400-80TL	MSM5117400-70TL	MSM5117400-70TK	MSM5117400-70JS	MSM5117400-80JS	MSM5117400-80TK	MSM5117400-60TL	MSM5117400-60TK	MSM5117400-60JS
Description	Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24	Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24	Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24	Fast Page DRAM, 4MX4, 70ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, SOJ-28/24	Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, SOJ-28/24	Fast Page DRAM, 4MX4, 80ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24	Fast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24	Fast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, TSOP-28/24	Fast Page DRAM, 4MX4, 60ns, CMOS, PDSO24, 0.400 INCH, PLASTIC, SOJ-28/24
Parts packaging code	TSOP	TSOP	TSOP	SOJ	SOJ	TSOP	TSOP	TSOP	SOJ
package instruction	TSOP2-R,	TSOP2-R,	TSOP2,	SOJ,	SOJ,	TSOP2,	TSOP2-R,	TSOP2,	SOJ,
Contacts	28/24	28/24	28/24	24	24	28/24	28/24	28/24	24
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	70 ns	70 ns	70 ns	80 ns	80 ns	60 ns	60 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; TEST MODE
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-J24	R-PDSO-J24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-J24
length	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm	18.41 mm
memory density	16777216 bit	16777216 bi	16777216 bi	16777216 bi	16777216 bit	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4	4MX4
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2-R	TSOP2-R	TSOP2	SOJ	SOJ	TSOP2	TSOP2-R	TSOP2	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	2048	2048	2048	2048	2048	2048	2048	2048	2048
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	3.75 mm	3.75 mm	1.2 mm	1.2 mm	1.2 mm	3.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	J BEND	J BEND	GULL WING	GULL WING	GULL WING	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Base Number Matches	1	1	1	1	1	1	-	-	-
