14A-5.0R-36 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power management> transformer> 14A-5.0R-36

Preview

14A-5.0R-36: DescriptionSplit Bobbin Power Transformer, 5VA, ROHS COMPLIANT; CategoryPower management transformer; File Size276KB，2 Pages; ManufacturerBel; Websitehttp://www.belfuse.com; Environmental Compliance

Download Datasheet Parametric View All

14A-5.0R-36 Overview

Split Bobbin Power Transformer, 5VA, ROHS COMPLIANT

14A-5.0R-36 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PCB MOUNTABLE
Certification	UL; CSA; VDE
Center click function 1	NO
Center click function 2	NO
high	34.9 mm
Insulation voltage	4000 V
length	41.3 mm
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Output current 1	0.14 A
Output current 2	0.14 A
Output voltage 1	18 V
Output voltage 2	18 V
physical size	L41.3XB36.5XH34.9 (mm)
main rating	DUAL 115V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
VA rating	5 VA
width	36.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

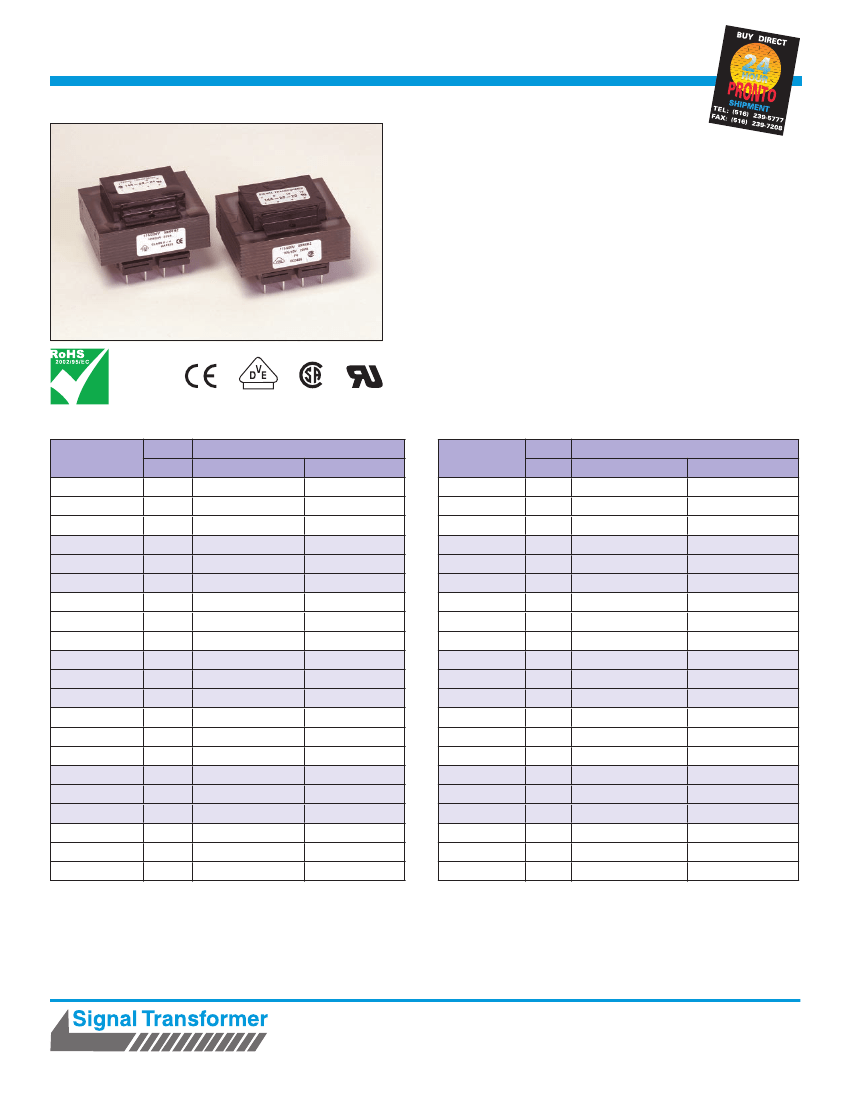

One-4-All™ International Transformers

Printed Circuit Mount

International Standards at Lower Cost with Better Performance

SM

Signal’s 14A transformers are used in low power applications and provide the

high isolation, creepage and clearance necessary to comply with international

safety standards.

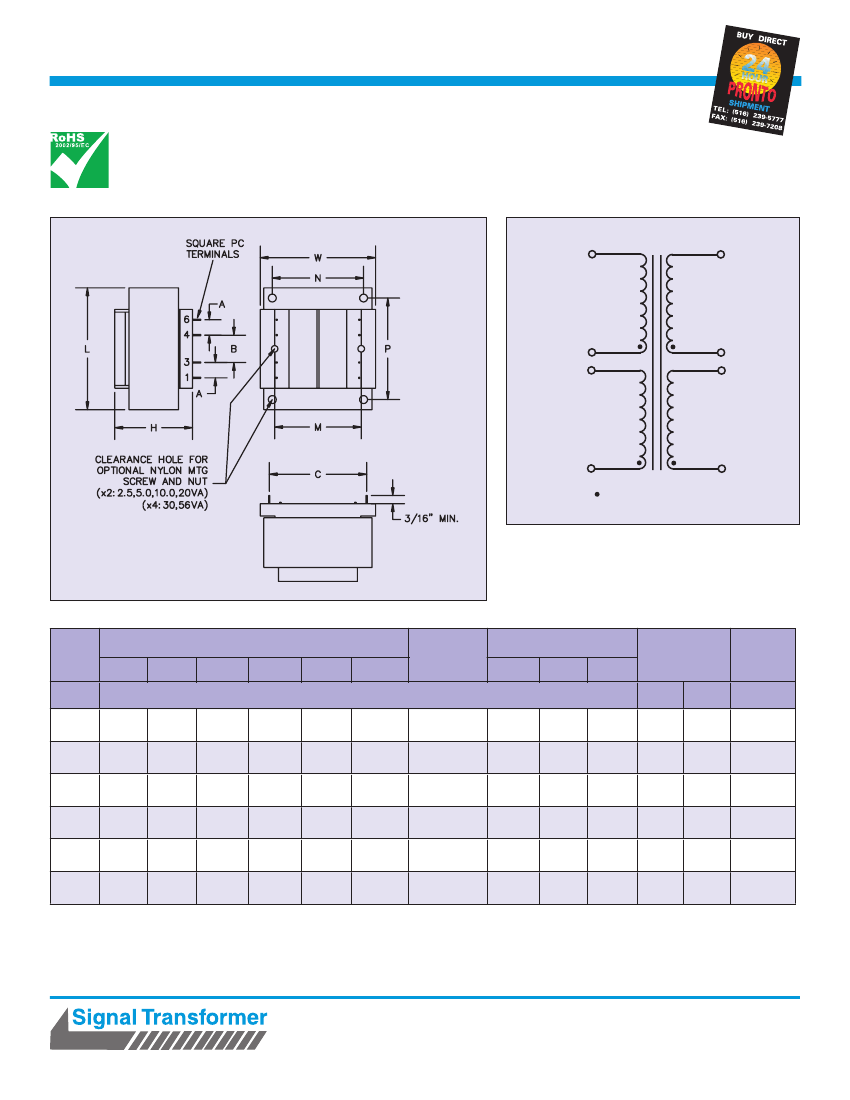

General Specifications

• Power - 2.5 VA to 56 VA

• Dielectric Strength - 4000 Vrms Hipot

• Dual Primaries - 115/230 V - 50/60 Hz

• Dual Secondaries - Series or parallel

• Insulation System - Class F, 155º C, UL 1446 (E66312)

• Flammability Rating - Bobbin and shroud material meet UL 94-V0

Agency Certifications

• UL recognized to UL 506, File # E63829

• CSA certified to C22.2 #66, File # 221070

• VDE certified to VDE 0805 / EN 60950, File # 1446

Part Number

14A-2.5R-10

14A-5.0R-10

14A-10R-10

14A-2.5R-12

14A-5.0R-12

14A-10R-12

14A-2.5R-16

14A-5.0R-16

14A-10R-16

14A-2.5R-20

14A-5.0R-20

14A-10R-20

14A-2.5R-24

14A-5.0R-24

14A-10R-24

14A-2.5R-28

14A-5.0R-28

14A-10R-28

14A-2.5R-36

14A-5.0R-36

14A-10R-36

VA

Size

2.5

5.0

10.0

2.5

5.0

10.0

2.5

5.0

10.0

2.5

5.0

10.0

2.5

5.0

10.0

2.5

5.0

10.0

2.5

5.0

10.0

Secondary RMS Rating

Series

10.0 VCT @ 0.25A

10.0 VCT @ 0.50A

10.0 VCT @ 1.00A

12.6 VCT @ 0.20A

12.6 VCT @ 0.40A

12.6VCT @ 0.80A

16.0 VCT @ 0.15A

16.0 VCT @ 0.31A

16.0 VCT @ 0.62A

20.0 VCT @ 0.12A

20.0 VCT @ 0.25A

20.0 VCT @ 0.50A

24.0 VCT @ 0.10A

24.0 VCT @ 0.21A

24.0 VCT @ 0.42A

28.0 VCT @ 0.09A

28.0 VCT @ 0.18A

28.0 VCT @ 0.36A

36.0 VCT @ 0.07A

36.0 VCT @ 0.14A

36.0 VCT @ 0.28A

Parallel

5.0V @ 0.50A

5.0V @ 1.00A

5.0V @ 2.00A

6.3V @ 0.40A

6.3V @ 0.80A

6.3V @ 1.60A

8.0V @ 0.30A

8.0V @ 0.62A

8.0V @ 1.25A

10V @ 0.24A

10V @ 0.50A

10V @ 1.00A

12V @ 0.20A

12V @ 0.42A

12V @ 0.84A

14V @ 0.18A

14V @ 0.36A

14V @ 0.72A

18V @ 0.14A

18V @ 0.28A

18V @ 0.56A

Part Number

14A-20-10

14A-30-10

14A-56-10

14A-20-12

14A-30-12

14A-56-12

14A-20-16

14A-30-16

14A-56-16

14A-20-20

14A-30-20

14A-56-20

14A-20-24

14A-30-24

14A-56-24

14A-20-28

14A-30-28

14A-56-28

14A-20-36

14A-30-36

14A-56-36

VA

Size

20

30

56

20

30

56

20

30

56

20

30

56

20

30

56

20

30

56

20

30

56

Secondary RMS Rating

Series

10.0 VCT @ 2.0A

10.0 VCT @ 3.0A

10.0 VCT @ 5.6A

12.6 VCT @ 1.6A

12.6 VCT @ 2.4A

12.6 VCT @ 4.4A

16.0 VCT @ 1.25A

16.0 VCT @ 1.9A

16.0 VCT @ 3.5A

20.0 VCT @ 1.0A

20.0 VCT @ 1.5A

20.0 VCT @ 2.8A

24.0 VCT @ 0.83A

24.0 VCT @ 1.25A

24.0 VCT @ 2.33 A

28.0 VCT @ 0.72A

28.0 VCT @ 1.06A

28.0 VCT @ 2.0A

36.0 VCT @ 0.56A

36.0 VCT @ 0.82A

36.0 VCT @ 1.56A

Parallel

5.0V @ 4.0A

5.0V @ 6.0A

5.0V @ 11.2A

6.3V @ 3.2A

6.3V @ 4.8A

6.3V @ 8.8A

8.0V @ 2.5A

8.0V @ 3.8A

8.0V @ 7.0A

10V @ 2.0A

10V @ 3.0A

10V @ 5.6A

12V @ 1.66A

12V @ 2.50A

12V @ 4.66A

14V @ 1.44A

14V @ 2.12A

14V @ 4.0A

18V @ 1.12A

18V @ 1.64A

18V @ 3.12A

Custom versions available upon request.

www.signaltransformer.com

500 Bayview Avenue, Inwood, NY 11096

Toll Free 866-239-5777 • Tel 516-239-5777 • Fax 516-239-7208

sales@signaltransformer.com • techhelp@signaltransformer.com
