14A-56-20B24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> 14A-56-20B24

14A-56-20B24: DescriptionSplit Bobbin Power Transformer, 56VA; CategoryPower management transformer; File Size74KB，1 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric View All

14A-56-20B24 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14A-56-20B24	-	-	View	Buy Now

14A-56-20B24 Overview

Split Bobbin Power Transformer, 56VA

14A-56-20B24 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	PARALLEL CONNECTED
Certification	UL; CSA; TUV
Center click function 1	NO
Center click function 2	NO
high	46.02 mm
Insulation voltage	4000 V
length	76.2 mm
Manufacturer's serial number	14A-56-20B24
Installation features	THROUGH HOLE MOUNTED
Number of secondary windings	2
Output current 1	2.8 A
Output current 2	2.8 A
Output voltage 1	10 V
Output voltage 2	10 V
physical size	L76.2XB63.5XH46.02 (mm)
main rating	DUAL 115V
surface mount	NO
Transformer type	SPLIT BOBBIN POWER TRANSFORMER
VA rating	56 VA
width	63.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

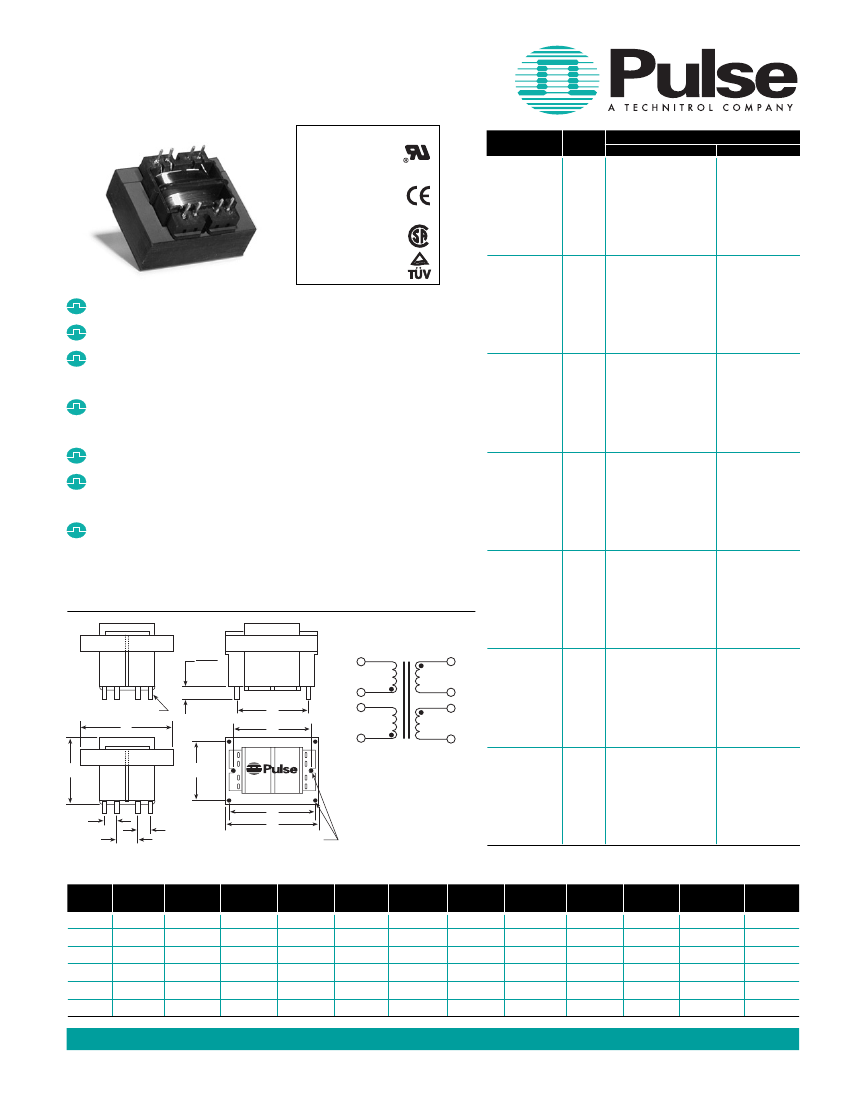

POWER TRANSFORMERS

Low Frequency Laminated — International

PC Plug-in Series

AGENCY

APPROVALS

UL, 506, File E73539

UL Recognized

Class B

UL 1446, File E80130

CSA 22.2#66,

File LR68051-2

TUV, EN61558

Part No.

PC Mount

14A-2.5-10B1

14A-5.0-10B2

14A-10-10B3

14A-20-10B4

14A-30-10B5

14A-56-10B6

14A-2.5-12B7

14A-5.0-12B8

14A-10-12B9

14A-20-12B10

14A-30-12B11

14A-56-12B12

14A-2.5-16B13

14A-5.0-16B14

14A-10-16B15

14A-20-16B16

14A-30-16B17

14A-56-16B18

14A-2.5-20B19

14A-5.0-20B20

14A-10-20B21

14A-20-20B22

14A-30-20B23

14A-56-20B24

14A-2.5-24B25

14A-5.0-24B26

14A-10-24B27

14A-20-24B28

14A-30-24B29

14A-56-24B30

14A-2.5-28B31

14A-5.0-28B32

14A-10-28B33

14A-20-28B34

14A-30-28B35

14A-56-28B36

14A-2.5-36B37

14A-5.0-36B38

14A-10-36B39

14A-20-36B40

14A-30-36B41

14A-56-36B42

(Size)

2.5

Secondary RMS Rating

Series

Parallel

10V C.T. @ 0.25A

5V @ 0.5A

10V C.T. @ 0.5A

5V @ 1.0A

10V C.T. @ 1.0A

5V @ 2.0A

10V C.T. @ 2.0A

5V @ 4.0A

10V C.T. @ 3.0A

5V @ 6.0A

10V C.T. @ 5.6A

5V @ 11.2A

12.6V C.T. @ 0.2A

6.3V @ 0.4A

12.6V C.T. @ 0.4A

6.3V @ 0.8A

12.6V C.T. @ 0.8A

6.3V @ 1.6A

12.6V C.T. @ 1.6A

6.3V @ 3.2A

12.6V C.T. @ 2.4A

6.3V @ 4.8A

12.6V C.T. @ 4.4A

6.3V @ 8.8A

16V C.T. @ 0.15A

8V @ 0.3A

16V C.T. @ 0.31A

8V @ 0.62A

16V C.T. @ 0.62A

8V @ 1.25A

16V C.T. @ 1.25A

8V @ 2.5A

16V C.T. @ 1.9A

8V @ 3.8A

16V C.T. @ 3.5A

8V @ 7.0A

20V C.T. @ 0.12A

10V @ 0.24A

20V C.T. @ 0.25A

10V @ 0.5A

20V C.T. @ 0.5A

10V @ 1.0A

20V C.T. @ 1.0A

10V @ 2.0A

20V C.T. @ 1.5A

10V @ 3.0A

20V C.T. @ 2.8A

10V @ 5.6A

24V C.T. @ 0.1A

12V@ 0.2A

24V C.T. @ 0.21A

12V @ 0.42A

24V C.T. @ 0.42A

12V @ 0.84A

24V C.T. @ 0.83A

12V @1.66A

24V C.T. @ 1.25A

12V @ 2.5A

24V C.T. @ 2.33A

12V @ 4.66A

28V C.T. @ 0.09A

14V @ 0.18A

28V C.T. @ 0.18A

14V @ 0.36A

28V C.T. @ 0.36A

14V @ 0.72A

28V C.T. @ 0.72A

14V @ 1.44A

28V C.T. @ 1.06A

14V @ 2.12A

28V C.T. @ 2.0A

14V @ 4.0A

36V C.T. @ 0.07A

18V @ 0.14A

36V C.T. @ 0.14A

18V @ 0.28A

36V C.T. @ 0.28A

18V @ 0.56A

36V C.T. @ 0.56A

18V @ 1.12A

36V C.T. @ 0.82A

18V @ 1.64A

36V C.T. @ 1.56A

18V @ 3.12A

PC board plug-in mounting

Double reinforced insulation

Dual bobbin; high (4000V) primary to

secondary isolation

Non-concentric design - eliminates ESS and

reduces primary to secondary capacitance

No crossover between primary/secondary leads

Vacuum impregnated - withstands board washing

systems and reduces audible noise

Baked resin provides an environmentally-

resistant finish

Mechanical

.188

4,76

MIN

1 3

4 6

Clearance Holes

Schematic

12 10

9 7

Square PC Terminals

Dimensions (inches)

(size)

2.5

Wt.

(lb.)

0.25

0.37

0.53

0.90

1.15

1.70

1.625

1.875

2.25

2.625

3.000

1.312

1.562

1.875

2.187

2.500

1.125

1.375

1.625

1.562

1.812

0.20

0.40

0.55

0.60

0.250

0.400

0.275

0.300

1.00

1.14

1.46

1.68

1.90

—

2.18

2.50

—

1.75

2.00

1.062

1.250

1.500

—

Dim.

.025 SQ

.038 SQ

.045 SQ

US 858 674 8100

•

UK 44 1483 401 700

•

France 33 3 84 35 04 04

•

Singapore 65 6287 8998

•

Taiwan 886 2 2698 0228

•

Hong Kong 852 2788 6588

•

http://www.pulseeng.com

PL503.A (2/03)
