2450 MHz Band Pass Filter
Detail Specification: 06/27/06
P/N 2450BP15E0100
Page 1 of 2

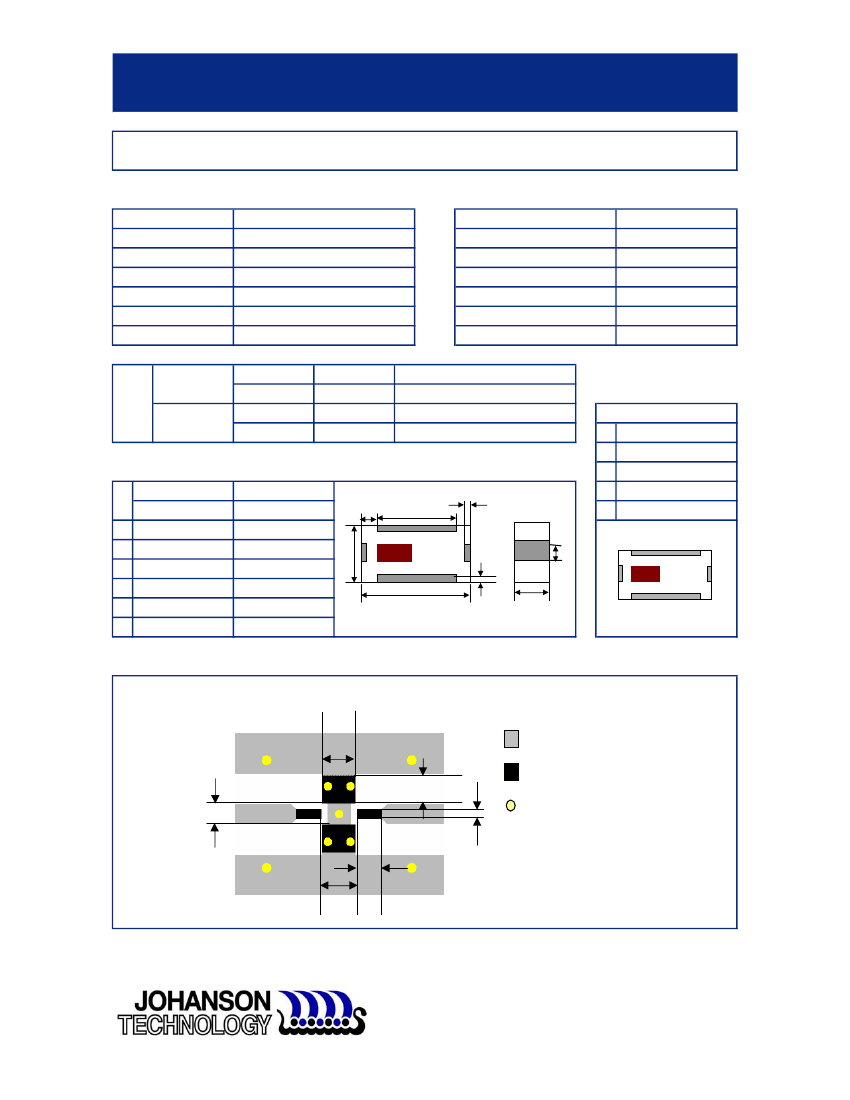

General Specifications
Part Number
Frequency (MHz)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP15E0100
2400 - 2500
30 dB @ 880 - 915 MHz
30 dB @ 1710 - 1785 MHz
25 dB @ 1850 - 1910 MHz
25 dB @ 4800 - 5000 MHz
15 dB @ 7200 - 7500 MHz
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Insertion Loss
Return Loss
Impedance
Input Power
Operating Temperature
Storage Temperature
Reel Quantity
Eg. 2450BP15E0100S
Eg. 2450BP15E0100E
Eg. 2450BP15E0100(E or S)
Eg. 2450BP15E0100(E or S)/Pb
Terminal Configuration
No.
1
1.5 dB max.
9.5 dB min.
50
Ω
500 mW max.
-40 to +85°C
-40 to +85°C
4,000
P/N
Suffix Termination
Style
Packaging
Style
Function
GND
OUT
GND
IN
1
Mechanical Dimensions
In
L
W
T
a
b
c
d
2
mm
2.00 ± 0.15
1.25 ± 0.10
0.55 ± 0.10
1.30 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
0.079 ± 0.006
0.049 ± 0.004
0.022 ± 0.004
0.051 ± 0.006
0.012 ± 0.006
0.010 ± 0.006
0.014 ± 0.006
d
W
c
a
b
c
L
T
3
4
4
3
2
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness
1.30
Solder
Land
1.00
0.80
0.35
Through-hole (
φ
0.35)
1.00
1.40
Units: mm
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
PRELIMINARY
2450 MHz Band Pass Filter
Detail Specification: 06/27/06
P/N 2450BP15E0100
Page 2 of 2

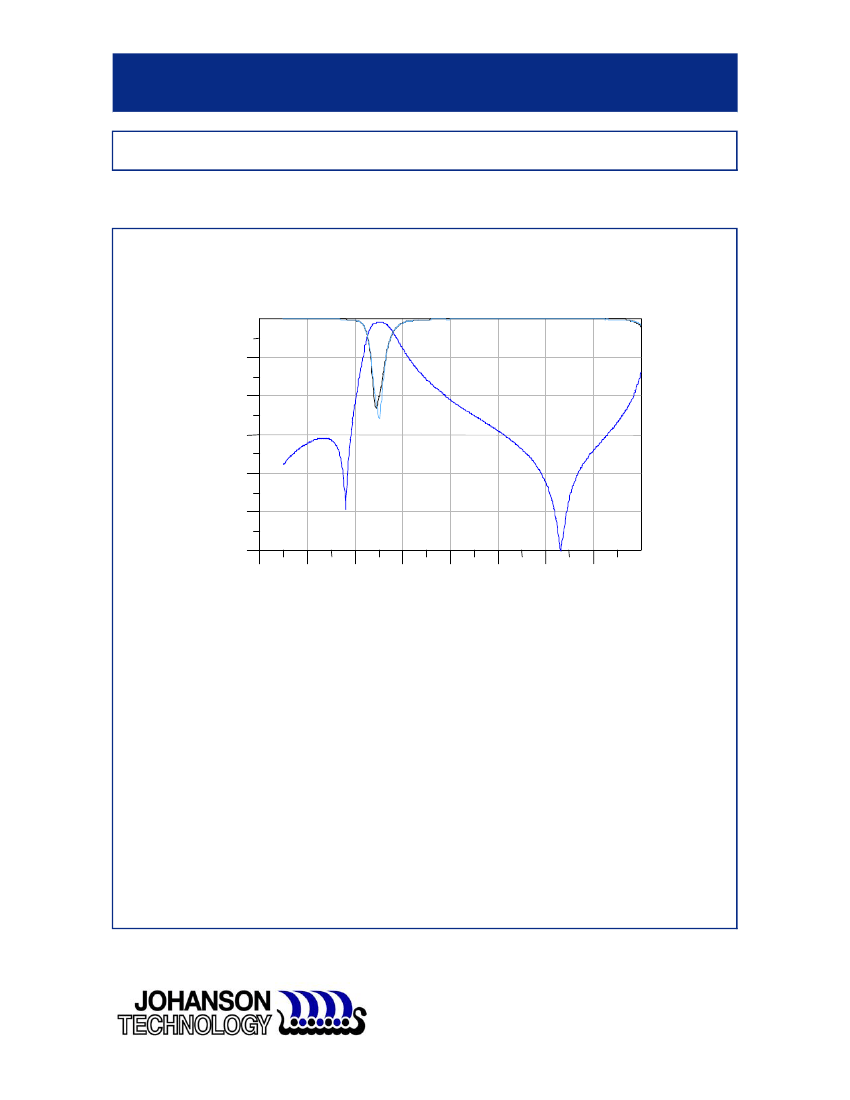

Typical Electrical Performance (T=25°C)
)
0
)
)
)
)
)
)
)
)
)
S(2,2)
)
)
-10
)
)
)
)
)
)
)
)
S(1,1)
)
)
-20
-30
-40
)
)
)
)
S(2,1)
)
)
dB
)
)
)
)
-50
-60
0
1
2
3
4
freq, GHz
5
6
7
8
