High Frequency Ceramic Solutions
2.45 GHz Band Pass Filter
Detail Specification: 08/31/07

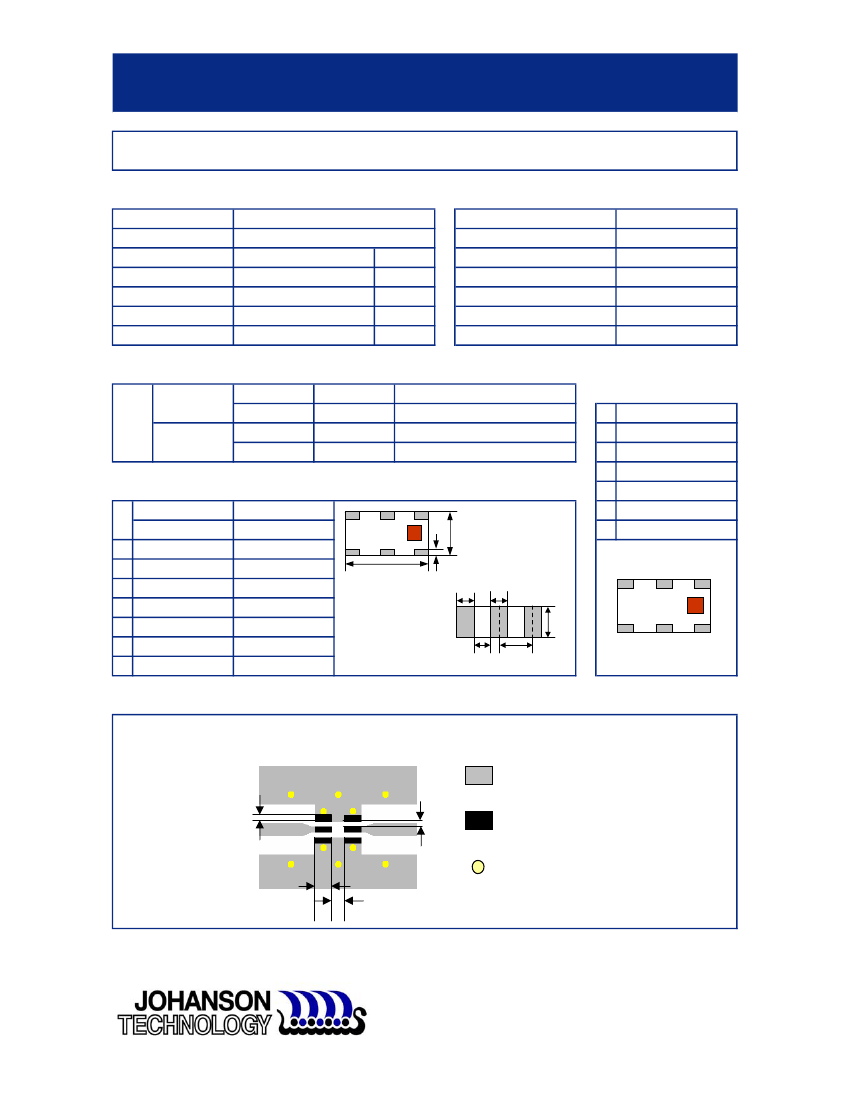

General Specifications
Part Number
Frequency (MHz)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
2450BP15G0100
2400 - 2500
824 ~ 960MHz
1710 ~ 1910MHz
1910 ~ 1990MHz
4800 ~ 5000MHz
7200 ~ 7500MHz
30 dB
28 dB
20 dB
30 dB
20 dB
Insertion Loss
Return Loss
Input Power
Impedance
Operating Temperature
Storage Temperature
Reel Quantity
2.0 dB max.
9.5 dB min.
3 Watts max.
50
Ω
-40 to +85°C
-40 to +85°C
4,000
P/N 2450BP15G0100
Page 1 of 2
P/N
Suffix Termination
Style
Packaging
Style
Bulk
T&R
100% Tin
Tin / Lead
Suffix = S
Suffix = E
Suffix = None
Suffix = /Pb
Eg. 2450BP15G0100S
Eg. 2450BP15G0100E
Eg. 2450BP15G0100(E or S)
Eg. 2450BP15G0100(E or S)/Pb
Terminal Configuration
No.
Function
GND
IN
GND
GND
OUT
GND
3
2
1
1
2
3
4
Mechanical Dimensions
In
L
W
T
a
b
c
g
p
0.079 ± 0.004
0.049 ± 0.004
0.022 ± 0.004
0.016 ± 0.008
0.016 ± 0.008
0.012 +.004/-.008
0.016 ± 0.008
0.031 ± 0.004
mm
2.00 ± 0.10
1.25 ± 0.10
0.55 ± 0.10
0.40 ± 0.20
0.40 ± 0.20
0.30
+0.1/-0.2
g
p
T
L
c
a
b
W
5
6
0.40 ± 0.20
0.80 ± 0.10
4
5
6
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50
Ω
impedance matching characteristics.
Units: mm
Solder Resist
0.4
0.4
Land
*
1.00
*
Through-hole (
φ
0.35)
0.80
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
High Frequency Ceramic Solutions
2.45 GHz Band Pass Filter
Detail Specification: 08/31/07
P/N 2450BP15G0100
Page 2 of 2

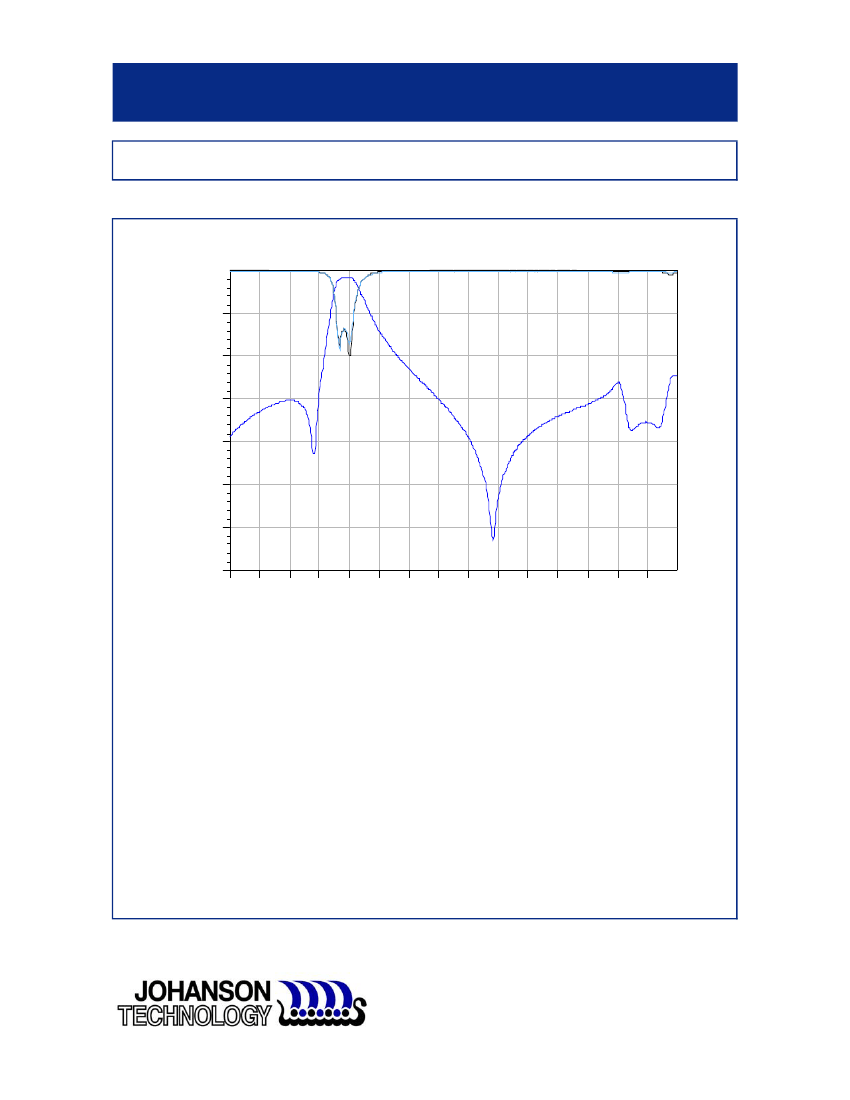

Typical Electrical Performance (T=25°C)
)
)
)
0
)
)
)
)
)
-10
)
)
-20
-30
-40
-50
)
dB(S(2,2))
dB(S(1,1))
dB(S(2,1))
)
)
-60
-70
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0
freq, GHz
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2007 Johanson Technology, Inc. All Rights Reserved
