2450BP15P0100: Description2.45 GHz Band Pass Filter; File Size209KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet View All

2450BP15P0100 Overview

2.45 GHz Band Pass Filter

Preview

Download Datasheet

View All

Preliminary

"High Frequency Ceramic Solutions"

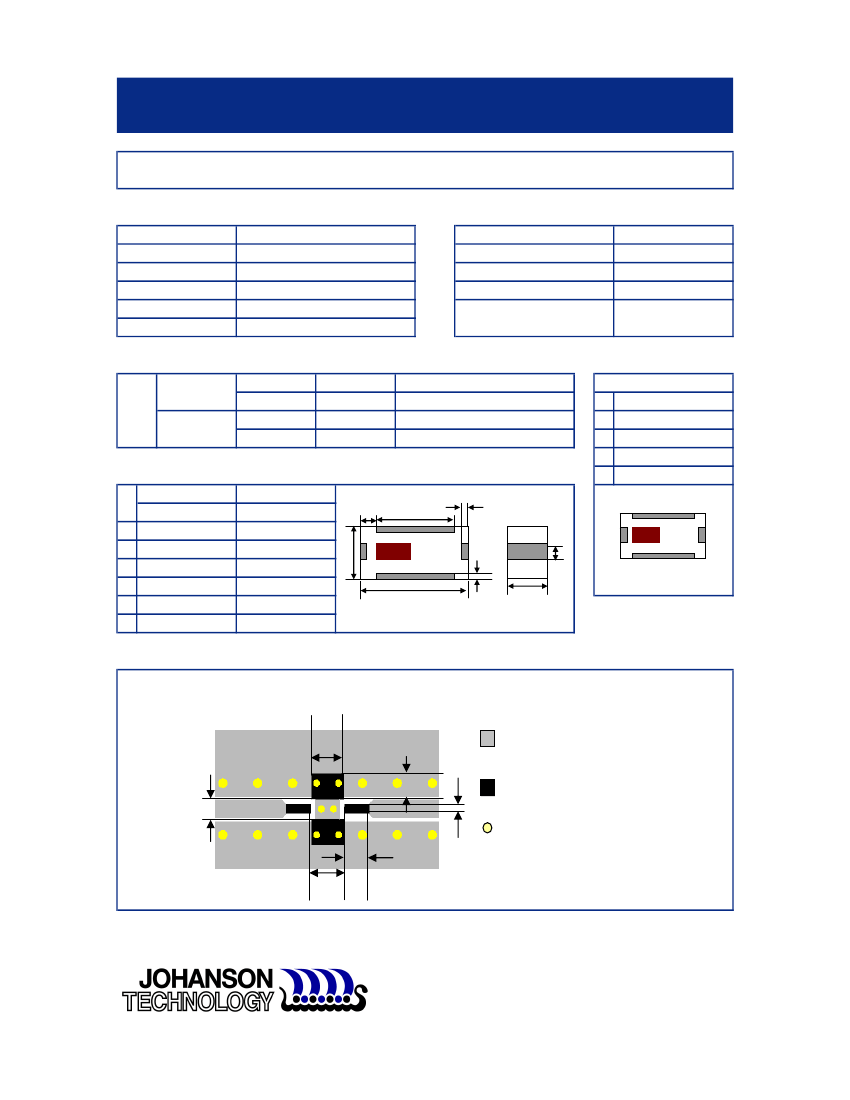

P/N 2450BP15P0100

Page 1 of 2

2.45 GHz Band Pass Filter

Detail Specification: 07/07/09

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

2450BP15P0100

2400 - 2500

1.3 dB max.

9.5 dB min.

26 dB @ 3.4 - 3.6 GHz

20 dB @ 4.8 - 5.0 GHz

Impedance

Input Power

Reel Quantity

Operating Temperature

Storage Temperature

Ω

500 mW max.

4,000

-40 to +85°C

+5 to +35°C, Humidity

45-75%RH, 12 mos. max*

* - 1 yr shelf life in bag; 1 week shelf life out of bag;

Vacuum reseal unused reel

Packaging

Style

Bulk

T&R

100% Tin

Tin / Lead

Suffix = S

Suffix = E

Suffix = None

Suffix = /Pb

Eg. 2450BP15P0100S

Eg. 2450BP15P0100E

Eg. 2450BP15P0100(E or S)

Eg. 2450BP15P0100(E or S)/Pb

Terminal Configuration

No.

P/N

Suffix Termination

Style

Function

GND

OUT

GND

Mechanical Dimensions

2.00 ± 0.15

1.25 ± 0.10

0.95 ± 0.10

1.25 ± 0.15

0.30 ± 0.15

0.25 ± 0.15

0.35 ± 0.15

0.079 ± 0.006

0.049 ± 0.004

0.037 ± 0.004

0.049 ± 0.006

0.012 ± 0.006

0.010 ± 0.006

0.014 ± 0.006

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide 50 ohm impedance, depending on PCB material and thickness

1.30

Solder

1.00

0.80

0.35

Land

Through-hole (

φ0.25)

1.00

1.40

Units: mm

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
