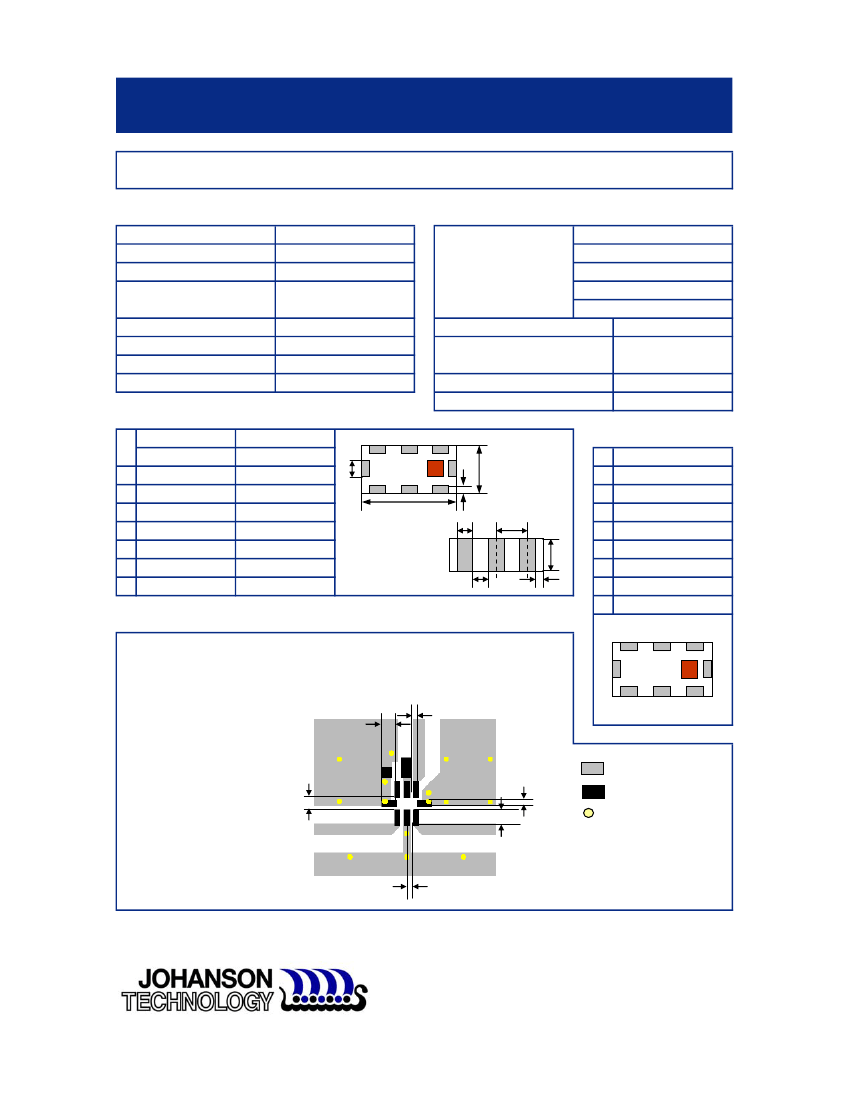

High Frequency Ceramic Solutions

2.45 GHz Balun / Filter Combination

Detail Specification: 07/17/09

General Specifications

Part Number

Frequency (MHz)

Unbalanced Impedence

Differential Balanced Imp.

Insertion Loss

Return Loss

Phase Difference

Amplitude Difference

2450FB15K0004

2400~2500

50

Ω

Conjugate match to

CSR BC03, BC04

3.2 dB max.

9.5 dB min.

180° ± 10

1.5 dB max.

Operating Temperature

Storage Temperature

Power Capacity

Reel Quantity

Attenuation (dB)

48 min.@ 880~960MHz

30 min.@1710~1880 MHz

30 min.@1880~1990MHz

20 min.@4800~5000MHz

20 min.@7200~7500MHz

-40 to +85°C

+5 to +35°C, Hum. 45 to

75%RH, 12 mos. Max

P/N 2450FB15K0004

Page 1 of 2

1 Watt max.

4000

Terminal Configuration

No.

Mechanical Dimensions

In

L

W

T

a

b

c

g

p

0.079 ± 0.008

0.049 ± 0.008

0.028 ± 0.004

0.012 ± 0.004

0.008 ± 0.004

0.012 +.004/-.008

0.014 ± 0.004

0.026 ± 0.002

mm

2.00 ± 0.20

1.25 ± 0.20

0.70 ± 0.10

0.30 ± 0.10

0.20 ± 0.10

0.30 +0.1/-0.2

0.35 ± 0.10

0.65 ± 0.05

g

b

L

a

c

a

p

T

W

Function

Unbalanced Port

NC or DC Feed

NC

GND

Balanced Port

GND

Balanced Port

GND

3

2

1

8

5

6

7

1

2

3

4

5

6

7

8

Mounting Considerations

*

Line width should be designed to match 50

Ω

characteristic impedance,

depending on PCB material and thickness.

**

By-pass capacitor should be connected when feeding DC power.

1.0

0.35

4

*

Solder Resist

0.35

0.8

1.0

Land

Through-hole (

φ

0.3)

*

0.30

*

Units: mm

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
