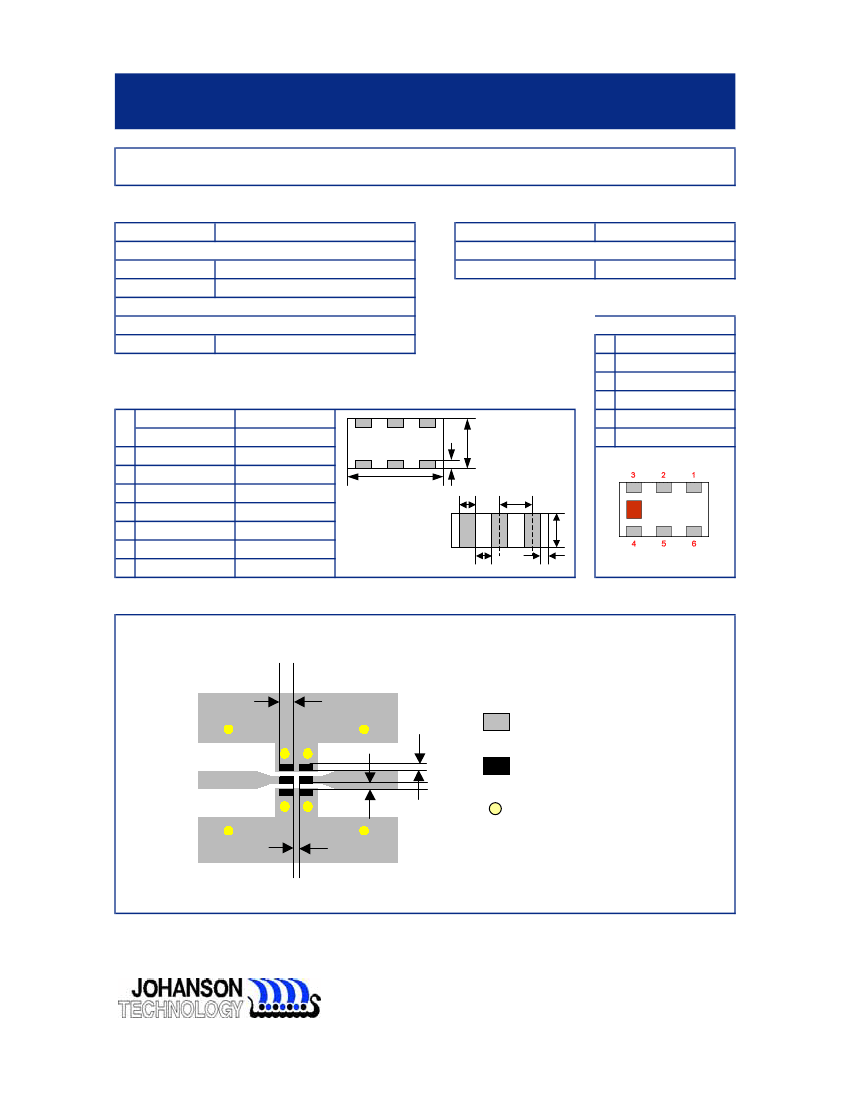

"High Frequency Ceramic Solutions"
2.4 GHz Low Pass Filter
Detail Specification:
06/23/03
P/N 2450LP14B100
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Input Power
2450LP14B100
2400 - 2500
0.50 dB max.
14 dB min.
35 dB @ 2 x f
o
25 dB @ 3 x f
o
3 Watts max.
Impedance
Operating Temperature
Reel Quantity
50
Ω
-40 to +85°C
4,000
Mechanical Dimensions
L
W
T
a
b
c
g
p
0.063
0.031
0.024
0.008
0.008
0.006
0.012
0.020
In
±
±
±
±
0.004
0.004
0.004
0.004
1.60
0.80
0.60
0.20
0.20
0.15
0.30
0.50
mm
± 0.10
± 0.10
± 0.10
± 0.10
+0.1/-0.15
W
c
L
a
p
T
g
b
Terminal Configuration
No.
Function
GND
1
IN
2
GND
3
GND
4
OUT
5
GND
6
+.004/-.006
± 0.004
± 0.004
± 0.002
± 0.10
± 0.10
± 0.05
Mounting Considerations
Mount these devices with brown mark facing up.
Line width should be designed to provide 50Ω impedance matching characteristics.
Units: mm
0.55
Solder Resist
0.25
Land
Through-hole (
φ
0.35)
*
*
0.25
0.25
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
©2003 Johanson Technology, Inc. All rights reserved
"High Frequency Ceramic Solutions"
2.4 GHz Low Pass Filter
Detail Specification:
06/23/03
P/N 2450LP14B100
Page 2 of 2

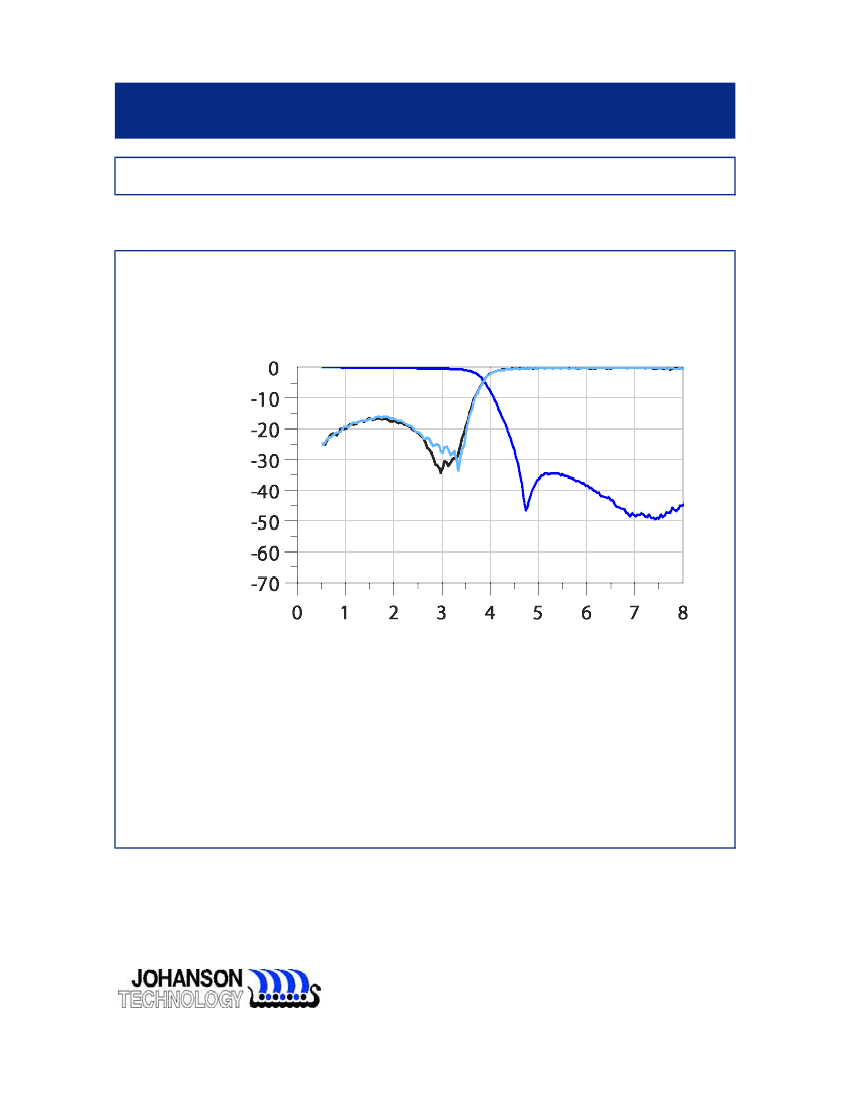

Typical Electrical Performance (T=25°C)
)
)
)
Insertion/Return Loss
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
S11 (dB)
S21 (dB)
S22 (dB)
)
)
)
)
)
)
Frequency (GHz)
)
)
)
)
)
)
