1SMC5364R6G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1SMC5364R6G

1SMC5364R6G: DescriptionZener Diode, 33V V(Z), 5%, 5W,; CategoryDiscrete semiconductor diode; File Size247KB，5 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

1SMC5364R6G Overview

Zener Diode, 33V V(Z), 5%, 5W,

1SMC5364R6G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	10 Ω
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
Maximum knee impedance	150 Ω
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Nominal reference voltage	33 V
Maximum reverse current	0.5 µA
Reverse test voltage	25.1 V
surface mount	YES
technology	ZENER
Terminal form	C BEND
Terminal location	DUAL
Maximum voltage tolerance	5%
Working test current	40 mA
Base Number Matches	1

Preview

Download Datasheet

View All

Preliminary

CREAT BY ART

5.0 Watts Surface Mount Zener Diodes

SMC/DO-214AB

Features

For surface mounted applications in order

to optimize board space

Low profile package

Built-in strain relief

Glass passivated junction

High temperature soldering guaranteed:

260℃ / 10 seconds at terminals

Meet MSL level 1, per J-STD-020D,

lead free maximum peak of 260℃

Plastic package has Underwriters

Laboratory Flammability Classification 94V-0

Green compound with suffix "G" on packing

code & prefix "G" on datecode

1SMC5347 - 1SMC5367

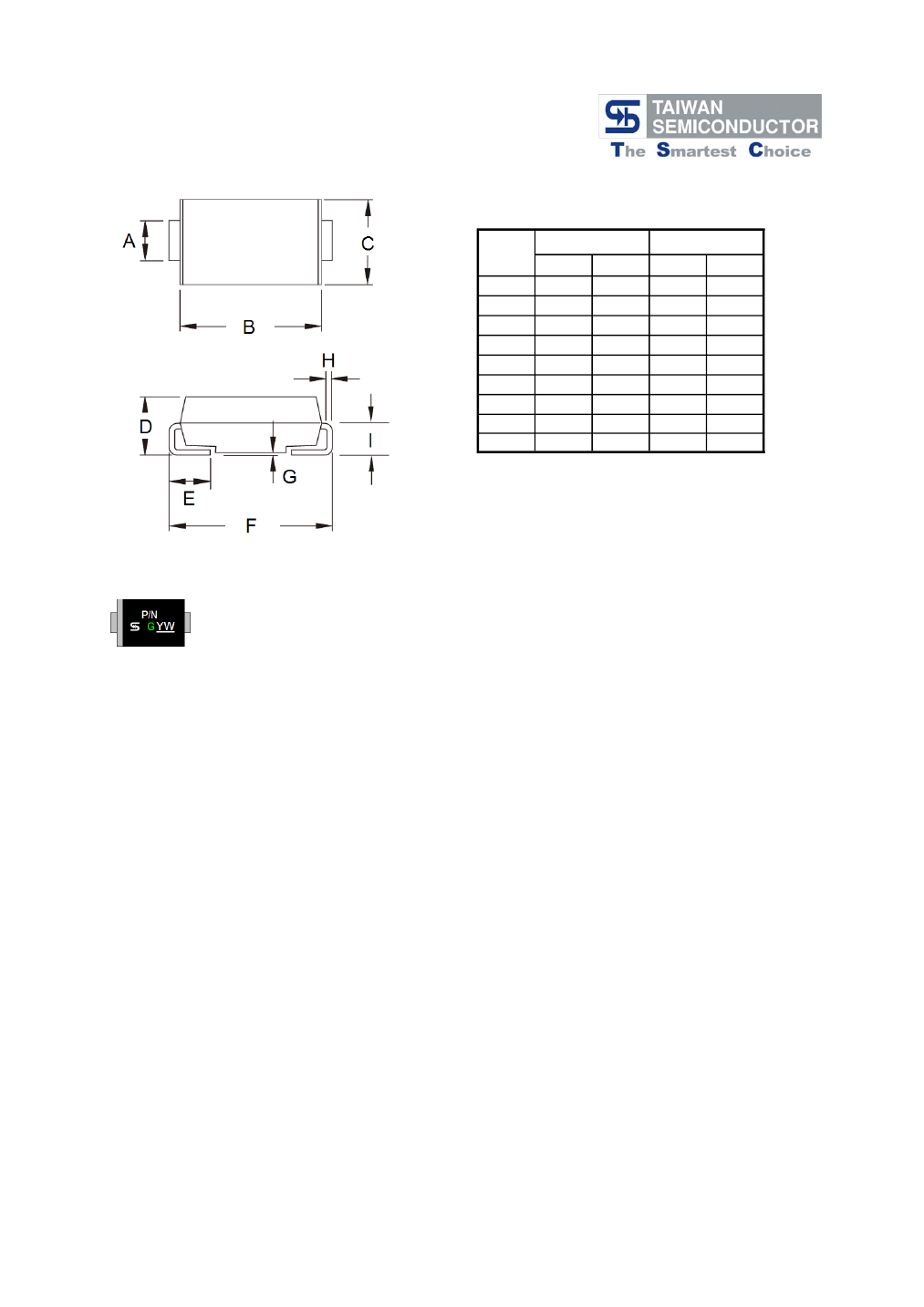

Mechanical Data

Case: Molded plastic over passivated junction

Terminals: Pure tin plated, lead free,

solderable per MIL-STD-750, method 2026

Polarity: Color Band denotes positive end (cathode)

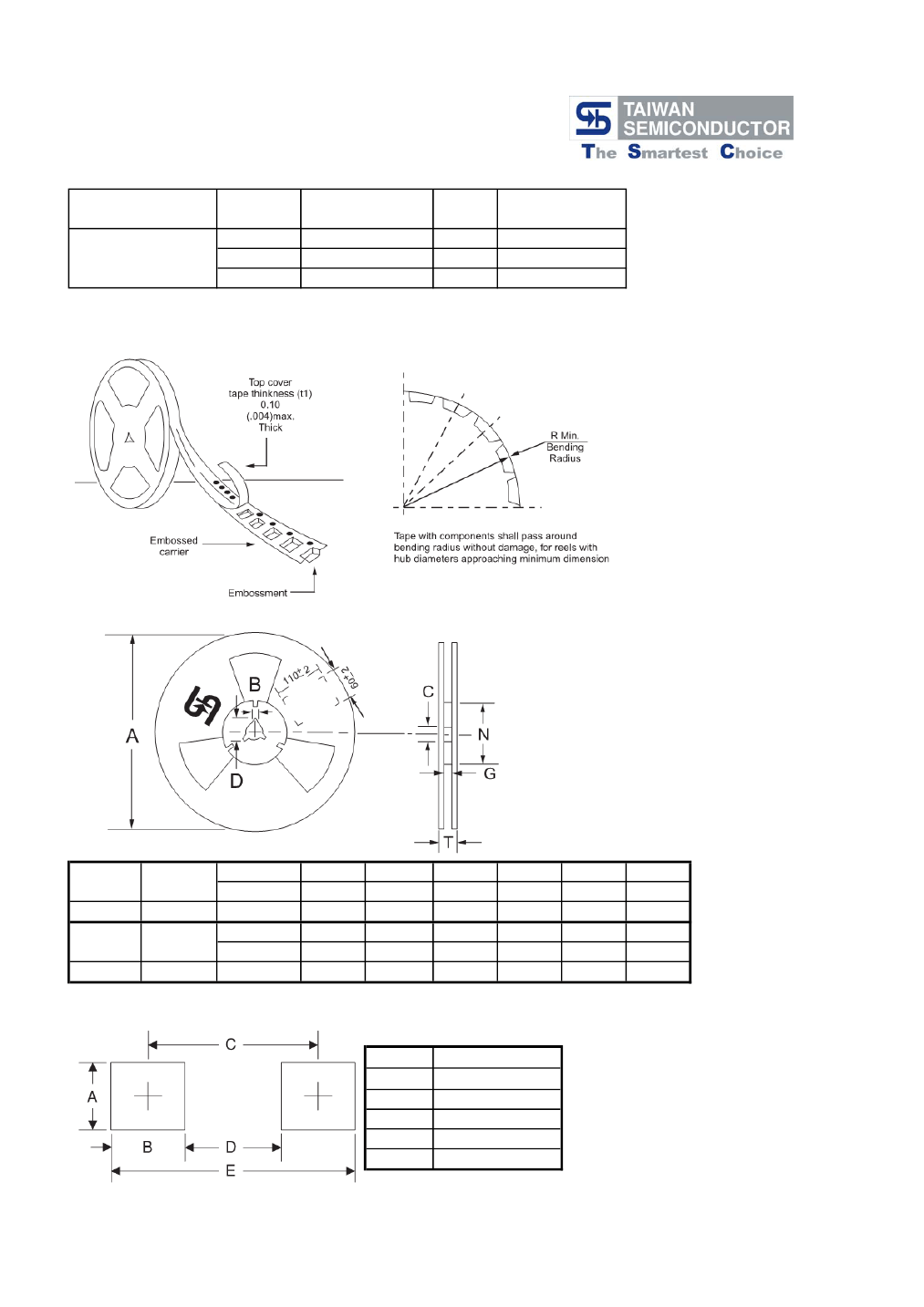

Standard packaging: 16mm tape per EIA Std RS-481

Weight: 0.26 gram

Ordering Information (example)

Part No.

1SMCJ5347

Package

SMC

Packing

850 / 7" REEL

Packing

code

Packing code

(Green)

R7G

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Type Number

DC Power Dissipation at T

=75℃

Thermal Resistance from Junction to Ambient

Operating and Storage Temperature Range

Symbol

θJA

, T

STG

Value

-55 to +150

Unit

Watts

℃/W

℃

Maximum ratings are those values beyond which device damage can occur.

Maximum ratings applied to the device are individual stress limit values (not normal operating conditions)

and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,

damage may occur and reliability may be attached.

Version:A13
