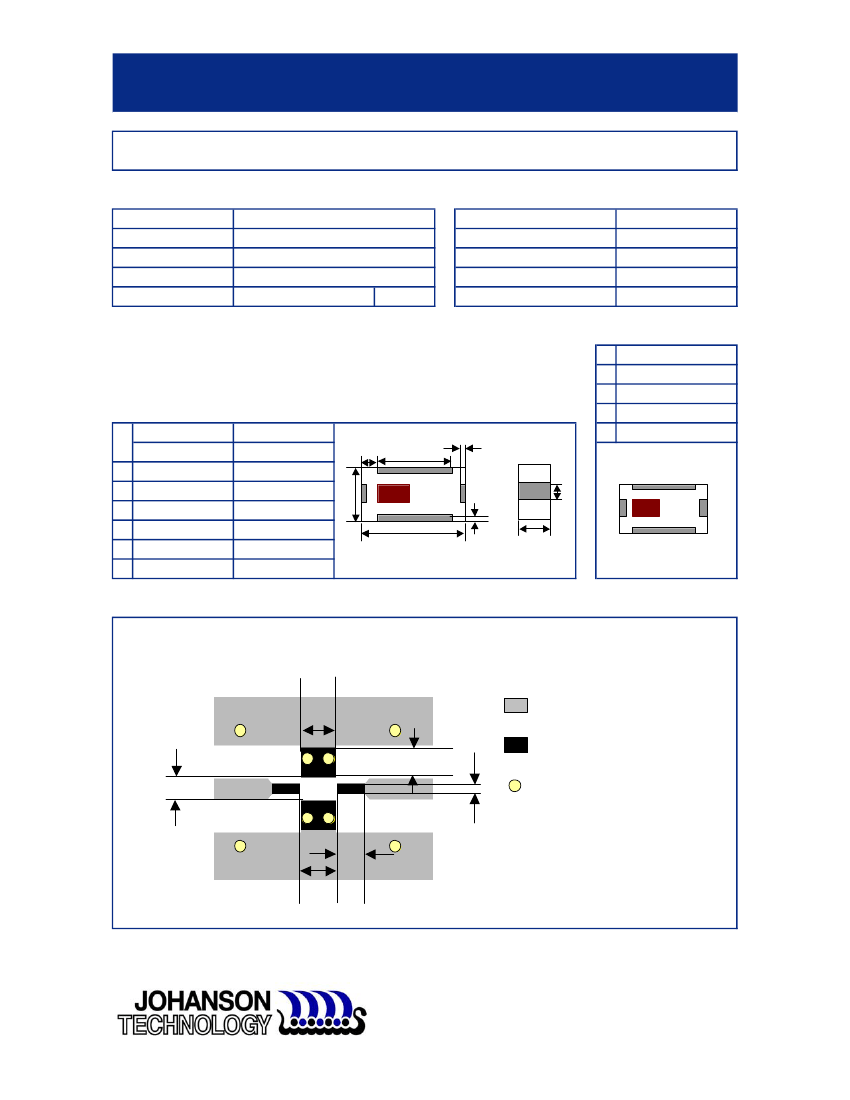

"High Frequency Ceramic Solutions"
5.5 GHz (Automotive Satellite) Band Pass Filter
Detail Specification: 07/20/04
P/N 5515BP15C1020
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
5515BP15C1020
4900 - 5920
1.5 dB max.
9.5 dB min.
3500 MHz
30 dB
Input Power
Impedance
Operating Temperature
Storage Temperature
Reel Quanity
500 mW max.
50
Ω
-40 to +85°C
-40 to +85°C
4,000
Terminal Configuration
No.
Function
GND
OUT
GND
IN
1
1
2
Mechanical Dimensions
In
L
0.079 ± 0.006
W
0.049 ± 0.004
T
0.035 ± 0.004
a
0.051 ± 0.006
b
0.012 ± 0.006
c
0.010 ± 0.006
d
0.014 ± 0.006
mm
2.00 ± 0.15
1.25 ± 0.10
0.90 ± 0.10
1.30 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
W
c
L
T
c
d
a
3
4
b
4
3
2
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50Ω impedance matching characteristics.
Units: mm
Solder Resist
Land
1.00
0.80
1.30
*
1.00
1.40
*
0.35
Through-hole (
φ
0.35)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
"High Frequency Ceramic Solutions"
5.5 GHz (Automotive Satellite) Band Pass Filter
Detail Specification: 07/20/04
P/N 5515BP15C1020
Page 2 of 2

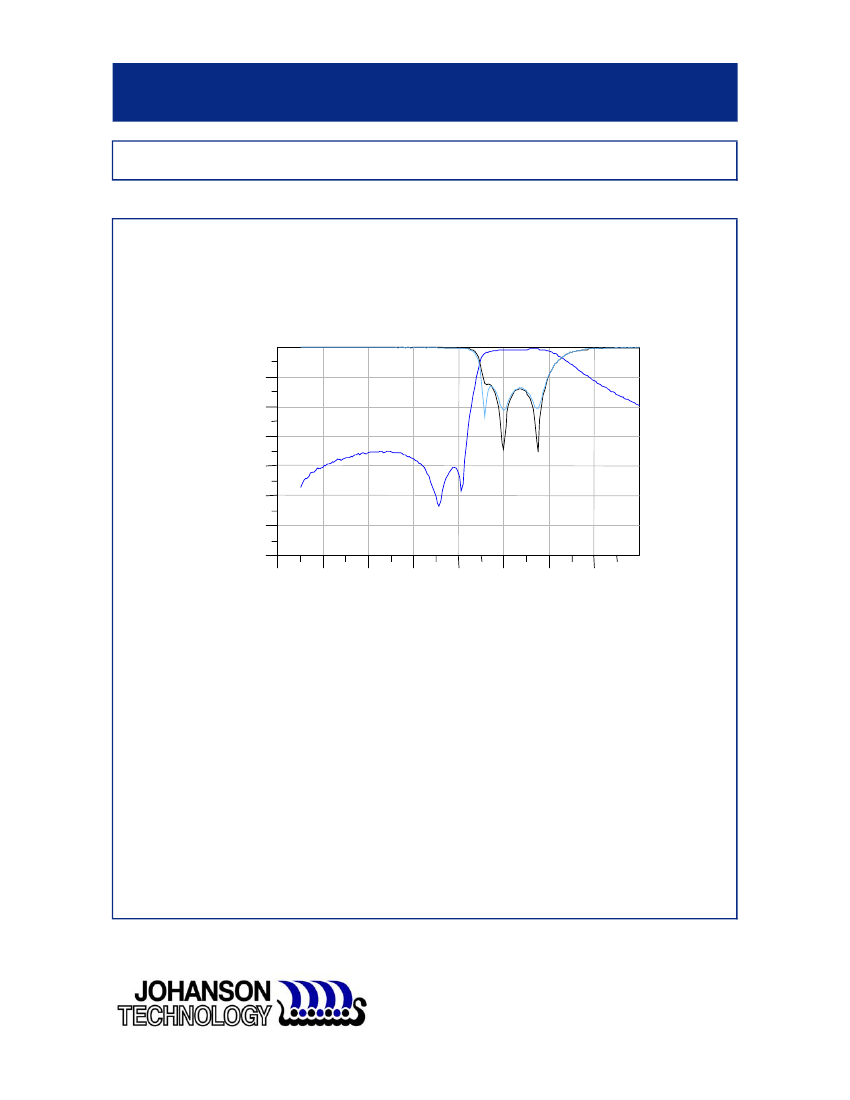

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
)
Attenuation
)
)
)
)
dB(S(2,2))
)
)
dB(S(1,1))
)
)
)
dB(S(2,1))
)
)
)
0
-10
-20
-30
-40
-50
-60
-70
0
1
2
3
4
5
6
7
8
Frequency (GHz)
)
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
931 Via Alondra • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
