31604260

Description
Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug
CategoryThe connector    The connector
File Size231KB，2 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric Compare View All

31604260 Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Plug

31604260 Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Is SamacsysN
body width0.181 inch
subject depth0.169 inch
body length0.177 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VDC V
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number316
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.106 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts4
Base Number Matches1

Preview

Download Datasheet

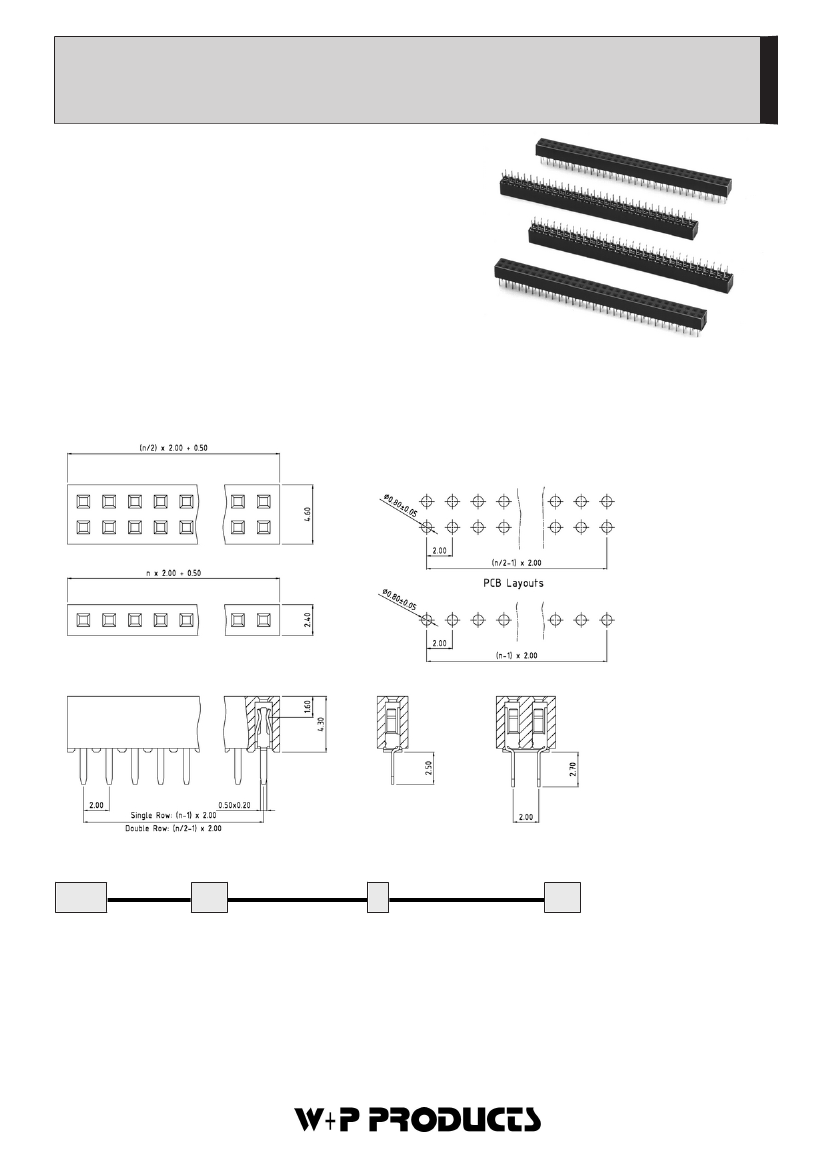

316
Buchsenleisten - 1-/2-reihig - RM 2,00mm - gerade
Female Header - Single and Double Row - Pitch 2,00mm - Straight
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Kupferlegierung
Contact Material
Copper alloy
Kontaktoberfläche
Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)
Contact Surface
Acc. to options (see below), over Ni (1,3 ... 2,5µm)
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
Ω
9
Insulation Resistance
> 10
Ω
Spannungsfestigkeit
500V
DC
Test Voltage
500V
DC
Nennstrom
1A
Current Rating
1A
Temperaturbereich
-40°C ... +105°C
Temperature Range
-40°C ... +105°C
Verarbeitung
Reflow-Lötverfahren; weitere Informationen in Kapitel T
Processing
Reflow-soldering, detailed information in ch. T
Einsetzbar für Vierkantstift 0,50mm
Accepts square pin 0,50mm
Series
Contacts
*
Rows
*
Plating
*
316
04
02-40
Einreihig
Single row
04-80
Zweireihig
Double row
1
1
Einreihig
Single row
2
Zweireihig
Double row
00
00
Vergoldet
Gold plated
50
Verzinnt
Tin plated
60
Sel. Au/Sn
Duplex plating Au/Sn
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
1
© W+P PRODUCTS
