820442711E

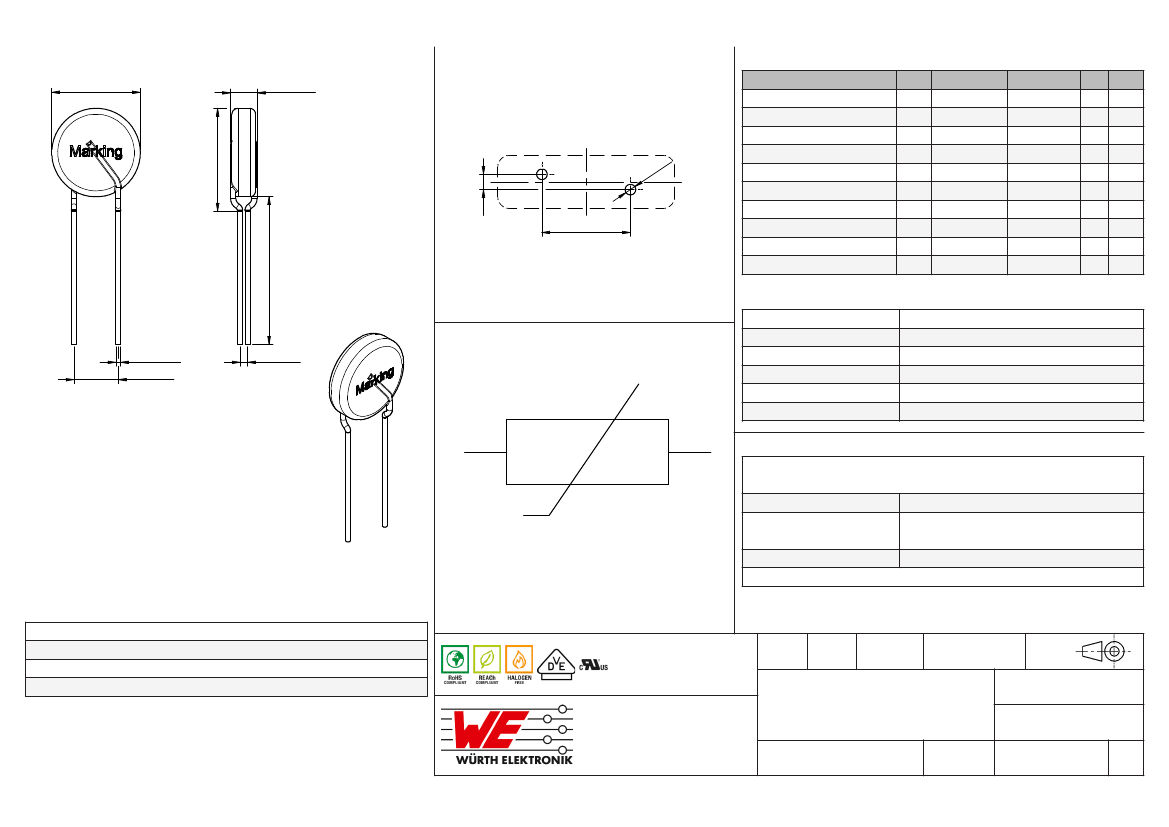

Dimensions: [mm]

16,5 max.

6,7 max.

Dimensions: [mm]

Electrical Properties:

Properties

AC Operating Voltage

DC Operating Voltage

Clamping Voltage

V

RMS

V

DC

V

Clamp

50 A @ 8/20 µs

I

Peak

P

Diss

W

max

I

n

V

ML

V

BR

C

Ch

1 mA

1 kHz

10/1000 µs

8/20 µs

Test conditions

Value

275

350

710

6000

0.6

155

3

1110

430

450

Unit

V

V

V

A

W

J

kA

V

V

pF

±10%

Tol.

20,0 max.

O

1,3

0,9

(Reverse) Peak Pulse Current

Power Dissipation

Energy Absobtion

Nominal Discharge Current

7,5

Measured Limiting Voltage

(Reverse) Breakdown Voltage

(Channel) Input Capacitance

Scale - 3:1

25,0 min.

Certification:

RoHS Approval

Compliant [ 2011/65/EU&2015/863 ]

Conform or declared [ (EC)1907/2006 ]

Conform [ JEDEC JS709B ]

Conform [ IEC 61249-2-21 ]

Yes [ 40016998 ]

UL1449 [ E332875 ]

REACh Approval

Halogen Free

Halogen Free

VDE Approval

cULus Approval

Schematic:

0,8 ±0,05

7,5 ±1,0

1,3 ±0,8

General Properties:

It is recommended that the temperature of the component does not exceed +85°C under worst

case conditions

Operating Temperature

-40 up to +85 °C

< 40 °C ; < 75 % RH

1

V

Scale - 1,5:1

Storage Conditions (in original

packaging)

Moisture Sensitivity Level (MSL)

Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently

Product Marking:

WE Surge

CHECKED

REVISION

DATE (YYYY-MM-DD)

GENERAL TOLERANCE

p/n without "820"

cURus, VDE

Date Code - WWY

Würth Elektronik eiSos GmbH & Co. KG

EMC & Inductive Solutions

Max-Eyth-Str. 1

74638 Waldenburg

Germany

Tel. +49 (0) 79 42 945 - 0

www.we-online.com

eiSos@we-online.com

PROJECTION

METHOD

BeBo

DESCRIPTION

003.002

2019-08-16

DIN ISO 2768-1m

WE-VD Disk Varistor

ORDER CODE

820442711E

SIZE/TYPE

BUSINESS UNIT

STATUS

PAGE

14 mm

eiSos

Valid

1/7

This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH

& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety

must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

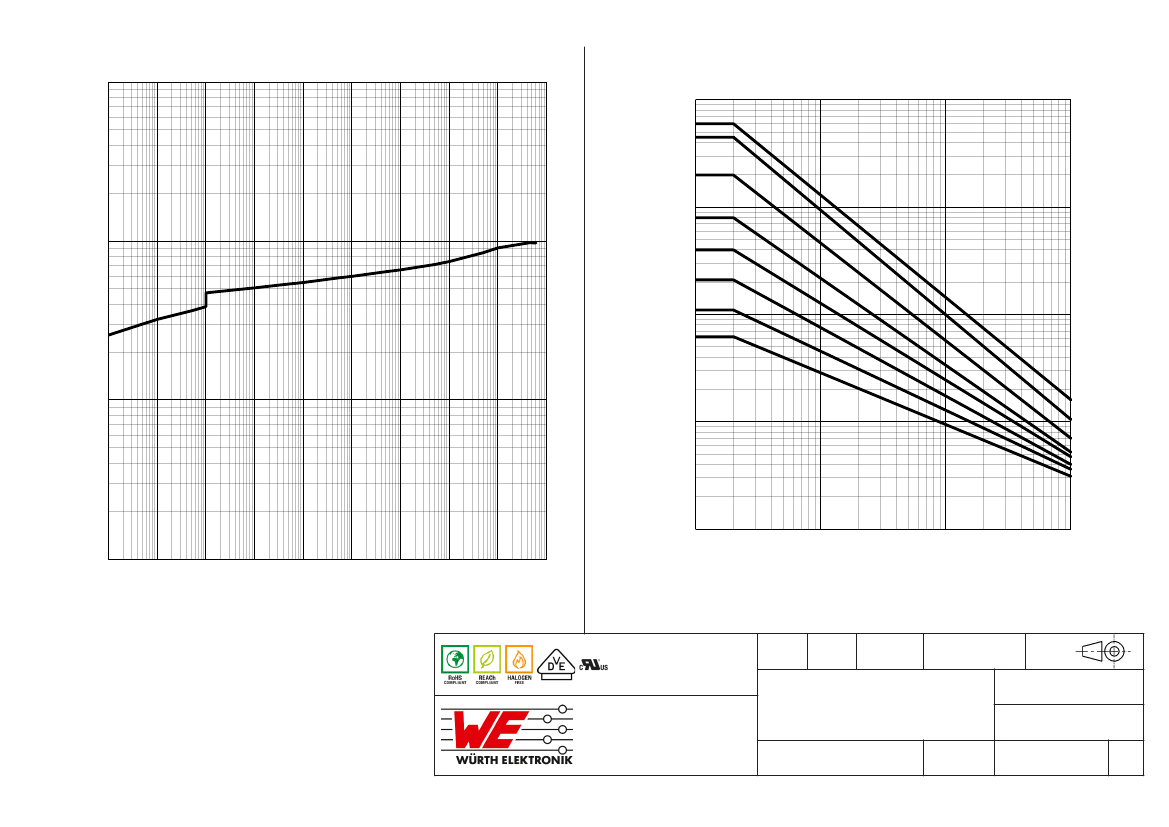

Rated Current vs. Voltage:

10000

Pulse Lifetime Derating:

10000

1

2

10

100

1000

1000

1.000

No. of Pulses

Voltage [V]

10.000

100.000

1.000.000

100

100

10

10

10

1E-5

1E-4

1E-3

1E-2

1E-1

1E+0

1E+1

1E+2

1E+3

1E+4

100

1000

1

10000

Pulse Duration [µs]

Current [A]

CHECKED

REVISION

DATE (YYYY-MM-DD)

GENERAL TOLERANCE

PROJECTION

METHOD

BeBo

DESCRIPTION

003.002

2019-08-16

DIN ISO 2768-1m

WE-VD Disk Varistor

Würth Elektronik eiSos GmbH & Co. KG

EMC & Inductive Solutions

Max-Eyth-Str. 1

74638 Waldenburg

Germany

Tel. +49 (0) 79 42 945 - 0

www.we-online.com

eiSos@we-online.com

ORDER CODE

820442711E

SIZE/TYPE

BUSINESS UNIT

STATUS

PAGE

14 mm

eiSos

Valid

2/7

This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH

& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety

must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

imax [A]

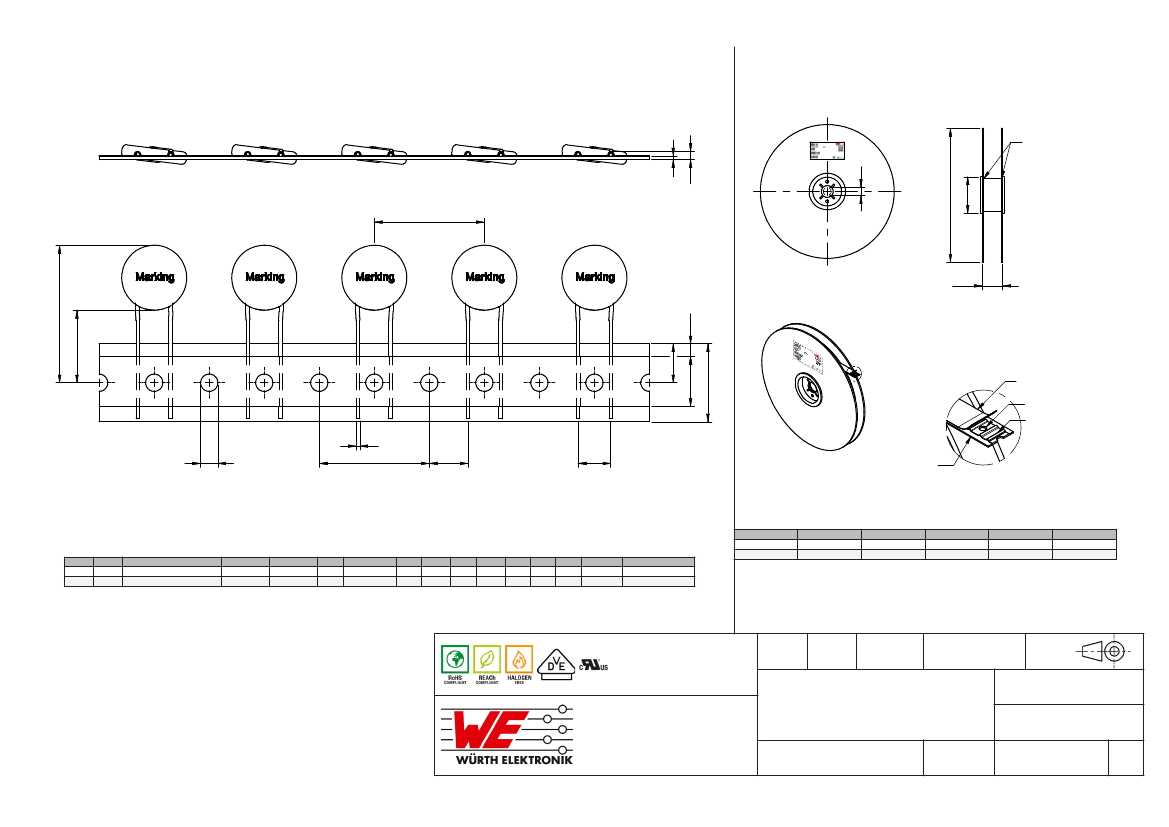

Packaging Specification - Tape and Reel: [mm]

W1

close to center

T

T1

C

P

W2

H1

H

W2

W1

B

W0

W

detail B

Protective Tape

Sprocket Hole

Cover Tape

d

D0

P0

P1

F

Embossment

Packaging is refered to the international standard IEC 60286-3:2013

P

±1,0

25.4

P0

±0,3

12.7

P1

±0,7

8.9499999999999993

F

+0,5/ -0,2

7.5

W

+1,0/ -0,5

18

W0

min.

12

W1

+0,75/ -0,5

9

W2

max.

3

H

±0,5

20

H1

max.

36.5

D0

±0,2

4

d

max.

1

T

max.

0.7

T1

max.

1.8

Material

Paper

Packaging Unit

pcs.

750

A

typ.

340,00

C

min.

30,00

N

max.

89,00

W1

± 2,0

55,00

N

W2

max.

63,00

A

W3

± 3,0

55,00

CHECKED

REVISION

DATE (YYYY-MM-DD)

GENERAL TOLERANCE

PROJECTION

METHOD

BeBo

DESCRIPTION

003.002

2019-08-16

DIN ISO 2768-1m

WE-VD Disk Varistor

Würth Elektronik eiSos GmbH & Co. KG

EMC & Inductive Solutions

Max-Eyth-Str. 1

74638 Waldenburg

Germany

Tel. +49 (0) 79 42 945 - 0

www.we-online.com

eiSos@we-online.com

ORDER CODE

820442711E

SIZE/TYPE

BUSINESS UNIT

STATUS

PAGE

14 mm

eiSos

Valid

3/7

This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH

& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety

must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

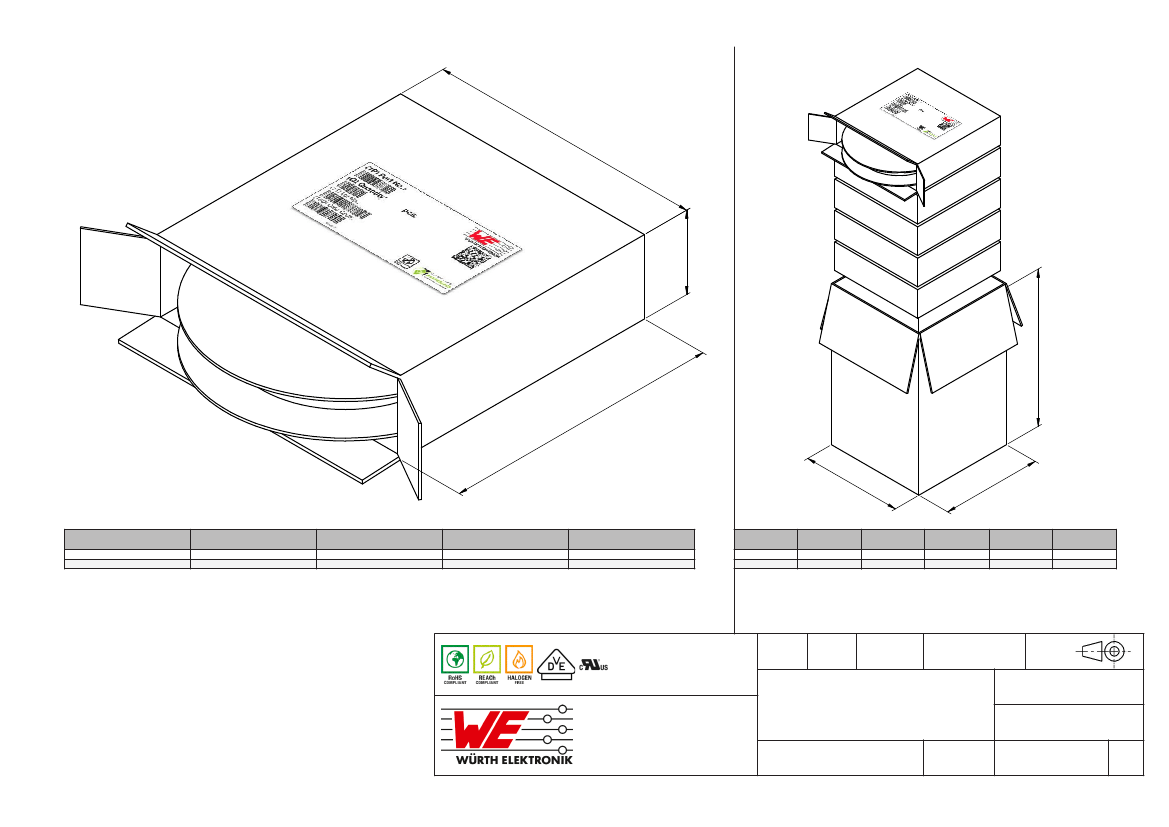

W

IC

H

IC

L

IC

W

C

L

C

L

IC

(mm)

typ.

350,00

W

IC

(mm)

typ.

350,00

H

IC

(mm)

typ.

72,00

Packaging

Unit

pcs.

750

Material

Paper

L

C

(mm)

typ.

370,00

W

C

(mm)

typ.

370,00

H

C

(mm)

typ.

468,00

No. of

inner Carton

pcs.

6

Packaging

Unit

pcs.

4500

H

Material

Paper

CHECKED

REVISION

DATE (YYYY-MM-DD)

GENERAL TOLERANCE

PROJECTION

METHOD

BeBo

DESCRIPTION

003.002

2019-08-16

DIN ISO 2768-1m

WE-VD Disk Varistor

Würth Elektronik eiSos GmbH & Co. KG

EMC & Inductive Solutions

Max-Eyth-Str. 1

74638 Waldenburg

Germany

Tel. +49 (0) 79 42 945 - 0

www.we-online.com

eiSos@we-online.com

ORDER CODE

820442711E

SIZE/TYPE

BUSINESS UNIT

STATUS

PAGE

14 mm

eiSos

Valid

C

4/7

This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH

& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety

must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

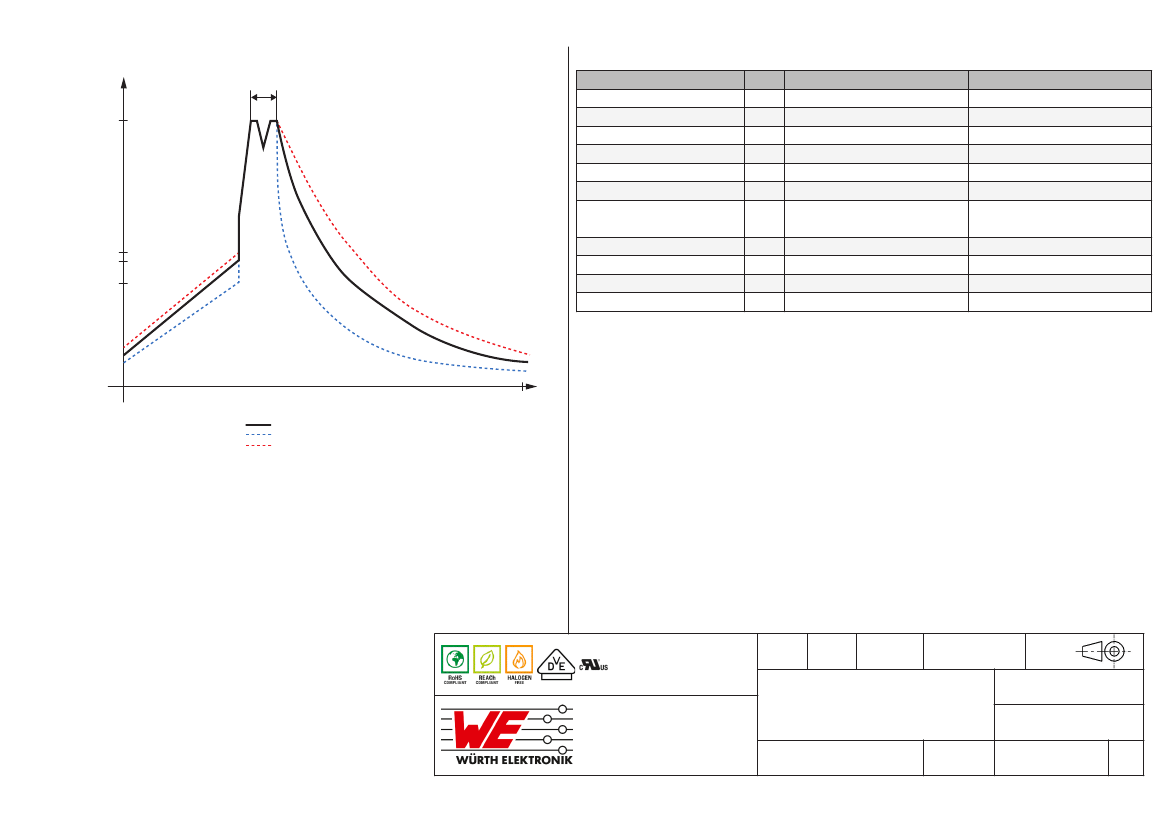

Classification Wave Soldering Profile:
