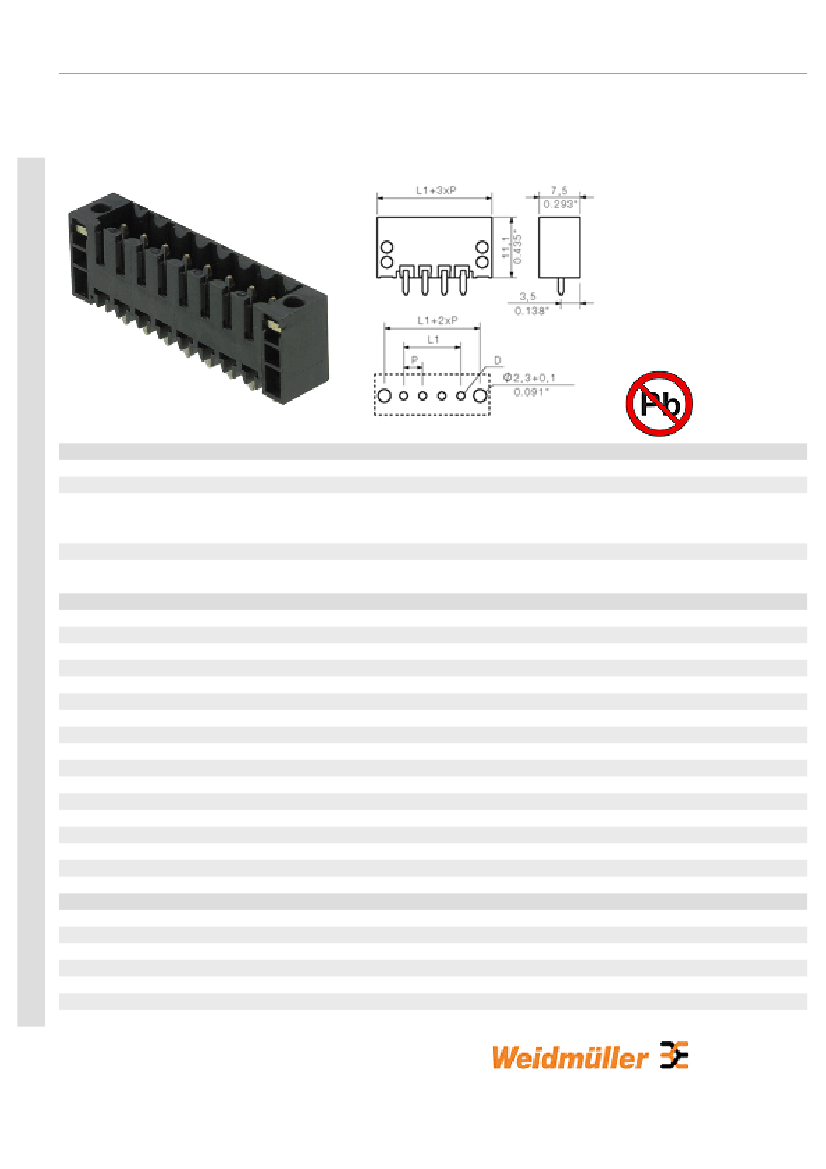

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180F | SL-SMT 3.5/180F 3.2
Material data
Duration of glow-wire test
Contact base material
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
30 S
CuSn
tinned
-25 °C
100 °C
-25 °C
55 °C
80 %
15 A
12 A
13 A
10 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 100 A
300 V
10 A
300 V
10 A
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.50 mm (0.138 inch) | Plug connectors,
THR solder connection, pitch 3.5 | SL-SMT 3.5/180F | SL-SMT 3.5/180F 3.2
Approvals
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
NK
EC001284
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1842770000
1842790000
1842800000
1842810000
1842820000
1842830000
1842840000
1842850000
1842860000
1842870000
1842880000
1842890000
1842900000
1842910000
1842920000
1842930000
1842940000
1842950000
1842960000
Part designation
SL-SMT3.5/2/180F 3.2SN SW
BOX
SL-SMT3.5/4/180F 3.2SN SW
BOX
SL-SMT3.5/5/180F 3.2SN SW
BOX
SL-SMT3.5/6/180F 3.2SN SW
BOX
SL-SMT3.5/7/180F 3.2SN SW
BOX
SL-SMT3.5/8/180F 3.2SN SW
BOX
SL-SMT3.5/9/180F 3.2SN SW
BOX
SL-SMT3.5/10/180F 3.2SN SW
BOX
SL-SMT3.5/11/180F 3.2SN SW
BOX
SL-SMT3.5/12/180F 3.2SN SW
BOX
SL-SMT3.5/13/180F 3.2SN SW
BOX
SL-SMT3.5/14/180F 3.2SN SW
BOX
SL-SMT3.5/15/180F 3.2SN SW
BOX
SL-SMT3.5/16/180F 3.2SN SW
BOX
SL-SMT3.5/17/180F 3.2SN SW
BOX
SL-SMT3.5/18/180F 3.2SN SW
BOX
SL-SMT3.5/19/180F 3.2SN SW
BOX
SL-SMT3.5/20/180F 3.2SN SW
BOX
SL-SMT3.5/21/180F 3.2SN SW
BOX
Version
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Reflow solder connection,
Pitch: 3.50 mm, No. of poles: 21, 180°, Box
-3-
