RAVF Series
Convex Termination Chip Resistor Array
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
•
•
•
•
Thick film resistor element
Multiple circuit types available
Ideal SMD substitute for leaded networks
RoHS compliant and halogen free
Auto-placement capability
Square corner construction standard
Zero ohm jumper available
RAVF 324D is standard with scalloped corner
Styles 102D, 104D and 164D are qualified to AEC-Q200
Electrical Specifications
Type / Code /
# of Elements /
Circuit Type
RAVF052D
Power Rating Power Rating
(per element) (Entire Array)
@ 70ºC
@ 70ºC
0.031W
0.063W
Maximum
Working
Voltage
(1)
12.5V
Maximum
Overload
Voltage
25V
Resistance
Temperature
Coefficient
±500 ppm/ºC
±300 ppm/ºC
±200 ppm/ºC
±300 ppm/ºC
±200 ppm/ºC
±300 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±250 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
±200 ppm/ºC
Ohmic Range (Ω) and Tolerance
1%
2%
3 - 10
-
-
10 - 1M
-
10 - 1M
10 - 1M
10 - 1M
-
10 - 1M
22 - 1M
-
-
1 - 10M
1 - 10M
1 - 1M
-
10 - 1M
22 - 1M
22 - 1M
1 - 10
10.1 - 1K
1.01K - 1M
1 - 10
5%
RAVF102D
RAVF104D
RAVF162D
RAVF164D
RAVF168D
RAVF324D
RAVF328N
0.063W
0.063W
0.063W
0.063W
0.063W
0.125W
0.063W
0.125W
0.250W
0.125W
0.250W
0.500W
0.250W
0.500W
25V
25V
50V
50V
25V
200V
25V
25V
50V
50V
100V
100V
50V
400V
50V
50V
RAVF328R
0.063W
0.500W
(1) Lesser of √P*R or maximum working voltage.

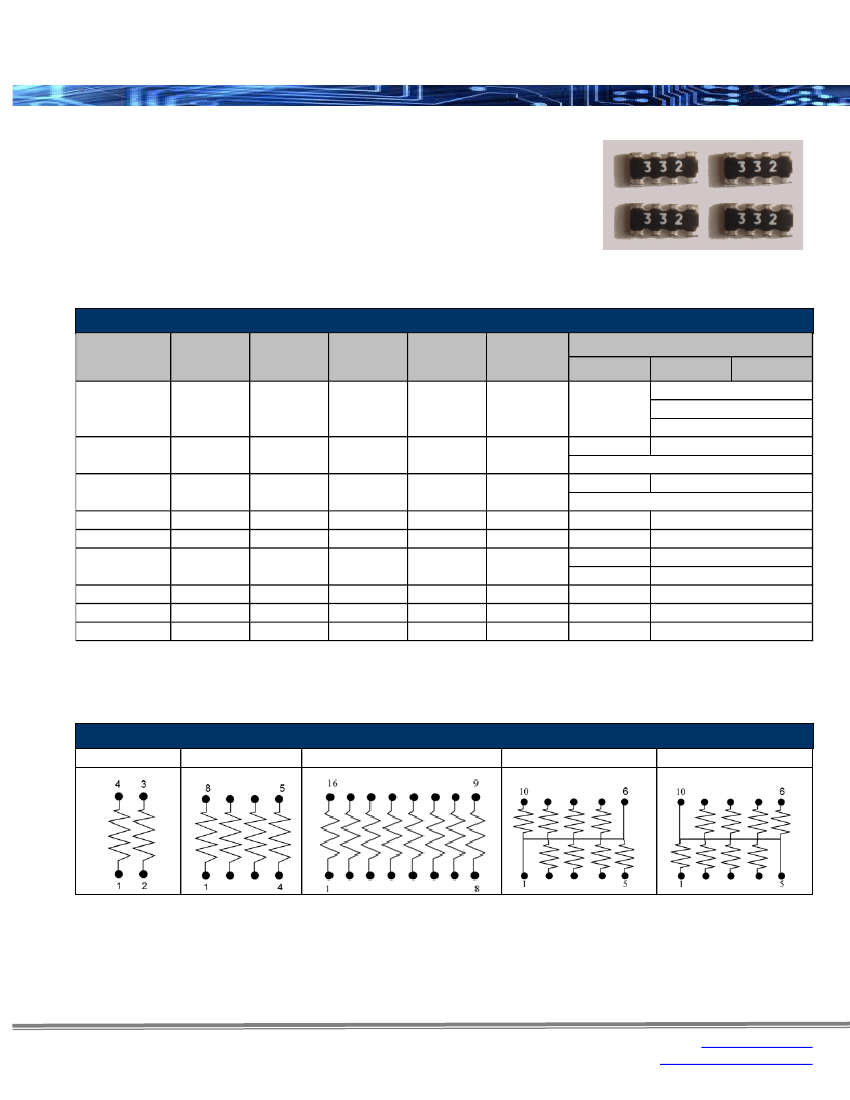

Schematics
Isolated Circuit - 2D
Isolated Circuit - 4D
Isolated Circuit - 8D
Bussed Circuit - N
Bussed Circuit - R
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
RAVF Series
Convex Termination Chip Resistor Array
Stackpole Electronics, Inc.
Resistive Product Solutions

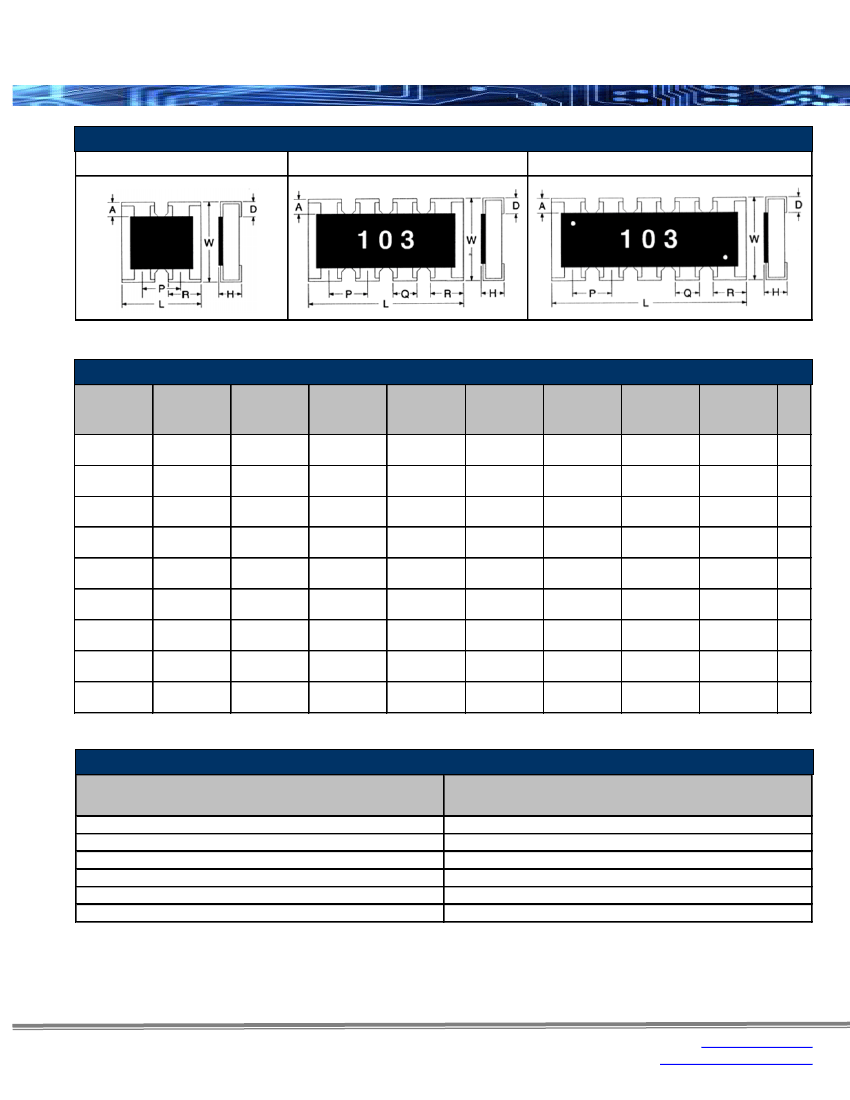

Terminations
RAVF - 2 Resistors / 4 Terminations (D)
RAVF - 4 Resistors / 8 Terminations (D)
RAVF - 8 Resistors / 10 Terminations (N/R)
Mechanical Specifications
Type / Code /
# of Elements /
Circuit Type
RAVF052D
RAVF102D
RAVF104D
RAVF162D
RAVF164D
RAVF168D
RAVF324D
RAVF328N
RAVF328R
L
Body Length
0.031 ± 0.004
0.80 ± 0.10
0.039 ± 0.004
1.00 ± 0.10
0.079 ± 0.008
2.00 ± 0.20
0.063 ± 0.006
1.60 ± 0.15
0.126 ± 0.008
3.20 ± 0.20
0.157 ± 0.008
4.00 ± 0.20
0.200 ± 0.008
5.08 ± 0.20
0.126 ± 0.006
3.20 ± 0.15
0.126 ± 0.006
3.20 ± 0.15
W
Body Width
0.024 ± 0.004
0.60 ± 0.10
0.039 ± 0.004
1.00 ± 0.10
0.039 ± 0.006
1.00 ± 0.15
0.063 ± 0.006
1.60 ± 0.15
0.063 ± 0.008
1.60 ± 0.20
0.063 ± 0.006
1.60 ± 0.15
0.122 ± 0.008
3.10 ± 0.20
0.063 ± 0.006
1.60 ± 0.15
0.063 ± 0.006
1.60 ± 0.15
H
Body Height
0.012 ± 0.002
0.30 ± 0.05
0.014 ± 0.004
0.35 ± 0.10
0.014 ± 0.006
0.35 ± 0.15
0.020 ± 0.006
0.50 ± 0.15
0.020 ± 0.004
0.50 ± 0.10
0.016 ± 0.004
0.40 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
0.022 ± 0.004
0.55 ± 0.10
P
Element
Spacing
0.020 ± 0.006
0.50 ± 0.15
0.026 ± 0.002
0.65 ± 0.05
0.020 ± 0.006
0.50 ± 0.15
0.031 ± 0.002
0.80 ± 0.05
0.031 ± 0.002
0.80 ± 0.05
0.020 ± 0.006
0.50 ± 0.15
0.050 ± 0.004
1.27 ± 0.10
0.025 ± 0.002
0.64 ± 0.05
0.025 ± 0.002
0.64 ± 0.05
Q
Termination
Width
-
R
Termination
Width
0.014 ± 0.004
0.35 ± 0.10
0.013 ± 0.002
0.33 ± 0.05
0.016 ± 0.004
0.40 ± 0.10
0.024 ± 0.006
0.60 ± 0.15
0.026 ± 0.004
0.65 ± 0.10
0.015 ± 0.004
0.38 ± 0.10
-
D
Bottom
Termination
0.006 ± 0.002
0.15 ± 0.05
0.010 ± 0.002
0.25 ± 0.05
0.010 ± 0.004
0.25 ± 0.10
0.012 ± 0.006
0.30 ± 0.15
0.012 ± 0.006
0.30 ± 0.15
0.012 ± 0.008
0.30 ± 0.20
0.012 ± 0.008
0.30 ± 0.20
0.010 ± 0.006
0.25 ± 0.15
0.010 ± 0.006
0.25 ± 0.15
A
Top
Termination
Unit
-
-
0.006 ± 0.004 Inches
mm
0.15 ± 0.10
0.006 ± 0.004 Inches
mm
0.15 ± 0.10
0.008 ± 0.004 Inches
mm
0.20 ± 0.10
0.012 ± 0.006 Inches
mm
0.30 ± 0.15
0.012 ± 0.008 Inches
mm
0.30 ± 0.20
0.012 ± 0.008 Inches
mm
0.30 ± 0.20
0.020 ± 0.008 Inches
mm
0.50 ± 0.20
0.012 ± 0.008 Inches
mm
0.30 ± 0.20
0.012 ± 0.008 Inches
mm
0.30 ± 0.20
-
0.012 ± 0.004
0.30 ± 0.10
-
-
0.020 ± 0.004
0.50 ± 0.10
0.010 ± 0.004
0.25 ± 0.10
0.031 ± 0.008
0.80 ± 0.20
0.013 ± 0.006
0.34 ± 0.15
0.013 ± 0.006
0.34 ± 0.15
-
0.019 ± 0.006
0.49 ± 0.15
0.019 ± 0.006
0.49 ± 0.15
Performance Characteristics
Test
Load Life in Moisture
Temperature cycle
Load Life
Resistance to Soldering heat
Terminal Adhesion
Short Time Overload
Test Results (JIS C 5202)
±3%
±1%
±3%
±1%
±1%
±2%
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
RAVF Series
Convex Termination Chip Resistor Array
Stackpole Electronics, Inc.
Resistive Product Solutions

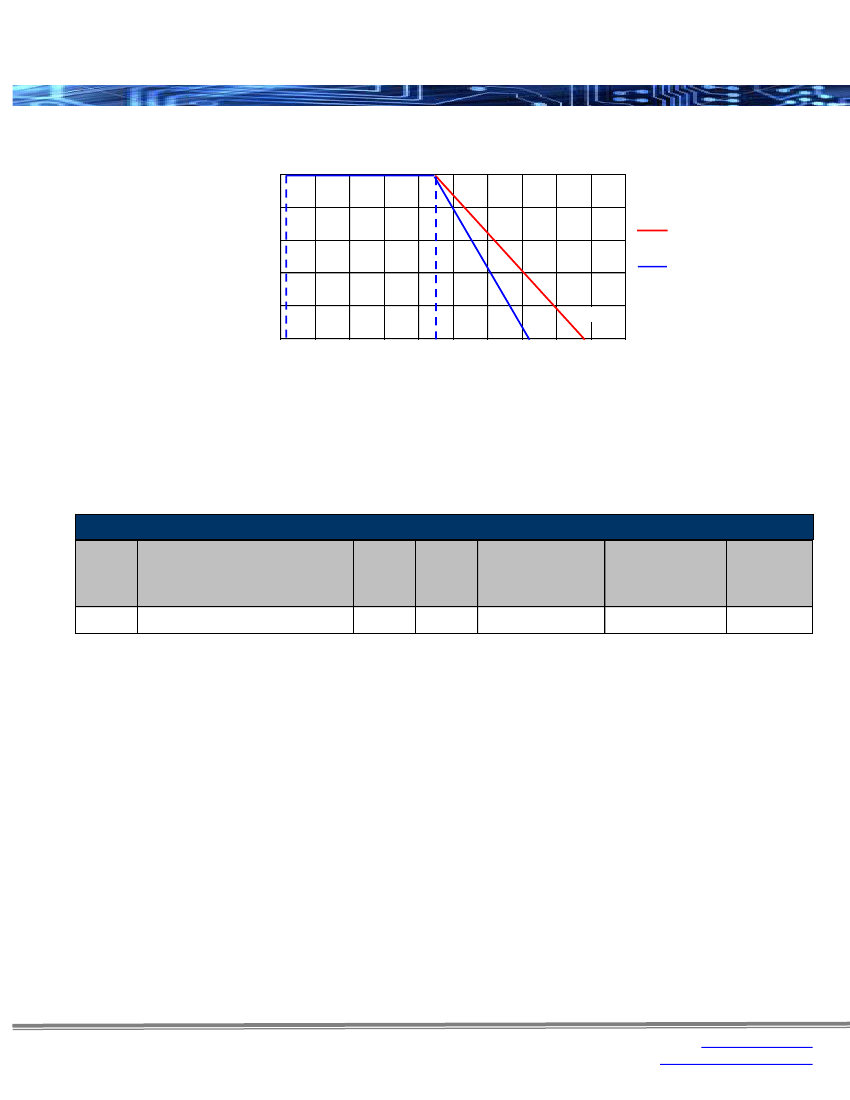

Power Derating Curve:
100
-55ºC
70ºC
Percent Rated Power (%)
80
60
40
20
125ºC
155ºC
RAVF102D, RAVF104D,
RAVF162D, RAVF164D,
RAVF168D
RAVF052D, RAVF324D,
RAVF328N, RAVF328R
0
-60
0
20
40
60
80
100
120
Ambient Temperature (ºC)
140
160
180
RoHS Compliance
Stackpole Electronics has joined the worldwide effort to reduce the amount of lead in electronic components and to meet the various
regulatory requirements now prevalent, such as the European Union’s directive regarding “Restrictions on Hazardous Substances”
(RoHS 2). As part of this ongoing program, we periodically update this document with the status regarding the availability of our
compliant components. All our standard part numbers are compliant to EU Directive 2011/65/EU of the European Parliament.
RoHS Compliance Status
Standard
Product
Series
RAVF
Description
Package /
Termination
Type
SMD
Standard
Series
RoHS
Compliant
YES(1)
Lead-Free Termination
Composition
Lead-Free
Mfg. Effective Date
(Std Product Series)
Jan-04 (Japan)
Jul-04 (Taiwan)
Lead-Free
Effective Date
Code
(YY/WW)
04/01
04/27
Thick Film Surface Mount Chip Resistor
Array Convex Terminations
Note (1): RoHS Compliant by means of exemption 7c-I.
100% Matte Sn over Ni
“Conflict Metals” Commitment
We at Stackpole Electronics, Inc. are joined with our industry in opposing the use of metals mined in the “conflict region” of the
Eastern Democratic Republic of the Congo (DRC) in our products. Recognizing that the supply chain for metals used in the
electronics industry is very complex, we work closely with our own suppliers to verify to the extent possible that the materials and
products we supply do not contain metals sourced from this conflict region. As such, we are in compliance with the requirements of
Dodd-Frank Act regarding Conflict Minerals.
Compliance to “REACH”
We certify that all passive components supplied by Stackpole Electronics, Inc. are SVHC (Substances of Very High Concern) free
and compliant with the requirements of EU Directive 1907/2006/EC, “The Registration, Evaluation, Authorization and Restriction of
Chemicals”, otherwise referred to as REACH. Contact us for complete list of REACH Substance Candidate List.
Environmental Policy
It is the policy of Stackpole Electronics, Inc. (SEI) to protect the environment in all localities in which we operate. We continually
strive to improve our effect on the environment. We observe all applicable laws and regulations regarding the protection of our
environment and all requests related to the environment to which we have agreed. We are committed to the prevention of all forms
of pollution.
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
RAVF Series
Convex Termination Chip Resistor Array
Stackpole Electronics, Inc.
Resistive Product Solutions
How to Order
1
2
3
4
5
6
7
8
9
10
11
12
13
14
R
A
V
F
1
6
4
D
J
T
1
0
K
0
Product Series
Convex
RAVF
RoHS
Size
052D
102D
104D
162D
164D
168D
324D
328N
328R
Power
0.031W
0.063W
0.063W
0.063W
0.063W
0.063W
0.125W
0.063W
0.063W
Tolerance
(1)
Code
Tol
Value
F
1%
E24
G
2%
J
5%
Z
jumper
Packaging
Description
Size
Code
052D, 102D, 104D
162D, 164D, 168D
T
Tape and Reel
328N, 328R
324D
Resistance Value
Quantity
10,000
5,000
4,000
Four characters with the
multiplier used as the
decimal holder.
10 ohm = 10R0
10.2 Kohm = 10K2
1 Mohm = 1M00
Zero ohm jumper = 0R00
Note (1): 1% tolerance is available in E24 values only.
E96 values are generally not available. Contact factory for details.
D = Isolated
N = Bussed
R = Bussed
Rev Date: 11/17/2017
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
