3-173146-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-173146-2

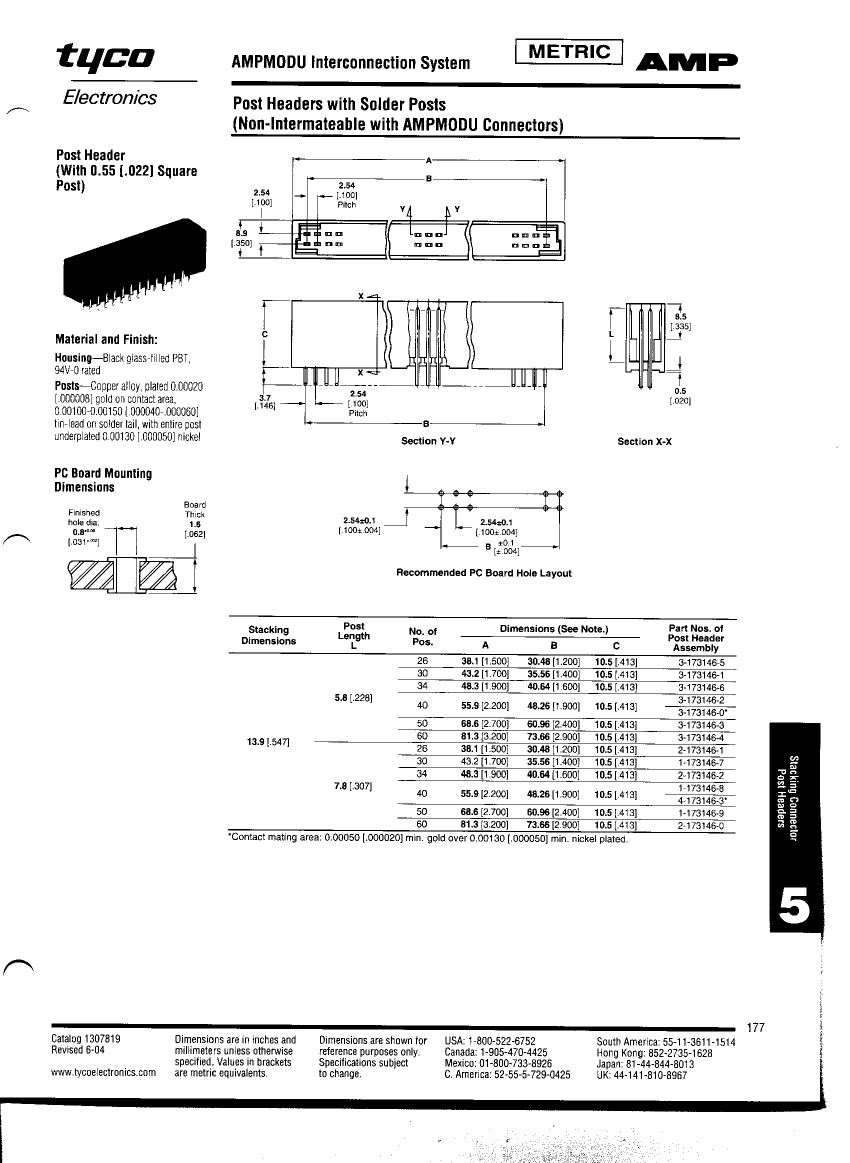

3-173146-2: Description40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-173146-2 Overview

40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

3-173146-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
body width	0.35 inch
subject depth	0.413 inch
body length	2.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (8)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	173146
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

3-173146-2 Related Products

	3-173146-2	1-173146-7	3-173146-1	3-173146-4	4-173146-3	3-173146-3	3-173146-0
Description	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	60 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER	40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	compliant	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch	0.35 inch
subject depth	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch
body length	2.2 inch	1.7 inch	1.7 inch	3.2 inch	2.2 inch	2.7 inch	2.2 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (8)	NOT SPECIFIED	GOLD (8)	NOT SPECIFIED	GOLD (20)	GOLD (8)	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	173146	173146	173146	173146	173146	173146	173146
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Plating thickness	20u inch	20u inch	20u inch	20u inch	50u inch	20u inch	50u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	40	30	30	60	40	50	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	-
JESD-609 code	e3	-	e3	-	e3	e3	-
