1SSA106204R0100 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 1SSA106204R0100

1SSA106204R0100: DescriptionStrip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size87KB，1 Pages; ManufacturerABB; Websitehttp://www.abb.com/

Download Datasheet Parametric Compare View All

1SSA106204R0100 Overview

Strip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)

1SSA106204R0100 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	94V-0
Fastening method	SCREW
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	4
Rated current	15 A
Rated voltage	380 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

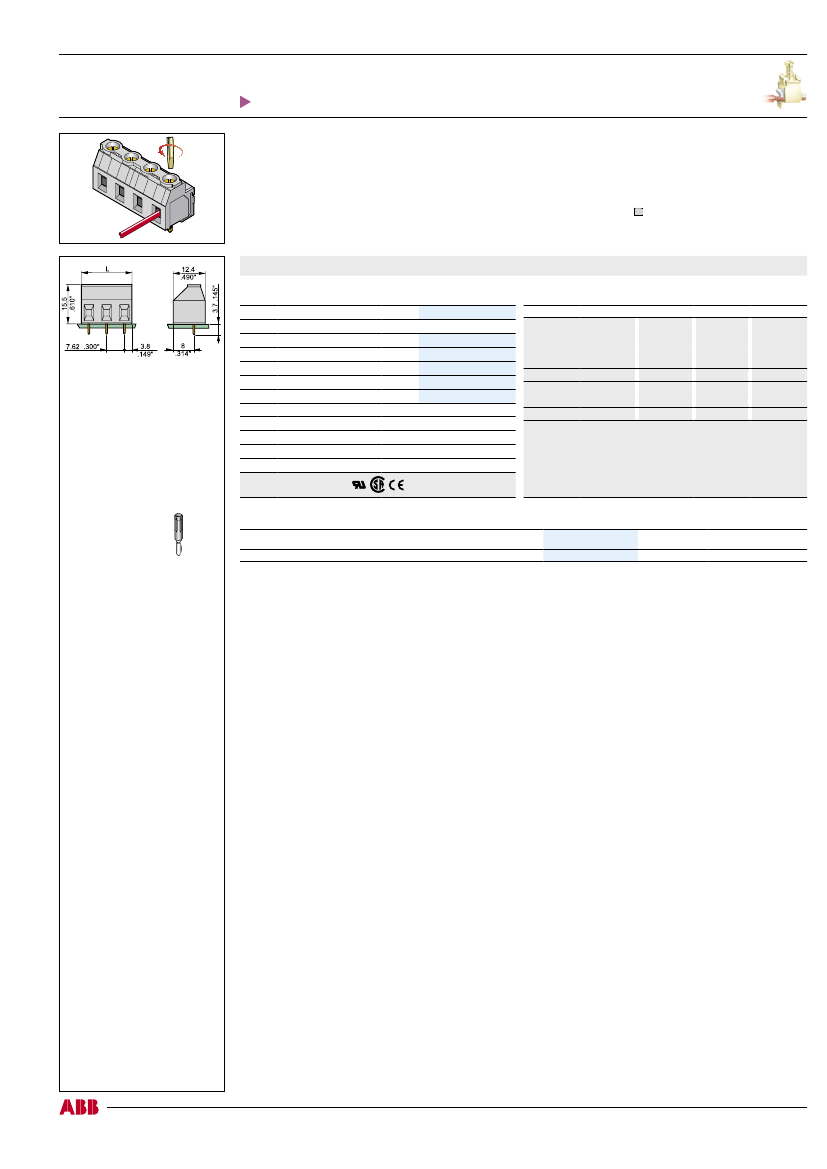

L 106 200

P.C.B. terminal blocks

0.8 x 0.9 x 3.7 mm

.031" x .035" x .145"

Expert Range - Screw clamp connection

Terminal blocks for connection parallel to P.C.B.

Single deck block, 1 pin per pole.

P.C.B. thickness ≤ 2.4 mm

.094"

P.C.B. holes Ø 1.3 mm

.052"

Body : UL94 V0 - PC

Grey

2.5 mm² - Spacing 7.62 mm

.300"

Ordering details

N. Poles

Weight kg

Packaging

L. mm

Order code

1SSA

106 202

R0100

1SSA

106 203

R0100

1SSA

106 204

R0100

1SSA

106 205

R0100

1SSA

106 206

R0100

0.0031

100

15.20

0.0047

100

22.80

0.0063

100

30.40

0.0078

38.10

0.0094

45.70

Other numbers of poles, consult us

Technical data

IEC

Wire size

Screw

CSA

Solid wire

0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG

Stranded wire 0.12 - 2.5 mm² 22 - 14 AWG 22 - 14 AWG

With ferrule

Rated voltage

380 V

300 V

Rated current

15 A

10 A

15 A

Short-circuit current

Rated wire size / Gauge

2.5 mm²

14 AWG

Storage temperature range

-20 ~ +80 °C

Insulation resistance

≥ 10

Ω

Wire stripping length

6 mm /

.236"

Recommended screwdriver

3.5 mm /

.138"

Recommended torque

0.4 /

3.5 lb.in

Protection

IP 20 /

NEMA 1

Accessories

Rep.

Description

Test plug

Ø 2 mm

Type

FC2

Order code

1SNA

007 865

R2600

Packaging

Weight kg

0.0010

P200012

1SSA106204R0100 Related Products

	1SSA106204R0100	1SSA106205R0100	1SSA106206R0100	1SSA106202R0100	1SSA106203R0100
Description	Strip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 15A, 2.5mm2, 1 Row(s), 1 Deck(s)
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	N	N	N	N
Other features	94V-0	94V-0	94V-0	94V-0	94V-0
Fastening method	SCREW	SCREW	SCREW	SCREW	SCREW
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	1
Rows	1	1	1	1	1
Number of channels	4	5	6	2	3
Rated current	15 A	15 A	15 A	15 A	15 A
Rated voltage	380 V	380 V	380 V	380 V	380 V
safety certificate	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2	2.5 mm2
Wire gauge	14 AWG	14 AWG	14 AWG	14 AWG	14 AWG
Base Number Matches	1	1	1	1	1
