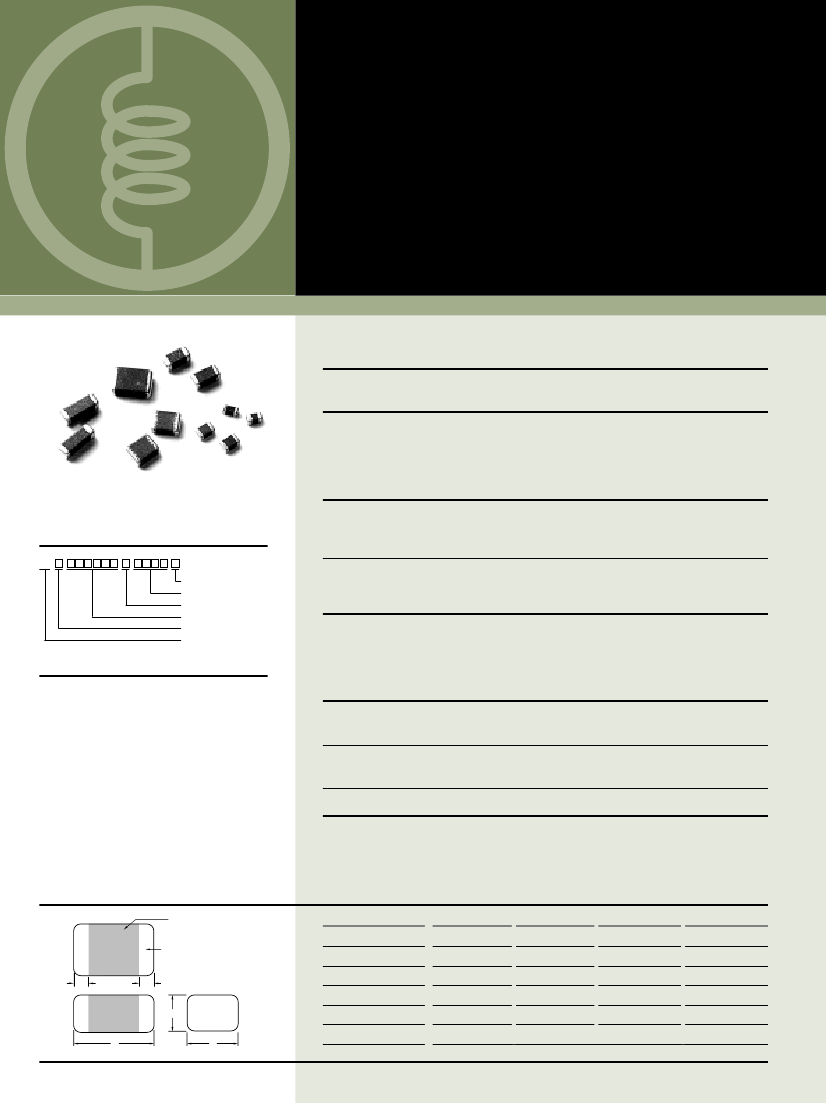

YAGEO CORPORATION
SMD INDUCTOR / BEADS
Multilayer Ferrite
Chip Beads
SB/PB Series
[ PB Series for Large Current ]
APPLICATIONS
Prevention of high frequency EMI form computers, printers, VCRs, TVs, wireless telephone
and other related equipment.
OUTLINE
PRODUCT IDENTIFICATION
SB
Intemal No.
Impedance and Tolerance
Packaging Style (*)
Dimensions (A, B, C)
Material Code
Product Symbol
SB
PB
(large current)
YAGEO ferrite chip EMI suppressers provide a powerful means of EMI/RFI attenuation for
electronic equipment. These products are highly produced with the use of magnetic
material and multilayered technology.
These components contain tremendous electrode strength, solder heat resistance and
outstanding solderability. These products are specially designed for flow, reflow and wave
soldering required for surface mounting application.
* B: Bulk; T: Tape and Reel
FEATURES
Unlike conventional beads, these beads do not require wiring: Simply mounts them onto
the PCB to eliminate the EMI/RFI.
Specially designed for surface mounting equipment, available in various size which allows
them to wide rang of application and usage.
Best designed and tested to offer high impedance for volume.
SHAPES AND DIMENSIONS
Ferrite
Dimensions : mm
TYPE
S/PB 160808
A
1.6± 0.20
2.0± 0.20
3.2± 0.20
3.2± 0.20
3.2± 0.20
4.5± 0.25
4.5± 0.25
B
0.80± 0.15
1.25± 0.20
1.60± 0.20
1.60± 0.20
2.50± 0.20
1.60± 0.20
3.20± 0.20
C
0.8± 0.15
0.9± 0.20
1.1± 0.20
1.6± 0.20
1.3± 0.20
1.6± 0.20
1.5± 0.20
D
0.4± 0.2
0.5± 0.3
0.5± 0.3
0.5± 0.3
0.5± 0.3
0.5± 0.3
0.5± 0.3
Terminal Electrode
S/PB 201209
S/PB 321611
SB 321616
D
D
C
SB 322513
S/PB 451616
B
A
S/PB 453215
