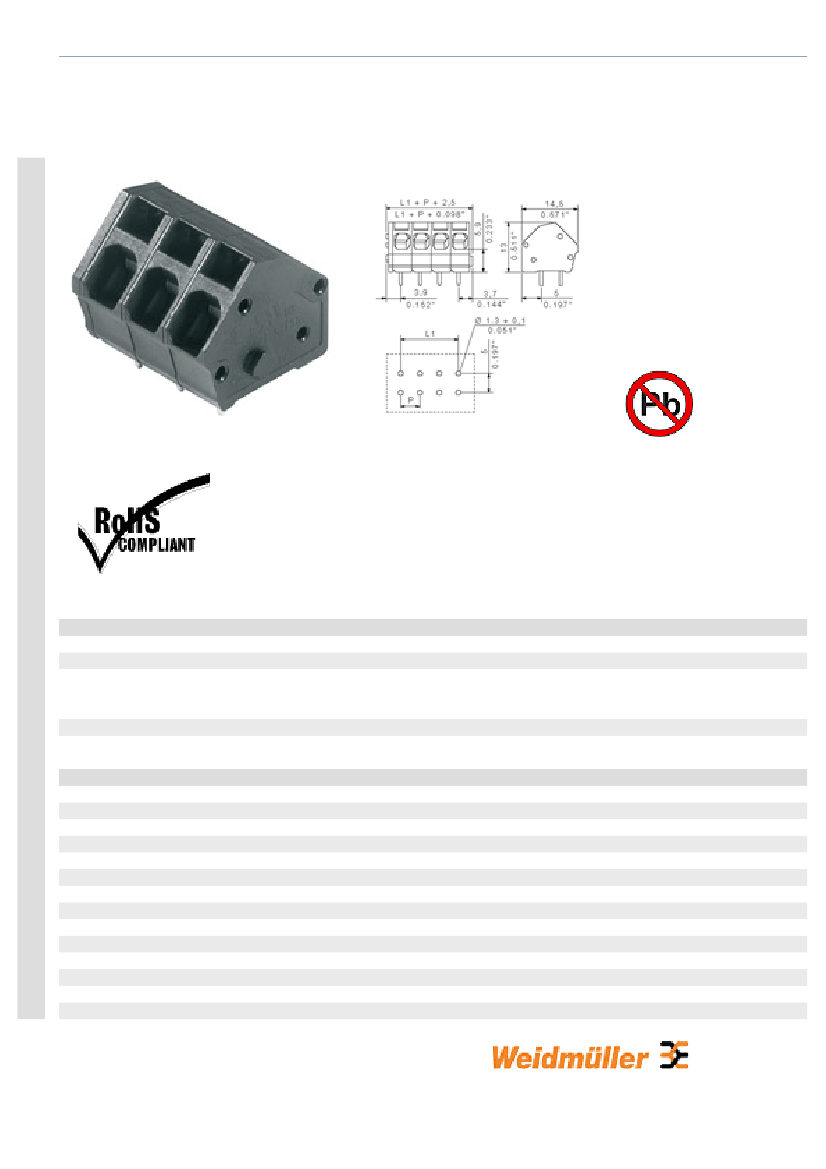

Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZF 5/135
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Product family
Conductor connection system
Fitted to PCB
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
Max. adjacent poles per row
No. of rows
Solder pin length
Dia. of fitting hole
No. of solder pins per pole
Screwdriver blade
Screwdriver blade standard
1811870000
LMZF 5/5/135 3.5SW
PCB terminal, Tension clamp connection,
Soldered connection, Clamping range, max.: 2.5
mm², Pitch: 5.00 mm, No. of poles: 5, 135°, Box
4032248291045
100 pc(s).
System LM
Tension clamp connection
Soldered connection
135°
5 mm
0.197 inch
5
48
1
3.5 mm
1.3 mm
2
0.4 x 2.5
DIN 5264-A
-1-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZF 5/135
System parameters
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
6 mm
20 mm
0.787 inch
IP 20
Safe from finger touch
Wemid (PA)
black
Similar to RAL 9011
I
V-0
>= 600
E-Cu
tinned
-25 °C
55 °C
0.13 mm²
2.5 mm²
26
14
0.13 mm²
2.5 mm²
0.13 mm²
2.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
1.5 mm²
24 A
24 A
24 A
24 A
630 V
320 V
250 V
4 kV
4 kV
4 kV
-2-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZF 5/135
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
300 V
10 A
26
14
300 V
10 A
26
14
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
LMZF.lib
NK
EC001284
NK
NK
NK
Similar products
Order No.
1913780000
1811840000
1811950000
Part designation
LMZF 5/2/135 3.5OR
LMZF 5/2/135 3.5SW
LMZF 5/2/135 3.5GR
Version
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
-3-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZF 5/135
1812060000
1913820000
1811850000
1811960000
1812070000
1913960000
1811860000
1811970000
1812080000
1914000000
1811980000
1812090000
1914020000
1811880000
1811990000
1812100000
1914030000
LMZF 5/2/135 3.5GN
LMZF 5/3/135 3.5OR
LMZF 5/3/135 3.5SW
LMZF 5/3/135 3.5GR
LMZF 5/3/135 3.5GN
LMZF 5/4/135 3.5OR
LMZF 5/4/135 3.5SW
LMZF 5/4/135 3.5GR
LMZF 5/4/135 3.5GN
LMZF 5/5/135 3.5OR
LMZF 5/5/135 3.5GR
LMZF 5/5/135 3.5GN
LMZF 5/6/135 3.5OR
LMZF 5/6/135 3.5SW
LMZF 5/6/135 3.5GR
LMZF 5/6/135 3.5GN
LMZF 5/7/135 3.5OR
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 2,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 3,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 4,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 5,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 6,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
-4-
Product catalogue | PCB connection systems | PCB terminals | Tension clamp connection | LMZF 5 | LMZF 5/135
1811890000
1812000000
1812110000
1914040000
1811900000
1812010000
1812120000
1914050000
1811910000
1812020000
1812130000
1914070000
1811920000
1812030000
1812140000
1914080000
1811930000
LMZF 5/7/135 3.5SW
LMZF 5/7/135 3.5GR
LMZF 5/7/135 3.5GN
LMZF 5/8/135 3.5OR
LMZF 5/8/135 3.5SW
LMZF 5/8/135 3.5GR
LMZF 5/8/135 3.5GN
LMZF 5/9/135 3.5OR
LMZF 5/9/135 3.5SW
LMZF 5/9/135 3.5GR
LMZF 5/9/135 3.5GN
LMZF 5/10/135 3.5OR
LMZF 5/10/135 3.5SW
LMZF 5/10/135 3.5GR
LMZF 5/10/135 3.5GN
LMZF 5/11/135 3.5OR
LMZF 5/11/135 3.5SW
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 7,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 8,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 9,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 10,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 11,
135°, Box
PCB terminal, Tension clamp connection, Soldered connection,
Clamping range, max.: 2.5 mm², Pitch: 5.00 mm, No. of poles: 11,
135°, Box
-5-
