612-93-650-41-001 datasheet, PDF

Datasheet> All Categories > The connector> socket> 612-93-650-41-001

612-93-650-41-001: DescriptionIC Socket, DIP50, 50 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,; CategoryThe connector socket; File Size252KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

612-93-650-41-001 Overview

IC Socket, DIP50, 50 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder,

612-93-650-41-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	DIP SOCKET
body width	0.7 inch
subject depth	0.098 inch
body length	2.5 inch
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP50
Dielectric withstand voltage	1000VAC V
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
Insulation resistance	10000000000 Ω
JESD-609 code	e0
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	50
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

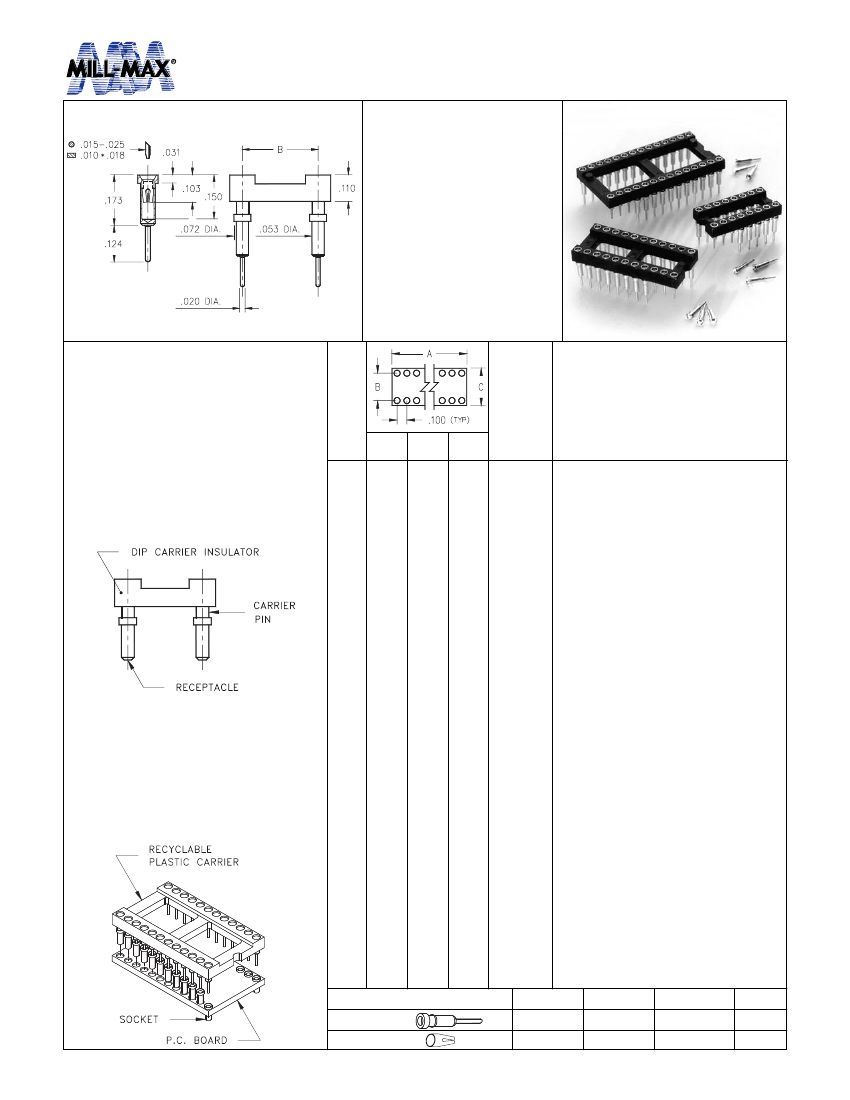

DUAL-IN-LINE SOCKETS

Carrier Type

Solder Tail

•

Convenient way to load

loose receptacles on PC

board. See below for

application details.

•

Offers maximum

ventilation and better

visibility for inspection.

•

Hi-Rel, 4-finger #30 clip

rated at 3 amps. See

page 208 for details.

•

Uses Mill-Max #0255 pin

receptacle. See page 134

for details.

Quantity

per tube

APPLICATION OF DIP/SIP

SOCKET CARRIERS

Socket carriers provide a

convenient way of loading

groups of receptacles onto

a printed circuit board.

A DIP carrier insulator with

durable pins is assembled

with loose receptacles.

Total number

of pins

Series 612

Ordering Information

612-XX-210-41-001

612-XX-304-41-001

612-XX-306-41-001

612-XX-308-41-001

612-XX-310-41-001

612-XX-314-4 1-001

612-XX-316-41-001

612-XX-318-41-001

612-XX-320-41-001

612-XX-322-4 1-001

612-XX-324-41-001

612-XX-328-4 1-001

612-XX-420-41-001

612-XX-422-41-001

612-XX-424-41-001

612-XX-428-41-001

612-XX-432-41-001

612-XX-624-41-001

612-XX-628-41-001

612-XX-632-41-001

612-XX-636-41-001

612-XX-640-41-001

612-XX-642-41-001

612-XX-648-41-001

612-XX-650-41-001

612-XX-652-41-001

612-XX-950-41-001

612-XX-952-41-001

612-XX-964-41-001

200µ” Sn/Pb

30µ” Au

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

0.2

0.3

0.4

0.6

0.9

0.3

0.4

0.5

0.7

1.0

102

10µ” Au

30µ” Au

The socket carrier keeps the

receptacles fixtured in the

PCB during soldering. After

soldering, the carrier insulator

is removed, leaving behind a

low profile socket pattern. In

high volume, the carrier can be

reloaded with fresh receptacles.

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m

516-922-6000
