6816-6863 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 6816-6863

6816-6863: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size262KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

6816-6863 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

6816-6863 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Is Samacsys	N
Board mount options	SPLIT BOARD LOCK
body width	0.571 inch
subject depth	0.512 inch
body length	0.669 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	6816
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.146 inch
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

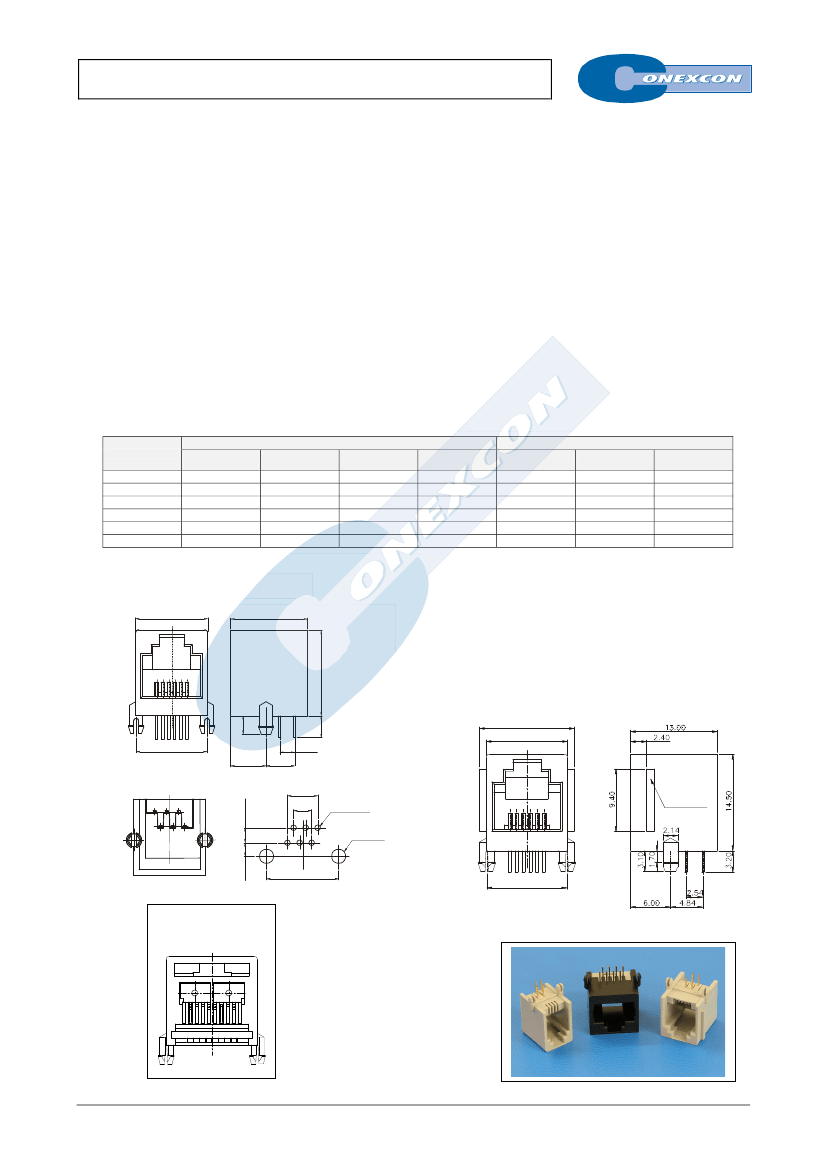

SIDE ENTRY PCB JACK FCC-68

6816 SERIES.

Right angle PCB jack.

General Features

Electrical Features



Available in 4/4, 6/4, 6/6, 8/8, 10/10 circuits

Standard telephone jack FCC-68

14.50 mm. height. 13 mm. deph

Accept standard plugs FCC-68

Full gold plating with different plating

Bifurcated plastic foot print



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.45 mm. round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Part Number

Grey Without

Black With

Panel Stop

6816 –

T442

6816 –

T443

6816 –

T642

6816 –

T662

6816 –

T862

6816 –

T882

6816 –

T102

6816 –

T643

6816 –

T663

6816 –

T863

6816 –

T883

6816 –

T103

Dimensions

Grey With

Panel Stop

6816 –

T444

6816 –

T644

6816 –

T664

6816 –

T864

6816 –

T884

6816 –

T104

10.00 (0.393)

12.20 (0.481)

15.00 (0.591)

10.00 (0.393)

12.00 (0.473)

15.00 (0.591)

3.06 (0.121)

5.10 (0.200)

7.14 (0.282)

9.18 (0.362)

Circuit Size

4/4

6/4

6/6

8/6

8/8

10/10

Black Without

Panel Stop

6816 –

T441

6816 –

T641

6816 –

T661

6816 –

T861

6816 –

T881

6816 –

T101

Version Without Panel Stop Key

13.00

T = Contact Plating



14.50

T =

6µ” gold over 50µ” nickel

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

T =

50µ” gold over 50µ” nickel

Version With Panel Stop

3.10

3.70

A+2.00

6.00

4.84

2.54

6-ø0.90

2-ø2.36

Panel Stop

2.30

Version 8/8 grey colour

with Short-Ciruit

1-4

5-8

6816 - T8822

E-XX

FULL LINE CATALOGUE

6816-6863 Related Products

	6816-6863	6816-4861	6816-4862	6816-7863	6816-7663	6816-6864	6816-5441	6816-4881
Description	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 6 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 4 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch	0.571 inch
subject depth	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch	0.512 inch
body length	0.669 inch	0.591 inch	0.591 inch	0.669 inch	0.559 inch	0.669 inch	0.393 inch	0.591 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Durability	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles	1000 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	GRAY	BLACK	BLACK	GRAY	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	6816	6816	6816	6816	6816	6816	6816	6816
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	30u inch	6u inch	6u inch	50u inch	50u inch	30u inch	15u inch	6u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch	0.146 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	8	8	8	6	8	4	8
Base Number Matches	1	1	1	1	1	1	-	-
