1882850000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1882850000

1882850000: DescriptionStrip Terminal Block, 15A, 2 Row(s), 2 Deck(s), ROHS COMPLIANT; CategoryThe connector terminals; File Size73KB，4 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1882850000 Overview

Strip Terminal Block, 15A, 2 Row(s), 2 Deck(s), ROHS COMPLIANT

1882850000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: UL 94V-0
Fastening method	SOLDER
Manufacturer's serial number	1882850000
Installation type	BOARD
Number of layers	2
Rows	2
Number of channels	44
Rated current	15 A
Rated voltage	250 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

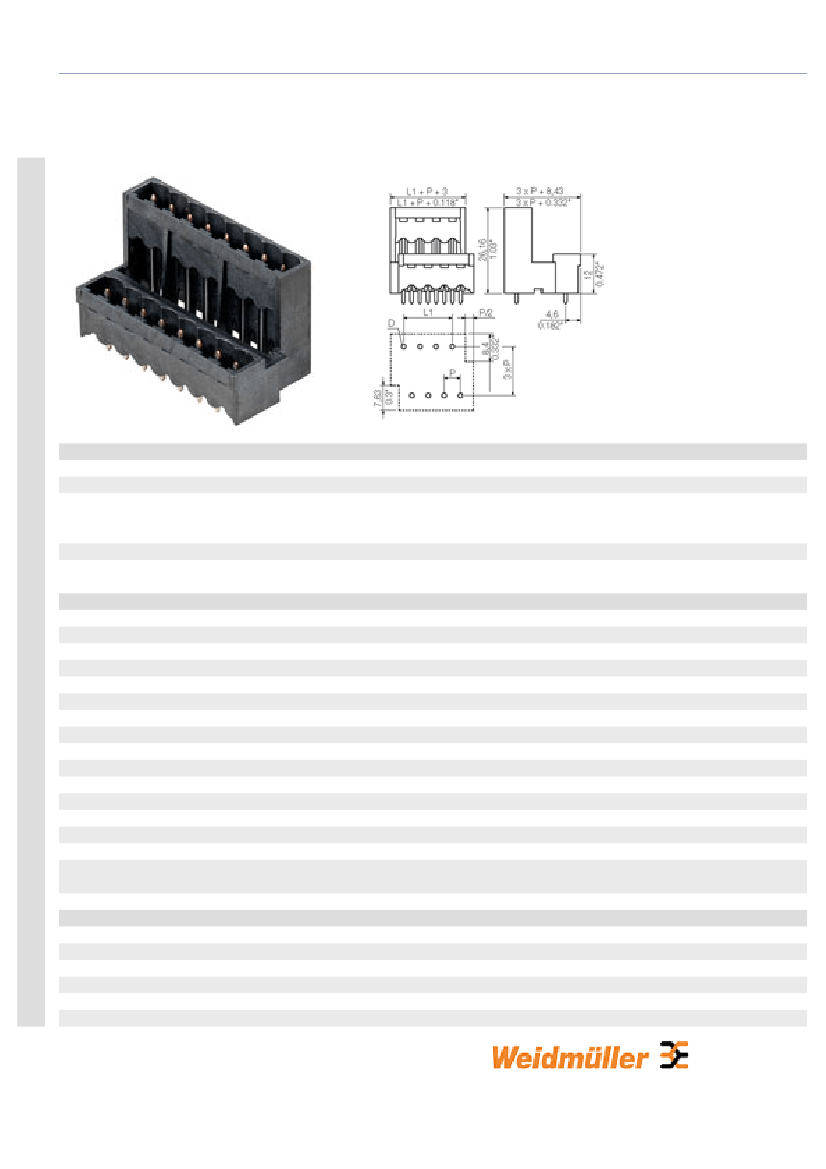

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug

connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.00/180 | SLDV-THR 5.00/180G

General ordering data

Order No.

Part designation

Version

EAN

Qty.

System parameters

Fitted to PCB

Outgoing elbow

Pitch

Pitch in inch

No. of poles

Solder pin length

Can be coded

No. of rows

No. of solder pins per pole

Dia. of fitting hole

Fitting hole tolerance

L1 in mm

L1 in inch

Insulation resistance

Electric shock protection to DIN VDE 0470

Material data

Insulating material

Colour

colour chart

Insulating material group

Flammability class UL 94

CTI

1882850000

SLDV-THR 5.00/44G 3.2 SN SW

PCB plug-in connector, Male connectors, Reflow

solder connection, Pitch: 5.00 mm, No. of poles:

44, 180°, Box

4032248486427

10 pc(s).

Reflow solder connection

180°

5 mm

0.197 inch

3.2 mm

Yes

1.3 mm

+ 0.1 mm

105 mm

4.134 inch

1 MΩ

IP20 plugged/ IP10 unplugged

Finger-safe plugged/ back-of-hand-safe

unplugged

LCP GF

black

Similar to RAL 9011

IIIa

V-0

>= 175

-1-

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug

connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.00/180 | SLDV-THR 5.00/180G

Classifications

ETIM 3.0

eClass 5.1

EC001284

27-26-07-04

Similar products

Order No.

1894980000

1882690000

1894990000

1882700000

1895000000

1862370000

1895010000

1882710000

1895020000

1882720000

1895030000

1882730000

1895040000

1862380000

1895050000

1882740000

1895060000

1862390000

1895070000

1882750000

1895080000

Part designation

Version

SLDV-THR 5.00/04G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 4, 180°, Box

SLDV-THR 5.00/04G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 4, 180°, Box

SLDV-THR 5.00/06G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 6, 180°, Box

SLDV-THR 5.00/06G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 6, 180°, Box

SLDV-THR 5.00/08G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 8, 180°, Box

SLDV-THR 5.00/08G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 8, 180°, Box

SLDV-THR 5.00/10G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 10, 180°, Box

SLDV-THR 5.00/10G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 10, 180°, Box

SLDV-THR 5.00/12G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 12, 180°, Box

SLDV-THR 5.00/12G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 12, 180°, Box

SLDV-THR 5.00/14G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 14, 180°, Box

SLDV-THR 5.00/14G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 14, 180°, Box

SLDV-THR 5.00/16G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 16, 180°, Box

SLDV-THR 5.00/16G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 16, 180°, Box

SLDV-THR 5.00/18G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 18, 180°, Box

SLDV-THR 5.00/18G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 18, 180°, Box

SLDV-THR 5.00/20G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 20, 180°, Box

SLDV-THR 5.00/20G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 20, 180°, Box

SLDV-THR 5.00/22G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 22, 180°, Box

SLDV-THR 5.00/22G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 22, 180°, Box

SLDV-THR 5.00/24G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 24, 180°, Box

-3-

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) | Plug

connectors, THR solder connection, pitch 5.00/5.08 | SLDV-THR 5.00/180 | SLDV-THR 5.00/180G

1882760000

1895090000

1882770000

1895100000

1882780000

1895110000

1882790000

1895120000

1882800000

1895130000

1882810000

1895140000

1882820000

1895150000

1882830000

1895180000

1862400000

1895190000

1882840000

1895200000

1895210000

1882860000

1895220000

1882870000

SLDV-THR 5.00/24G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 24, 180°, Box

SLDV-THR 5.00/26G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 26, 180°, Box

SLDV-THR 5.00/26G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 26, 180°, Box

SLDV-THR 5.00/28G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 28, 180°, Box

SLDV-THR 5.00/28G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 28, 180°, Box

SLDV-THR 5.00/30G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 30, 180°, Box

SLDV-THR 5.00/30G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 30, 180°, Box

SLDV-THR 5.00/32G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 32, 180°, Box

SLDV-THR 5.00/32G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 32, 180°, Box

SLDV-THR 5.00/34G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 34, 180°, Box

SLDV-THR 5.00/34G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 34, 180°, Box

SLDV-THR 5.00/36G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 36, 180°, Box

SLDV-THR 5.00/36G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 36, 180°, Box

SLDV-THR 5.00/38G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 38, 180°, Box

SLDV-THR 5.00/38G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 38, 180°, Box

SLDV-THR 5.00/40G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 40, 180°, Box

SLDV-THR 5.00/40G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 40, 180°, Box

SLDV-THR 5.00/42G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 42, 180°, Box

SLDV-THR 5.00/42G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 42, 180°, Box

SLDV-THR 5.00/44G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 44, 180°, Box

SLDV-THR 5.00/46G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 46, 180°, Box

SLDV-THR 5.00/46G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 46, 180°, Box

SLDV-THR 5.00/48G 1.5 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 48, 180°, Box

SLDV-THR 5.00/48G 3.2 SN SW PCB plug-in connector, Male connectors, Reflow solder connection,

Pitch: 5.00 mm, No. of poles: 48, 180°, Box

-4-
