1-1546940-6 Overview

20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK

1-1546940-6 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	POLYAMIDE, 94V-0
Fastening method	SCREW
Manufacturer's serial number	1546940
Installation type	CABLE AND PANEL
Number of layers	1
Rows	1
Number of channels	18
Rated current	20 A
Rated voltage	150 V
safety certificate	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG
Base Number Matches	1

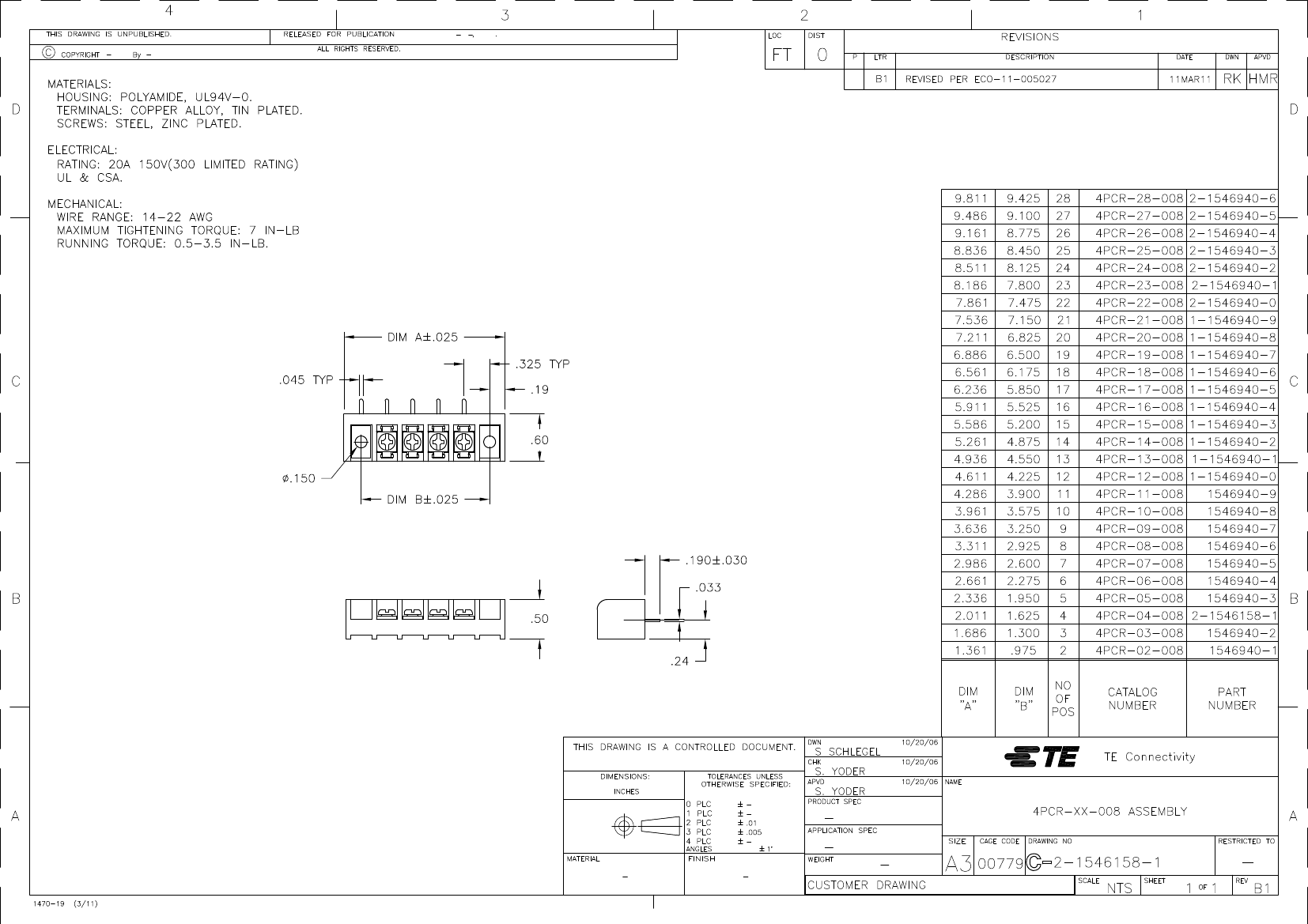

Preview

Download Datasheet

View All

1-1546940-6 Related Products

	1-1546940-6	AL1672	ATS-01C-125-C2-R0	1-1546940-2	1-1546940-9	1-1546940-7	1-1546940-8	1-1546940-4	1-1546940-1	1-1546940-0
Description	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	SINGLE STAGE DIMMABLE BUCK CONVERTER	pushPIN™ HS ASMBLY,COARSE-PITCH,XCUT, HOLE PATTERN:4-CORNER,BLUE,T766	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK	20A, BARRIER STRIP TERMINAL BLOCK, 1 ROW, 1 DECK
Reach Compliance Code	unknown	-	-	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Is Samacsys	N	-	-	N	N	N	N	N	N	N
Other features	POLYAMIDE, 94V-0	-	-	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0
Fastening method	SCREW	-	-	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Manufacturer's serial number	1546940	-	-	1546940	1546940	1546940	1546940	1546940	1546940	1546940
Installation type	CABLE AND PANEL	-	-	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Number of layers	1	-	-	1	1	1	1	1	1	1
Rows	1	-	-	1	1	1	1	1	1	1
Number of channels	18	-	-	14	21	19	20	16	13	12
Rated current	20 A	-	-	20 A	20 A	20 A	20 A	20 A	20 A	20 A
Rated voltage	150 V	-	-	150 V	150 V	150 V	150 V	150 V	150 V	150 V
safety certificate	UL; CSA	-	-	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	-	-	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
Wire gauge	14 AWG	-	-	14 AWG	14 AWG	14 AWG	14 AWG	14 AWG	14 AWG	14 AWG
Base Number Matches	1	-	-	1	1	1	1	1	1	1
