3-176912-6: Description6 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size119KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-176912-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-176912-6	-	-	View	Buy Now

3-176912-6 Overview

6 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE

3-176912-6 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	90 PIECES/TUBE
body width	0.165 inch
subject depth	0.165 inch
body length	0.205 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.049 inch
Match contact row spacing	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

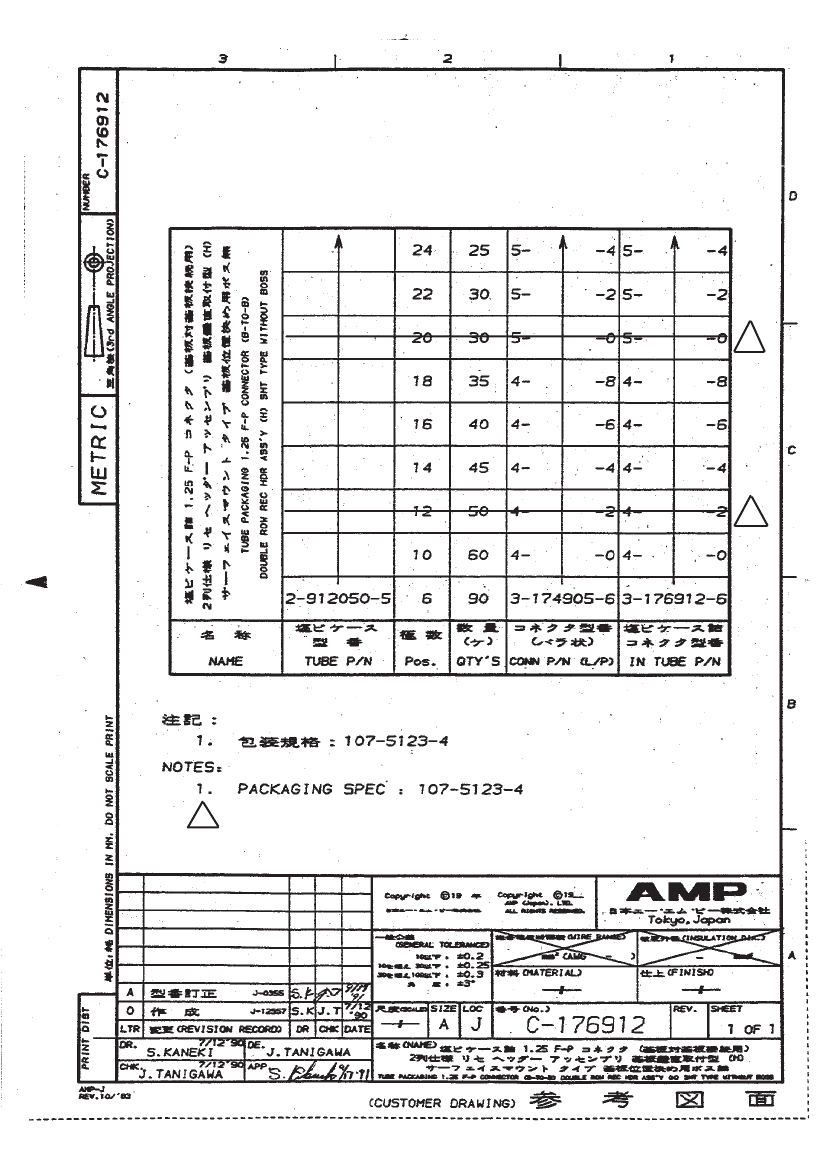

2

2.

OBSOLETE PART

A1

ECR-15-002174

I.T

W.H

2/13'15

A1

3-176912-6 Related Products

	3-176912-6	09VR1B15L1C502A3	4-176912-2
Description	6 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE	9mm Panel Potentiometer	12 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, RECEPTACLE
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Reach Compliance Code	compliant	-	compliant
Is Samacsys	N	-	N
Other features	90 PIECES/TUBE	-	50 PIECES/TUBE
body width	0.165 inch	-	0.165 inch
subject depth	0.165 inch	-	0.165 inch
body length	0.205 inch	-	0.352 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD	-	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Contact point gender	FEMALE	-	FEMALE
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
contact mode	RECTANGULAR	-	RECTANGULAR
Contact resistance	10 mΩ	-	10 mΩ
DIN compliance	NO	-	NO
Dielectric withstand voltage	500VDC V	-	500VDC V
Filter function	NO	-	NO
IEC compliance	NO	-	NO
Insulation resistance	500000000 Ω	-	500000000 Ω
Insulator color	BLACK	-	BLACK
insulator material	POLYPHENYLENE SULPHIDE	-	POLYPHENYLENE SULPHIDE
JESD-609 code	e0	-	e0
MIL compliance	NO	-	NO
Plug contact pitch	0.049 inch	-	0.049 inch
Match contact row spacing	0.049 inch	-	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	-	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	-	NO
Installation method	RIGHT ANGLE	-	RIGHT ANGLE
Installation type	BOARD	-	BOARD
Number of connectors	ONE	-	ONE
PCB row number	2	-	2
Number of rows loaded	2	-	2
Maximum operating temperature	105 °C	-	105 °C
Minimum operating temperature	-30 °C	-	-30 °C
Options	GENERAL PURPOSE	-	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	4.191 mm	-	4.191 mm
Plating thickness	30u inch	-	30u inch
polarization key	HOUSING SIDE	-	HOUSING SIDE
Rated current (signal)	0.5 A	-	0.5 A
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Terminal pitch	1.25 mm	-	1.25 mm
Termination type	SURFACE MOUNT	-	SURFACE MOUNT
Total number of contacts	6	-	12
UL Flammability Code	94V-0	-	94V-0
Base Number Matches	1	-	1
