10581DM datasheet, PDF - EEWORLD Datasheet

10581DM: DescriptionArithmetic Logic Unit, 10K Series, 4-Bit, ECL, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24; Categorylogic logic; File Size88KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

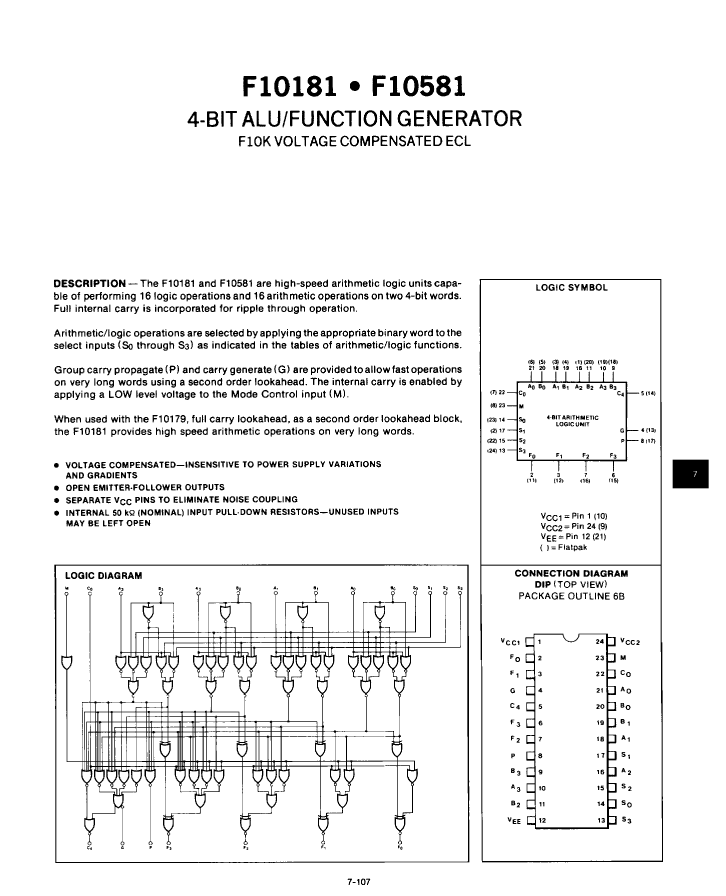

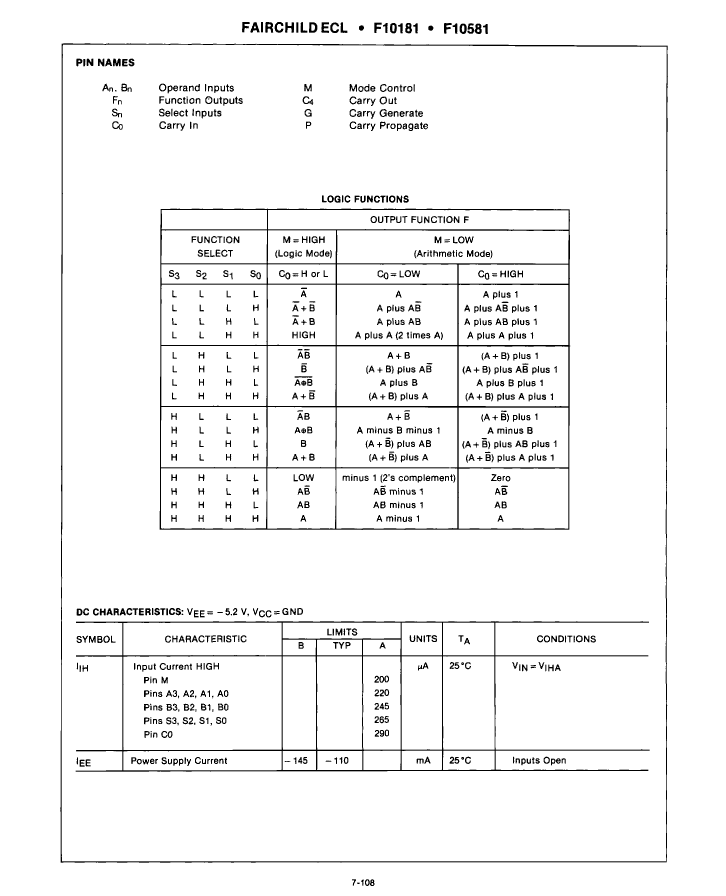

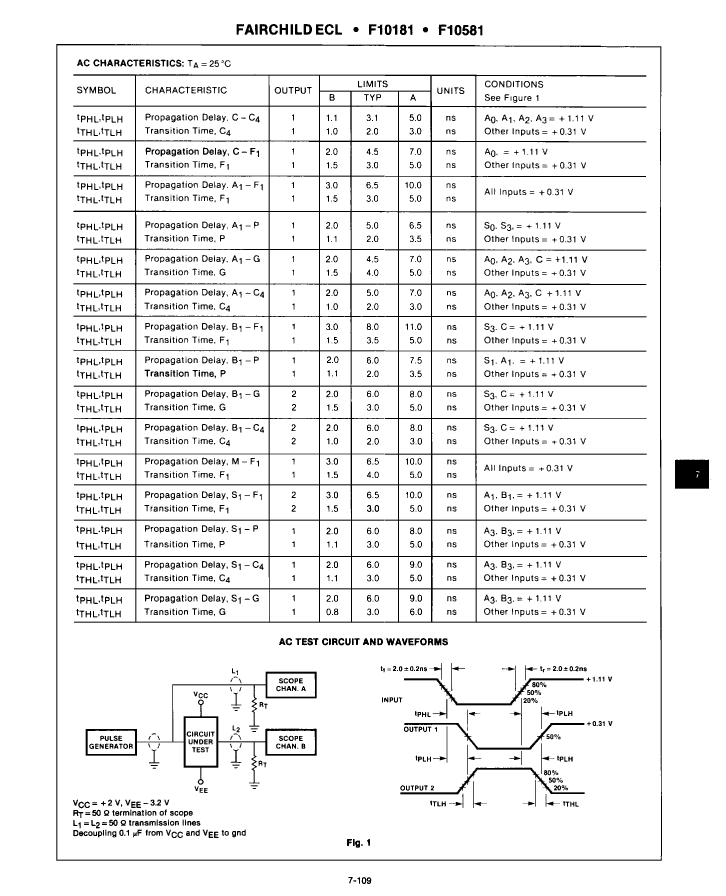

10581DM Overview

Arithmetic Logic Unit, 10K Series, 4-Bit, ECL, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Is Samacsys	N
Other features	CAPABLE OF 16 LOGIC AND ARITHMETIC OPERATIONS
series	10K
JESD-30 code	R-GDIP-T24
Logic integrated circuit type	ARITHMETIC LOGIC UNIT
Number of digits	4
Number of functions	1
Number of terminals	24
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum seat height	5.334 mm
surface mount	NO
technology	ECL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

	10581DM	10181DC	10581FM	ATS-04B-119-C2-R0
Description	Arithmetic Logic Unit, 10K Series, 4-Bit, ECL, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	Arithmetic Logic Unit, 10K Series, 4-Bit, ECL, CDIP24, HERMETIC SEALED, CERAMIC, DIP-24	Arithmetic Logic Unit, 10K Series, 4-Bit, ECL, CQFP24, FP-24	Heat Sink Assembly
Parts packaging code	DIP	DIP	QFP	-
package instruction	DIP,	DIP,	QFF,	-
Contacts	24	24	24	-
Reach Compliance Code	unknown	unknown	unknown	-
Is Samacsys	N	N	N	-
Other features	CAPABLE OF 16 LOGIC AND ARITHMETIC OPERATIONS	CAPABLE OF 16 LOGIC AND ARITHMETIC OPERATIONS	CAPABLE OF 16 LOGIC AND ARITHMETIC OPERATIONS	-
series	10K	10K	10K	-
JESD-30 code	R-GDIP-T24	R-GDIP-T24	S-CQFP-F24	-
Logic integrated circuit type	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	ARITHMETIC LOGIC UNIT	-
Number of digits	4	4	4	-
Number of functions	1	1	1	-
Number of terminals	24	24	24	-
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	-
encapsulated code	DIP	DIP	QFF	-
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	-
Package form	IN-LINE	IN-LINE	FLATPACK	-
propagation delay (tpd)	7 ns	7 ns	7 ns	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	5.334 mm	5.334 mm	2.16 mm	-
surface mount	NO	NO	YES	-
technology	ECL	ECL	ECL	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	-
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	-
Terminal location	DUAL	DUAL	QUAD	-
width	10.16 mm	10.16 mm	9.78 mm	-
Base Number Matches	1	1	1	-
