LTC1060AMJ/883 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> LTC1060AMJ/883

LTC1060AMJ/883: DescriptionIC DUAL SWITCHED CAPACITOR FILTER, RESISTOR PROGRAMMABLE, UNIVERSAL, CDIP20, CERDIP-20, Active Filter; CategoryAnalog mixed-signal IC filter; File Size900KB，20 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LTC1060AMJ/883 Overview

IC DUAL SWITCHED CAPACITOR FILTER, RESISTOR PROGRAMMABLE, UNIVERSAL, CDIP20, CERDIP-20, Active Filter

LTC1060AMJ/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP20,.3
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Active filter type	SWITCHED CAPACITOR FILTER
Center frequency or cutoff frequency maximum range	20 kHz
Center frequency or cutoff frequency minimum range	0.0001 kHz
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
Maximum negative supply voltage (Vsup)	-8 V
Negative supply voltage minimum (Vsup)	-2.37 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Order	2ND
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
poles and zeros	2 AND 0
Certification status	Not Qualified
response	UNIVERSAL
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply current (Isup)	12 mA
Maximum supply voltage (Vsup)	8 V
Minimum supply voltage (Vsup)	2.37 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
transfer characteristics	RESISTOR PROGRAMMABLE
width	7.62 mm
Base Number Matches	1

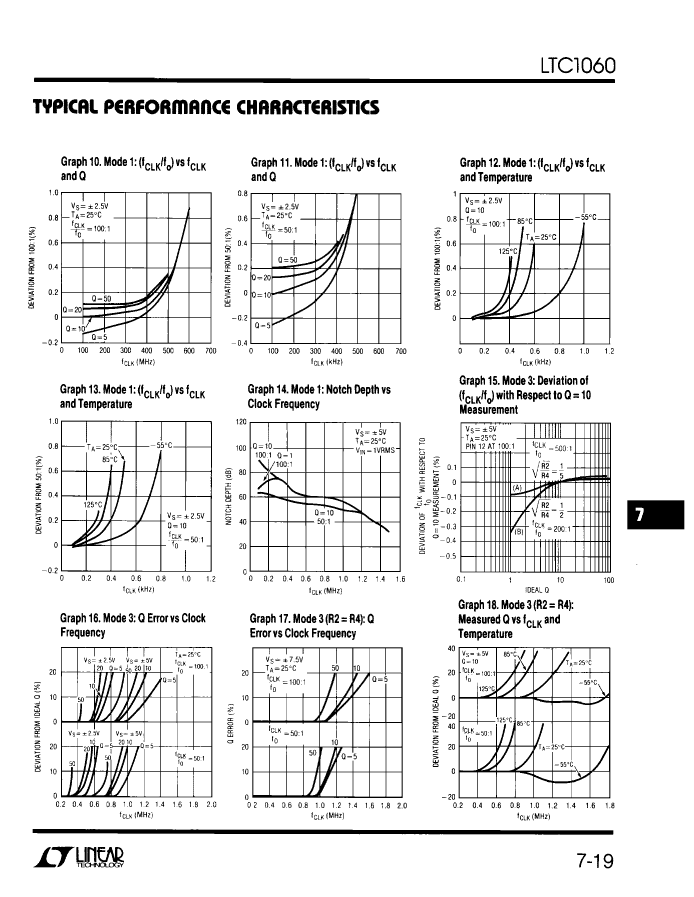

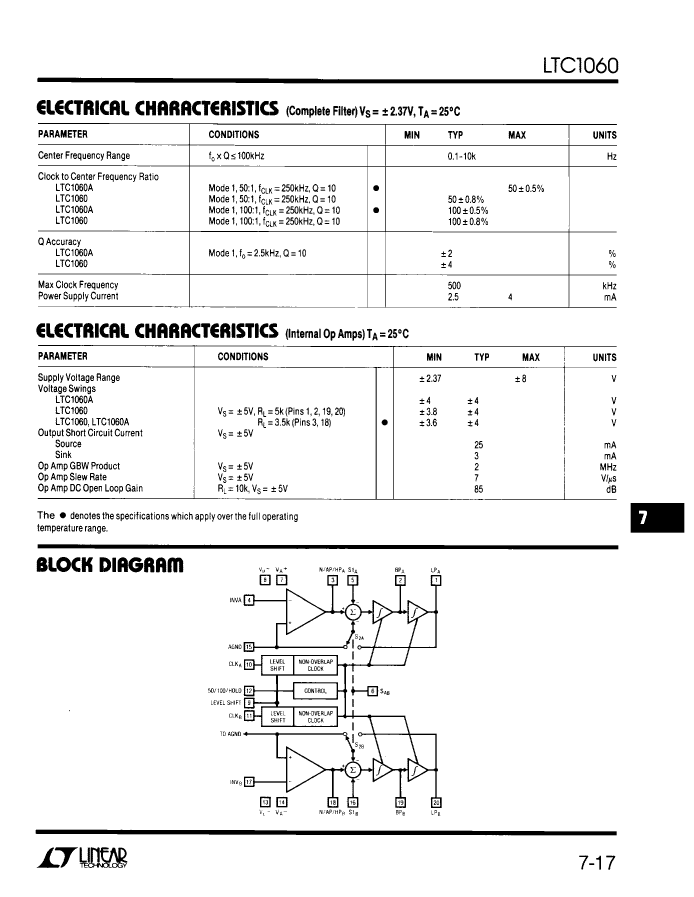

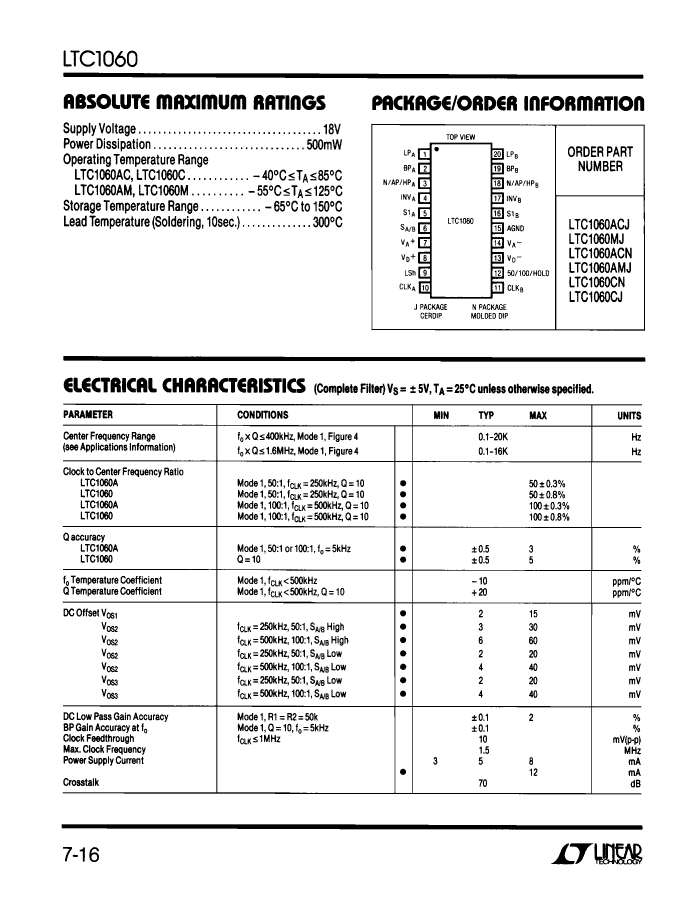

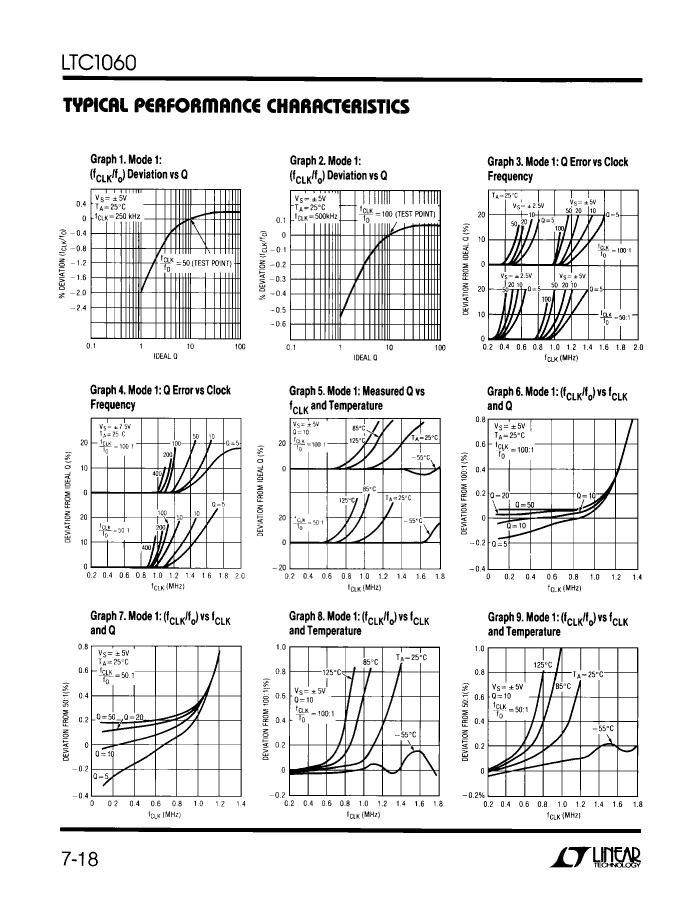

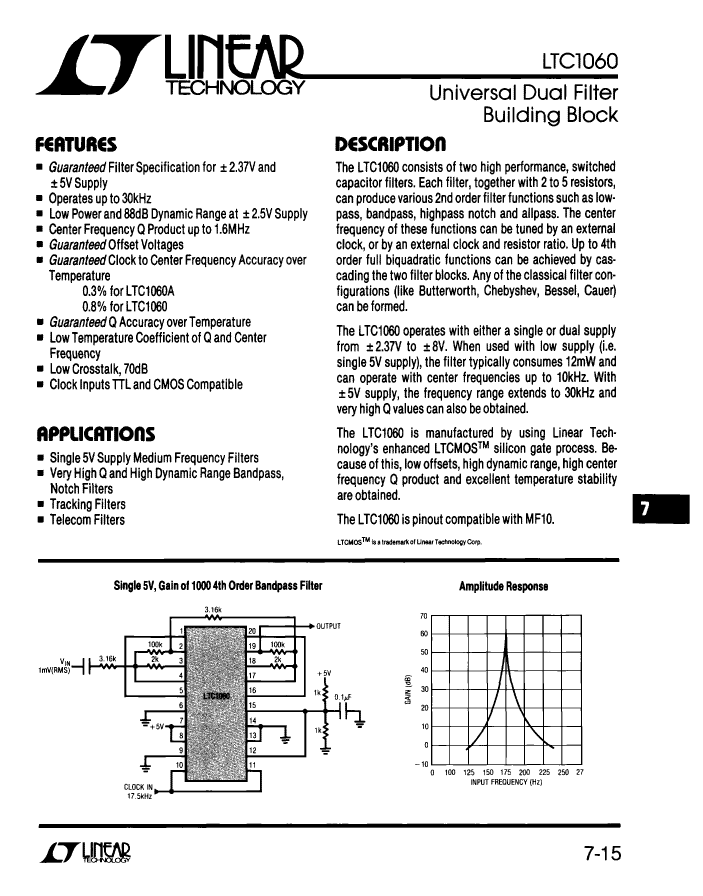

Preview

Download Datasheet

View All

LTC1060AMJ/883 Related Products

	LTC1060AMJ/883	5962-8864102RX	5962-8864101RX	5962-8864101RA	5962-8864102RA	LTC1060MJ/883
Description	IC DUAL SWITCHED CAPACITOR FILTER, RESISTOR PROGRAMMABLE, UNIVERSAL, CDIP20, CERDIP-20, Active Filter	IC DUAL SWITCHED CAPACITOR FILTER, UNIVERSAL, CDIP20, CERAMIC, DIP-20, Active Filter	IC DUAL SWITCHED CAPACITOR FILTER, UNIVERSAL, CDIP20, CERAMIC, DIP-20, Active Filter	IC DUAL SWITCHED CAPACITOR FILTER, UNIVERSAL, CDIP20, CERAMIC, DIP-20, Active Filter	IC DUAL SWITCHED CAPACITOR FILTER, UNIVERSAL, CDIP20, CERAMIC, DIP-20, Active Filter	IC DUAL SWITCHED CAPACITOR FILTER, RESISTOR PROGRAMMABLE, UNIVERSAL, CDIP20, CERDIP-20, Active Filter
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP20,.3	DIP,	DIP,	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3
Contacts	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Active filter type	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER	SWITCHED CAPACITOR FILTER
JESD-30 code	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20	R-GDIP-T20
Negative supply voltage minimum (Vsup)	-2.37 V	-2.37 V	-2.37 V	-2.37 V	-2.37 V	-2.37 V
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
response	UNIVERSAL	UNIVERSAL	UNIVERSAL	UNIVERSAL	UNIVERSAL	UNIVERSAL
Minimum supply voltage (Vsup)	2.37 V	2.37 V	2.37 V	2.37 V	2.37 V	2.37 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	-	incompatible	incompatible	incompatible
JESD-609 code	e0	e0	e0	e0	-	e0
Maximum negative supply voltage (Vsup)	-8 V	-8 V	-	-	-8 V	-8 V
Order	2ND	-	-	2ND	2ND	2ND
Encapsulate equivalent code	DIP20,.3	-	-	DIP20,.3	DIP20,.3	DIP20,.3
Filter level	38535Q/M;38534H;883B	MIL-STD-883	-	38535Q/M;38534H;883B	MIL-STD-883	38535Q/M;38534H;883B
Maximum supply voltage (Vsup)	8 V	8 V	-	-	8 V	8 V
technology	CMOS	-	-	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb) - hot dipped	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	-	-	2.54 mm	2.54 mm	2.54 mm
transfer characteristics	RESISTOR PROGRAMMABLE	-	-	BUTTERWORTH/BESSEL/ELLIPTIC/CHEBYSHEV	BUTTERWORTH/BESSEL/ELLIPTIC/CHEBYSHEV	RESISTOR PROGRAMMABLE
Base Number Matches	1	1	1	1	1	-
