1KDAT-31R5-PPK datasheet, PDF - EEWORLD Datasheet

1KDAT-31R5-PPK: DescriptionVariable Attenuator, 0MHz Min, 2400MHz Max, 2.4dB Insertion Loss-Max, 4 X 4 MM, DG983-1, 20 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size591KB，12 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

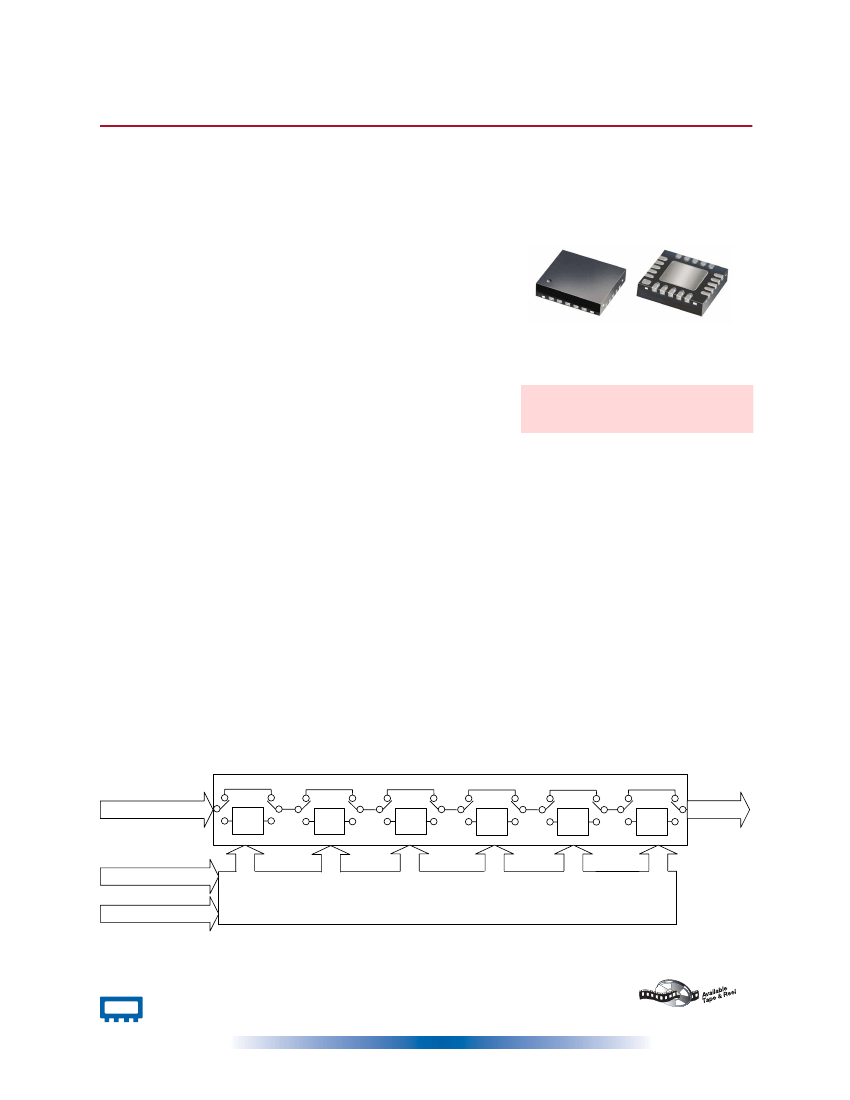

1KDAT-31R5-PPK Overview

Variable Attenuator, 0MHz Min, 2400MHz Max, 2.4dB Insertion Loss-Max, 4 X 4 MM, DG983-1, 20 PIN

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	CMOS COMPATIBLE
Nominal attenuation	31.5 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	23.98 dBm
Maximum insertion loss	2.4 dB
JESD-609 code	e0
Maximum operating frequency	2400 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR
Terminal surface	TIN LEAD
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

	1KDAT-31R5-PPK	2KDAT-31R5-PPT	2KDAT-31R5-PP+T	1KDAT-31R5-PP+K
Description	Variable Attenuator, 0MHz Min, 2400MHz Max, 2.4dB Insertion Loss-Max, 4 X 4 MM, DG983-1, 20 PIN	Variable Attenuator, 0MHz Min, 2400MHz Max, 2.4dB Insertion Loss-Max, 4 X 4 MM, DG983-1, 20 PIN	Variable Attenuator, 0MHz Min, 2400MHz Max, 2.4dB Insertion Loss-Max, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN	Variable Attenuator, 0MHz Min, 2400MHz Max, 2.4dB Insertion Loss-Max, 4 X 4 MM, ROHS COMPLIANT, DG983-1, 20 PIN
Reach Compliance Code	unknown	unknow	unknow	unknown
Other features	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE	CMOS COMPATIBLE
Nominal attenuation	31.5 dB	31.5 dB	31.5 dB	31.5 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	23.98 dBm	23.98 dBm	23.98 dBm	23.98 dBm
Maximum insertion loss	2.4 dB	2.4 dB	2.4 dB	2.4 dB
Maximum operating frequency	2400 MHz	2400 MHz	2400 MHz	2400 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR	VARIABLE ATTENUATOR
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5
Base Number Matches	1	1	1	1
