Part Number

Search

318258-000

Description
WIRE AND CABLE
CategoryThe connector    Connector bracket
File Size127KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

318258-000 Online Shopping

Suppliers Part Number Price MOQ In stock
318258-000 - - View Buy Now

318258-000 Overview

WIRE AND CABLE

318258-000 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Is SamacsysN
Connector bracket typeWIRE AND CABLE
Base Number Matches1
TE Connectivity
 My Cart |
 My Part Lists | Sign In/Register
English
(Change)
What can we help you find?
Products
Industries
Resources
About TE
My Account
Innovation
Support Center
Home > Products > Wire & Cable > Product Feature Selector > Product Details

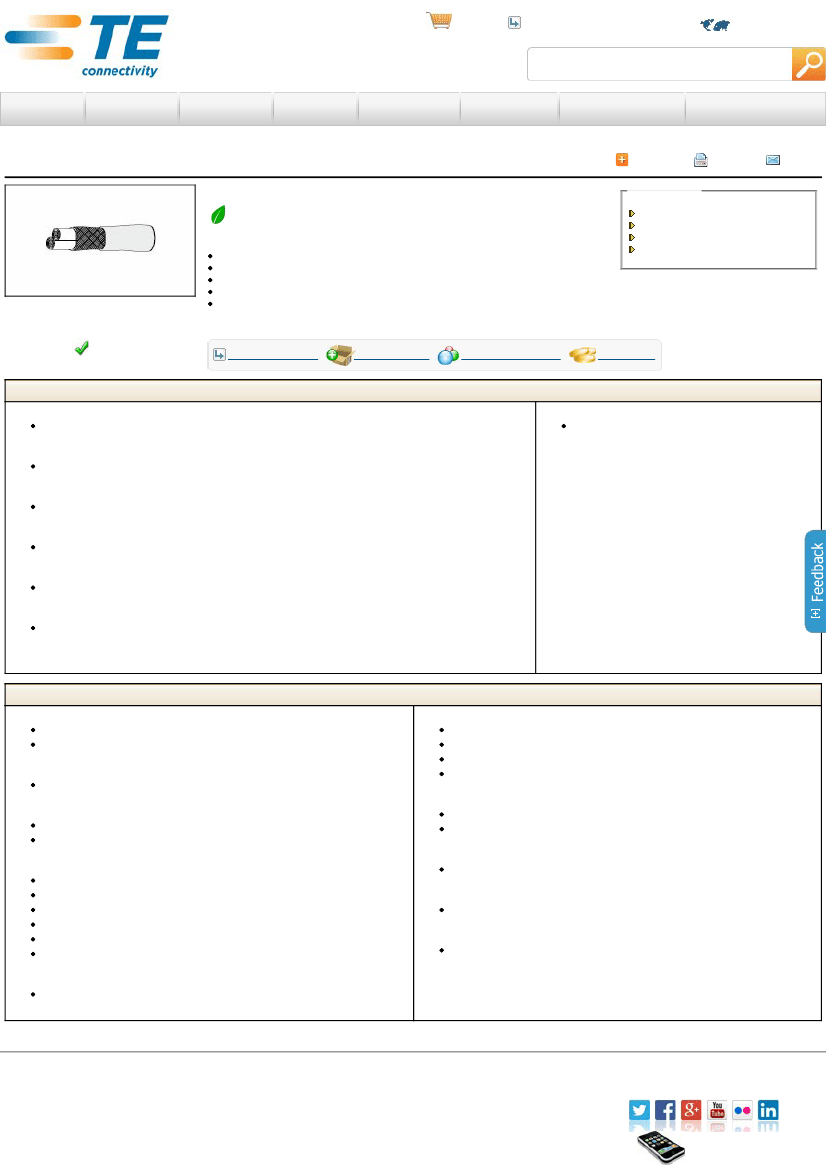

55A1831­22­3/6/9­9 Product Details
Spec 44, Spec 55 and Spec RCW Wire and Cable

Always EU RoHS/ELV Compliant
 (
Statement of Compliance
)
Product Highlights:
Cable Type = Spec 55
Wire Source = United States
Cable Style = Jacketed, Round­Braid Shielded
Wire Size (AWG/CM) = 22 AWG
Voltage Rating = 600 VAC
View all Features
 Share
 Print
 Email
Quick Links
Pricing & Availability
Search for Tooling
Product Feature Selector
Contact Us About This Product
55A1831­22­3/6/9­9

TE Internal Number: 318258­000
 Active
Add to My Part List
Request Sample
Find Similar Products
Buy Product
Documentation & Additional Information
Product Drawings:
THREE CONDUCTOR CABLE, SHIELDED, JACKETED, GENERAL P... (PDF, English)
Catalog Pages/Data Sheets:
None Available
Product Specifications:
None Available
Application Specifications:
None Available
Instruction Sheets:
None Available
CAD Files:
None Available
Related Products:
Tooling
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
Cable Type = Spec 55
Cable Style = Jacketed, Round­Braid Shielded
Electrical Characteristics:
Voltage Rating (VAC) = 600
Dimensions:
Conductor Outer Diameter (mm [in]) = 0.76 [0.030]
Shield (Screen) Diameter (mm [in]) = 3.23 [0.127]
Body Features:
Wire Size (AWG/CM) = 22 AWG
Cable Jacket Color = White
Conductor Type = Tin­Plated Copper
Wire Color = Blue, Orange, White
Nominal Outside Diameter (mm [in]) = 3.58 [0.141]
Wire Diameter (mm [in]) = 1.27 [0.050]
Configuration Features:
Number of Conductors = Twisted Triple
Industry Standards:
Government/Industry Qualification = No
RoHS/ELV Compliance = RoHS compliant, ELV compliant
Lead Free Solder Processes = Not relevant for lead free process
RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage:
Temperature Range (°C) = ­65 – +150
Wire Size ­ Details = 22 AWG 0.38 mm², 0.00059 in², 19 x 34 AWG
Operation/Application:
Application = Airframe ­ Medium Weight
Packaging Features:
Wire Source = United States
Other:
Brand = Raychem
