100-20AE-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 100-20AE-S

100-20AE-S: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE-2; CategoryWireless rf/communication Radio frequency and microwave; File Size245KB，2 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/; Environmental Compliance

Download Datasheet Parametric View All

100-20AE-S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	100-20AE-S	-	-	View	Buy Now

100-20AE-S Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, ROHS COMPLIANT PACKAGE-2

100-20AE-S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Is Samacsys	N
Nominal attenuation	20 dB
structure	COMPONENT
Maximum input power (CW)	50 dBm
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

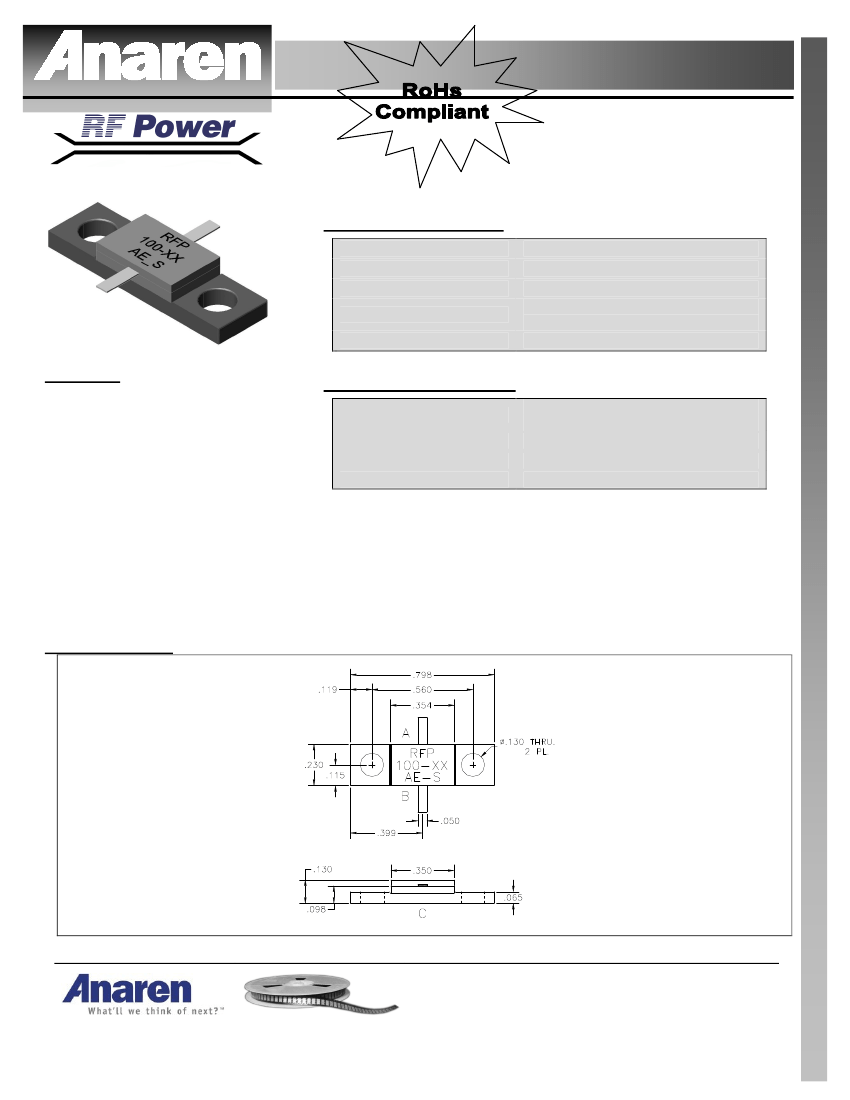

Model 100-XXAE-S

ATTENUATOR

FULL FLANGE

100

Watts

General Specifications

Resistive Element

Substrate

Cover

Mounting Flange

Lead(s):

Thick film

Beryllium oxide ceramic

Alumina Ceramic

Copper, Nickel plated per QQ-N-

290

99.99% pure silver (.006” thick)

Features:

•

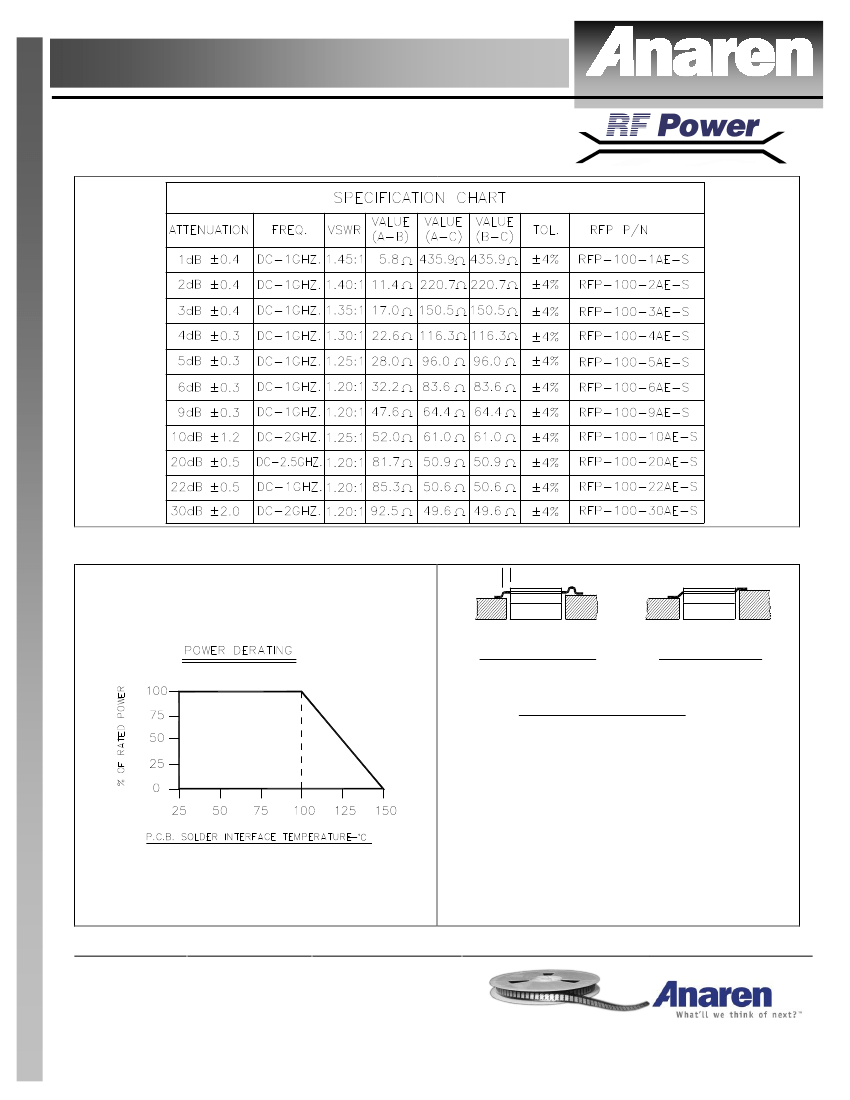

DC –See Chart

•

100 Watts

•

BeO Ceramic

•

Non-Nichrome Resistive

Element

•

Low VSWR

•

Welded Silver Leads

•

100% Tested

Electrical Specifications

Attenuation Range:

Frequency Range;

Power:

VSWR

1, 2, 3, 4, 5, 6, 9, 10, 20, 22 or 30

DC – See Chart

100 Watts

See Chart

Note:

Tolerance is

±0.010”,

unless otherwise specified. Designed to meet of

exceed applicable portions of MIL-E-5400. Operating temperature is -55ºC to

150ºC (see chart for derating temperatures).

All dimensions in inches.

Specifications subject to change with out notice.

Outline Drawing

100-XXAE-S (097) Rev C

Available on Tape

and Reel For Pick and

Place Manufacturing.

USA/Canada:

Toll Free:

Europe

(315) 432-8909

(800) 544-2414

+44 2392-232392
