3-1393230-2: DescriptionPOWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.022A (COIL), 24VDC (COIL), 500mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size480KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1393230-2 Overview

POWER/SIGNAL RELAY, SPDT, MOMENTARY, 0.022A (COIL), 24VDC (COIL), 500mW (COIL), 16A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1393230-2 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
body width	12.6 mm
body height	25.5 mm
Body length or diameter	29 mm
Maximum coil current (DC)	0.022 A
Coil operating voltage (DC)	16.8 V
Coil power	500 mW
Coil release voltage (DC)	2.4 V
Coil resistance	1100 Ω
Maximum coil voltage (DC)	24 V
Nominal coil voltage	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	16A@440VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Maximum contact voltage (AC)	440 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	1000 Vrms
End contact material	Silver Cadmium Oxide
Input switching control type	Random
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	8
operating hours	12 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
PCB hole count	8
method of packing	BULK
physical size	29mm x 12.6mm x 25.5mm
Guideline	UL; VDE
Relay action	MOMENTARY
Relay style	1 FORM C
Relay function	SPDT
Relay type	POWER/SIGNAL RELAY
release time	6 ms
seal	RT2
surface mount	NO
Termination type	SOLDER
weight	18 g
Base Number Matches	1

Preview

Download Datasheet

View All

General Purpose Relays

PCB Relays

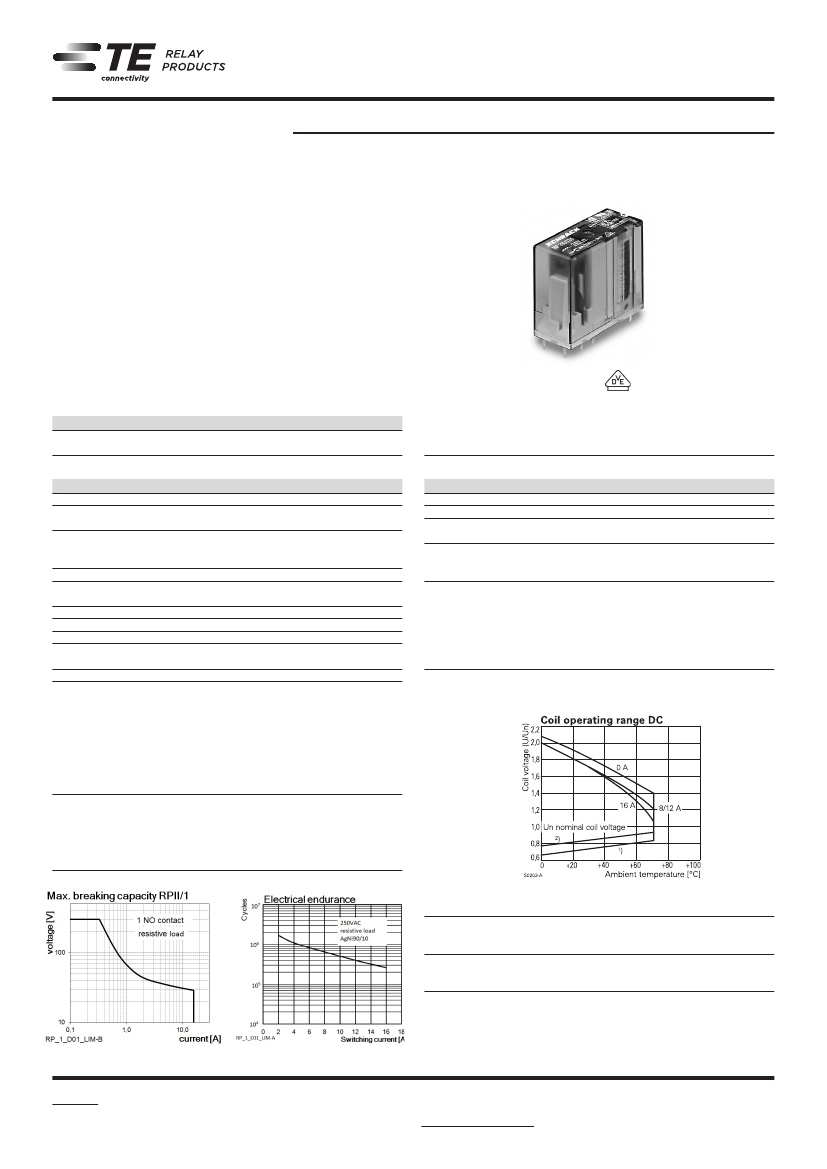

Power PCB Relay RPII/1

SCHRACK

1 pole 8/12/16A, 1 form C (CO) or 1 form A (NO) contact

4kV/8mm coil-contact

Pinning 3.5 or 5mm (8/12A) and 5mm (16A)

RoHS compliant (Directive 2011/65/EC)

Typical applications

Power supplies, domestic appliances, heating control, installation

Approvals

VDE Cert. No. 40025448

UL E214025 (only for AgNi versions)

Technical data of approved types on request

F0146-B

Mechanical endurance

DC-coil version:

REM/bistable version:

>20x10

operations

>1x10

operations

Contact Data

Contact arrangement

Rated voltage

Max. switching voltage

Rated current

Limiting making current,

max. 4s, df 10%

Breaking capacity max.

Contact material

1 form C (CO) or 1 form A (NO)

250VAC

400VAC

12A

16A

2000VA

AgNi0.15

12A

16A

Coil Data

Coil voltage range

Operative range, IEC 61810

Coil versions, DC coil

Coil

Rated

Operate

code

voltage

VDC

005

3.5

006

4.2

012

8.4

024

16.8

048

33.6

060

42.0

110

77.0

Release

voltage

VDC

0.5

0.6

1.2

2.4

4.8

6.0

11.0

5 to 110VDC

Coil

resistance

Ω±10%

270

1100

4400

6540

23100

Rated coil

power

500

Frequency of operation, with/without load

Operate/release time typ.

Bounce time typ., form A/form B

Contact ratings

Type

Contact

IEC61810

RP314/RP714 A (NO)

RP314 DC-coil A (NO)

RP31L DC-coil C (CO)

RP414 DC-coil A (NO)

RP414 REM

A (NO)

RP41N/RP814 C (CO)

RP411/RP412 A (NO)

RP411/RP412 C (CO)

UL508

RP411/RP412 C(CO)

RP314/RP714 C(CO)

RP*14/RP*1N C(CO)

RP**4/RP**N

A(NO)

Load

20A

25A

3000VA

4000VA

AgNi 90/10 AgNi 90/10

AgSnO

600/36000h

-1

8/2ms

2/4ms

Cycles

100x10

250x10

10x10

100x10

10x10

100x10

10x10

16A, 250 VAC, resistive, 35°C

6A, 250 VAC, cosφ = 0,4, 35°C

16A, 250 VAC, resistive, 35°C

12A, 250 VAC, resistive, 70°C

12A, 250 VAC, resistive, 35°C

8A, 250 VAC, resistive, 35°C

1) Coil resistance ±15%.

All figures are given for coil without pre-energization, at ambient temperature +20°C.

Other coil voltages on request.

8A, 250VAC, general purpose, 40°C 6x10³

16A, 250VAC, general purpose, 40°C 6x10³

250VAC, 1.5HP, 40°C

6x10³

12A, 250VAC, general purpose, 70°C 6x10³

10A, 250VAC, resistive, 70°C

100x10³

Coil versions, REM I (1 coil bistable/remanence)

Coil Rated Resistance Magnetisation range Demagnetisation range

code voltage Ω±15%

MIN./ Vdc MAX./Vdc MIN./ Vdc MAX./Vdc

VDC

A12

115

4.8

A24

460

9.6

A48

1748

19.2

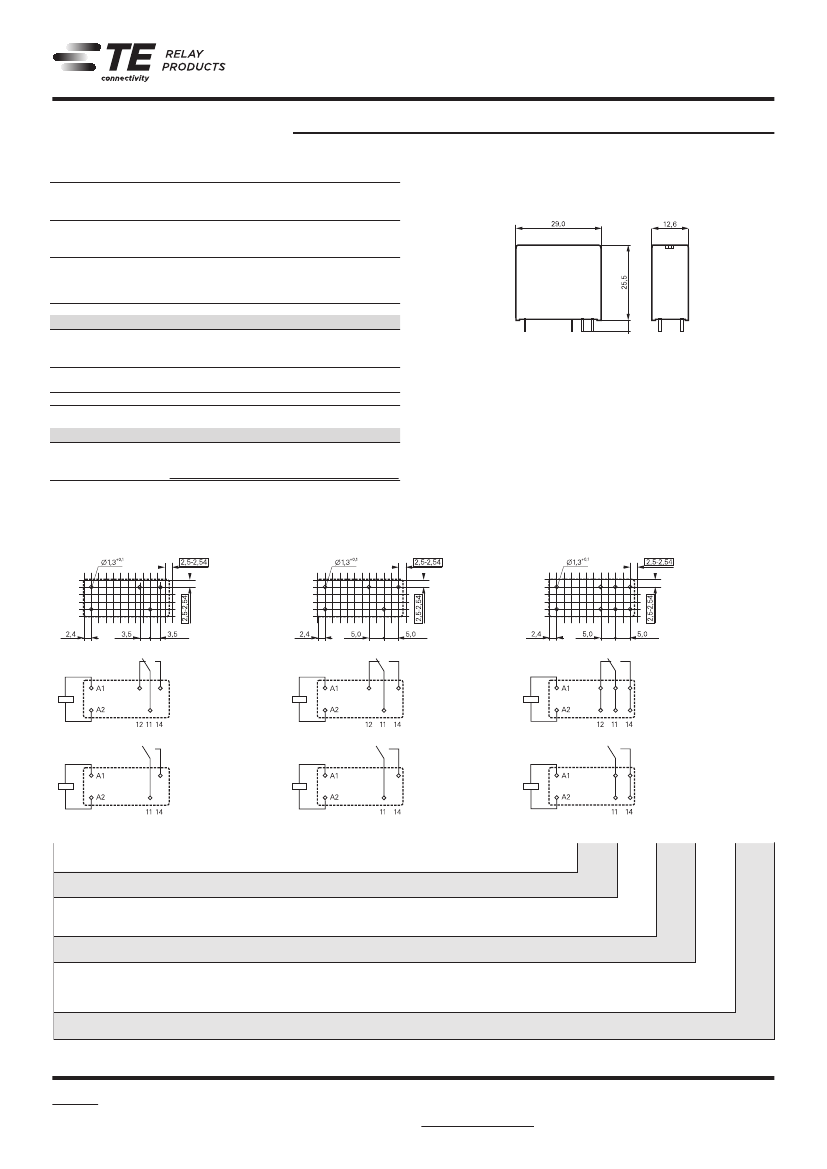

04-2020, Rev. 0420

www.te.com

a TE Connectivity Ltd. company

Datasheets and product specification

according to IEC 61810-1 and to be used

only together with the ‘Definitions’ section.

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.te.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.
