3-1462050-4: DescriptionRF RELAY, SPDT, MOMENTARY, 0.01A (COIL), 12VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 3000MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size2MB，5 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1462050-4 Overview

RF RELAY, SPDT, MOMENTARY, 0.01A (COIL), 12VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 3000MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

3-1462050-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1805114327
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
body width	7.5 mm
body height	10.5 mm
Body length or diameter	14.9 mm
Characteristic impedance	75 Ω
Maximum coil current (DC)	0.01 A
Coil operating voltage (DC)	9 V
Coil power	140 mW
Coil release voltage (DC)	9 V
Coil resistance	1028 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Maximum insertion loss	-0.3 dB
Maximum isolation	-50 dB
Installation features	SURFACE MOUNT-STRAIGHT
operating hours	8 ms
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	BOX; TAPE AND REEL
physical size	14.9mm x 7.5mm x 10.5mm
Relay action	MOMENTARY
Relay function	SPDT
Relay type	RF RELAY
release time	8 ms
seal	IP67/RT3
surface mount	NO
Termination type	SOLDER
voltage standing wave ratio	1.3

Preview

Download Datasheet

View All

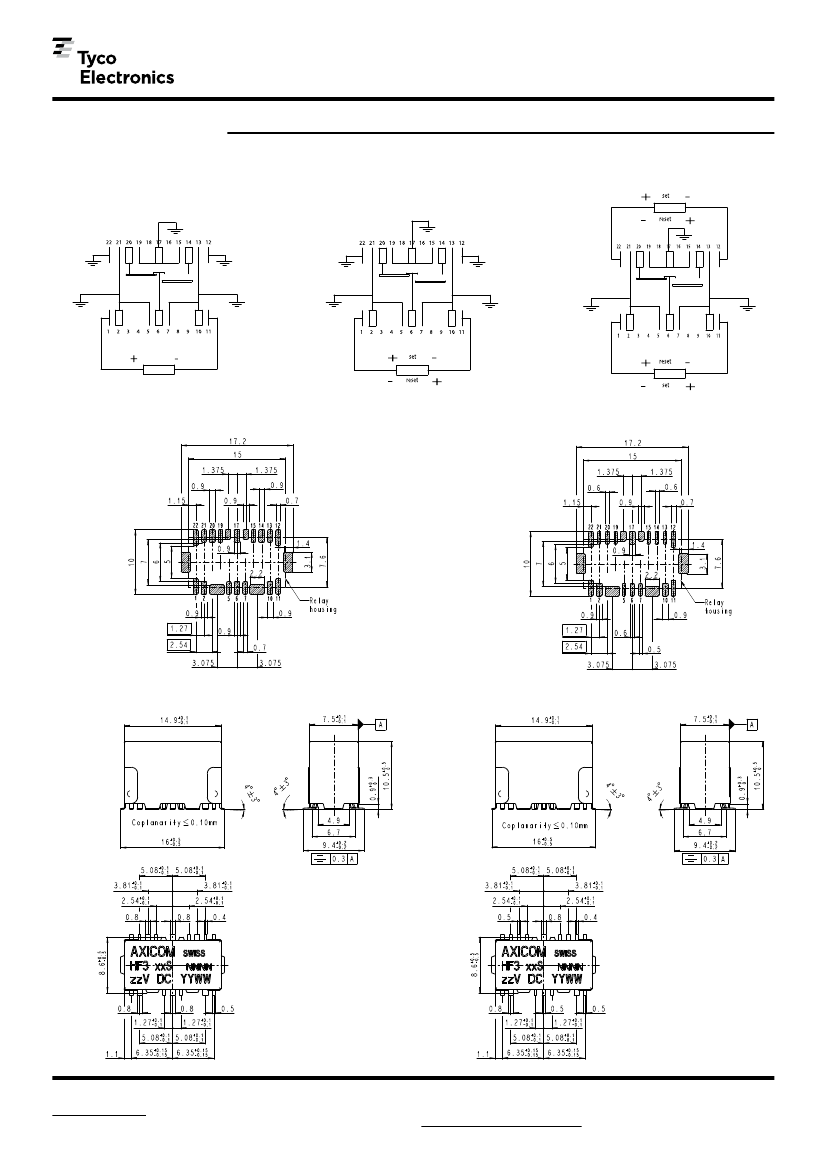

Terminal assignment

Relay top view

RF Signal Relays

HF3 S Relay

Non-latching type,

not energized condition

Axicom

Latching type, 1 coil

rest condition

Y-Design

Frequency range DC to 3GHz

Impedance 50Ω / 75Ω

Small dimensions (15x7.6x10.6mm)

1 form C contact (1 changeover contact)

Immersion cleanable

Low power consumption (≤140mW)

Typical applications

Cable modems and linecards/ CATV, Tabs, measurement and test

equipment ATE, satellite / audio / video tuners, wireless base stations and

antennas, power stages

Telecom-, Signal and RF Relays

Contact Data

HF3 S Relay

1 form C, 1 CO

220VDC, 250VAC

60W, 62.5VA,

50W (2.5GHz)

Coil Operating Range

140

(continued)

Coil Data

140 mW

]

max.

at 0 A

Sep. 07

70 mW

nom

Contact arrangement

Terminal

Max. switching voltage

assignment

Rated current

Relay top view

Limiting continuous current, 23°C

Switching power

Coil Voltage [U/U

100W @ 3GHz

not energized condition

rest condition

150W @ 2GHz

Breaking capacity max.

300W

Contact material

Ag, Au covered

Minimum switching voltage

100µV

Initial contact resistance

<100mΩ at 10mA/20mV

Operate time

typ. 3ms, max. 5ms

Release time

without diode in parallel

typ. 2ms, max. 5ms

with diode in parallel

typ. 4ms, max. 6ms

Bounce time max.

typ. 1ms, max. 3ms

Mechanical endurance

operations

1) with appropriat cooling only

reset condition

nom.

nominal coil voltage

op. min.

rel. min.

Ambient Temperature [°C]

Coil Data

Coil voltage range

3 to 24VDC

Coil versions, monostable

Coil

Rated

Operate Limiting Release

Coil

Rated coil

code

voltage

voltage resistance power

VDC

Ω±10%

50Ω version, monostable, 1 coil

2.25

6.50

0.30

140

4.5

3.38

9.80

0.45

145

140

Coil Operating Range

3.75

10.90

0.50

178

140

9.00

26.10

1.20

1028

140

18.00

52.30

2.40

4114

140

75Ω version, monostable, 1 coil

2.25

6.50

0.30

140

140 mW

4.5

3.38

9.80

0.45

145

140

3.75

10.90

0.50

max.

178

140

6.75

19.60

0.90

574

140

9.00

26.10

1.20

1028

140

]

nom

Coil versions, bistable

Coil

nom

Rated

Nominal coil voltage

Reset

Set

Limiting

Coil

Rated coil

of the

code

max.

voltage

Upper limit

voltage

operative range of

voltage

voltage resistance power

VDC

Ω±10%

the coil voltage (limiting voltage)

50Ω version, bistable, 1 coil

of the operative range of

op. min.

= Lower limit

73S

15.30

-3.75

the

3.75

voltage (reliable operate

357

coil

voltage)

50Ω version, bistable, 2 coils

For latching relays U

set min.

resp

reset

min.

91S

2.25

6.50

2.25

140

92S

rel. min.

= Lower limit of the operative range of

4.5

3.38

9.80

3.38

145

140

the

3.75

voltage (reliable release

178

coil

voltage)

140

93S

10.90

3.75

96S

9.00

26.10

9.00

1028

140

75Ω version, bistable, 2 coils

41S

2.25

6.50

2.25

140

42S

4.5

3.38

9.80

3.38

145

140

43S

3.75

10.90

3.75

178

140

46S

70 mW

9.00

26.10

9.00

1028

140

All figures are given for coil

subject

pre-energization, at ambient temperature +23°C.

speciﬁcations.

All speciﬁcations

without

to change. Consult Tyco Electronics for latest

3.5

70 mW

nom

2.5

max.

at 0 A

Coil Voltage [U/U

All figures are given for coil without pre-energization, at ambient temperature +23°C.

]

nom.

nominal coil voltage

op. min.

rel. min.

1.5

nom.

nominal coil voltage

op. min.

0.5

-55 -45 -35 -25 -15

-5

15 25 35

45 55 65 75 85 95 105 115 125 135

Ambient Temperature [°C]

09-2010, Rev. 0910

www.tycoelectronics.com

max.

nom

op. min.

the coil voltage (limiting voltage)

= Lower limit of the operative range of

the coil voltage (reliable operate voltage)

Datasheets and product specification ac-

Nominal coil voltage

61810-1 and to be used only

cording to IEC

Upper limit

together with the ‘Definitions’ section.

of the operative range of

Datasheets and product data is subject to the

terms of the disclaimer and all chapters of

the ‘Definitions’ section, available at

http://relays.tycoelectronics.com/definitions

Datasheets, product data, ‘Definitions’ sec-

tion, application notes and all specifications

are subject to change.

Coil Voltage [U/U

Non-latching

Max. Continuos RF-Power,

type,

at 20°C., VSWR <1.2

Latching type, 1 coil

Latching type, 2 coils

nom

]

3-1462050-4 Related Products

	3-1462050-4	3-1462050-2	3-1462050-3	2-1462050-4
Description	RF RELAY, SPDT, MOMENTARY, 0.01A (COIL), 12VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 3000MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	RF RELAY, SPDT, MOMENTARY, 0.05A (COIL), 3VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 3000MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	RF RELAY, SPDT, MOMENTARY, 0.02A (COIL), 9VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 3000MHz, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT	RF RELAY, SPDT, LATCHED, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 3000MHz, 300W (RF INPUT), SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	7.5 mm	7.5 mm	7.5 mm	7.5 mm
body height	10.5 mm	10.5 mm	10.5 mm	10.5 mm
Body length or diameter	14.9 mm	14.9 mm	14.9 mm	14.9 mm
Characteristic impedance	75 Ω	75 Ω	75 Ω	75 Ω
Maximum coil current (DC)	0.01 A	0.05 A	0.02 A	0.028 A
Coil operating voltage (DC)	9 V	2.25 V	6.75 V	3.75 V
Coil power	140 mW	140 mW	140 mW	140 mW
Coil release voltage (DC)	9 V	2.25 V	0.9 V	3.75 V
Coil resistance	1028 Ω	64 Ω	574 Ω	178 Ω
Maximum coil voltage (DC)	12 V	3 V	9 V	5 V
Coil/Input Power Type	DC	DC	DC	DC
Contact (AC) maximum rated R load	2A@250VAC	2A@250VAC	2A@250VAC	2A@250VAC
Maximum contact current (AC)	2 A	2 A	2 A	2 A
Maximum contact current (DC)	2 A	2 A	2 A	2 A
Contact (DC) maximum rated R load	2A@220VDC	2A@220VDC	2A@220VDC	2A@220VDC
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	220 V	220 V	220 V	220 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC
Maximum insertion loss	-0.3 dB	-0.3 dB	-0.3 dB	-0.3 dB
Maximum isolation	-50 dB	-50 dB	-50 dB	-50 dB
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
operating hours	8 ms	8 ms	8 ms	8 ms
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz	3000 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BOX; TAPE AND REEL	BOX; TAPE AND REEL	BOX; TAPE AND REEL	BOX; TAPE AND REEL
physical size	14.9mm x 7.5mm x 10.5mm	14.9mm X 7.5mm X 10.5mm	14.9mm X 7.5mm X 10.5mm	14.9mm x 7.5mm x 10.5mm
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	LATCHED
Relay function	SPDT	SPDT	SPDT	SPDT
Relay type	RF RELAY	RF RELAY	RF RELAY	RF RELAY
release time	8 ms	8 ms	8 ms	8 ms
seal	IP67/RT3	IP67/RT3	IP67/RT3	IP67; RT3
surface mount	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.3	1.3	1.3	1.3
Objectid	1805114327	1805114323	1805114325	-
