Solid-state relays SIGMASWITCH
®
........................................................................................................................................
Ordering details
.....................................................................................................................................................................................
Technical data
R 111 / R 300
.........................................................................................................................................................................................
Technical data
R 111 / R 115, HS-25/50, R 12x
..................................................................................................................................................
Technical data R 111 / R 115 / R 1100
....................................................................................................................................
Technical data R 311, HDS-50
.....................................................................................................................................................
Derating curves, limiting overload characteristics,
dimension diagrams
............................................................................................................................................................................
Technical data HDS R2
....................................................................................................................................................................
Selection table for heat sinks
dimension diagrams
...............................................................................................................................................................................
5
6
10
12
13
14
15
17
18
Terminal modules
..............................................................................................................................................................................
21
22
24
Ordering details
......................................................................................................................................................................................
Technical data
........................................................................................................................................................................................
ABB STOTZ-KONTAKT GmbH
3
1SAC 1009 01 D0201

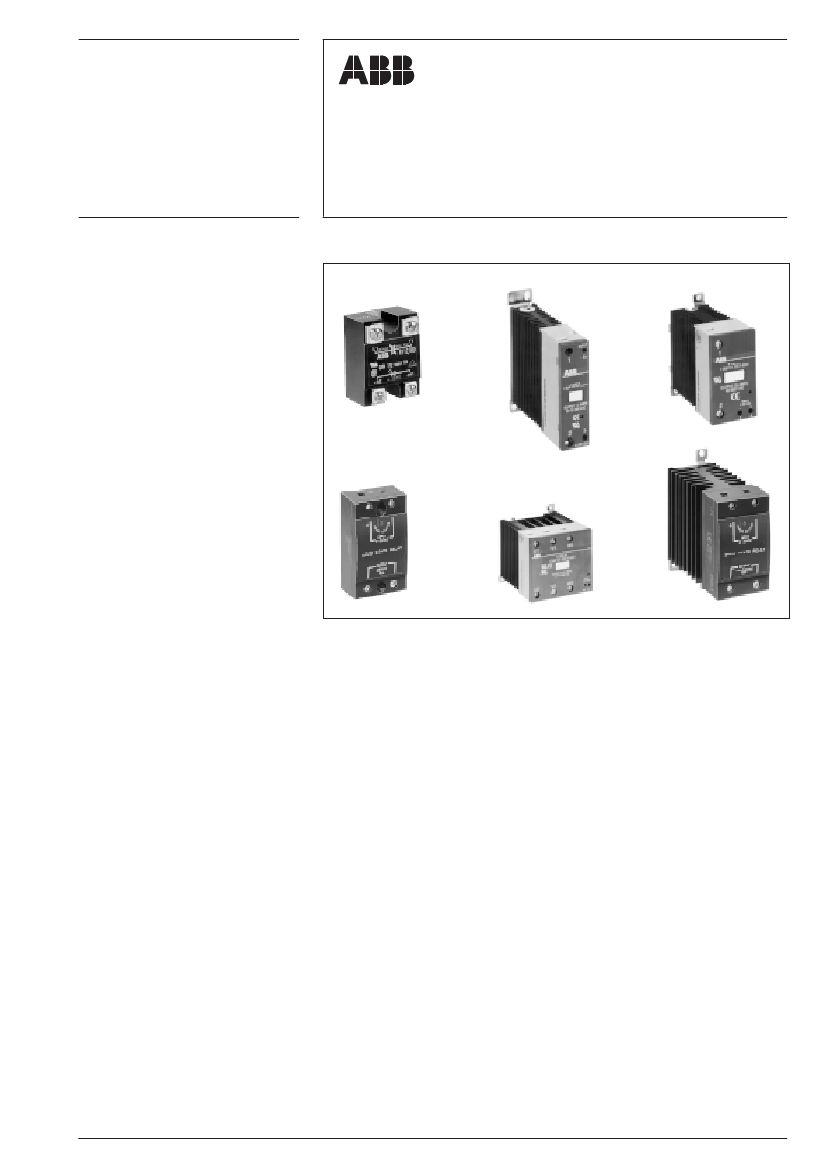

Solid-state relays
SIGMASWITCH
®
SST 004 96 R
SST 07700
SST 07600
SST 07500
SST 073 98
Type Series R 100
General features
•
Load side:
Thyristors for AC 3 + AC 4 up to 460 V
AC and 10 A, AC 1 25 A with RC
circuit and overvoltage protection
Electrical isolation by means of inductive
transformers between control and load
circuit
Instantaneous switch to prevent unwanted
arcing-through of the thyristors
Control circuit protected against reverse
polarity
Switch position indicator LED
Screw mounting, snap-on mounting
with adapter for 35 mm top-hat rail to
EN DIN 50 022
Integrated shock-hazard protection
Electrical connection:
Screw or plug-in connection
Application
•
Contactless and wear-free switching of
ohmic and inductive AC and 3-phase
loads
Type Series 111/311
General features
•
Load side:
Single-phase devices:
Thyristors for AC 1 and AC 3 up to 660 V
AC and 125 A, with or without internal
RC circuit 3-phase devices:
Thyristors for AC 1 and AC 3 up to 530 V
AC and 50 A, with internal RC circuit
Electrical isolation by means of
optocoupler between control circuit and
load circuit
Zero voltage switch, radio interference-
suppressed
Screw mounting, snap-on mounting with
adapter for 35 mm top-hat rail to
DIN EN 50 022
Shock-hazard protection with additional
terminal shroud
Electrical connection:
Screw connection
Application
•
Contactless and wear-free switching of
AC and 3-phase loads up to cos PHI 0.5
SST 072 98
Semiconductor three-phase contactors HDS
General features
•
Load side:
HDS R2: Triacs for AC 1 / AC 3 up to
460 V AC and 3.4 A with internal
overvoltage protection HDS-50:
Thyristors for AC 1 / AC 3 up to 530 V AC
and 50 A, with internal RC circuit and
overvoltage protection
Electrical isolation by means of
optocouplers between control circuit and
load circuit
Switch-position indication by LED
Control circuit protected against reverse
polarity
Zero voltage switch, radio interference-
suppressed
Snap-on mounting for 35 mm top-hat rail
to EN DIN 50 022
Integrated shock-hazard protection
Electrical connection: Screw connection
Integrated heat sink, ready-to-use
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Application
•
Contactless and wear-free switching of
ohmic and inductive AC and three-phase
loads
ABB STOTZ-KONTAKT GmbH
5
1SAC 1009 01 D0201
SIGMASWITCH
®
Solid-state relays

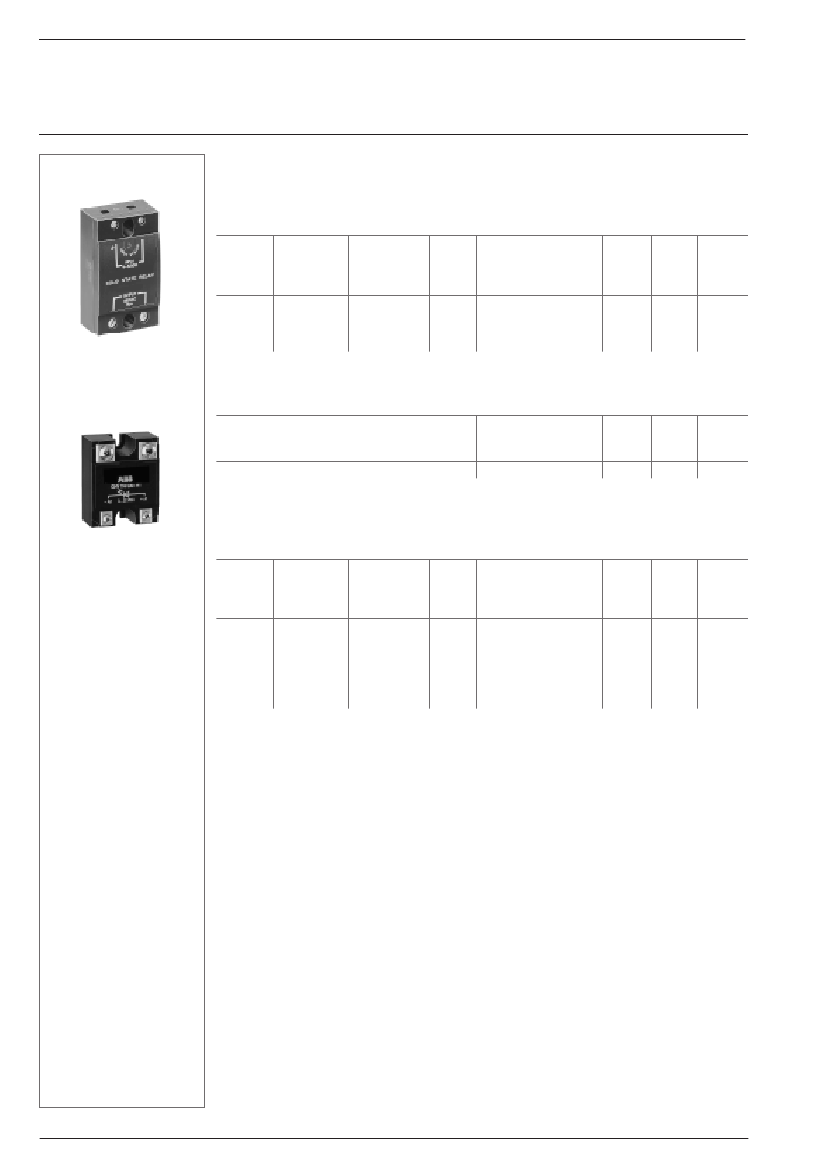

Ordering details
Device series R 12x
Thyristor units for R loads and general loads cos.
ϕ
0.5 - 1
• Modern connection system using box terminals
• LED status indicator
Type
Rated
control circuit
voltage
U
c
3 ... 32 V DC
4 ... 32 V DC
4 ... 32 V DC
4 ... 32 V DC
Rated
operating
voltage
U
e
24 ... 280 V AC
24 ... 660 V AC
48 ... 660 V AC
48 ... 660 V AC
Rated
current
I
e
AC1
25 A
50 A
90 A
125 A
1SAR 111 025 R 5102
1SAR 111 050 R 5107
1SAR 111 090 R 5107
1SAR 111 125 R 5107
Order code
Price
Weight /
piece
kg
0.090
0.090
0.090
0.090
Pack.
unit
piece
1
1
1
1
SST 072 98
R120/25
R
R
R
R
120/25
122/50
122/90
122/125
Accessories for thyristor unit R 12x
Type
Order code
Price
Weight / Pack.
piece
unit
kg
piece
0.470
1
Heat sink KK-120-1.4, 1.4 K/W
SST 580 92
1SAR 118 014 R 0000
Use heat transfer compound when mounting solid-state relays!
Suitable for butt mounting, with clip for top-hat rail mounting
RD112
Device Series Rdxxx; DC switches
Type
Rated
control circuit
voltage
U
c
4 ... 32 V DC
4 ... 32 V DC
4 ... 32 V DC
4 ... 32 V DC
4 ... 32 V DC
4 ... 32 V DC
Rated
operating
voltage
U
e
max
100 V DC
100 V DC
100 V DC
200 V DC
400 V DC
500 V DC
Rated
current
I
e
DC1
12 A
20 A
40 A
12 A
12 A
10 A
1SAR 112 012 R 0210
1SAR 112 020 R 0210
1SAR 112 040 R 0210
1SAR 112 012 R 0211
1SAR 112 012 R 0212
1SAR 112 010 R 0213
Order code
Price
Weight /
piece
kg
0.100
0.100
0.100
0.100
0.100
0.100
Pack.
unit
piece
1
1
1
1
1
1
RD 112
RD 120
RD 140
RD 212
RD 412
RD 510
6
1SAC 1009 01 D0201
ABB STOTZ-KONTAKT GmbH
