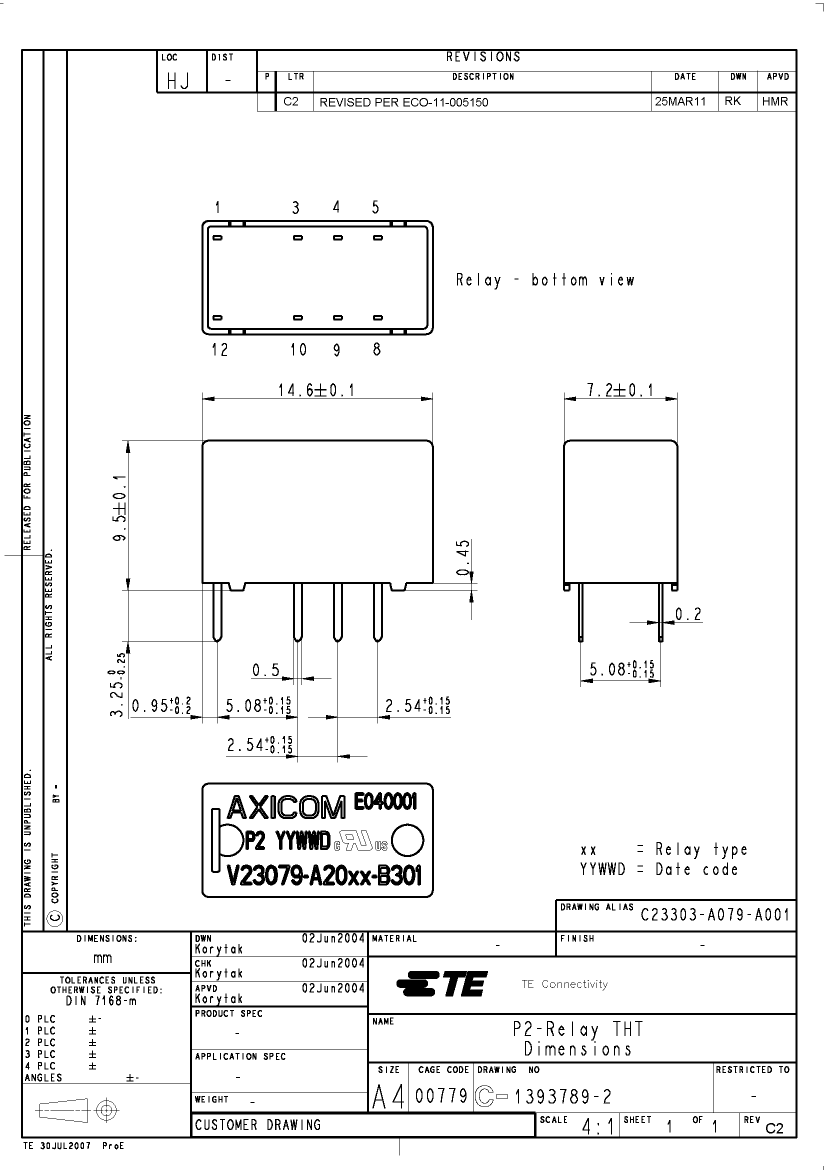

Preview

3-1393789-5: DescriptionRF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size17KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1393789-5 Overview

RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

3-1393789-5 Parametric

Parameter Name	Attribute value
Brand Name	CII
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	RELEASE TIME WITH DIODE IN PARALLEL
body width	7.2 mm
body height	9.5 mm
Body length or diameter	14.6 mm
Maximum coil current (DC)	0.028 A
Coil operating voltage (DC)	10.9 V
Coil power	140 mW
Coil release voltage (DC)	0.5 V
Coil resistance	178 Ω
Maximum coil voltage (DC)	5 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Electrical life	200000 Cycle(s)
Maximum input power	60 W
Maximum insertion loss	-0.02 dB
Maximum isolation	-39 dB
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BOX; TUBE
physical size	14.6mm x 7.2mm x 9.5mm
Guideline	UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	RF RELAY
release time	9 ms
seal	IP67/RT3
surface mount	NO
switching time	16 ms
Termination type	SOLDER
voltage standing wave ratio	1.4
Base Number Matches	1

Preview

Download Datasheet

View All

3-1393789-5 Related Products

	3-1393789-5	V23079A2006B301	V23079A2008B301	3-1393789-7
Description	RF RELAY, DPDT, MOMENTARY, 0.028A (COIL), 5VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	V23079A2006B301	RF RELAY, DPDT, MOMENTARY, 0.047A (COIL), 3VDC (COIL), 140mW (COIL), 2A (CONTACT), 220VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	RF RELAY, DPDT, MOMENTARY, 0.012A (COIL), 12VDC (COIL), 140mW (COIL), 5A (CONTACT), 220VDC (CONTACT), 900MHz, 60W (RF INPUT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	RELEASE TIME WITH DIODE IN PARALLEL	RELEASE TIME WITH DIODE IN PARALLEL	RELEASE TIME WITH DIODE IN PARALLEL	RELEASE TIME WITH DIODE IN PARALLEL
body width	7.2 mm	7.5 mm	7.2 mm	7.2 mm
body height	9.5 mm	9.5 mm	9.5 mm	9.5 mm
Body length or diameter	14.6 mm	15 mm	14.6 mm	14.6 mm
Maximum coil current (DC)	0.028 A	0.016 A	0.047 A	0.012 A
Coil operating voltage (DC)	10.9 V	6.75 V	2.25 V	26.15 V
Coil power	140 mW	140 mW	140 mW	200 mW
Coil release voltage (DC)	0.5 V	0.9 V	0.3 V	1.2 V
Coil resistance	178 Ω	578 Ω	64 Ω	1029 Ω
Maximum coil voltage (DC)	5 V	9 V	3 V	12 V
Coil/Input Power Type	DC	DC	DC	DC
Contact (AC) maximum rated R load	5A@250VAC	2A@250VAC	2A@250VAC	5A@250VAC
Maximum contact current (AC)	5 A	2 A	2 A	2 A
Maximum contact current (DC)	5 A	2 A	2 A	2 A
Contact (DC) maximum rated R load	5A@220VDC	2A@220VDC	2A@220VDC	5A@220VDC
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	220 V	220 V	220 V	220 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)	200000 Cycle(s)
Maximum insertion loss	-0.02 dB	-0.27 dB	-0.27 dB	-0.02 dB
Maximum isolation	-39 dB	-20.7 dB	-20.7 dB	-39 dB
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	PANEL MOUNT	PANEL MOUNT
operating hours	7 ms	8 ms	8 ms	7 ms
Maximum operating frequency	900 MHz	900 MHz	900 MHz	900 MHz
Minimum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	BOX; TUBE	BOX; TUBE	BOX	BOX
physical size	14.6mm x 7.2mm x 9.5mm	15mm X 7.5mm X 9.5mm	15mm x 7.5mm x 9.5mm	14.6mm x 7.2mm x 9.5mm
Guideline	UL	CSA; UL	CSA; UL	UL
Relay action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Relay function	DPDT	DPDT	DPDT	DPDT
Relay type	RF RELAY	RF RELAY	RF RELAY	RF RELAY
release time	9 ms	9 ms	9 ms	9 ms
seal	IP67/RT3	IP67	IP67	IP67/RT3
surface mount	NO	NO	NO	NO
switching time	16 ms	17 ms	17 ms	16 ms
Termination type	SOLDER	SOLDER	SOLDER/QUICK CONNECT	SOLDER/QUICK CONNECT
voltage standing wave ratio	1.4	1.4	1.4	1.4
