Product data sheet
Characteristics

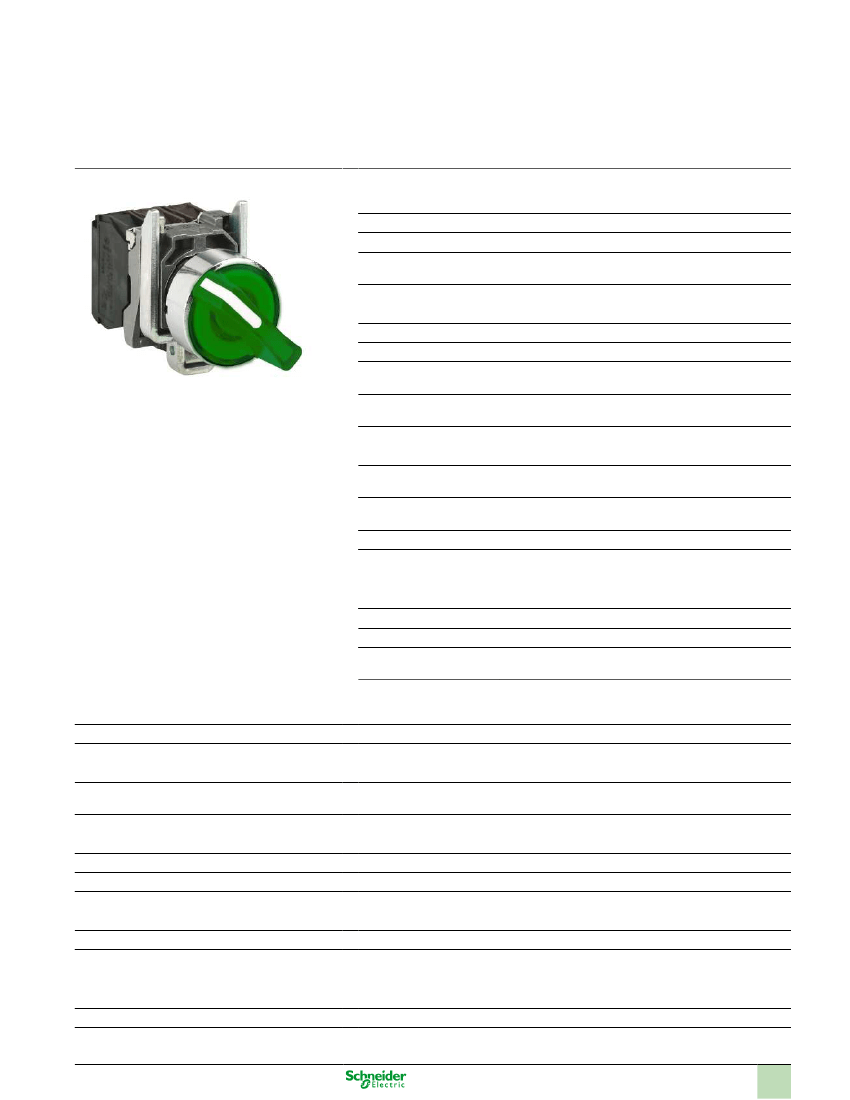

XB4BK123B5
green complete illuminated selector switch Ø22 2-
position stay put 1NO+1NC 24V
Product availability: Non-Stock - Not normally stocked in distribution facility
Price*: 119.00 USD
Main
Commercial Status
Range of product
Product or component
type
Device short name
Bezel material
Fixing collar material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Operator profile
Operator position
information
Contacts type and
composition
Contacts operation
Connections - terminals
Commercialised
Harmony XB4
Complete illuminated selector switch
XB4
Chromium plated metal
0.87 in (22 mm)
1
Round
Stay put
Green standard handle
2 positions 90°
1 NO + 1 NC
Slow-break
Screw clamp terminals: >= 1 x 0.22 mm² without cable
end conforming to EN/IEC 60947-1
Screw clamp terminals: <= 2 x 1.5 mm² with cable end
conforming to EN/IEC 60947-1
Protected LED
Integral LED
24 V AC/DC, 50/60 Hz
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. *Prices are indicative
Zamak
Light source
Bulb base
[Us] rated supply
voltage
Complementary
Height
Width
Depth
Terminals description ISO n°1
Product weight
Resistance to high pressure washer
Contacts usage
Positive opening
Operating torque
Mechanical durability
Tightening torque
Shape of screw head
1.85 in (47 mm)
1.18 in (30 mm)
2.68 in (68 mm)
(13-14)NO
(21-22)NC
0.24 lb(US) (0.111 kg)
1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
Standard contacts
With positive opening conforming to EN/IEC 60947-5-1 appendix K
1.24 lbf.in (0.14 N.m) (NO changing electrical state)
500000 cycles
7.08...10.62 lbf.in (0.8...1.2 N.m) conforming to EN 60947-1
Slotted head compatible with flat Ø 5.5 mm screwdriver
Slotted head compatible with flat Ø 4 mm screwdriver
Cross head compatible with pozidriv No 1 screwdriver
Cross head compatible with Philips no 1 screwdriver
Silver alloy (Ag/Ni)
10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
Contacts material
Short circuit protection
May 13, 2016
1
[Ith] conventional free air thermal current
[Ui] rated insulation voltage
[Uimp] rated impulse withstand voltage
[Ie] rated operational current
10 A conforming to EN/IEC 60947-5-1
600 V (degree of pollution: 3) conforming to EN 60947-1
6 kV conforming to EN 60947-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN 60947-5-1 appendix C
1000000 cycles, AC-15, 2 A at 230 V, operating rate: 3600 cyc/h, load factor: 0.5
conforming to EN 60947-5-1 appendix C
Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
Steady
21.6...26.4 V AC
19.2...30 V DC
18 mA
100000 h at rated voltage and 25 °C
1 kV conforming to IEC 61000-4-5
Electrical durability
Electrical reliability IEC 60947-5-4
Signalling type
Supply voltage limits
Current consumption
Service life
Surge withstand
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
IK degree of protection
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class I conforming to IEC 60536
IP69K conforming to IEC 60529
NEMA 4X
NEMA 13
IK06 conforming to IEC 50102
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-5-5
JIS C 4520
UL 508
CSA C22.2 No 14
BV
CSA
DNV
GL
LROS (Lloyds register of shipping)
RINA
UL
5 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27
30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27
2 kV conforming to IEC 61000-4-4
9.14 V/yd (10 V/m) conforming to IEC 61000-4-3
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Class B conforming to IEC 55011
Product certifications
Vibration resistance
Shock resistance
Resistance to fast transients
Resistance to electromagnetic fields
Resistance to electrostatic discharge
Electromagnetic emission
2
