10H524/BEAJC datasheet, PDF - EEWORLD Datasheet

10H524/BEAJC: DescriptionIC,TTL-TO-ECL TRANSLATOR,ECL/TTL,DIP,16PIN,CERAMIC; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size259KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

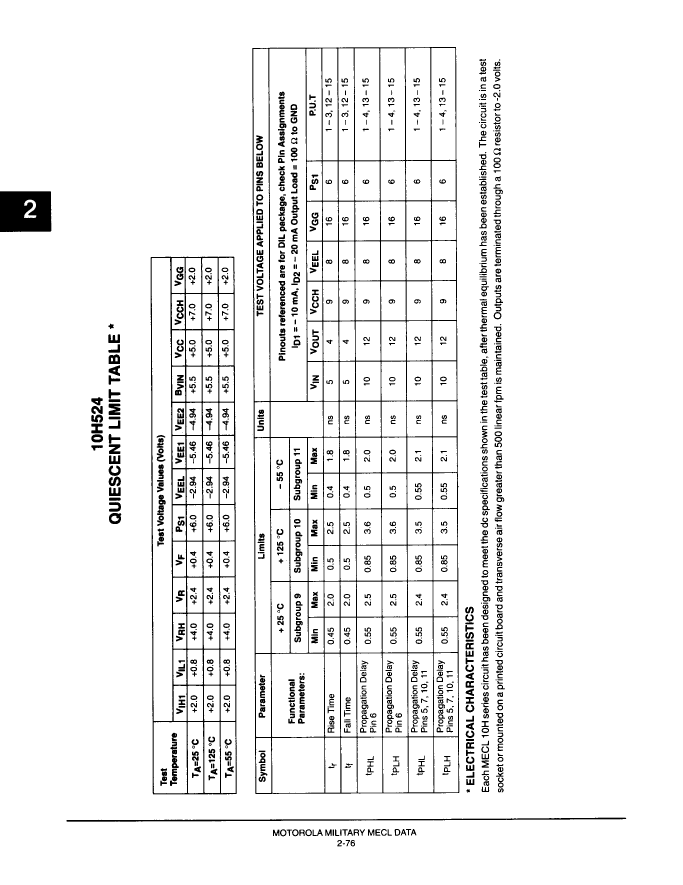

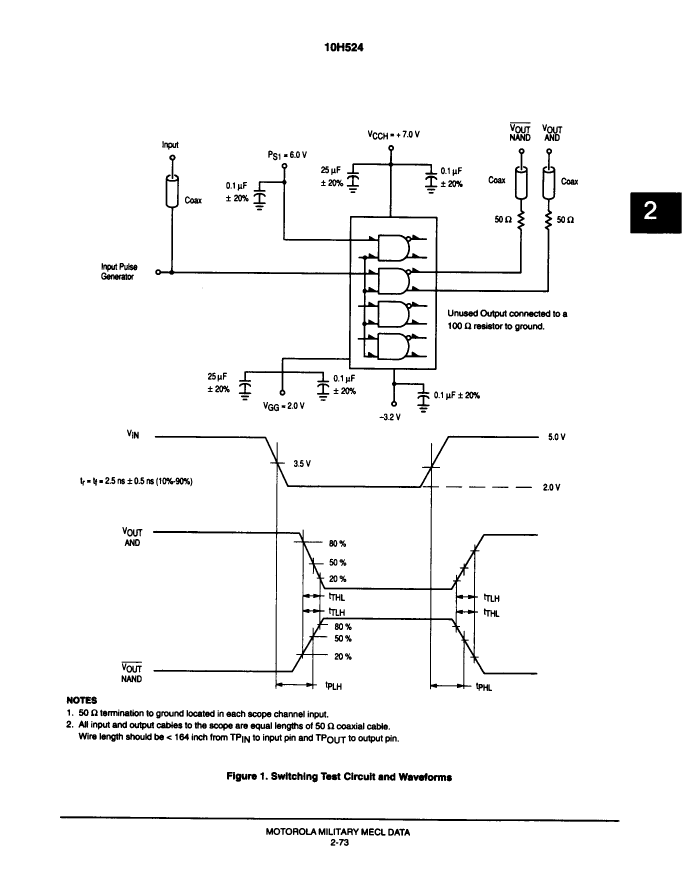

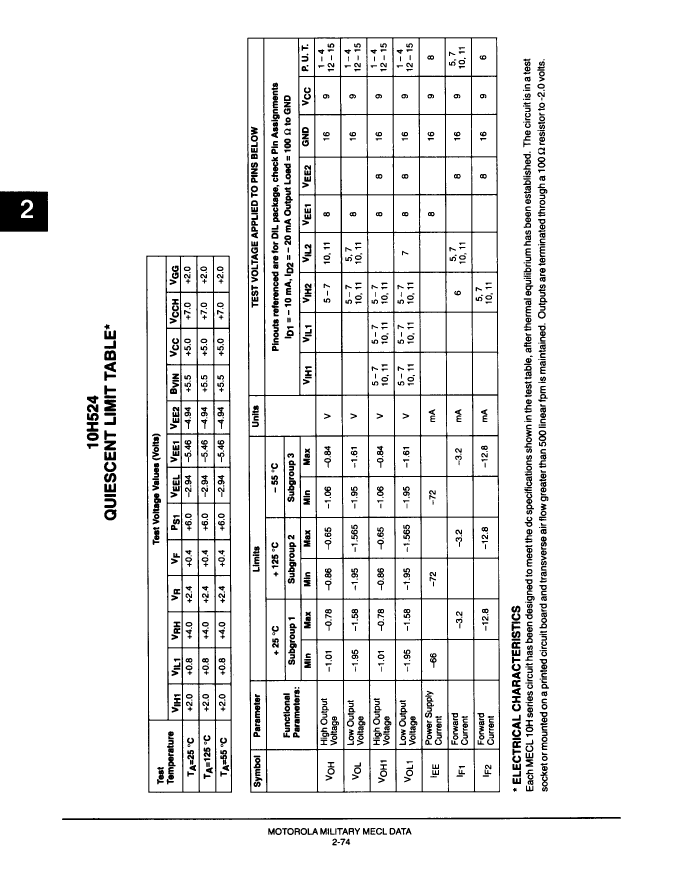

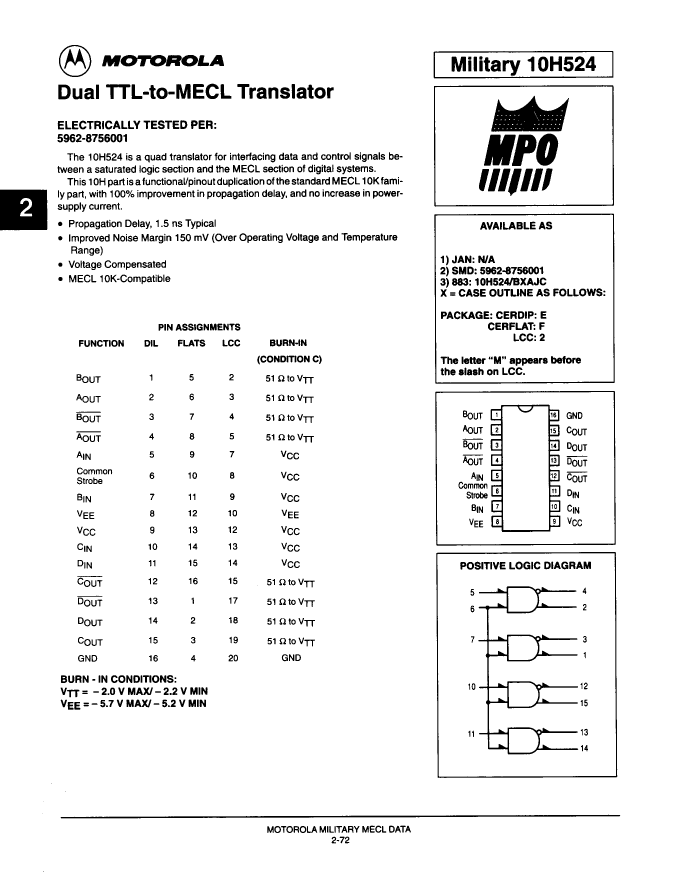

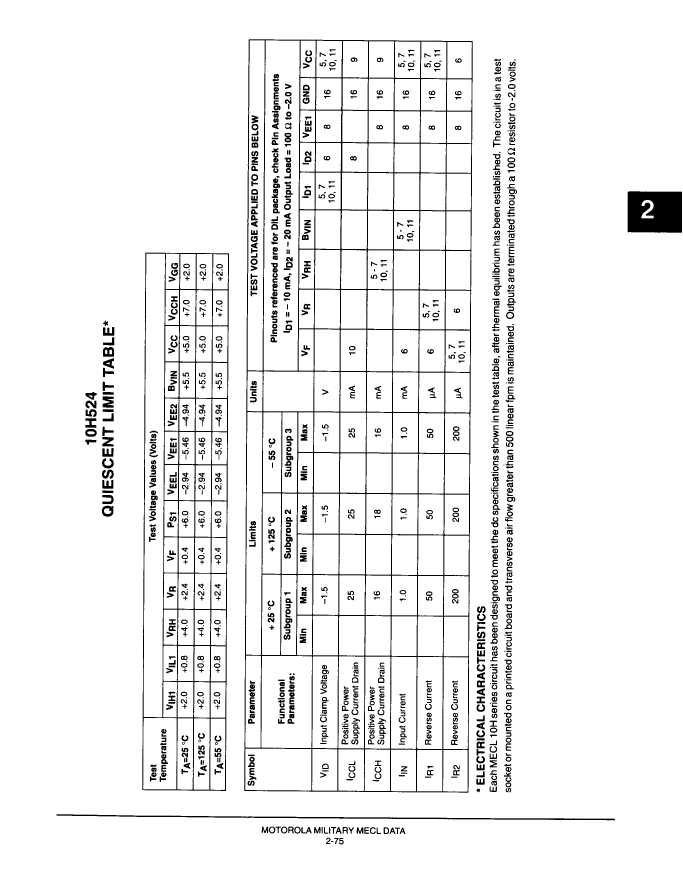

10H524/BEAJC Overview

IC,TTL-TO-ECL TRANSLATOR,ECL/TTL,DIP,16PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Interface integrated circuit type	TTL TO ECL TRANSLATOR
JESD-30 code	R-XDIP-T16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,-5.2 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
surface mount	NO
technology	ECL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	10H524/BEAJC	10H524M/B2AJC
Description	IC,TTL-TO-ECL TRANSLATOR,ECL/TTL,DIP,16PIN,CERAMIC	IC,TTL-TO-ECL TRANSLATOR,ECL/TTL,LLCC,20PIN,CERAMIC
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown
Interface integrated circuit type	TTL TO ECL TRANSLATOR	TTL TO ECL TRANSLATOR
JESD-30 code	R-XDIP-T16	S-XQCC-N20
JESD-609 code	e0	e0
Number of terminals	16	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	QCCN
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ
Package shape	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER
power supply	5,-5.2 V	5,-5.2 V
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
surface mount	NO	YES
technology	ECL	ECL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD
Base Number Matches	1	1
