1393685-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 1393685-4

1393685-4: DescriptionSLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size160KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1393685-4 Overview

SLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

1393685-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	ADAPTER TYPE
body width	7.4 mm
body height	7.8 mm
Body length or diameter	9.9 mm
Contact (AC) maximum rated R load	.3A@24VAC
Maximum contact current (AC)	0.3 A
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated R load	.3A@24VDC
Maximum contact voltage (AC)	24 V
Maximum contact voltage (DC)	24 V
Electrical life	500 Cycle(s)
JESD-609 code	e3
Manufacturer's serial number	1393685
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
surface mount	NO
Switch action	LATCHED
switch function	CHANGE-OVER
Switch type	SLIDE SWITCH
Terminal surface	Tin (Sn)
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

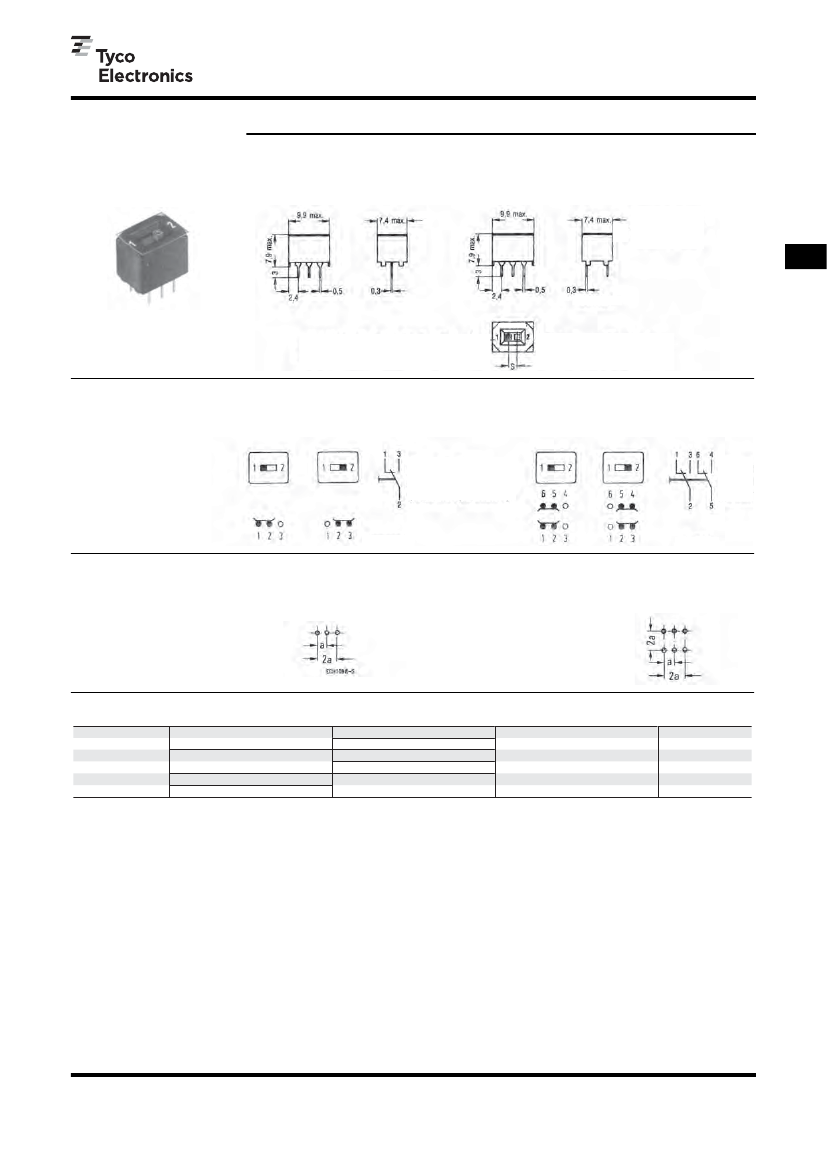

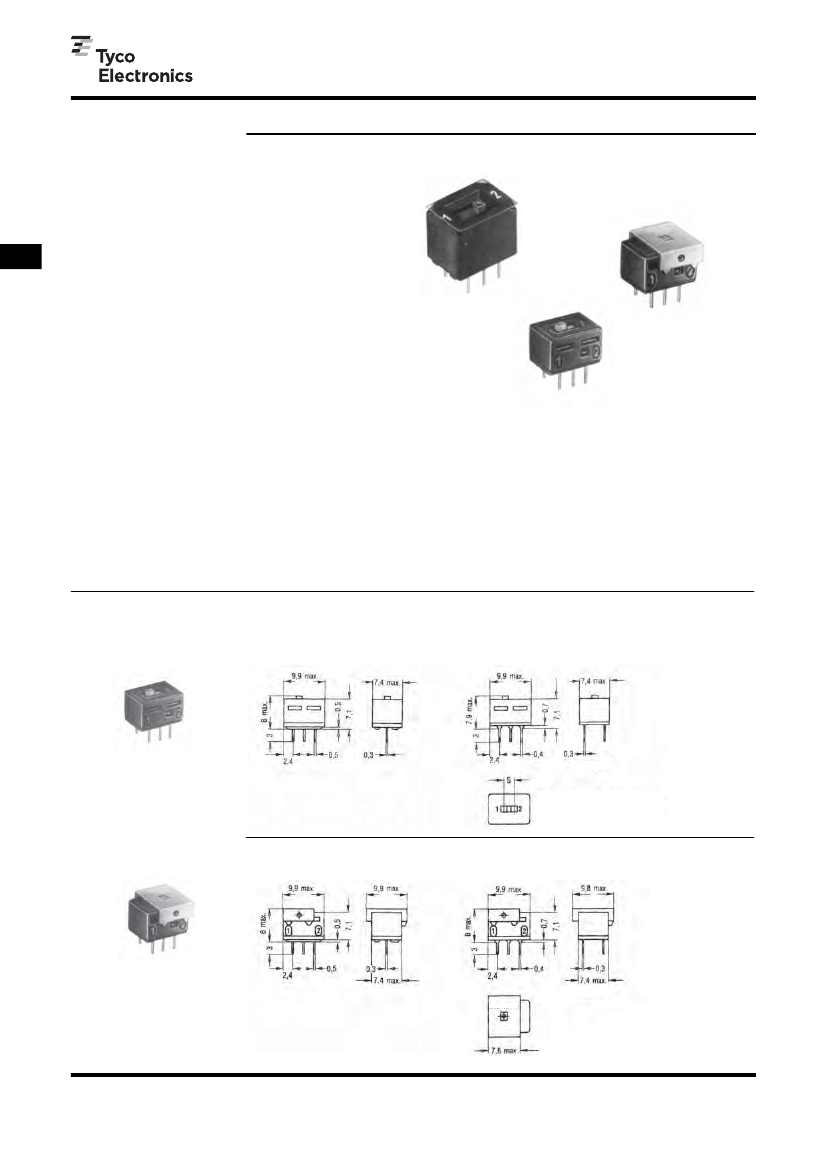

Slide Switches

A68 Series, Instrumentation Grade, THT

Features

Approved construction

Self-cleaning, gold sliding contact

Break-before-Make timing

Slide Switches

Typical performance characteristics

Contact rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0,3 A @ 24 V AC/DC

Electrical life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 500 cycles

Mechanical life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 1,000 cycles

Contact resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . max 80 mOhm

Insulation resistance . . . . . . . . . . . . . . . . . . . . . . . . . . min. 1,000 MOhm

Dielectric strength . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 VAC

Actuator travel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 mm

Environmental specification

Operating temperature . . . . . . . . . . . . . . . . . . . . . . . . . . -25°C to +85°C

Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . -25°C to +85°C

Solder heat resistance . . . . . . . . . . . . . . . . . . . . . . . . . 265°C/ 10s wave

Material specifications

Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . psu

Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . psu

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . copper alloy gold finish

Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . copper alloy tin finish

actuator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pa

RoHS compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . compliant

Actuator

Extended actuator

1 changeover contact

2 changeover contacts

travel S = 2 mm

Adapter

1 changeover contact

2 changeover contacts

B72

Catalogue No. 8-1773450-9

Issued 09/2008

Dimensions are in mm and inches and

are shown for reference purposes only.

Specifications subject to change.

www.tycoelectronics.com

1393685-4 Related Products

	1393685-4	1393685-3	1393685-2	ATS-P2-78-C2-R0	1393685-5	1393685-7
Description	SLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	pushPIN™ HS ASMBLY,FINE-PITCH,STRAIGHT, HOLE PATTERN:RIGHT-TABBED,BLUE,T766	SLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SLIDE SWITCH, CHANGE-OVER, LATCHED, 0.3A, 24VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	compli	compliant	-	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99
Actuator type	ADAPTER TYPE	EXTENDED TYPE	ADAPTER TYPE	-	FLUSH TYPE	FLUSH TYPE
body width	7.4 mm	7.4 mm	7.4 mm	-	7.4 mm	7.4 mm
body height	7.8 mm	7.1 mm	7.6 mm	-	7.9 mm	7.9 mm
Body length or diameter	9.9 mm	9.9 mm	9.9 mm	-	9.9 mm	9.9 mm
Contact (AC) maximum rated R load	.3A@24VAC	.3A@24VAC	.3A@24VAC	-	.3A@24VAC	.3A@24VAC
Maximum contact current (AC)	0.3 A	0.3 A	0.3 A	-	0.3 A	0.3 A
Maximum contact current (DC)	0.3 A	0.3 A	0.3 A	-	0.3 A	0.3 A
Contact (DC) maximum rated R load	.3A@24VDC	.3A@24VDC	.3A@24VDC	-	.3A@24VDC	.3A@24VDC
Maximum contact voltage (AC)	24 V	24 V	24 V	-	24 V	24 V
Maximum contact voltage (DC)	24 V	24 V	24 V	-	24 V	24 V
Electrical life	500 Cycle(s)	500 Cycle(s)	500 Cycle(s)	-	500 Cycle(s)	500 Cycle(s)
JESD-609 code	e3	e3	e3	-	e3	e3
Manufacturer's serial number	1393685	1393685	1393685	-	1393685	1393685
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	-	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-	-25 °C	-25 °C
surface mount	NO	NO	NO	-	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	-	LATCHED	LATCHED
switch function	CHANGE-OVER	CHANGE-OVER	CHANGE-OVER	-	CHANGE-OVER	CHANGE-OVER
Switch type	SLIDE SWITCH	SLIDE SWITCH	SLIDE SWITCH	-	SLIDE SWITCH	SLIDE SWITCH
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	-	Tin (Sn)	Tin (Sn)
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER
Base Number Matches	1	1	1	-	1	1
